MakerBot Replicator 2X Manuel utilisateur
USER MANUAL | DUAL EXTRUSION
®
AWELCOME, LET’S GET STARTED. 04
Specifications 06
How It Works 07
BSETTING UP YOUR MAKERBOT REPLICATOR 2X EXPERIMENTAL 3D PRINTER 08
What’s in The Box 10
MakerBot Replicator 2X Diagrams 11
Unpacking Your MakerBot Replicator 2X 13
Installing Enclosure Door Handle 15
Installing Filament Guide Tubes and Spool Holders 16
Mounting Filament Spools and Attaching USB Cable 17
Installing Enclosure Lid 18
Attaching Power Supply and Powering On 19
CSTARTUP PROCESS: LEVELING, LOADING, TESTING 20
Leveling the Build Plate 22
Loading MakerBot Filament 25
Unloading MakerBot Filament 31
Making a Test Object from the SD Card 32
DMAKING AN OBJECT WITH MAKERBOT MAKERWARE 36
ETROUBLESHOOTING, DIAGNOSTICS, AND MAINTENANCE 46
Troubleshooting 48
Extruder Disassembly 50
Diagnostics 51
LCD Panel | Top-Level Menu 51
LCD Panel | Utilities Menu 52
LCD Panel | Info and Settings Menu 53
Maintenance 54
Updating Firmware 54
Applying Kapton Tape 54
Lubricating Threaded Rod and X-Axis Idler Pulley 55
Glossary of Terms 57
Contact Us 59
FTERMS OF SERVICE 60
03TABLE OF CONTENTSV2
TABLE OF CONTENTS
Welcome,
Let’s get started.
A
05
WARNING: The MakerBot Replicator 2X Experimental 3D Printer generates high temperatures and
includes moving parts that can cause injury. Never reach inside the MakerBot Replicator 2X while
it is in operation. Always allow the MakerBot Replicator 2X to cool down before reaching inside.
WARNING: Do not leave the MakerBot Replicator 2X unattended during operation.
CAUTION: If opening the MakerBot Replicator 2X for service, ensure that the power supply is turned
o and the cord is disconnected.
This User Manual is designed to start your journey
with the MakerBot®Replicator®2X Experimental 3D
Printer in the right direction. Your MakerBot Replicator 2X
is optimized for ABS, a traditional thermoplastic
that can be tricky and unpredictable. In order to
achieve great results, you will need to experiment and
tinker. That’s why it’s so crucial to take the time to
learn about your new machine.
In this User Manual, you will learn the basics of
the MakerBot Replicator 2X, as well as how to unbox
it safely and get it set up. Chapters C through E will
take you through calibration, printing, maintenance,
and troubleshooting.
We are so excited to welcome you to the MakerBot
community. Let’s get started!
AWELCOME, LET’S GET STARTED.
06 A WELCOME, LET’S GET STARTED.
PRINTING
Print Technology: Fused Filament Fabrication
Build Volume: 9.7”W x 6.4”L x 6.1”H
[24.6 cm x 16.3 cm x 15.5 cm]
High 100 microns [0.0039 in]
Medium 270 microns [0.0106 in]
Low 340 microns [0.0133 in]
Positioning Precision: XY: 11 microns [0.0004 in];
Z: 2.5 microns [0.0001 in]
Filament Diameter: 1.75 mm [0.069 in]
Nozzle Diameter: 0.4 mm [0.015 in]
SOFTWARE
Soware Bundle: MakerBot MakerWare™
File Types: .stl, .obj, .thing
Supports: Windows [XP/7],
Ubuntu [11.10+],
Mac OS X [10.6+]
PHYSICAL DIMENSIONS
Without Spools: 19.1 x 12.8 x 14.7 in [49 x 32 x 38 cm]
With Spools: 19.1 x 16.5 x 14.7 in [49 x 42 x 38 cm]
Shipping Box: 22.75 x 22.75 x 16.75 in
[57.8 x 57.8 x 42.5 cm]
Weight: 27.8 lbs [12.6 kg]
Shipping Weight: 40.0 lbs [18.1 kg]
[All packages]
TEMPERATURE
Ambient Operation 15°–32° C [60°–90° F]
Temperature:
Storage Temperature: 0°–32° C [32°–90° F]
ELECTRICAL
AC Input: 100–240V, ~4 amps, 50–60 Hz
Power Requirements: 24V DC @ 9.2 amps
Connectivity: USB, SD card [FAT16, max 2 GB]
MECHANICAL
Chassis: Powder-coated steel
Body: PVC Panels
Build Platform: 356 aluminum
XYZ Bearings: Wear-resistant,
oil-infused bronze
Stepper Motors: 1.8° step angle with
1/16 micro-stepping
SPECIFICATIONS
Layer Resolution
Settings:
07AWELCOME, LET’S GET STARTED.

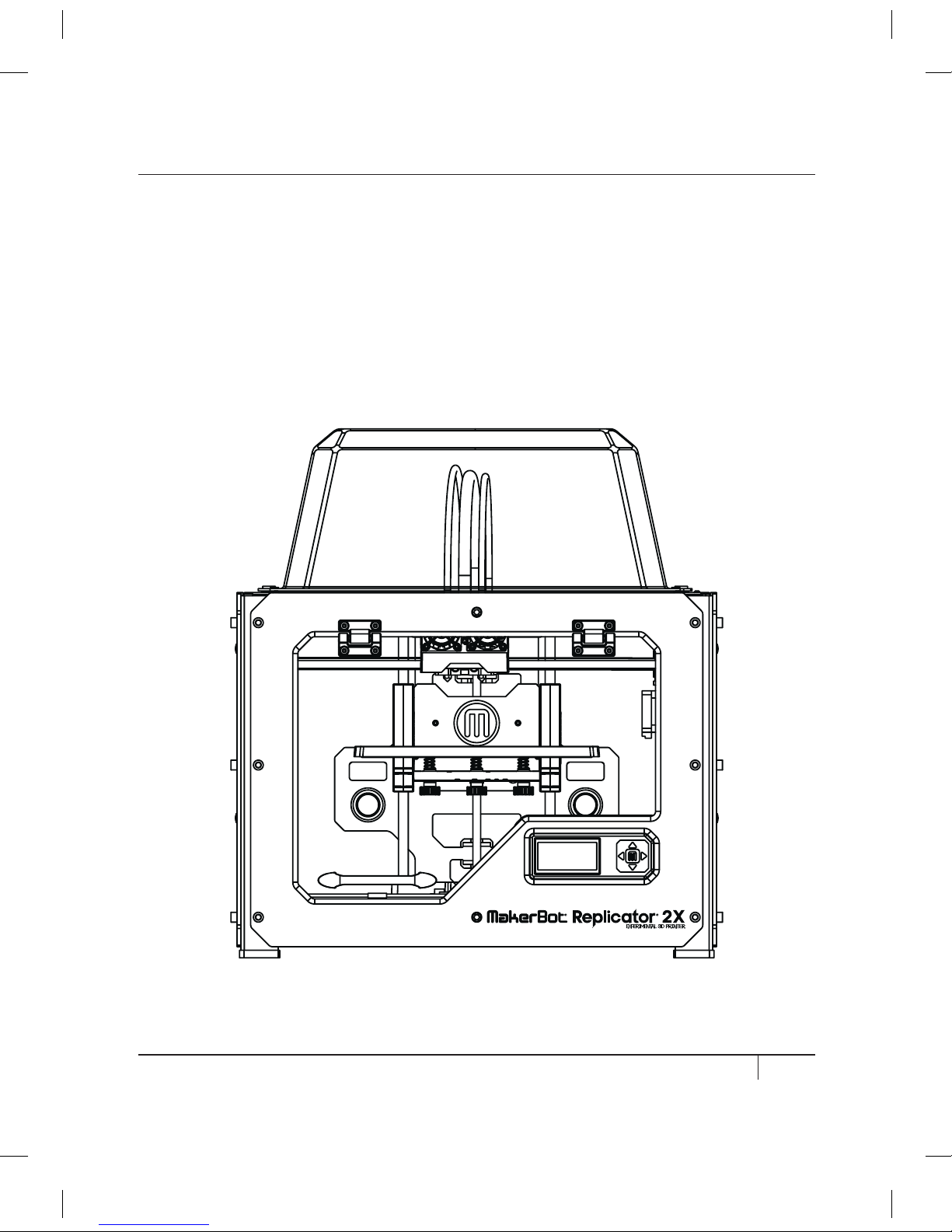

The MakerBot Replicator 2X Experimental 3D Printer makes solid, three-dimensional objects
out of melted MakerBot Filament. Your 3D design files are translated into instructions for
the MakerBot Replicator 2X and sent to the machine via USB cable or SD card. Then the
MakerBot Replicator 2X heats the MakerBot Filament and squeezes it out through a nozzle
onto a heated surface to build a solid object, layer by layer. This method is called Fused
Filament Fabrication [FFF].
HOW IT WORKS
Setting Up Your
MakerBot®Replicator® 2X
Experimental 3D Printer
B
09
When you set up your MakerBot®Replicator®2X
Experimental 3D Printer, remember that it was built
and packaged very carefully at the MakerBot
factory. We hope you’ll take your time and be just
as careful unpacking it and getting set up.
NOTE: Do not force or tear anything during unpacking and setup.
This may damage the MakerBot Replicator 2X.
BSETTING UP YOUR MAKERBOT REPLICATOR 2X EXPERIMENTAL 3D PRINTER
10 BSETTING UP YOUR MAKERBOT REPLICATOR 2X EXPERIMENTAL 3D PRINTER
WHAT’S IN THE BOX
MakerBot ABS
Filament [1lb Spools]
2 2 2 1
Spool holders Handle and boltsFilament guide
tubes
Power supply
and cable
1 1 31
MakerBot tape
applicator
Kapton tape sheetsUSB-A to
USB-B cable
SD card
1 4 1 1
PTFE-based grease Support cardHex wrenches
*More options available at makerbot.com/store
*
