INSTRUCTION MANUAL
TIMBER MOISTURE METER
MT960
2
3
Contents Page no
1. User Instructions...............................................................................4
2. Meter Description..............................................................................4
3. Measuring Instructions......................................................................5
4. Using the Instrument without the Temperature Probe............................5
5. Automatically Temperature Corrected (ATC).........................................5
6. Set-Up Automatically Switch-Off Time..................................................5
7. Calibration Check..............................................................................6
8. Calibration Check..............................................................................6
9. Calibration Tables for Wood................................................................6
9.1. Timber Species Group Table.......................................................6
9.2. Botanical Names of Timber.........................................................8
4
1. USER INSTRUCTIONS
This instrument is a conductivity moisture meter specifically designed for
the timber industry. The instrument has eight calibration scales, enabling
the user to take accurate moisture measurements in 150 wood species.
Moisture measurements can be taken using the integral pin electrodes, or
using the heavy duty moisture probe. When used with the temperature
probe, the moisture measurements are automatically corrected with respect
to temperature. This instrument is switched on by pressing " "
momentarily and switched off by pressing " " and holding for 3 seconds or
more. The instrument will switch off automatically after 5 minutes, the
default automatically switch off time can be setting range 1 to 9 minutes
(see section 4).

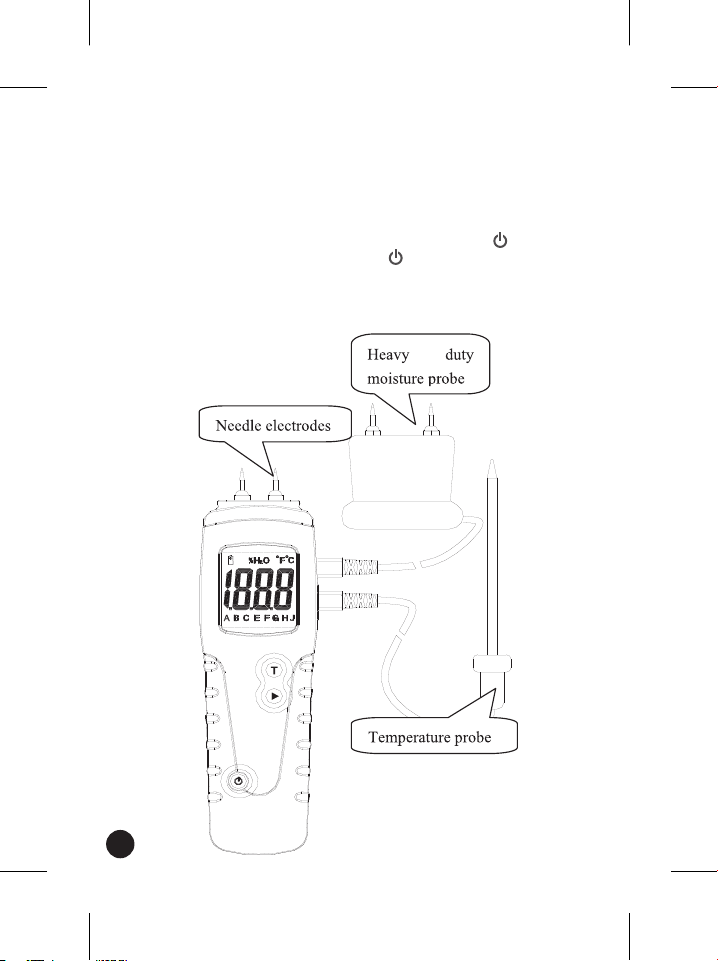

2. METER DESCRIPTION
5
3. MEASURING INSTRUCTIONS
Remove the cap to expose the needle electrodes OR Connect the heavy
duty moisture probe socket on the right hand side of this instrument and
switch-on by pressing " ". Select the appropriate wood calibration scale
(A, B, C, E, F, G, H or J) by referring to the enclosed wood calibration
table and pressing " ". Push into the wood and observe the reading.
4. USING THIS INSTRUMENT WITHOUT THE TEMPERATURE
PROBE
The instrument is calibrated for wood at 20°C (68°F). In general, timber
that is hotter than 20°C will give higher readings and timber colder than
20°C will give lower readings. An approximate manual correction of 0.5%
moisture content per 5°C may be subtracted from timber that is above
20°C. For timber that is below 20°C, a manual correction of 0.5%
moisture content per 5°C may be added to the measured value.
5. AUTOMATICALLY TEMPERATURE CORRECTED (ATC)
Switch the instrument on and select the appropriate wood calibration
scale as detailed in sections 1. Using a hammer and nail of nominal 3 mm
diameter, make a hole in the wood to be tested. Remove the nail and
push the Temperature Probe into the hole until the tip is at the required
depth. Connect the Temperature Probe into the instrument via the "Temp"
socket. Then using this instrument to measure timber can obtain the
automatically temperature corrected (ATC) moisture value. If you need to
read current temperature of timber press "T" button, then LCD will display
the temperature. Press "T" button the LCD will display either °C or °F
temperature. Pressing " " button the LCD display moisture value again.
(Temperature Range: -35°C ~ 80°C).
6. SET-UP AUTOMATICALLY SWITCH-OFF TIME
Combinatorial using " " + " " button can change the default
automatically switch-off time. Depress the " " button don't release and
press the " " button will automatically change the switch-off time
(disable automatically switch-off or set from 1 to 9 minutes) by changing
the code as detailed in the following table.
0 Disables automatic switch-off
1 Selects automatic switch-off at 1 minute
2 Selects automatic switch-off at 2 minutes
3 Selects automatic switch-off at 3 minutes
…… ……And so on to……
9 Selects automatic switch-off at 9 minutes
Code Description
6
7. CALIBRATION CHECK
There are two checked calibration in the cap of the instrument. Use the
needle touch the two poles of calibration cap. When checking the
calibration, the A scale should be selected and the temperature probe
must be disconnected. Correctly calibrated the instrument will register
%H2O values in the range 17.7 to 18.3 (at the "T" calibration) and in the
range 25.5 to 26.5 (at "B" calibration). (If the tolerance is over +/-1 the
instrument can't accurately measure the moisture of timber, then open
the back cover, adjust the rheostat to adjust the tolerance to meet the
range.)
8. CARE AND MAINTENANCE
When the instrument is not in use, keep it in its pouch together with its
accessories. Store the kit in a stable, dust-free environment out of direct
sunlight. Remove the batteries from the instrument if it is to be stored for
periods of more than one month, or when the low battery power symbol
appears on the display. Check the condition of accessories used with the
instrument on a regular basis and replace them if they become worn or
damaged.
Common names of timbers as BS888&589:1973
Abura E
Afara A
Aformosa G
Afzelia E
Agba J
Amboyna G
Ash, American B
Ash, European A
Ash, Japanese A
Ayan C
Baguacu, Brazilian F
Balsa A
Banga Wanga A
Basswood G
Beech, European C
Berlina B
Binvang E
Birch, European J
9. CALIBRATION TABLES FOR WOOD
9.1. Timber Species Group Table
Birch, Yellow A
Bisselon E
Bitterwood F
Blackbutt C
Bosquiea A
Boxwood, Maracaibo A
Camphorwood, E African C
Canarium, African B
Cedar, Japanese B
Cedar, West Indian J
Cedar, Western Red C
Cherry, European J
Chestnut C
Coachwood G
Cordia, American Light F
Cypress, E African A
Cypress, Japanese (8-18%mc) J
Cypress, Japanese (18-28%mc) C
7
Dahoma A
Danta C
Douglas Fir B
Elm, Japanese Grey Bark B
Elm, English E
Elm, Rock E
Elm, White E
Empress, Tree J
Erimado F
Fir, Douglas B
Fir, Grand A
Fir, Noble J
Greenheart C
Guarea, Black J
Guarea, White H
Gum, American Red A
Gum, Saligna B
Gum, Southern B
Gum, Spotted A
Gurjun A
Hemlock, Western C
Hiba J
Hickory F
Hyedunani B
Iroko F
Ironbank B
Jarrah C
Jelutong C
Karpur A
Karri A
Kauri, New Zealand E
Kauri, Queensland J
Keruing F
Kuroka A
Larch, European C
Larch, Japanese C
Larch, Western F
Lime E
Loliondo C
Mahogany, African J
Mahogany, West Indian B
Makore B
Mansoia B
Maple, Pacific A
Maple, Queensland B
Maple, Rock A
Maple, Sugar A
Matai E
Meranti, Red (dark/light) B
Meranti, White B
Merbau B
Missanda C
Muhuhi J
Muninga G
Musine J
Musizi J
Myrtle, Tasmanian A
Naingon C
Oak, American Red A
Oak, American White A
Oak, European A
Oak, Japanese A
Oak, Tasmanian C
Oak, Turkey E
Obeche G
Odoko E
Okwen B
Olive, E African B
Olivillo G
Opepe H
Padang A
Padauk, African F
Panga Panga A
Persimmon G
Pillarwood F
Pine, American long leaf C
Pine, American pitch C
Pine, Bunya B
Pine, Caribbean Pitch C
Pine, Corsican C
Pine, Hoop C
Pine, Huon B
Pine, Japanese Black B
Pine, Kauri E
8
Pine, Lodgepole A
Pine, Maritime B
Pine, New Zealand White B
Pine, Nicaraguan Pitch C
Pine, Parana B
Pine, Ponderosa C
Pine, Radiata C
Pine, Red B
Pine, Scots A
Pine, Sugar C
Pine, Yellow A
Poplar, Black A
Pterygota, African A
Pyinkado E
Queensland Kauri J
Queensland Walnut C
Ramin G
Redwood, Baltic (European) A
Redwood, Californian B
Rosewood, Indian A
Rubberwood H
Santa Maria H
Sapele C
Sen A
Seraya, Red C
Silky Oak, African C
Silky Oak, Australian C
Spruce, Japanese (8-18%mc) J
Spruce, Japanese (18-28%mc) C
Spruce, Norway (European) C
Spruce, Sitka C
Stringybark, Messmate C
Stringybark, Yellow C
Sterculia, Brown A
Sycamore F
Tallowwood A
Teak F
Totara E
Turpentine C
Utile J
Walnut, African J
Walnut, American A
Walnut, European C
Walnut, New Guinea B
Walnut, Queensland C
Wawa G
Wandoo J
Whitewood C
Yew C
