Macally FMPort Manuel utilisateur
1
FMPort User's Guide
Portable full channel FM transmitter with Charger
for iPhone and iPod
www.macally.com
2
Thank you for purchasing the Macally FMPort . Macally FMPort
is a portable full channel FM transmitter with charger for iPhone
and iPod.
The FMPort supports all models iPhone 2G/3G/3GS, iPod touch
1st/2nd/3rd Gen, iPod classic, iPod nano 1st/2nd/3rd/4th/5th Gen,
iPod 5th Gen, iPod 4th Gen and iPod mini.
Before you begin using the Macally FMPort, be sure to read this
user’s guide in its entirety.
Macally Technical Support:
Please register this product at www.macally.com/register.html.
or call 1(909)230-6778 (Mon – Fri 8:30AM – 5:30PM, Pacific
standard time, USA)
Package Contents:
1) FMPort
2) USB Mini-B Cable
3) Remote Control
4) USB Car Charger
5) User’s Guide
3
FMPort Basics
1 30 Pin Connector (Connect to iPod or iPhone)
2 Built-in QS button - Quick switch among 4 memory
channels (Four initial frequency channels are 88.1, 94.1,
100.1 & 106.1MHz, which are changeable to suit your
need.)
3 Built-in “+” Channel Up
4 Built-in “-“ Channel Down
5 LCD display(Display Radio Frequency)
6 IR receiver window
7 USB Charging port
4
Remote Control
Remote control provides you more control to FMPort and
iPod/iPhone conveniently.
5
Using the FMPort
1.Connect the FMPort to your iPod or iPhone. Play music in
iPod or iPhone, the FMPort LCD display will turn on. iPod or
iPhone provides power to the FMPort, so they are portable to
use in car or home where radio is located.
2. You can also charge iPod or iPhone while using the FMPort.
At home, please use included USB mini-B cable to connect
FMPort to a USB AC charger(not included) or a computer’s USB
port(please exit from sync function but remain USB cable

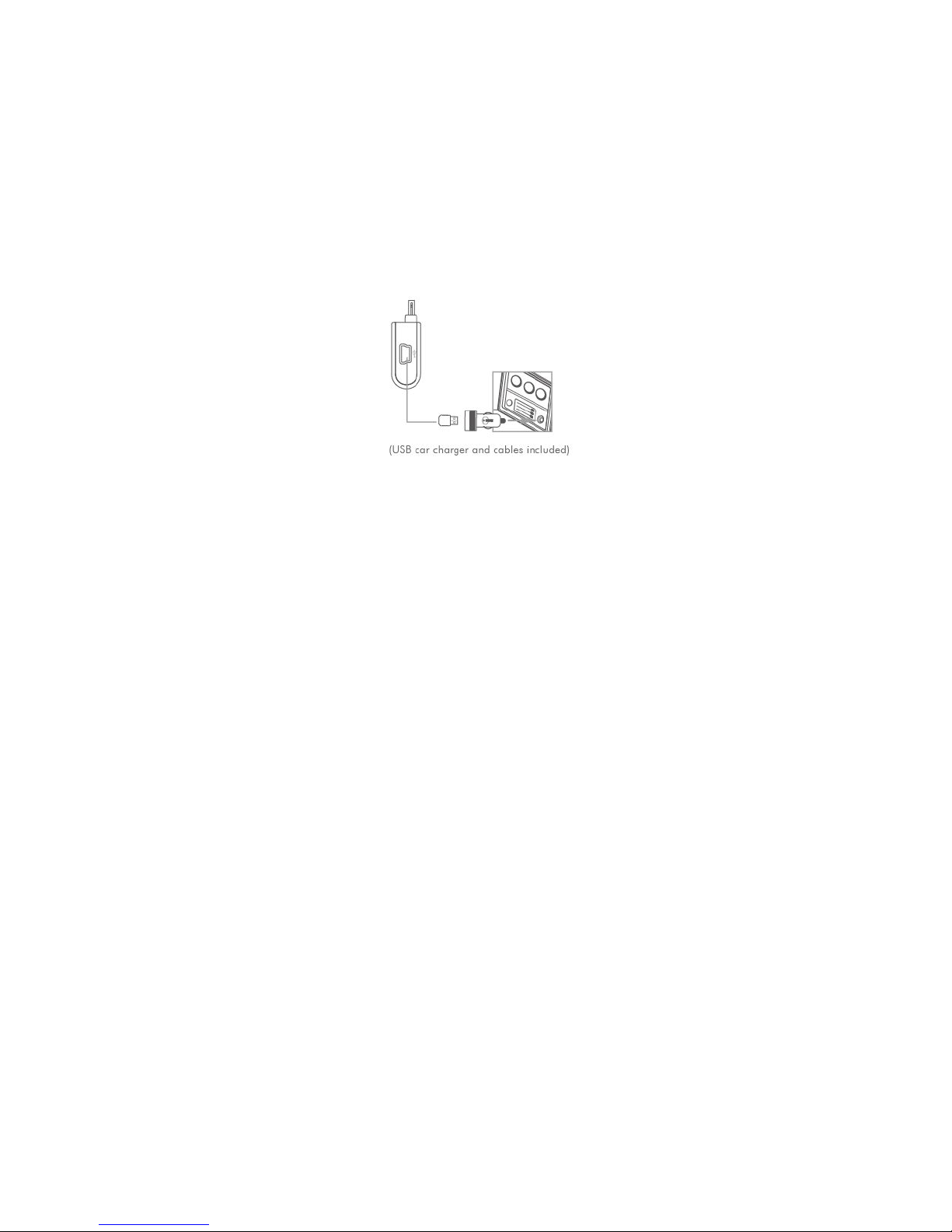

connection) to get power. In the car, please use USB mini-B
cable to connect FMPort to USB car charger, which goes into
cigarette lighter outlet. When you see iPod or iPhone charging,
connection is correct. Car charger connection is displayed
below.
6
3. The FMPort LCD display shows a frequency channels (For
example, 88.1MHz).
4. Turn on your radio, tune to FM channel. We suggest you
looking for a station between 88.1 and 107.9MHz that is not
currently used or with very weak signal for broadcast in your
area.
5. Once you have set a channel in radio, press "+" or "-" buttons
to match the frequency channel to FM radio. (For example, if the
radio frequency channel is set to 95.1MHz then the FMPort
Transmitter should also be set to 95.1MHz). Once both the radio
and FMPort Transmitter 's frequency are in-sync, the static noise
in radio will change to iPod music.
6. If the sound quality is not good enough, please find another
frequency channel following step 4 and 5. Adjust the radio
volume to your comfortable level. This is your clear channel, you
can update it into new memory channel.
7. You may need to change the channels from time to time due
to interference that may occur in some areas while you are
driving. For your and other’s safety, you should stop the car to
make change.
7
Updating the Memory Channels:
FMPort comes with four default memory channels M1 to M4,
88.1, 94.1, 100.1 and 106.1MHz. The memory channel can be
updated to your own clear FM channels, so you can quick switch
among clear memory channels by pressing QS button.
1. Find a clear frequency channel to play iPod music.
2. Press and hold QS button for 1.5 seconds or longer, the
current M1 memory channel will start blinking on the LCD
display, press “+” channel up or “-“ channel down button to
toggle among M1, M2, M3 and M4. When the memory channel
number(M1, 2, 3 or 4) to be updated appears, press the QS
button once to save.
3. Repeat step 1 and 2 to update all four clear memory channels
in your area to use.
4. With QS button you can quickly switch to another clear
channel in FMPort to use if current channel becomes unclear.
Tune radio to the same channel to hear iPod music clearly.
Please note: (1) IR receiver window can be interfered by
strong indoor fluorescent light. In case FMPort turns off by
itself due to strong fluorescent light, you can place a small
piece of paper or object directly above the IR receiver
window to shade it from strong light, but keep the window
uncovered so you are still able to use remote control.
(2) When FMPort is inserted into iPod or iPhone, its LCD will
8
turn on display, however control of the FMPort and FM
transmitter do not work until iPod or iPhone music starts
playing.
Warranty
Macally peripherals warrants that this product will be free from defects in title,
materials and manufacturing workmanship for one year from the date of purchase.
If the product is found to be defective then, as your sole remedy and as the
manufacturer’s only obligation, Macally will repair or replace the product. This
warranty shall not apply to products that have been subject to abuse, misuse,
abnormal electrical or environmental conditions, or any condition other than what
can be considered as normal use.
Limitation of Liability
The liability of Macally Peripherals arising from this warranty and sale shall be
limited to a refund of the purchase price. In no event shall Macally Peripherals be
liable for costs of procurement of substitute products or services, or for any lost
profit, or for any consequential, incidental, direct or indirect damages, however
caused and on any theory of liability, arising from this warranty and sale. These
limitations shall apply not with standing any failure of essential purpose of any
limited remedy.
Copyright® 2009 by Macally Peripherals
9
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to
operate this equipment. (Example- use only shielded interface cables when
10
connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment complies with Part 15 of the FCC Rules.Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Caution!
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user authority to operate the equipment.
