Lucent Compact Switch

The Lucent Technologies Compact Switch offers an ideal solution for

service providers who need a simple solution for single switch applications.

Delivering a host of legacy and next generation features and capabilities in

a single chassis, the Compact Switch offers quick and easy installation and

outstanding reliability. Multiple applications can be simultaneously supported

on the same platform, furnishing providers with a broad range of business

and residential service offerings as well as compelling economics. Deployed

in numerous domestic and international networks, the Compact Switch

provides the ideal solution for carriers who wish to offer next-generation

packet-based services in addition to traditional residential or business

services. The Compact Switch is equally at home in greenfield or cap-and-

grow environments.

Benefits

• Full softswitch performance in a

single platform

• Built-in CLASS/Custom calling

features are available to both TDM

and IP subscribers; the Lucent

Feature Server is available for

delivering advanced services

• Supports a rich mix of legacy and

VoIP applications concurrently

• Industry-leading density reduces

power and space requirements

• Highly scalable platform delivers

very low cost per subscriber

Applications

• Carrier-grade switch for suburban, rural and remote service areas

• Ideal solution for cap-and-grow environment

• Local, tandem, ISDN, Centrex and long distance calling

• GR-303 host for remote access nodes including wireless local

loop equipment

Features

• Scales up to 100,000 subscribers

• Supports LNP, 800 calling, operator services, and CALEA on-switch

• Supports IP Endpoints and interoffice IP connections

• Supports a comprehensive set of Class 5 end office and Tandem

features and a suite of revenue generating CLASS, Custom and

next-generation services

• Low power consumption and ultra compact footprint mountable

on 23” open rack

• Supports standardized protocols and open interfaces

• Supports basic and enhanced 911 services

• RUS accepted

To learn more about our

comprehensive portfolio, please

contact your Lucent Technologies

Sales Representative or:

Call 1 888 4 LucentSM

Visit our web site at

www.lucent.com.

This document is for planning purposes

only, and is not intended to modify or

supplement any Lucent Technologies

specifications or warranties relating to

these products or services. The

publication of this information in this

document does not imply freedom from

patent or other protective rights of

Lucent Technologies or others.

Specifications are subject to change

without notice.

Lucent Technologies, Inc.

Compact Switch v2 08/05

Technical Specifications

1.Protocol Support

IP Protocols: BICC, MEGACO, MGCP, SIP/SIP-T, SigTran, TCP, UDP, RTP, RTCP

SS7 Protocols: ANSI and ITU/ETSI, Q.767, ISUP, TCAP variants, IS-41, GSM

ISDN Protocols: Q.931 PRI, GR-1268 PRI, ETSI PRI

CAS Protocols: FG-D, CAMA MF, line or trunk supervision, DTMF

GR-303 interface

GR-1298/1299 AIN 0.2 compliance

AIN 0.1 for LNP and 800 services

2.Redundancy

1:1 system processor and switch fabric redundancy

1:N I/O module redundancy

3.Call Handling

450,000 BHCA

80,640 TDM DS0 ports, protected

21,504 VoIP DS0 ports, protected

G.711, G.726, G.729a/b, G.723.1, T.38 fax relay, echo cancellation (128 msec tail)

4.On-Switch Database

A high capacity (more than 100,000 subscribers) flexible database to store

subscribers, features, and routing information for both tandem and Class 5

applications

5.Operations

PlexView®Element Management System supports provisioning, performance

monitoring, and fault management

Billing: GR-1343 AMA interface, GR-1100 BAF or ASCII CDRs

Order Entry: manual or automated service order execution

Traffic Analysis and Reporting with customized report building

4000 seconds of announcements on-switch

Call Progress Tones on switch

3-way conferencing on-switch

CALEA support on-switch

6.Input/Output Support

28-port DS1, channelized: SF, ESF, B8ZS, AMI

28-port E1 channelized: CRC4, HDB3

3-port DS3/STS-1, channelized: VT1.5 or M13/C-Bit mapped, B3ZS

8-port DS3/STS-1, channelized: VT1.5 or M13/C-Bit mapped B3ZS

Triple OC-3, channelized: VC-1.5 or M13

Triple STM-1 channelized: VC-12

Quad 1000 Mbps Ethernet module with either: quad 1000 base-T, quad 1000 base-

LX, single mode or SX multi-mode interface using standard GBIC modules

7.Physical

24.5” H x 21.5” W x 18” D including cabling

180 lbs, fully loaded

-40 to –56.7 Vdc, 1450 watts fully loaded

NEBS CO and ETSI compliant operating environment

Redundant BITS timing support with internal Stratum 3 sources

CE and UL certified

Table des matières

Autres manuels Lucent Technologies Changer

Lucent Technologies

Lucent Technologies Cajun P112T Manuel utilisateur

Lucent Technologies

Lucent Technologies OptiStar EdgeSwitch Manuel utilisateur

Lucent Technologies

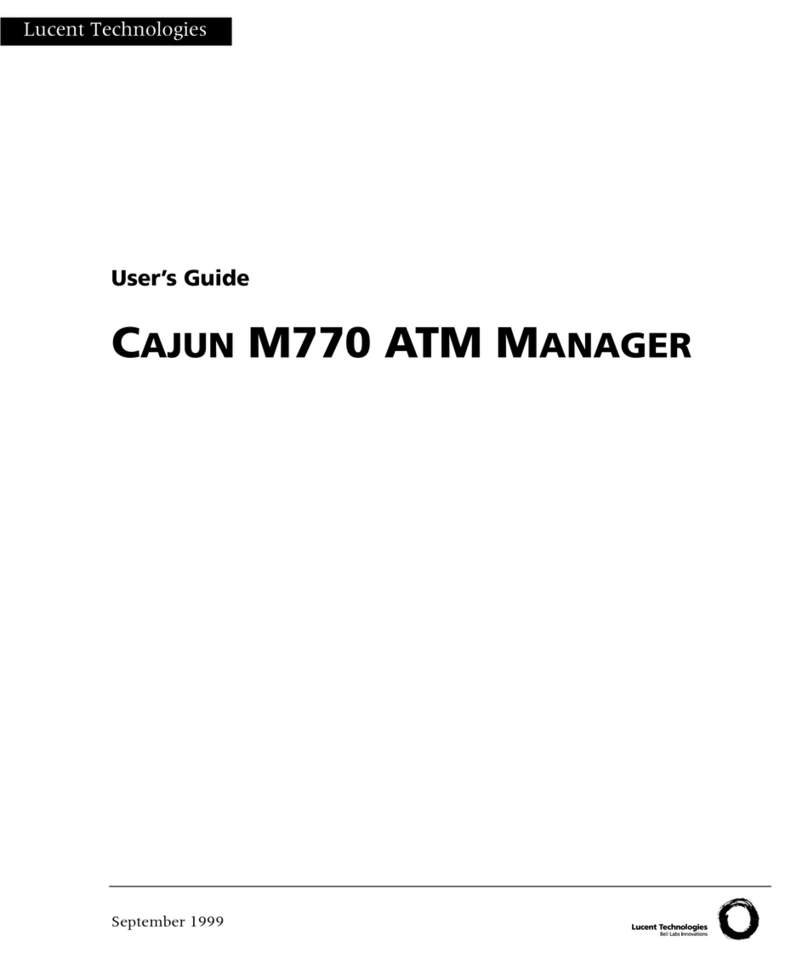

Lucent Technologies CAJUN M770 Manuel utilisateur
