Release Notes Supporting
Cajun P220, P550, and P550R Switches
Software Release 4.0.1
November 1999
Part # 610-0120-061
Release 4.0.1 Notes Supporting the Cajun P220, Cajun P550, and Cajun P550R Switches
© Copyright LUCENT TECHNOLOGIES 1999 ALL RIGHTS RESERVED
Printed in USA, November 1999
The products, specifications, and other technical information regarding the products contained in this document are subject to
change without notice. All information in this document is believed to be accurate and reliable, but is presented without warranty
of any kind, express or implied, and users must take full responsibility for their application of any products specified in this
document. Lucent disclaims responsibility for errors which may appear in this document, and it reserves the right, in its sole
discretion and without notice, to make substitutions and modifications in the products and practices described in this document.
Lucent, Cajun, CajunDocs, OpenTrunk, P550, P220 and CajunView are trademarks of Lucent Technologies.
Microsoft, Windows, Windows NT, Windows 95, Windows 98, and Internet Explorer are trademarks or registered trademarks of
Microsoft Corporation in the U.S. and/or other countries.
OpenView is a trademark of Hewlett Packard Company.
Netscape and Netscape Navigator are registered trademarks of Netscape Communications Corporation in the United States and
other countries.
3Com is a registered trademark and PACE is a trademark of 3Com or its subsidiaries.
Adobe is a registered trademark of Adobe Systems Incorporated.
Bay Networks and System 5000 are registered trademarks of Nortel Networks.
Cisco Catalyst 5000 is a registered trademark of Cisco Systems Incorporated.
ALL OTHER TRADEMARKS MENTIONED IN THIS DOCUMENT ARE PROPERTY OF THEIR RESPECTIVE OWNERS.
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 3
Chapter 1 Read Me First
This section of the Release Notes Supporting the Cajun P220 and Cajun P550 family of switches
contains information that is crucial to know before proceeding to install or use the Cajun switch.
Please review the following release notes before continuing to the Overview section.
CAUTION: Release 4.0.1 embedded software requires a MINIMUM of 16 MB DRAM
(Dynamic Random Access Memory) to run on a Cajun P550 Layer 2
supervisor module. BEFORE upgrading, ensure that the switch meets this
16 MB DRAM requirement. A memory upgrade is not required for a Cajun
P550 Layer 3 supervisor module, or the Cajun P220.
CAUTION: Release 4.0.1 introduces a new ASCII configuration file format that replaces
the traditional binary (*.cfg) files used to store and restore saved
configurations. You must save your binary configuration before upgrading the
switch to Release 4.0.1 or rebooting the switch for the first time using Release
4.0.1. For information about saving your binary configuration, refer to the
“Installation” section of these release notes.
CAUTION: When making configuration changes to the switch, explicitly save changes by
copying the running configuration to the startup configuration to ensure that
the changes persist after the switch is restarted.
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 4
Chapter 2 Overview
This set of release notes supports the Cajun P220, Cajun P550, and Cajun P550R switches. For
detailed information about your product, refer the basic set of user documentation. These release
notes are intended to get you up and running as quickly as possible. The following topics are
covered:
•Read Me First
•Overview
•New Features
•Product Binaries
•Installation
•Problems and Workarounds
•Functional Restrictions
•Bug Fixes
•Additional Undocumented Commands
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 5
Chapter 3 New Features
This section covers features specified for Release 4.0.1 of the Cajun P220, Cajun P550, and Cajun
P550R switches. All supporting documentation is available from the Lucent Technologies Web
site at HTTP://pubs.lucentctc.com.
The Cajun P550R switch, which supports Layer 3 technology, contains features that are not
available in the Layer 2 Releases of the switch.
The following new features are available in Release 4.0.1 through the Enhanced Command Line
Interface or the Web Agent:
•VTP eavesdropping (Cisco compatibility)
•LDAP Release 3 client necessary for RealNet Rules support
•Support for the following MIBs:
-Policy capabilities MIB (proprietary)
-RIP v1/v2 (RFC1724)
-OSPFv2 (RFC1850)
-IGMP – Internet Group Management Protocol MIB (draft-ietf-edmr-igmp-mib-
12.txt)
-IP Interface (proprietary)
-IP Forwarding/Route Table (RFC2096)
-IP ARP (RFC2011)
-DVMRP (draft)
-AppleTalk (RFC1243)
-IP Access List (proprietary)
-IPX Interfaces (proprietary)
•VRRP (Virtual Redundant Router Protocol, RFC 2338)
•Multiple configuration images – Multiple configuration files may be stored in NVRAM
and loaded into the switch at a later date
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 6
•IPX Multinetting
•ASCII text configuration files with upload/download
•Redundant backplane support for Cajun P550R switches
•SNTP (Simple Network Time Protocol)
•AppleTalk Routing
•Hexadecimal addressing – subnet masks may be represented by a hexadecimal value
•Access lists
-Source and destination IP address wildcarding and TCP/UDP ranges
-TCP established connection filtering
•Configuration scripting via command line execution
Additional Undocumented Features
Features in this section are not documented in the released product documentation.
BOOTP/DHCP Relay Gateway
You can Enable or Disable the BOOTP/DHCP Relay Gateway from the Enhanced CLI in Interface
mode using the command '[no] ip bootp-dhcp gateway'. From the Cajun Switch Web
Agent, this setting is located in the IP Interfaces dialog box. To open the IP Interfaces dialog box,
in the IP Configuration section of the Web Agent, click Interfaces. The default for this parameter
is Disable.
This parameter affects how the router chooses a source interface for the reception of BOOTP/
DHCP requests received on a VLAN, as this source interface determines the value that is inserted
by the router into the giaddr field and designates the IP subnet pool that the DHCP server uses
to assign an address.
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 7
The source interface is determined as follows:
Table 1-1: Source Interface Determination: BOOTP/DHCP Relay Gateway
Number of
Interfaces on
VLAN
Number of Interfaces
with Parameter
Enabled Source Interface
1N/A The interface itself.
10The first UP interface found.
11Preferred interface if UP; otherwise, first
UP interface found.
11First preferred UP interface found;
otherwise, first UP interface found.
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 8
Chapter 4 Product Binaries
The following table shows the binary files that contain embedded software for the Release 4.0.1
Cajun P220, Cajun P550, and Cajun P550R switches.
Table 1-2: Product Binary Files
Type of Switch Binary File
Cajun P220 m2200_v4.0.1.bin
Cajun P550 m5500_v4.0.1.bin
Cajun P550R m5500r_v4.0.1.bin
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 9
Chapter 5 Installation
CAUTION: Release 4.0.1 embedded software requires a MINIMUM of 16 MB DRAM
(Dynamic Random Access Memory) to run on a Cajun P550 Layer 2
supervisor module. BEFORE upgrading, ensure that the switch meets this
16 MB DRAM requirement. A memory upgrade is not required for a Cajun
P550 Layer 3 supervisor module, or the Cajun P220.
NOTE: Release 4.0.1 introduces a new ASCII configuration file format that replaces the
traditional binary (*.cfg) files used to store and restore saved configurations. Before
upgrading the switch to Release 4.0.1, review the Installation section of these release
notes.
The following memory upgrade kits are available through your local sales representative:
Use the following procedure to upgrade from Release 3.1 to Release 4.0.1 of the Cajun P220,
Cajun P550, or Cajun P550R switch. For more detailed installation procedures, refer to the Cajun
P550/P220 Switch Installation Guide.
Downgrading to a Previous Release
1. In the CLI Configuration section of the Web Agent, click Config File Management.
In the Configuration File Management dialog box, save your Release 4.0.1 Running
Configuration (running.txt) to a TFTP server for potential later use.
2. From the Release 4.0.1 Enhanced CLI, clean the current configuration by issuing the
nvram init command.
3. Configure the switch to select the APP that contains the previous code release.
4. Reset the switch.
Table 1-3: Module Descriptions
Description Model Number
16 MB Memory
Upgrade Kit M5500-MEM16
32 MB Memory
Upgrade Kit M5500-MEM32
Cajun P220, P550, P550R Switch Release Notes, Release 4.0.1 10
5. Use the CLI setup command to configure the switch.
6. Restore the binary configuration files of the release (3.1 or previous) you want to
restore. These configuration files do not reflect any changes you made to the
running configuration while using Release 4.0.1.
Problem: Release 4.0.1 of the Cajun switch contains new range-checking procedures
that may be reasonably more restrictive than those of previous releases.
Workaround: If you have a parameter in 3.1 that is outside the 4.0 range, it will be
noted in the Script Log File. After the second reboot the switch, check the Script Log File
to find out if any errors occurred as the script executed. To check the Script Log File, click
Script Log File in the CLI Configuration section of the Web Agent. If errors were
found, scroll up to find the particular error message. If you prefer to use the Enhanced
CLI, at the system prompt, type: show file logfile.txt.
NOTES:
•Some of the associated CLI command incorrectly list “Multilayer” and “3Com”.
These are not supported by the Cajun P550 48-Port 10/100 Media Module (M5548E-
100TC).
•In Release 4.0.1 of the Cajun switch, the Web Agent provides a new set of dialog
boxes in which you can:
-View startup and running configuration files
-View script execution log files
-Copy and manage configuration files
Ensure that you copy configuration files to a TFTP server or other storage location using
the Configuration File Management dialog box.
Upgrading from Release 3.1 or Previous Releases
Use the following procedure to upgrade the switch from Release 3.1 to Release 4.0.1.
NOTE: The Cajun switch does not support a direct upgrade to Release 4.0.1 from
releases prior to Release 3.0. If your switch runs a release prior to 3.0, upgrade the
switch to Release 3.0 or 3.1. Then, use the following procedure to upgrade the switch
from Release 3.0 or 3.1 to Release 4.0.1.
Autres manuels pour Cajun P220
1
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Lucent Technologies Changer
Lucent Technologies
Lucent Technologies Cajun P333T Manuel utilisateur
Lucent Technologies
Lucent Technologies CAJUN M770 Manuel utilisateur
Lucent Technologies
Lucent Technologies 4ESS Manuel utilisateur
Lucent Technologies
Lucent Technologies 4ESS Manuel utilisateur
Lucent Technologies

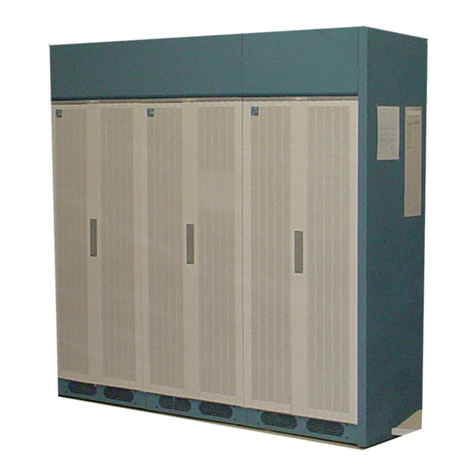

Lucent Technologies 5ESS Manuel utilisateur
