Lowrance HOOK2 X series Manuel utilisateur

ENGLISH

Hook2 X Series

Operator Manual

4x GPS, 4x Sonar, 5x GPS HDI, 7x GPS HDI

www.lowrance.com

Preface

Disclaimer

As Navico is continuously improving this product, we retain the

right to make changes to the product at any time which may not be

reflected in this version of the manual. Please contact your nearest

distributor if you require any further assistance.

It is the owner’s sole responsibility to install and use the equipment

in a manner that will not cause accidents, personal injury or

property damage. The user of this product is solely responsible for

observing safe boating practices.

NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND

AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT

IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY

VIOLATE THE LAW.

Governing Language: This statement, any instruction manuals, user

guides and other information relating to the product

(Documentation) may be translated to, or has been translated from,

another language (Translation). In the event of any conflict between

any Translation of the Documentation, the English language version

of the Documentation will be the official version of the

Documentation.

This manual represents the product as at the time of printing.

Navico Holding AS and its subsidiaries, branches and affiliates

reserve the right to make changes to specifications without notice.

Trademarks

Lowrance®and Navico®are registered trademarks of Navico Holding

AS.

Navico product references

This manual refers to the following Navico product:

•DownScan Imaging™ (DownScan)

Preface | Hook² X Series Operator Manual 3

Warranty

The warranty card is supplied as a separate document.

In case of any queries, refer to the brand website of your display or

system: www.lowrance.com.

Compliance statements

This equipment complies with:

•CE under 2014/53/EU Directive

•The requirements of level 2 devices of the Radio communications

(Electromagnetic Compatibility) standard 2008

The relevant Declaration of Conformity is available in the product's

section at the following website: www.lowrance.com.

About this manual

This manual is a reference guide for operating the following Hook2 X

models: 4x GPS, 4x Sonar, 5x GPS HDI, and 7x GPS HDI.

These units are only capable of the sonar views and frequencies

indicated in the specification included in the transducer’s

installation guide for the transducer provided with the unit. The

model is provided on the front of the unit. The following is a list of

the models, the transducer which should be used and the sonar

functionality available.

•4 X Sonar and 4 X GPS: The Bullet transducer should be used

which provides traditional sonar functionality only.

•5 X GPS HDI and 5 X GPS HDI: The SplitShot transducer should be

used which provides traditional sonar and DownScan

functionality.

Transducers added via one of the optional transducer adapter

cables will still only have the available views and frequencies that

the display is designed to work with. Airmar transducers are not

supported via the adapter cable.

In the manual, important text that requires special attention from

the reader is emphasized as follows:

ÚNote: Used to draw the reader’s attention to a comment or

some important information.

4Preface | Hook² X Series Operator Manual

Warning: Used when it is necessary to warn

personnel that they should proceed carefully to

prevent risk of injury and/or damage to equipment/

personnel.

Preface | Hook² X Series Operator Manual 5

6Preface | Hook² X Series Operator Manual

Contents

9 Introduction

9Front controls

10 Application pages

11 Basic operation

11 System Controls dialog

11 Settings

12 Turning the system on and off

12 Display illumination

12 Data Overlay

13 Stop sonar

14 GPS plotter

14 GPS plotter page

15 Vessel symbol

15 GPS plotter page scale

15 Panning the GPS plotter image

15 Positioning the vessel on the page

16 Waypoints, Routes, and Trails

16 Navigating

16 GPS plotter settings

18 Waypoints, Routes, and Trails

18 Waypoints, Routes, and Trails dialogs

19 Waypoints

20 Routes

20 Trails

20 Editing waypoints, routes and trails

22 Navigating

22 Navigate to cursor position

22 Navigate to a waypoint

22 Navigate a route

23 Sonar

23 The Sonar image

24 Zooming the image

Contents | Hook² X Series Operator Manual 7

24 Customize the image settings

24 Custom and Ice Fishing mode options

24 Fish ID

24 Sonar settings

26 Flasher

26 The Flasher image

27 Customize the image settings

27 Custom and ice fishing mode options

28 DownScan

28 The DownScan image

28 Zooming the DownScan image

28 Customize the image settings

30 Alarms

30 Alarm system

30 Alarms dialog

31 Maintenance

31 Preventive maintenance

31 Cleaning the display unit

31 Checking the connectors

8Contents | Hook² X Series Operator Manual

Introduction

Front controls

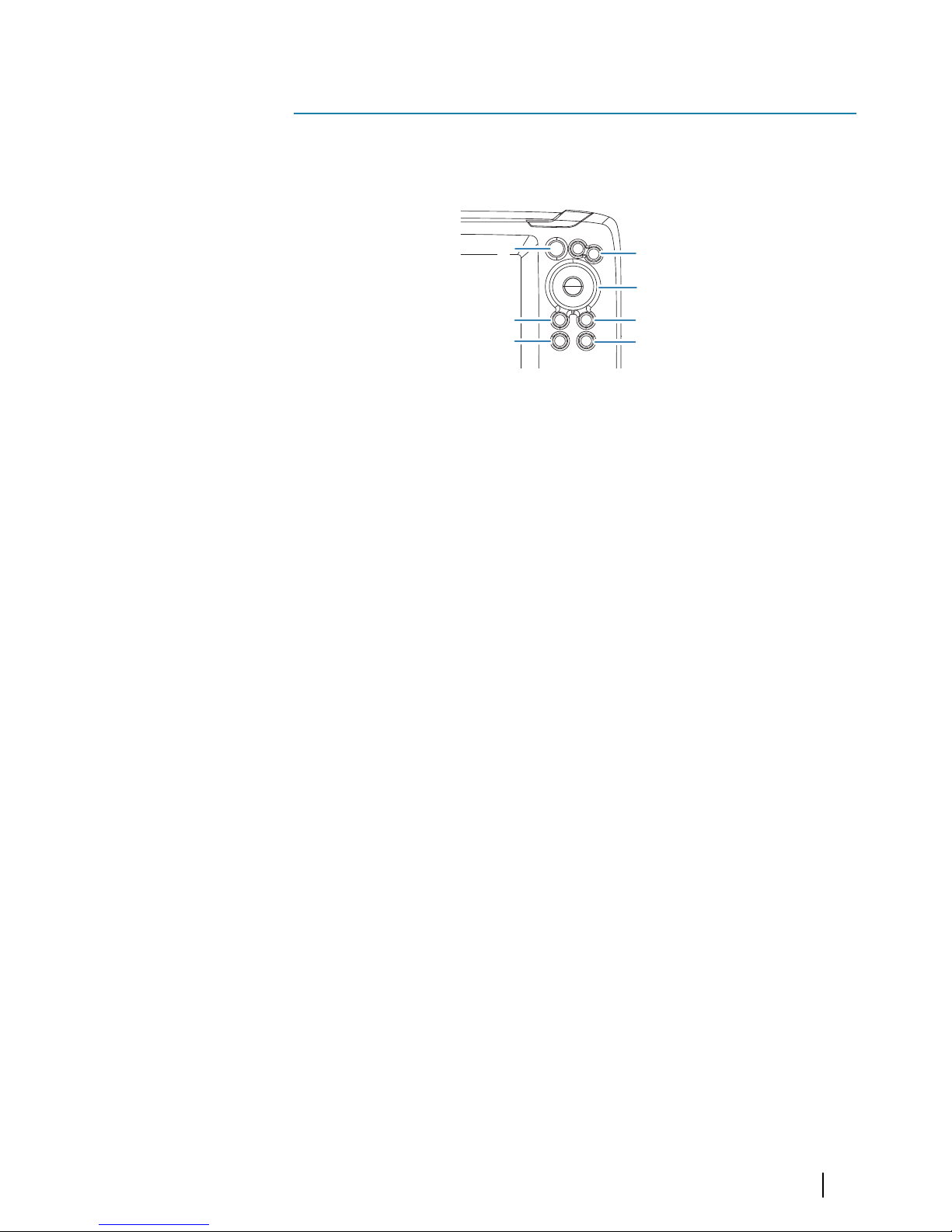

1 Pages - Press to toggle between available pages.

2 Zoom in/out - Press to zoom the image.

Press both keys simultaneous to create a MOB (Man Over

Board) waypoint at the vessel's position.

ÚNote: Creating a MOB waypoint is not available on 4x

Sonar only models.

3 Arrows - Press to pan the image in any direction.

On the GPS Plotter page: press to position the cursor on the

image.

ÚNote: The GPS Plotter page is not available on 4x Sonar

only models.

In menus and dialogs: press to highlight an option.

4 Exit (X) - In menus and dialogs: press to return to previous

menu level and to exit a dialog.

5 Menu/Enter - With no menu or dialog active: press to

display the menu.

In menus and dialogs: press to confirm a selection.

6 Cursor/Waypoint - On the GPS Plotter page: Press to

activate/deactivate the cursor.

On any page: press and hold to save a waypoint.

ÚNote: On 4x Sonar only models this is a Fish ID toggle

key. Press to toggle between fish arches and fish

symbols on the sonar image.

7 Power - Press to display the System Controls dialog.

Press and hold to power the unit on/off.

Introduction | Hook² X Series Operator Manual 9

Application pages

2 4

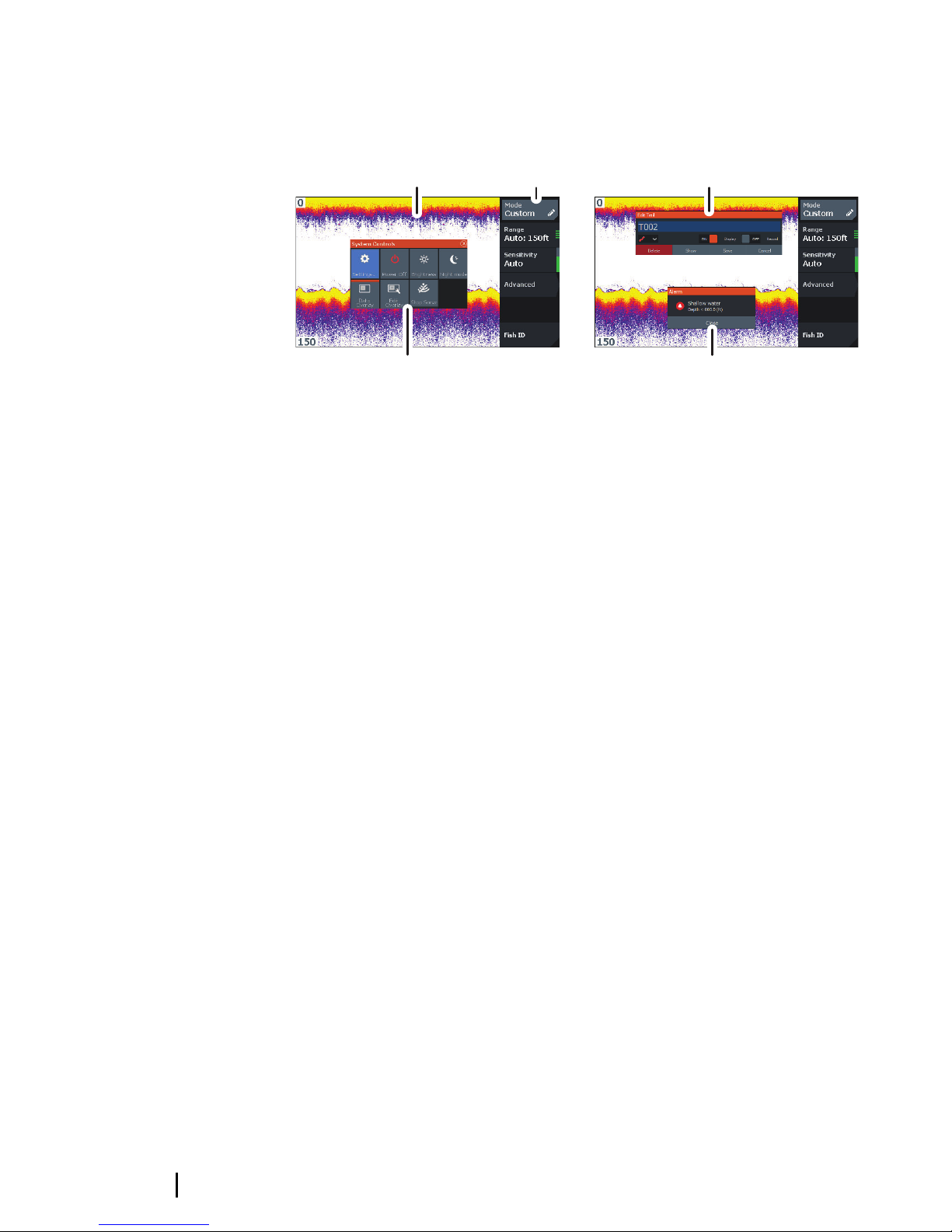

1 Application panel

2 Menu - Panel specific menu.

3 System Controls dialog - Quick access to basic system

settings.

4 Dialog - Information to or input from the user.

5 Alarm message - Displayed if dangerous situations or

system faults occur.

Each application connected to the system is presented on panels.

10 Introduction | Hook² X Series Operator Manual
