HOOK-3x DSI

Operation manual

HOOK-3x DSI

Lowrance® and Navico® are registered trademarks of Navico.

Navico may nd it necessary to change or end our policies, regulations and special oers at any time.

We reserve the right to do so without notice. All features and specications subject to change without

notice.

Compliance Statement:

Lowrance HOOK-3x DSI

• Comply with CE under EMC directive 2004/108/EC

• Comply with the requirements of level 2 devices of the Radiocommunications (Electromagnetic

Compatibility) standard 2008.

The relevant Declaration of Conformity is available in the following website under model documentation

section: http://www.lowrance.com.

WARNING: It is your sole responsibility to install and use this instrument in a manner that will not cause

accidents, personal injury or property damage. Always observe safe boating practices.

PB 3

Introduction | HOOK-3x DSI Introduction | HOOK-3x DSI

Getting Started

Turn unit

on/o

To turn on/o the unit, press and

hold the LIGHT/POWER key for

three seconds.

Adjusting

the

backlight

Press the LIGHT/POWER key to

switch backlight levels. This unit

has 11 backlight levels.

Muting

audio

Select Audio from the Settings

menu to turn on/o unit audio.

Unit Controls

LIGHT/POWER: controls backlight level

and turns unit on/o

KEYPAD:controls cursor & selects items

on menus

FREQUENCY: changes the transducer

frequency

MENU: opens settings and page menus

ENTER:nalizes menu selections

ZOOM KEYS:(+) zooms in display; (-)

zooms out display

Introduction

4PB

Basic Operation | HOOK-3x DSI Basic Operation | HOOK-3x DSI

Basic Operation

Accessing menu items

The keypad and ENTER key are used to select

menu items and open submenus. Use the keypad

to highlight the desired item and press ENTER to

open its submenu or dialog.

Dialogs

Dialogs are used for user input or for presenting

information to the user.

Depending on the type of entry,

dierent methods are used to

conrm, cancel or close the dialog.

Cursor

The keypad moves the cursor on the display.

Restore defaults

Resets the unit to default

settings. Restore defaults is

accessed on the Settings menu.

NOTE: Press the MENU key to exit

menus.

PB 5

DownScan Operation | HOOK-3x DSI DownScan Operation | HOOK-3x DSI

DownScan menu

Press MENU from the

DownScan page to view the

DownScan menu.

DownScan Operation Contrast

Adjusts the brightness ratio

between light and dark areas

on the screen, making it easier

to distinguish suspended

objects from the background.

Range

Range settings display the section

of the water column from the

water surface to the selected

depth range.

Frequency

Controls the transducer frequency

used by the unit. 800 kHz oers

the best resolution, while 455 kHz

has greater depth coverage.

6PB

DownScan Operation | HOOK-3x DSI DownScan Operation | HOOK-3x DSI

Ping Speed

Controls the rate the unit uses to send sonar waves

into the water. Ping speed adjustments can help

reduce interference from other transducers.

Overlay Data

Allows you to select data to be

displayed on top of the DownScan

page.

Settings

Accesses the Settings menu.

Overlay data

PB 7

Settings | HOOK-3x DSI Settings | HOOK-3x DSI

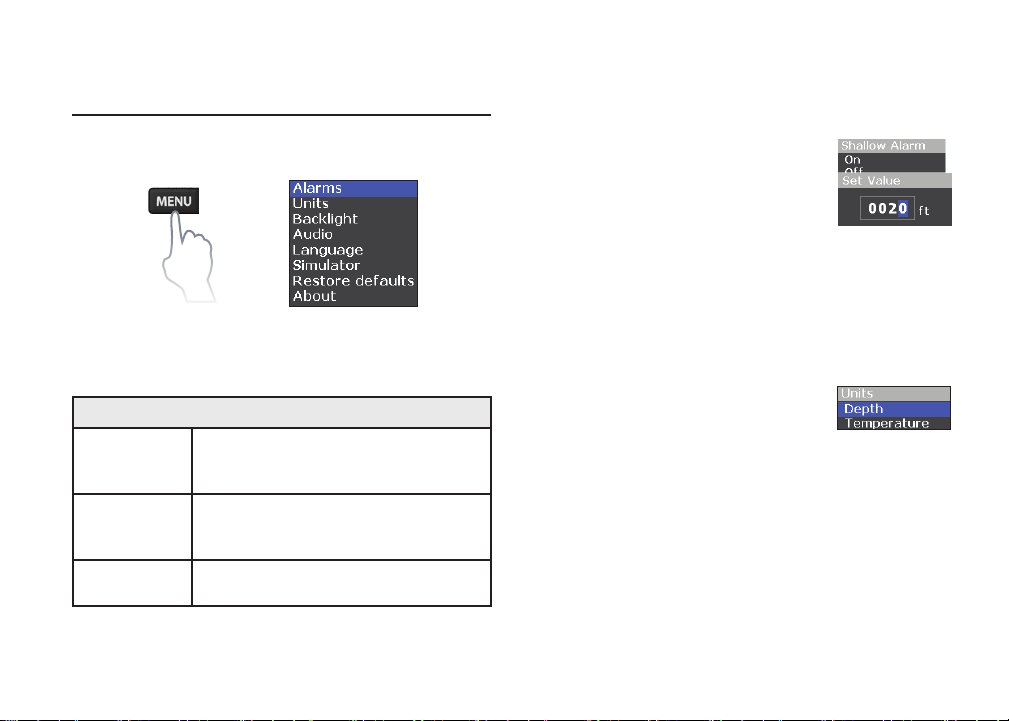

Settings menu

Alarms

Enables alarms and selects alarm thresholds.

Alarms

Deep

Sounds the alarm when the vessel

enters water deeper than the selected

threshold

Shallow

Sounds the alarm when the vessel

enters water shallower than the selected

threshold

Low battery Sounds the alarm when voltage falls

below the selected threshold

To input threshold values:

1. Select Set Value

2. Press the keypad up

or down to increase/

decrease the numerical

value.

3. Press the keypad left/right to select the

previous/next digit.

Units

Selects the unit of measure used for

depth and temperature (Metric or

US Standard).

Backlight

Adjusts the brightness of the backlight. This unit

has 11 backlight levels. The backlight can also be

adjusted by tapping the LIGHT/POWER key.

Settings

8PB

Settings | HOOK-3x DSI Settings | HOOK-3x DSI

Audio

Turns on/o unit audio.

Language

Selects the language used on menus, dialogs and

text boxes. The unit will restart when the language

is changed.

Simulator

Simulates sonar activity allowing

you to become familiar with the

unit before taking it out on the

water.

Restore Defaults

Resets the unit to default settings.

About

Displays software information about the unit.

PB 9

Specications | HOOK-3x DSI Specications | HOOK-3x DSI

HOOK-3x DSI

General

Case Size 5.4” H (134 mm) x 6.8”W (174 mm); 6” H (152 mm) with bracket

Display (3.5” (8.9 mm) diagonal) 256 color TFT LCD

Waterproof standard IPX7

Backlight LED (11 levels)

Power

Transmit Power 500 W RMS

Power Requirement 12 V

Voltage Input 10 to 17 V

Fuse type 3-amp Automotive

Sonar

Max depth 300 ft (91 m)

Transducer Frequency 455/800 kHz

Max speed 70 mph

Transducer 455/800 kHz DSI transducer

Transducer cable 20 ft (6 m)
