Lowrance HOOK2 Manuel utilisateur

| 1

HOOK2 4x Sonar | Quick Guide - EN

HOOK Quick Guide

4x Sonar models

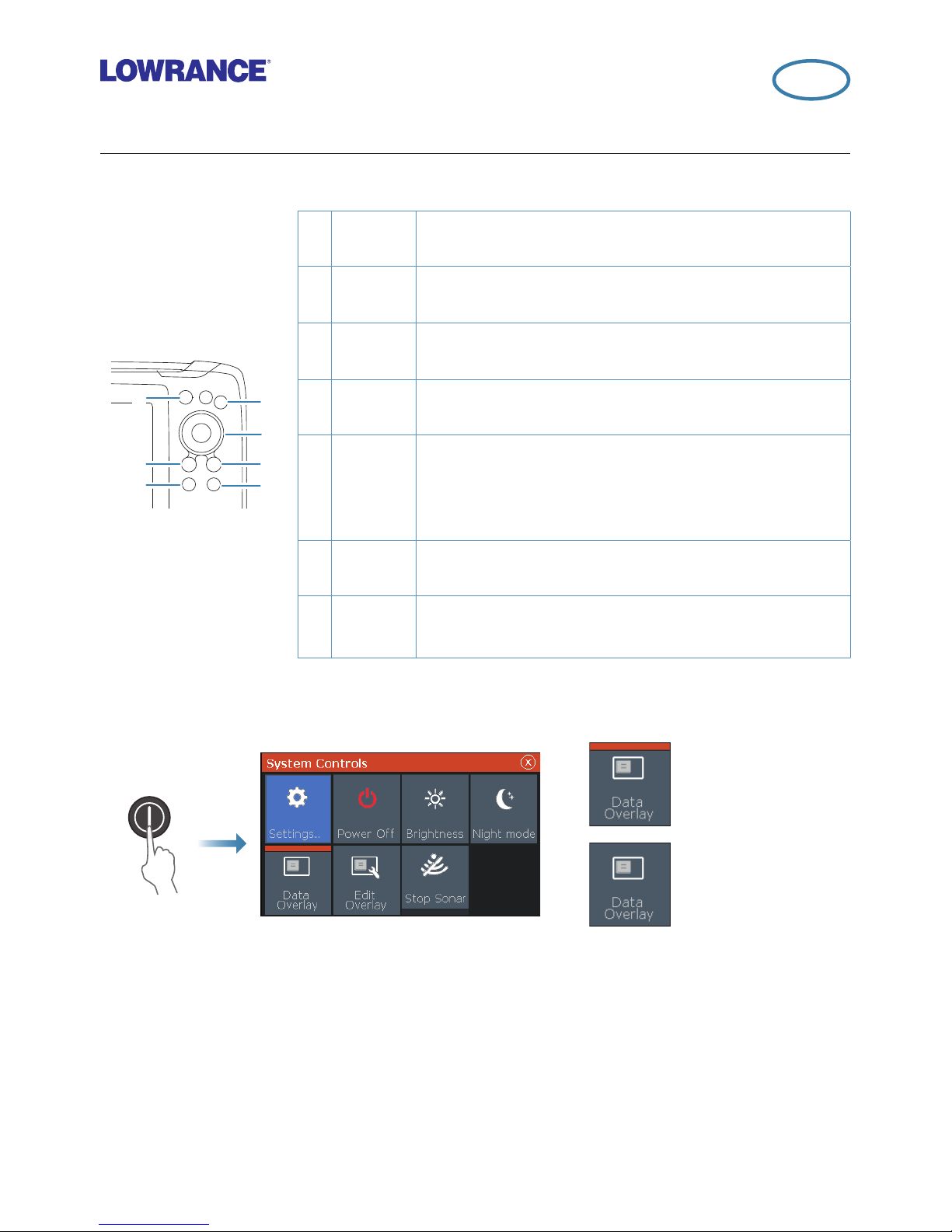

Front controls

2

3

5

4

67

1

1Pages Press to toggle between the sonar and the

asher page.

2Zoom

in/out Press to zoom the sonar image.

3Arrows In menus and dialogs: press the up/down arrows

to highlight an option.

4Exit (X) Press to return to previous menu level and to

exit a dialog.

5Menu/

Enter

With no menu or dialog active: press to display

the menu.

In menus and dialogs: press to conrm a

selection.

6Fish Press to toggle between sh ID and traditional

sonar echoes.

7Power Press to display the System Controls dialog.

Press and hold to power the unit on/o.

System Controls dialog

• Option ON

• Option OFF

Display illumination

• Set brightness and select day/night mode from the System Controls dialog

• Repeat short presses on the Power key to cycle the backlight brightness

EN

*988-11956-001*

2|

HOOK2 4x Sonar | Quick Guide - EN

Pages

• Toggle between the Sonar and the

Flasher pages by pressing the Pages

key

• Zoom the sonar image by using the

Zoom keys

By default the unit is set to Auto mode, and all settings are automated.

• Change to Custom mode to allow for customizing the settings.

Overlay data

By default, 3 data items are displayed on the image. The data items are

predened (depth, temperature and voltage), and the position is xed.

The data items can be turned on/o from the System Controls dialog.

Each data item can be removed individually from the image:

1. Select the Edit overlay option in the System Controls dialog to turn

the unit into edit mode

2. Press the Menu/Enter key to display edit options

3. Press the X key to leave edit mode

Settings dialogs

Used for system conguration.

Product manuals

For the full Operator manual, technical specications and declarations refer to the

product website: www.lowrance.com.
