Furuno CSH-83 Manuel utilisateur
COLOR SCANNING SONAR
MODEL CSH-83/84
Back
The paper used in this manual
is elemental chlorine free.
FURUNO Authorized Distributor/DealerFURUNO Authorized Distributor/Dealer
9-52 Ashihara-cho,9-52 Ashihara-cho,
Nishinomi
y
a 662-8580, JAPANNishinomi
y
a 662-8580, JAPAN
Tele
p
hone :Tele
p
hone : 0798-65-21110798-65-2111
FaxFax 0798-65-42000798-65-4200
::
FIRST EDITION :FIRST EDITION : OCT.OCT. 19971997
Printed in JapanPrinted in Japan
A
ll ri
g
hts reserved.
A
ll ri
g
hts reserved.
H3H3 :: OCT.OCT. 05, 200605, 2006
Pub. No.Pub. No. IME-13090-H3IME-13090-H3
*
00080806812
*
*
00080806812
*
*
00080806812
*
*
00080806812
*
(( TATATATA )) CSH-83/84CSH-83/84 * 0 0 0 8 0 8 0 6 8 1 2 ** 0 0 0 8 0 8 0 6 8 1 2 *
*
IME
13090
H
30
*
*
IME
13090
H
30
*
*
IME
13090
H
30
*
*
IME
13090
H
30
*
* I M E 1 3 0 9 0 H 3 0 ** I M E 1 3 0 9 0 H 3 0 *
i
WARNING
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or equipment damage.
Be sure no water leaks in at the trans-
ducer installation site.
Water leakage can sink the vessel. Also
confirm that the transducer will not loosen
by ship’s vibration. The installer of the
equipment is solely responsible for the
proper installation of the equipment.
FURUNO will assume no responsibility for
any damage associated with improper
installation.
Do not open the cover
unless totally familiar with
electrical circuits and
service manual.
High voltage exists inside the
equipment, and a residual
charge remains in capacitors
several minutes after the
power is turned off. Improper
handling can result in electri-
cal shock.
WARNING
Install the specified transducer tank
in accordance with the installation
instructions. If a different tank is to be
installed the shipyard is solely respon-
sible for its installation, and it should
be installed so the hull will not be
damaged if the tank strikes an object.
The tank or hull may be damaged if the
tank strikes an object.
If a steel tank is installed on a wooden
or FRP vessel, take appropriate
measures to prevent electrolytic
corrosion.
Electrolytic corrosion can damage the
hull.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or equipment damage. The
voltage rating of the equipment appears
on the label above the power connector.
CAUTION
Observe the following compass safe
distances:
Ground the equipment to
prevent electrical shock and
mutual interference.
Display unit
for CSH-83
Display unit
for CSH-84
Standard Steering
0.9 m 0.68 m
1.7 m 1.3 m
SAFETY INSTRUCTIONS
Processor
unit 1.70 m 1.05 m
ii
TABLE OF CONTENTS
1. SYSTEM CONFIGURATION......................................................... 1-1
2. EQUIPMENT LISTS ...................................................................... 2-1
3. MOUNTING THE EQUIPMENT
3.1 Mounting the Hull Unit and Receiver Unit................................................................3-1
3.2 Mounting the Display Unit and Sub-Display Unit (option) .......................................3-7
3.3 Mounting the Transmitter Unit...................................................................................3-8
3.4 Mounting the Power Unit ...........................................................................................3-8
3.5 Mounting the Interface Unit .......................................................................................3-8
3.6 Mounting the FNZ Joint Box .....................................................................................3-8
3.7 Grounding the Equipment ..........................................................................................3-9
4. WIRING
4.1 Cable Configuration ...................................................................................................4-1
4.2 How to Use the Crimping Tool and Pin Extractor .....................................................4-2
4.3 Location of Connectors ..............................................................................................4-3
4.4 Cable Fabrication and Connector Assembling in Display and Interface Units ..........4-4
4.5 Cable Fabrication and Connector Assembling in Power Unit....................................4-7
4.6 Cable Fabrication and Connector Assembling in Transmitter Unit ...........................4-9
4.7 Cable Fabrication and Connector Assembling in Hull Unit (incl. receiver unit) .....4-11
4.8 Connection of Transducer Cables ............................................................................4-13
4.9 Connection of Interface Unit....................................................................................4-14
4.10 Connection of Sub-Display Unit (option) ..............................................................4-19
4.11 Connection of Remote Display Unit (option) ........................................................4-20
4.12 Synchronizing Transmission with Other Sonars or Echo Sounders.......................4-21
4.13 Interlocking Operation with Other Sonars .............................................................4-22
5. CHANGING POWER SPECIFICATIONS
6. INSTALLATION OF FRP RETRACTION TANK
6.1 Before Beginning the Installation ..............................................................................6-1
6.2 Installation of the FRP Retraction Tank .....................................................................6-1
iii
7. ADJUSTMENT AND CHECK
7.1 Hull Unit Check....................................................................................................7-1
7.2 Heading Adjustment.............................................................................................7-2
7.3 DIP Switch Setting in the Display Unit.................................................................. 7-3
7.4 Setting and Adjustment in the Interface Unit.........................................................7-5
8. WHEN SHIP’S MAINS IS 24 VDC.................................................................................8-1
9. PROCESSOR UNIT CSH-835 (BLACKBOX TYPE FOR CSH-83)................................9-1
SPARE PARTS, INSTALLATION MATERIALS, ACCESSORIES......................................A-1
OUTLINE DRAWINGS...................................................................................................... D-1
INTERCONNECTION DIAGRAMS....................................................................................S-1
This page is intentionally left blank.
1-1
1. SYSTEM CONFIGURATION
STANDARD OPTION
REMOTE CONTROL BOX
CSH-116
DISPLAY UNIT
CSH-830 (CSH-83)
CSH-8400 (CSH-84)
MONITOR (MU-151C)
or
COMMERCIAL MONITORSUB DISPLAY *
CSH-236
STEP-DOWN
TRANSFORMER
PT-400
INTERFACE UNIT
CS-120A
VI-1100A
INTERFACE UNIT
FNZ JOINT BOX
CS-170
TRANSMITTER UNIT
CSH-810
RECEIVER UNIT
CSH-820
SHIP'S MAINS
100 VAC, 1φ,
50/60 Hz
HULL UNIT
CSH-81080 (800 mm stroke)
CSH-81120 (1200 mm stroke)
110/115/220/230 VAC,
1φ, 50/60 Hz
SPEED LOG
NAVIGATOR
CURRENT INDICATOR
COLOR VIDEO SOUNDER
AD CONVERTER
ECHO SOUNDER, COLOR
VIDEO SOUNDER
NET SONDE
SHIP'S MAINS
100 VAC, 1φ,
50/60 Hz
POWER
SUPPLY UNIT
CSH-880
SHIP'S MAINS
100/110/220 VAC, 1φ,
50/60 Hz
* : CSH-83
only
or
PROCESSOR UNIT *
CSH-835
2-1
2. EQUIPMENT LISTS
Standard Supply
Name Type Qty Remarks
CSH-830 For CSH-83Display Unit
CSH-8400 For CSH-84
Processor Unit CSH-835
Select
one
Blackbox type for CSH-83
Transmitter Unit CSH-810 1
Receiver Unit CSH-820 1 w/hull unit
CSH-81080 stroke 800mmHull Unit
CSH-81120
1
stroke 1200mm
Power Unit CSH-880 1
Remote Control Box CSH-116 1
Interface Unit CS-120A 1
CP10-03010CP10-03000 1 set
6 pair cable
For CSH-83
CP10-03610CP10-03600 1 set
6 pair cable
For CSH-84
CP10-06610
Installation Materials
CP10-06600 1 set
6 pair cable
For processor unit
FP10-01801
FP10-01201
FP10-01203
FP10-02400 1 set
Nylon cover
RAM card
For CSH-83
FP10-01201
FP10-01203
FP10-01901
FP10-01900 1 set
Nylon cover
RAM card
For CSH-84
FP10-01203
Accessories
FP10-03000 1 set
RAM card
For processor unit
SP10-02000 1 set For CSH-83/84Spare Parts
SP10-03600 1 set For processor unit
2-2
Optional Equipment
Name Type Code No. Remarks
Sub-Display Unit CSH-236 - CSH-83 only
Inverter TR-2435 -
TR Inverter TR-24100 -
Step-down Transformer PT-400 - 200-230 VAC
37-core Cable 10S1258 000-101-006 Specify length
7-core Cable 10S1259 000-101-007 Specify length
16 Twisted Pair Cable CO-SPEV-SB-C 0.5x16P 000-101-008 Specify length
E/S Interface Unit VI-1100A -
FNZ Joint Box CS-170 -
Mounting Fixture OP10-9 006-990-040 For CSH-116
Current Limiter Box CSH-1400 - See page 8-1.
Extension Cable Set CSH-1300 000-069-996 For extending
transceiver cable
FRP Retraction Tank OP10-1 000-068-861
Retraction Tank SHG-0001 006-904-340
Hood FP10-01801 006-027-830 For CSH-83
Filter OP10-11 006-997-710 For CSH-83
Filter FP10-02000 000-908-560 For CSH-84
ROM Option Kit A OP10-15 006-998-620
ROM Option Kit B OP10-18 006-998-650
Optional Tools
Name Type Code No. Remarks
Crimping Tool
Pin Extractor
Guide Pin Setting Tool
06-1001-016
06-1877-04
10-910-0179-0
000-519-595
3-1
3. MOUNTING THE EQUIPMENT
3.1 Mounting the Hull Unit and Receiver Unit
Location of hull unit
Determine the mounting location through consultation with the shipyard and shipowner. When
deciding the location, consider the following points:
• Select an area where propeller noise, cruising noise, air bubbles and interference from turbu-
lence are minimal. Generally, the point at 1/3 to 1/2 of the ship’s length from the bow on or
near the keel is optimum. On-the-keel installation is advantageous for minimizing oil con-
sumption in comparison with off-the-keel. If the hull unit can not be installed on the keel, the
center of the retraction tank should be within 600 mm of the keel to prevent a rolling effect.
Within 600 mm
1/3 1/2

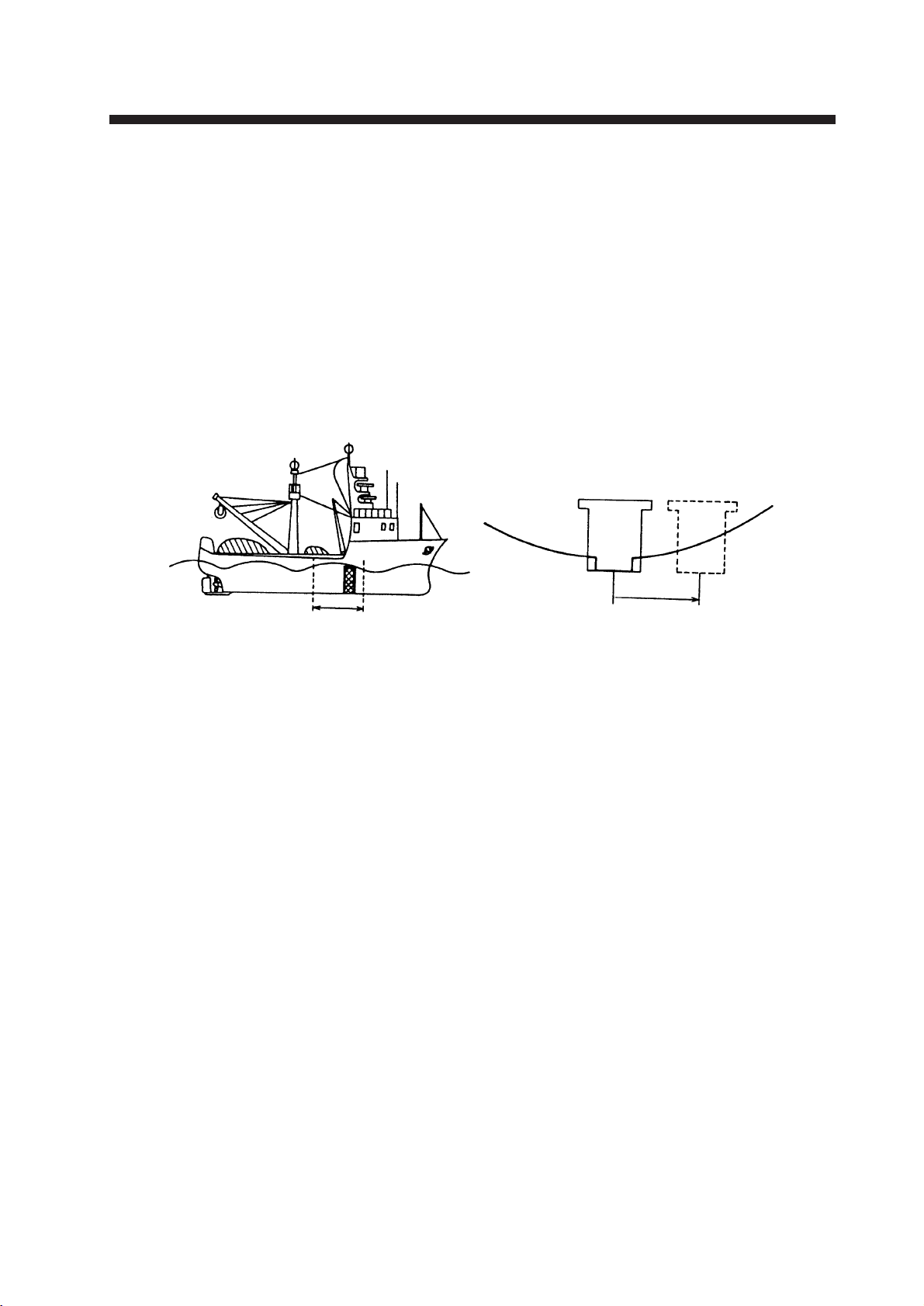

Figure 3-1 Hull unit mounting location
• Select a place where the hull bottom is flat and the draft is sufficiently deep. Normally, the
transducer should protrude at least 500 mm beyond the keel to minimize the effect of air
foam and bubbles.
• Select a place where interference from other equipment is minimal. Locate the hull unit at
least 2.5 m away from the transducers of other equipment.
• No obstacle should be in the fore direction since it causes a shadow zone and aerated water,
resulting in poor sonar performance.
• Secure sufficient space for wiring and maintenance. Refer to the hull unit outline drawing
for recommended wiring and maintenance space.
• If the ambient temperature of the hull unit is below 0°C, provide the sonar compartment with
a heater to keep the temperature above 0°C.
