Lorell LLR60126 Manuel utilisateur

Workstation Hutch (for LLR60129)

Buffet pour station de travail (pour LLR60129)

Estación de trabajo (para 60129)

LLR60126/64850

LLR60126_64850_Manual.indd 1LLR60126_64850_Manual.indd 1 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 1 OF 27

INSTRUCTIONS:

If you are missing parts or have other concerns, please email Lorell@sprich.com or fax: 404-472-9063.

Please provide the following information:

1. Full Name

2. Physical Address – do not include P.O. Box as our carriers cannot deliver to a P.O. Boxes

3. Phone Number

4. Model Number

5. Part Number

6. Invoice #

7. Date of Purchase

Note: Our policy is to send all parts requests normal ground transportation, if your requirements are to have these parts via overnight/next day,

please provide your designated carrier and account number. Replacement panels are not available. If damaged has occurred during shipment,

please return the entire unit to place of purchase for credit and replacement. Original Invoice may be required.

BEFORE YOU BEGIN:

Open, identify and count all parts prior to assembly. Lay out the parts on a non-abrasive surface such as carpet

or blanket.

LLR60126_64850_Manual.indd 1LLR60126_64850_Manual.indd 1 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 2 OF 27

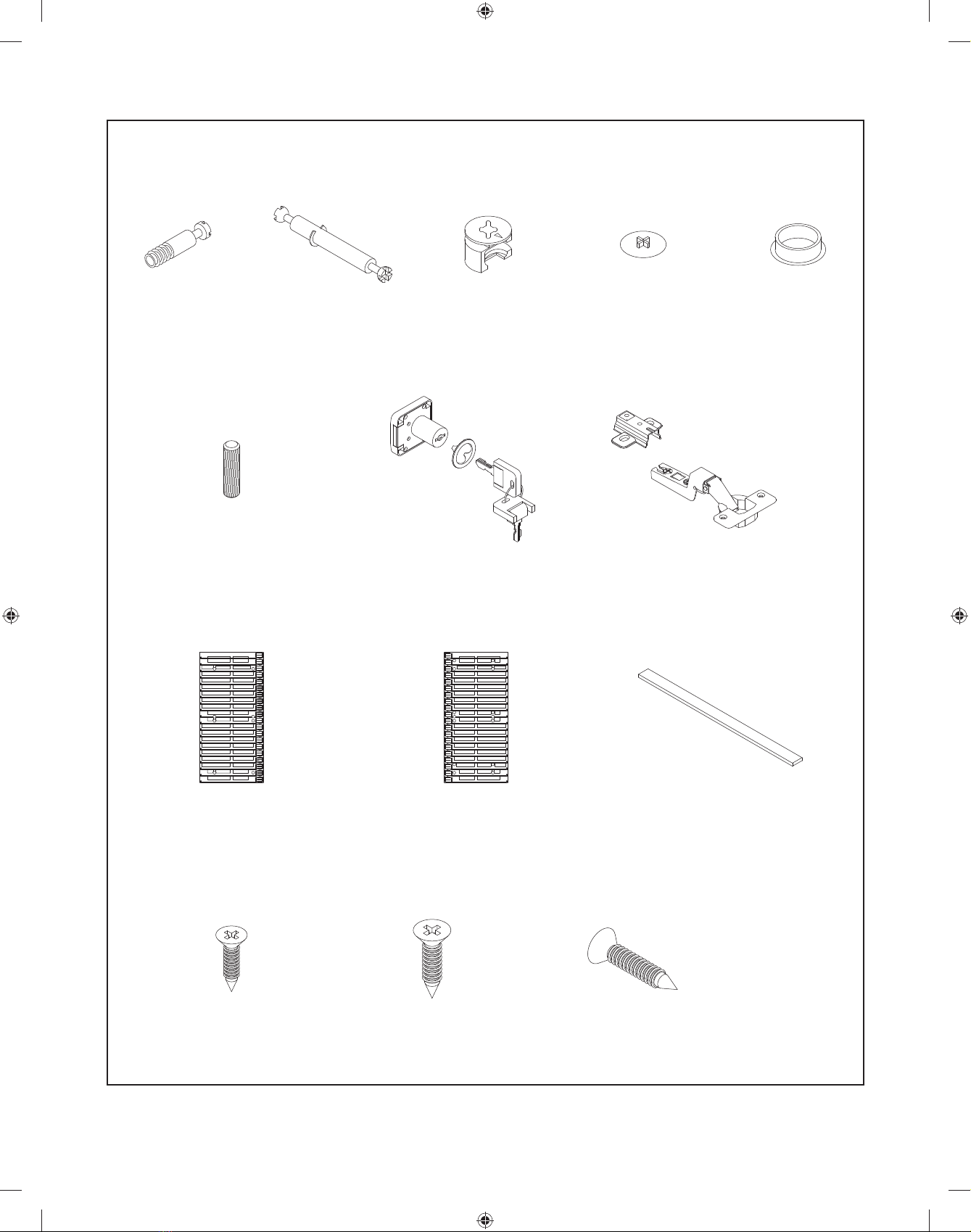

HARDWARE IDENTIFICATION

1. Cam Screw

33pcs

2. Double Cam

4pcs

3. Cam Lock

41pcs

4. Cam Cap

34pcs

5. Large Cam Cap

3pcs

6. Wooden Dowel

31pcs

7. Lock

1pc

8. Hinge

2pcs

9. Left CD Rack

1pc

10. Right CD Rack

1pc

11. Double Stick

Tape 2pcs

12. Small Screw

(For CD Rack)

12pcs

13. Middle Screw

(For Hinge)

8pcs

14. Large Screw

(For Lock)

4pcs

LLR60126_64850_Manual.indd 2LLR60126_64850_Manual.indd 2 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 3 OF 27

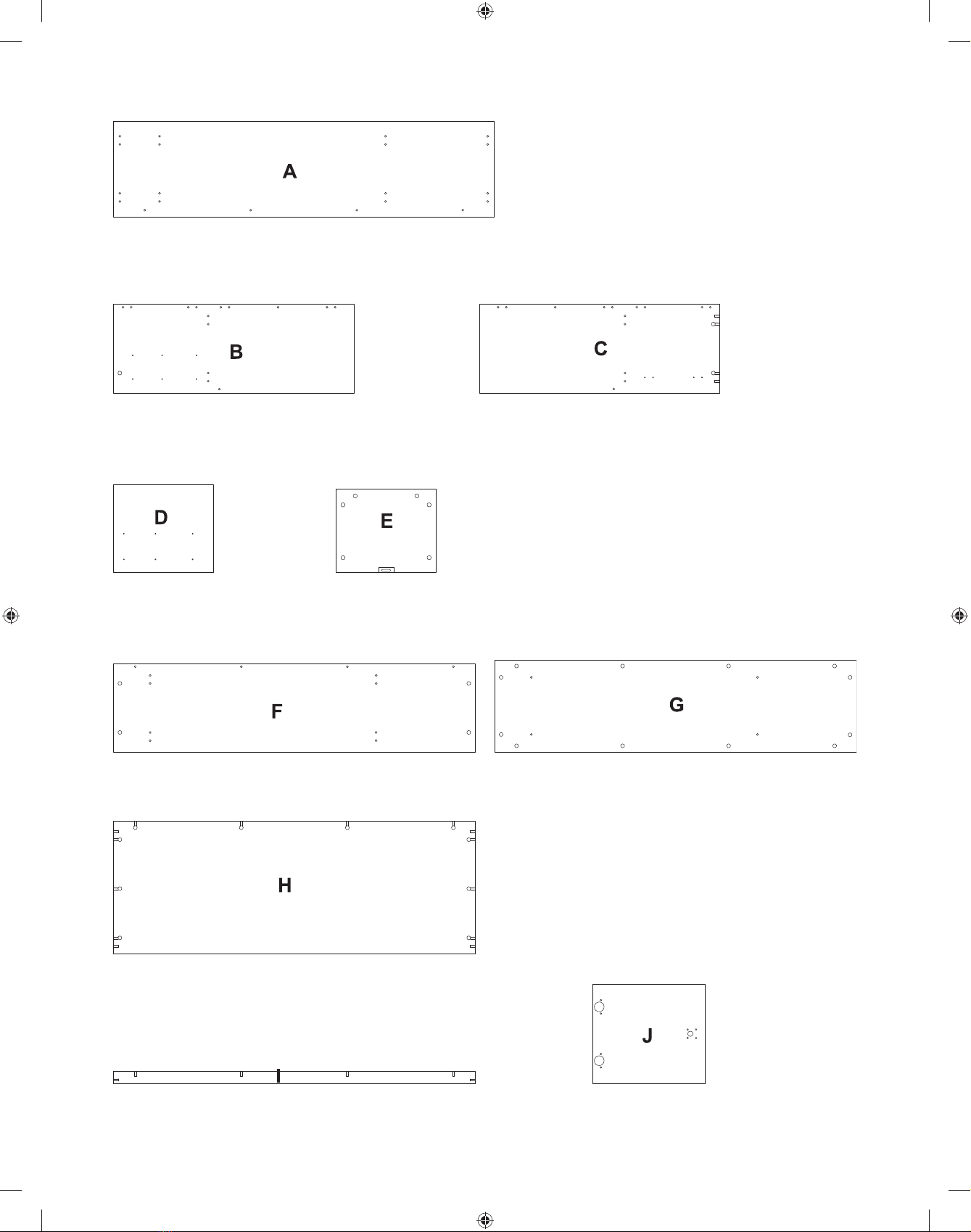

PANEL IDENTIFICATION

Top Panel 1pc

Left Side Panel 1pc

Fixed Shelf 1pc

Lower Back Panel 1pc

Left Divider Panel

1pc

Right Side Panel 1pc

Right Divider Panel

1pc

Upper Back Panel 1pc

Support Panel 1pc Door Panel

1pc

LLR60126_64850_Manual.indd 3LLR60126_64850_Manual.indd 3 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 4 OF 27

ASSEMBLY INSTRUCTIONS:

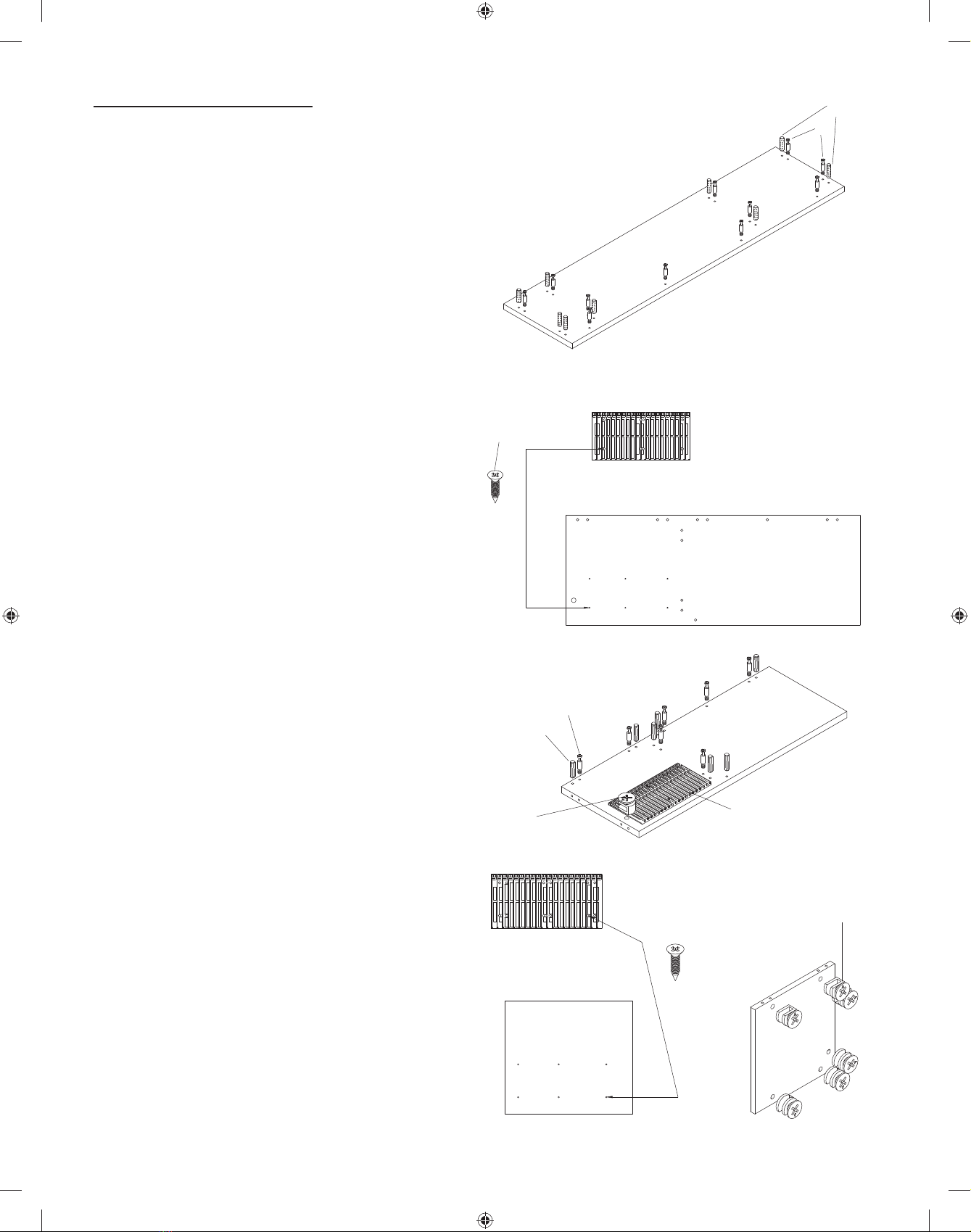

STEP 1

With the Top Panel (A) laying on a non-abrasive

surface, insert 9 each Wooden Dowel (6) in the posi-

tions shown on the drawing. Tap securely into place

with a Rubber Mallet or Hammer.

On the Top Panel (A) insert with a Phillips Screw

Driver 11 each Cam Screw (1) in the positions shown

on the drawing.

STEP 2

On the Left Side Panel (B) install the Left CD Rack (9)

in the position shown on the drawing with 6 each Small

Screw (12) and a Phillips Screw Driver. NOTE THE

HOLE POSITION ON THE DRAWING TO USE AS

THE GUIDE!

On the Left Side Panel (B) insert with a Rubber Mallet

or Hammer 7 each Wood Dowel (6) in the positions

shown on the drawing. Tap securely into place.

On the Left Side Panel (B) insert 7 each Cam Screw (1)

with a Phillips Screw Driver in the positions shown on

the drawing.

On the Left Side Panel (B) insert 1 each Cam Lock (3)

in the hole position shown on the drawing. When insert-

ing the cam lock make sure that the arrow is facing

toward the cam screw entry.

STEP 3

On the Left Divider (D) install the Right CD Rack (10)

in the position shown on the drawing with 6 each Small

Screw (12) and a Phillips Screw Driver. NOTE THE

HOLE POSITION ON THE DRAWING TO USE AS A

GUIDE!

On the Left Divider (D) insert 6 each Cam Lock (3) in

the hole position shown on the drawing. When inserting

the cam lock make sure that the arrow is facing toward

the cam screw entry.

Top Panel

Left Side Panel

Use this hole with

this hole

9. Left CD Rack

Use this hole with

this hole

10. Right CD Rack

Left Divider Panel

Left

Divider

Panel

LLR60126_64850_Manual.indd 4LLR60126_64850_Manual.indd 4 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 5 OF 27

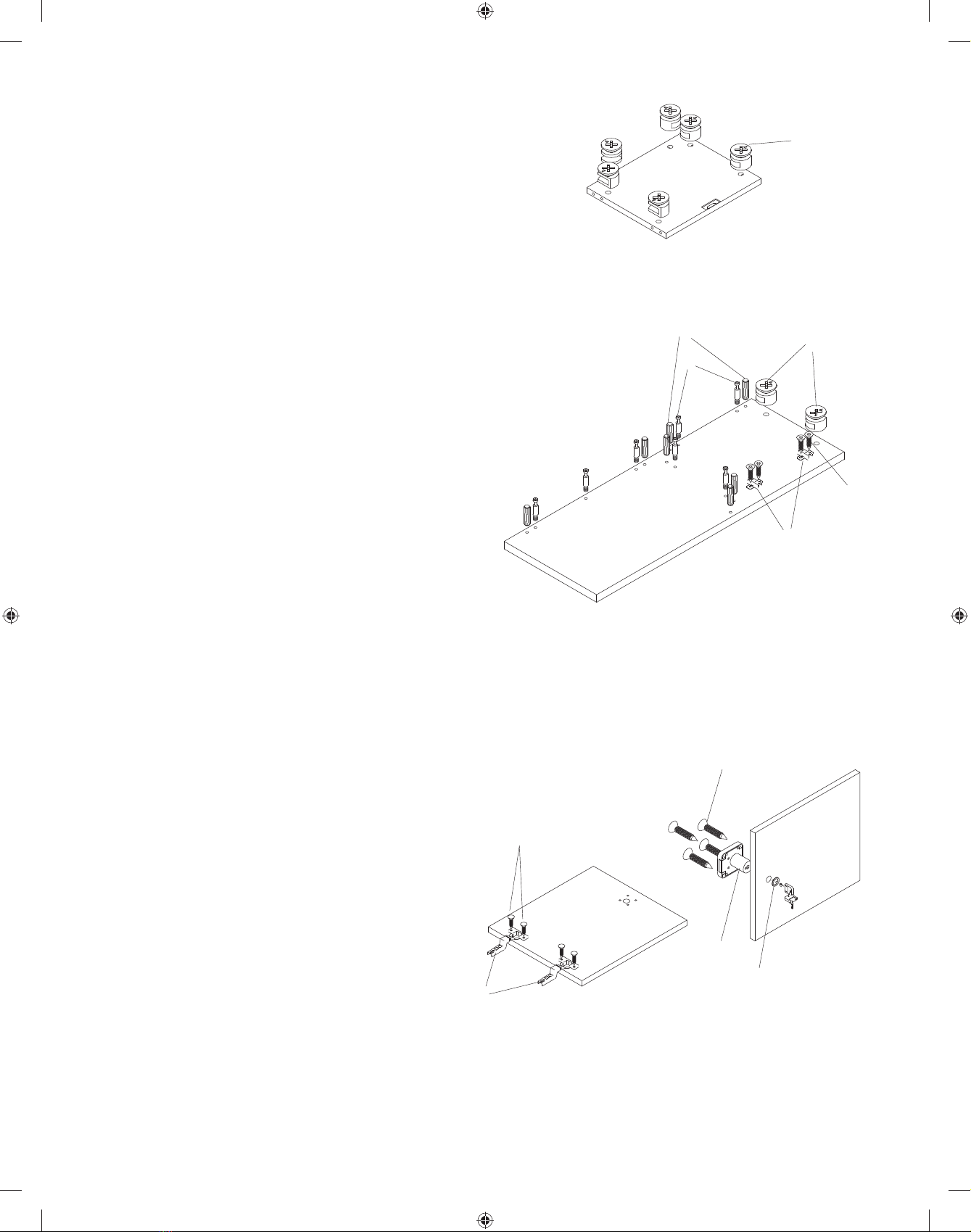

STEP 4

On the Right Divider (E) insert 6 each Cam Lock (3) in

the hole position shown on the drawing. When inserting

the cam lock make sure that the arrow is facing toward

the cam screw entry.

STEP 5

On the Right Side Panel (C) insert with a Rubber Mallet

or Hammer 7 each Wooden Dowel (6). Tap securely

into place

On the Right Side Panel (C) insert 7 each Cam Screw

(1) into the position shown on the drawing with a

Phillips Screw Driver.

On the Right Side Panel (C) insert 2 each Cam Lock (3)

in the position shown on the drawing. When inserting

the cam lock make sure that the arrow is facing toward

the cam screw entry.

On the Right Side Panel (C) install 2 each Hinge (8)

with 2 each Middle Screw (13) per hinge. NOTE: Only

install the small hinge plate as the hinge assembly will

be connected to the door in the next step.

STEP 6

On the Door Panel (J) install the 2 each Hinge (8) with

4 each Middle Screw (13) and a Phillips Screw Driver.

On the Door Panel (J) install the Lock (7) with 4 each

Large Screw (14) and a Phillips Screw Driver. Note:

The “O” Ring goes on the opposite side of the door to

secure the lock into position.

Right Divider

Panel

Door Panel

(back side)

Door Panel

(front side)

“O” Ring

Right Side Panel

LLR60126_64850_Manual.indd 5LLR60126_64850_Manual.indd 5 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 6 OF 27

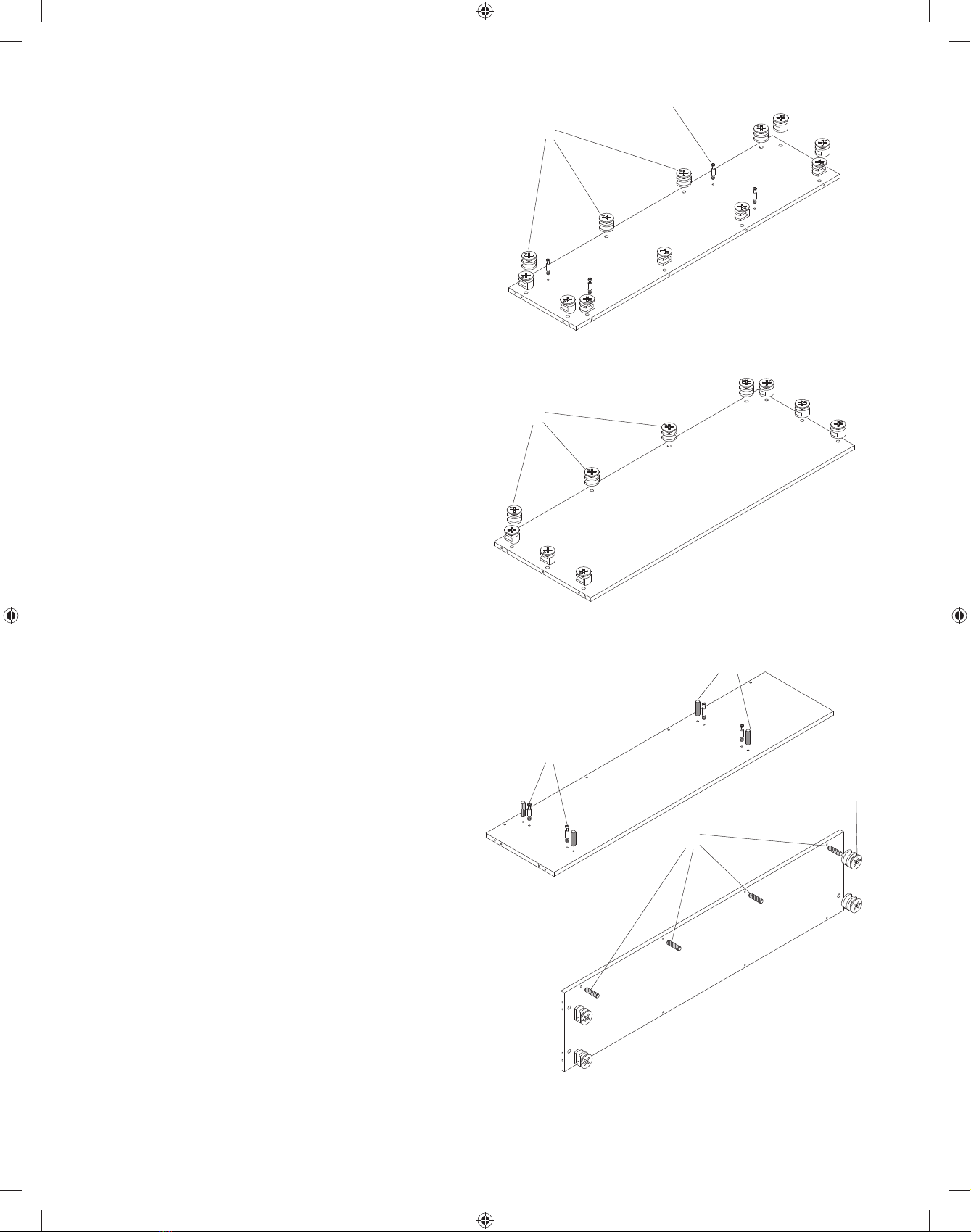

STEP 7

On the Upper Back Panel (G) and Lower Back Panel

(H) insert the 22 each Cam Locks (3). When inserting

the cam lock ensure that the arrow is facing toward the

cam screw entry.

On the Upper Back Panel (G) insert with a Phillips

Screw Driver 4 each Cam Screws (1) in the positions

shown on the drawing.

STEP 8

On the Fixed Shelf (F) insert the 4 each Cam Screws (1)

in the hole position shown on the drawing.

On the same side of the Fixed Shelf (F) insert with a

Rubber Mallet or Hammer 4 each Wooden Dowel (6)

in the position shown on the drawing. Tap securely into

place.

On the reverse side of the Fixed Shelf (F) insert 4 each

Wooden Dowels (6) in the position shown on the

drawing. Tap securely into place with a Rubber Mallet

or Hammer.

On the same side of the Fixed Shelf (F) insert 4 each

Cam Lock (3) in the position shown on the drawing.

When inserting the cam lock make sure that the arrow is

facing toward the cam screw entry.

Upper Back

Panel

Lower Back

Panel

Fixed Shelf

LLR60126_64850_Manual.indd 6LLR60126_64850_Manual.indd 6 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 7 OF 27

Left Divider

Panel

Right Divider

Panel

Upper Back

Panel

Left Divider

Panel

Right Divider

Panel

Upper Back

Panel

Support Panel

Fixed Shelf

Lower Back

Panel

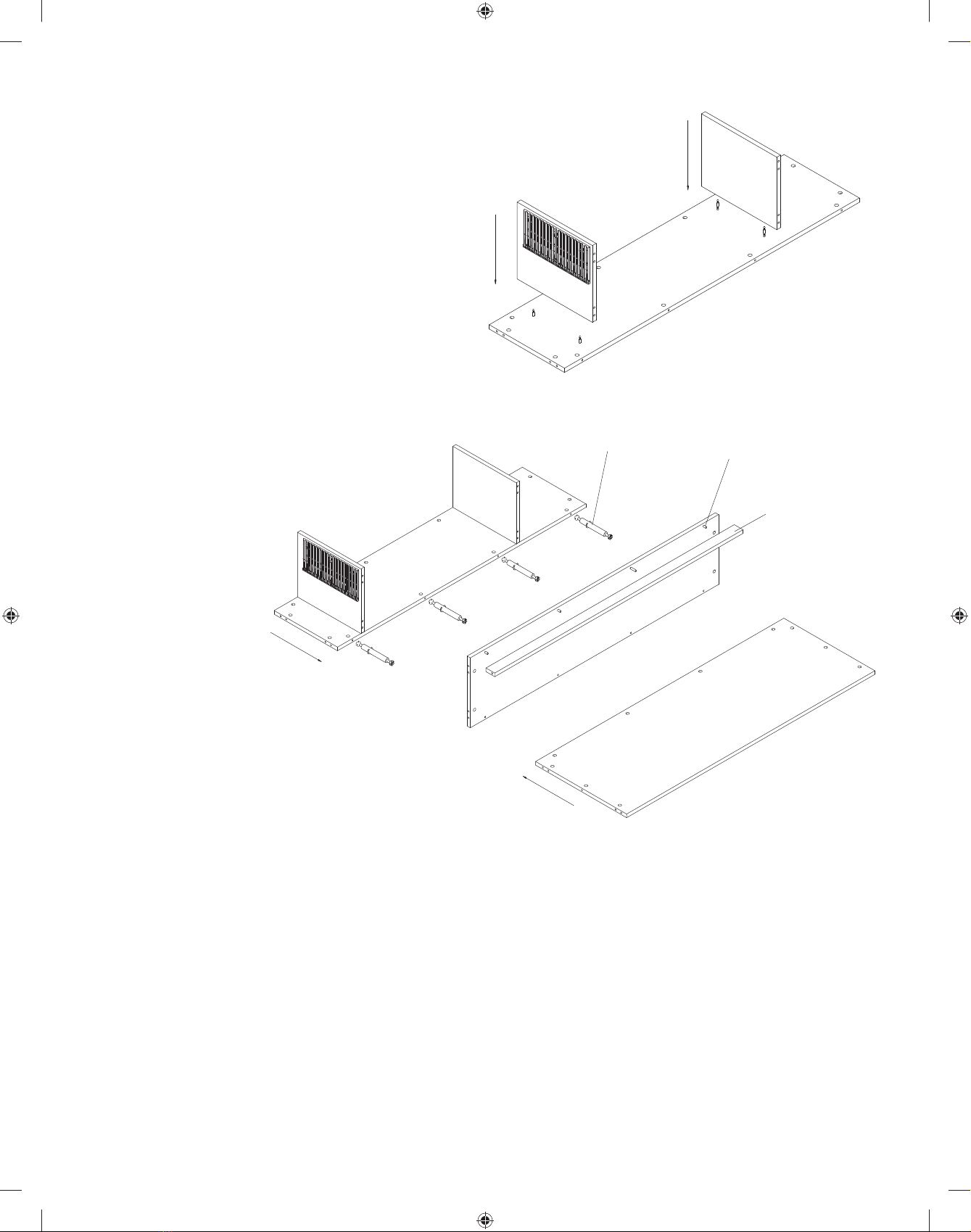

STEP 9

Install the Left Divider Panel (D) and Right Divider

Panel (E) onto the Upper Back Panel (G) so that the Cam

Screws (1) engage with the Cam Locks (3). Note that the

CD Rack located on the Left Divider Panel (D) should be

facing outward. With a Phillips Screw Driver rotate the

cam locks 1/2 turn clockwise until snug. DO NOT

OVERTIGHTEN

STEP 10

Insert 4 each Double Cam (2) into the bottom end

of the Upper Back Panel (G).

Attach the Support Panel (I) to the Fixed Shelf (F)

so that the Wooden Dowels (6) located on the

Fixed Shelf (F) engage.

Attach the Fixed Shelf (F) unit to the Upper Back (G)

unit so that the 4 each Double Cam (2) go through the holes on the

Fixed Shelf (F). The Cam Locks (3) located on the Left Divider (D) and

Right Divider (E) should engage with the Cam Screws (1) located on the

Fixed Shelf (F)

With a Phillips Screw Driver rotate the cam locks located on the Left

and Right Divider 1/2 turn clockwise until snug. DO NOT

OVERTIGHTEN

Attach the Lower Back Panel (H) so that the Double Cam (2) on the

partially assemble unit engage with the Cam Lock (3) located on the

Lower Back Panel (H). With a Phillips Screw Driver rotate the cam

locks 1/2 turn clockwise until snug. DO NOT OVERTIGHTEN

LLR60126_64850_Manual.indd 7LLR60126_64850_Manual.indd 7 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 8 OF 27

Lower Back

Panel

Double Stick Tape

Fixed Shelf

Right Divider

Panel

Left Divider

Panel

Upper Back

Panel

Left Side Panel

Right Side Panel

Top Panel

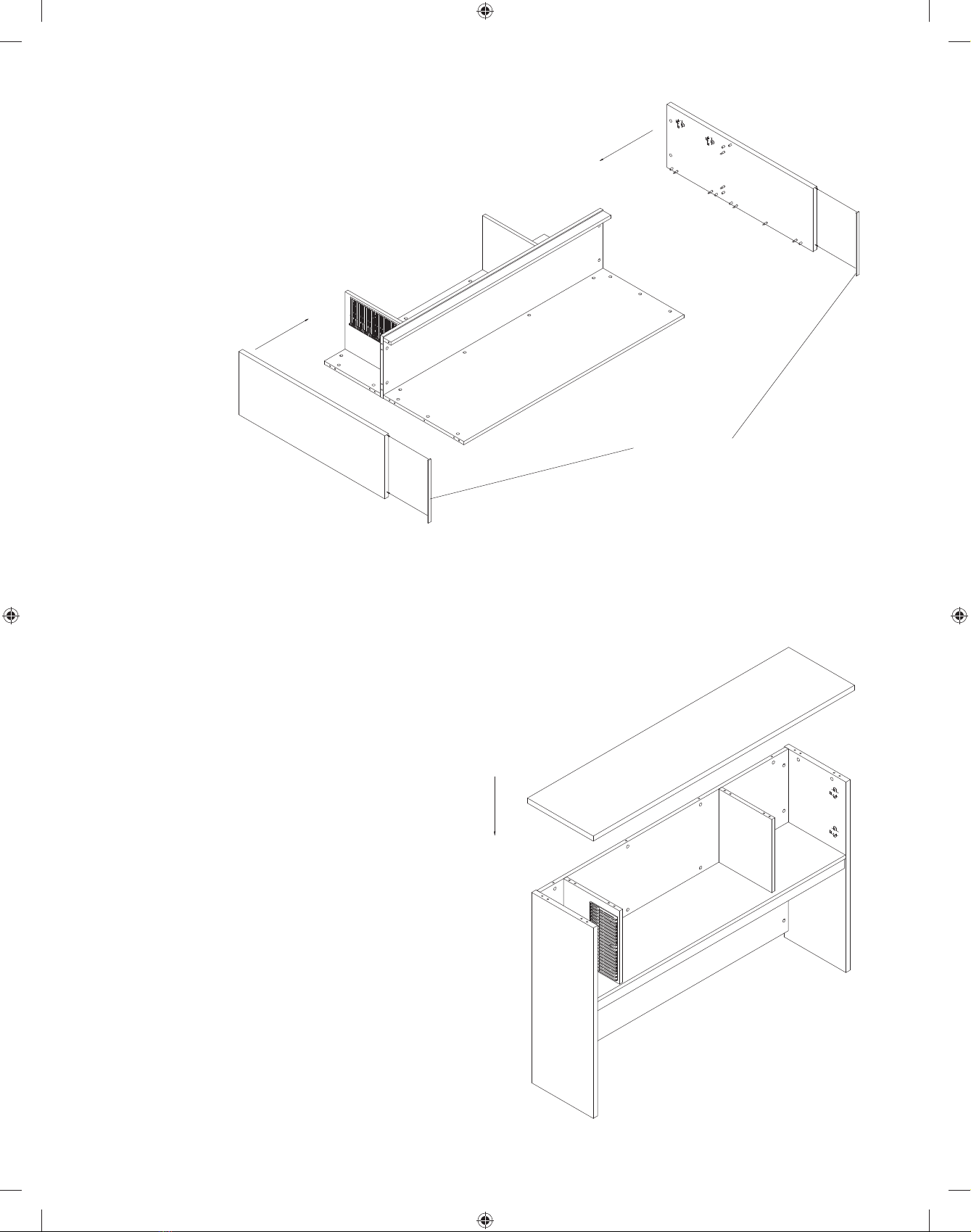

STEP 11

Attach the Left Side

Panel (B) while making

sure that all the Cam Screws

(1) and Wooden Dowels (6) properly

engage with the Cam Locks (3) and

holes as provided. With a Phillips Screw Driver

rotate the cam locks 1/2 turn clockwise until snug.

DO NOT OVERTIGHTEN

Attach the Right Side Panel (C) while making sure that all Cam Screws

(1) and Wooden Dowels (6) properly engage with the Cam Locks (3)

and holes as provided. With a Phillips Screw Driver rotate the cam locks

1/2 turn clockwise until snug. DO NOT OVERTIGHTEN

Attach 2 each Double Stick Tape (2) strips to each of the bottoms of the

Left and Right Side Panels. DO NOT REMOVE THE PROTECTIVE

COVERING

STEP 12

Attach the Top Panel (A) while making sure that all

Cam Screws (1) and Wooden Dowels (6) properly engage

with the Cam Locks (3) and holes provided. With a

Phillips Screw Driver rotate the cam locks 1/2 turn

clockwise until snug. DO NOT OVERTIGHTEN

LLR60126_64850_Manual.indd 8LLR60126_64850_Manual.indd 8 3/4/11 5:22 PM3/4/11 5:22 PM

PAGE 9 OF 27

Large Cam

Cap

Cam Cap

Door

Panel

Right

Divider

Panel

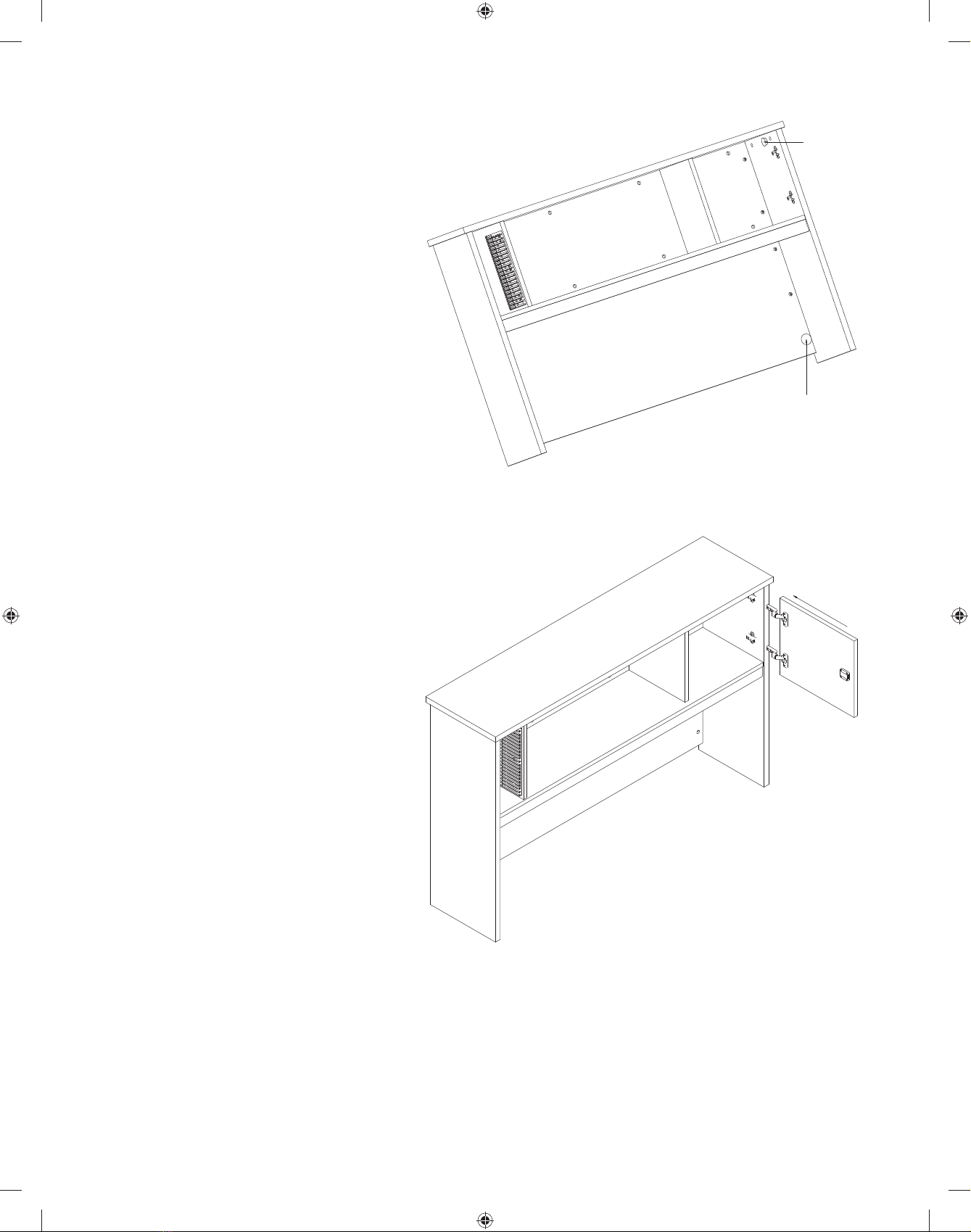

STEP 13

Using the Cam Cap (4) cover all the exposed Cam

Locks (3)

Using the Large Cam Cap (5) cover the exposed

Cam Lock (3) located inside the storage area.

STEP 14

Attach the door to the unit by inserting the hinge

mechanism over the Phillips Screw and locking into

place. Using a Phillips Screw Driver, adjust the door so

that it fits squarely into the opening.

Make sure that lock properly engages into the

Right Divider (E). Adjust as needed.

Prior to attaching the Hutch to the Desk Unit,

remove the protective coating from the

Double Stick Tape (11) located at the bottom of

the Left and Right End Panels. IMMEDIATELY

PLACE UNIT IN DESIRED LOCATION!

YOU HAVE SUCCESSFULLY COMPLETED

THE INSTALLATION OF THIS UNIT!

THANK YOU FOR PURCHASING

THIS PRODUCT!

LLR60126_64850_Manual.indd 9LLR60126_64850_Manual.indd 9 3/4/11 5:22 PM3/4/11 5:22 PM

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Lorell Mobilier d'intérieur

Lorell

Lorell LLR60601 Manuel utilisateur

Lorell

Lorell LLR60225 Manuel utilisateur

Lorell

Lorell LLR69930 Manuel utilisateur

Lorell

Lorell Value Series Manuel utilisateur

Lorell

Lorell BOOKCASES Manuel utilisateur

Lorell

Lorell LLR70064 Manuel utilisateur

Lorell

Lorell LLR44216 Manuel utilisateur

Lorell

Lorell 59647 Manuel utilisateur

Lorell

Lorell LLR63280 Manuel utilisateur

Lorell

Lorell LLR68573 Manuel utilisateur

Lorell

Lorell LLR68565 Manuel utilisateur

Lorell

Lorell LLR86210 Manuel utilisateur

Lorell

Lorell 59605 Manuel utilisateur

Lorell

Lorell 61623 Manuel utilisateur

Lorell

Lorell 69424 Manuel utilisateur

Lorell

Lorell LLR48847 Manuel utilisateur

Lorell

Lorell 60603 Manuel utilisateur

Lorell

Lorell 60602 Manuel utilisateur

Lorell

Lorell LLR44312 Manuel utilisateur

Lorell

Lorell LLR49670 Manuel utilisateur

Lorell

Lorell LLR84576 Manuel utilisateur

Lorell

Lorell 60116 Manuel utilisateur

Lorell

Lorell LLR84876 Manuel utilisateur

Lorell

Lorell Value Series Manuel utilisateur

Manuels Mobilier d'intérieur populaires d'autres marques

Homelegance

Homelegance California 1662PEK-1CK Manuel utilisateur

Osmond Ergonomics

Osmond Ergonomics FLO Manuel utilisateur

OVE

OVE ELOISE 42 Manuel utilisateur

overstock

overstock MF286255 Manuel utilisateur

Sonoma

Sonoma 160-801 Manuel utilisateur

BOLERO

BOLERO Wicker Side Chair CF158 Guide d'installation

Coaster

Coaster 4799N Manuel utilisateur

Stor-It-All

Stor-It-All WS39MP Manuel de programmation

Lexicon

Lexicon 194840161868 Manuel utilisateur

Next AMELIA NEW 462947 Manuel utilisateur

Furinno

Furinno 18089 Manuel utilisateur

Munchkin

Munchkin Push to Close MK0001 Manuel utilisateur

impekk

impekk Manual II Manuel utilisateur

Elements

Elements Ember Nightstand CEB700NSE Manuel utilisateur

JWA

JWA CARY 68429 Manuel utilisateur

VIPACK

VIPACK AMORI AMKB9014 Manuel utilisateur

Anthro

Anthro GT03 Series Manuel utilisateur

Rowico

Rowico SANNA Manuel utilisateur
