Lorell Value Series Manuel utilisateur
Lateral File
Classeur latéral
Archivero lateral
LLR44521/44522
LLR44521/44522_071904 Page 1 of 27
Instructions:
IF YOU ARE MISSING PARTS OR OTHER CONCERNS PLEASE CALL OUR TOLL FREE
NUMBER: 1-888-436-6881 EXT. 7678
MONDAY - FRIDAY 9:00 AM TO 4:00 PM - EASTERN STANDARD TIME
Please provide the following information:
1. Full Name
2. Physical Address - do not include P.O. Box as our carriers cannot deliver to a P.O. Boxes
3. Phone Number
4. Model Number
5. Part Number
6. Quantity
7. Reason for the request
Note: Our policy is to send all parts requests normal ground transportation, if your requirements are to have these parts via
overnight/next day, please provide your designated carrier and account number.
Before you begin:
Open, identify and count all parts prior to assembly. Lay out the parts on a non-abrasive surface such
as carpet or blanket. You will need the tools identified below:
1. Phillips Head Screw Driver
2. Flat Head Screw Driver
3. Rubber Mallet (recommended)
4. Hammer
LLR44521/44522_071904 Page 2 of 27

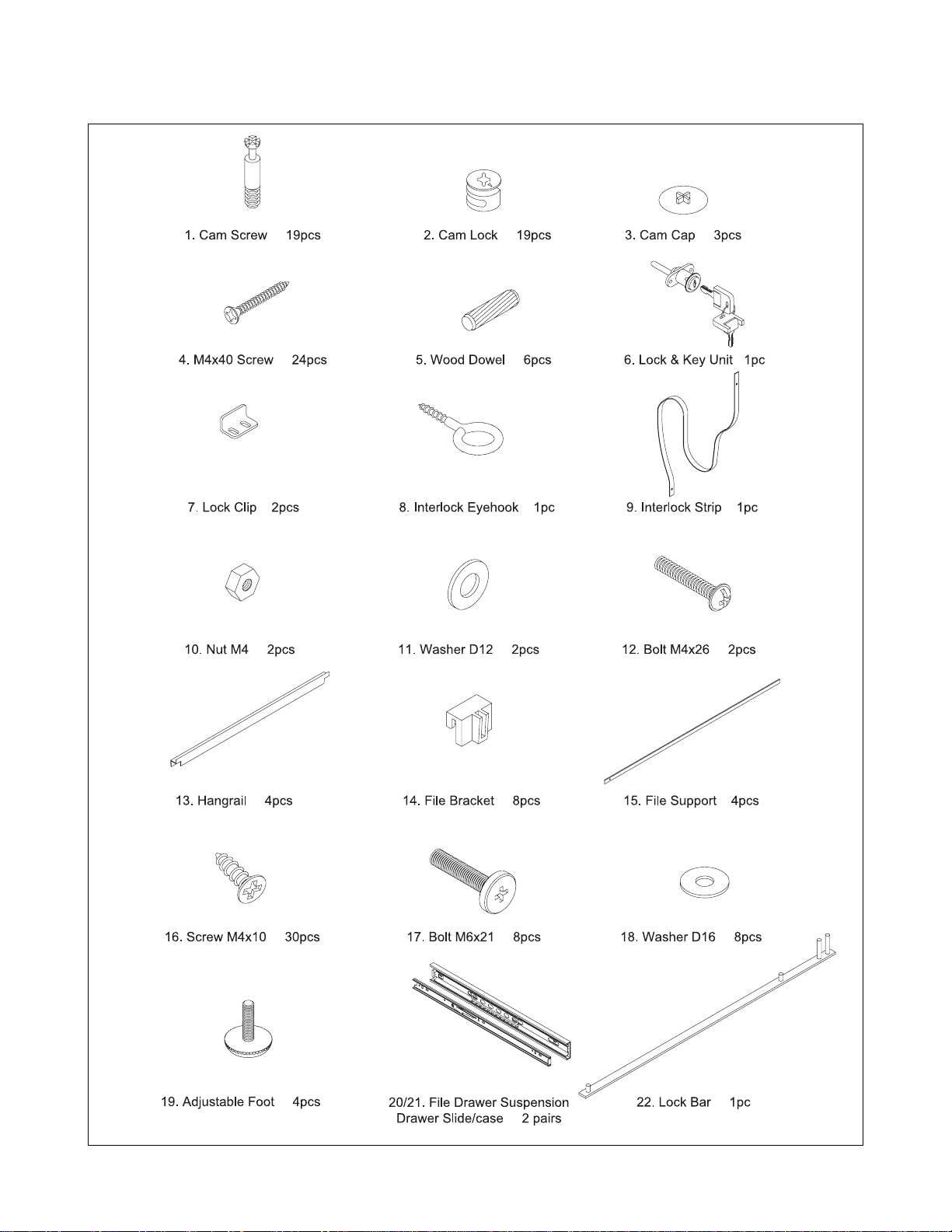

HARDWARE IDENTIFICATION
LLR44521/44522_071904 Page 3 of 27

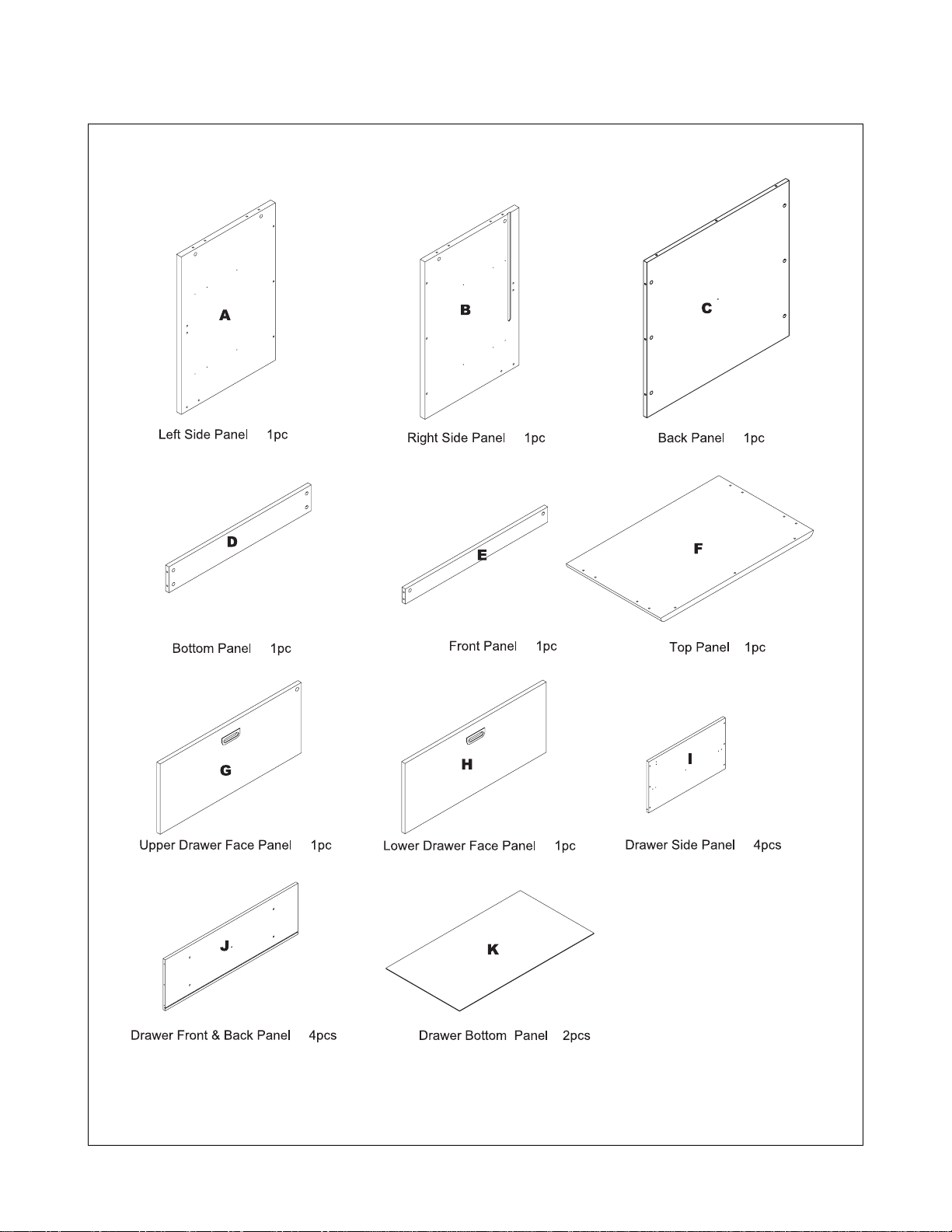

PANEL IDENTIFICATION
LLR44521/44522_071904 Page 4 of 27
ASSEMBLY INSTRUCTIONS
Step 1

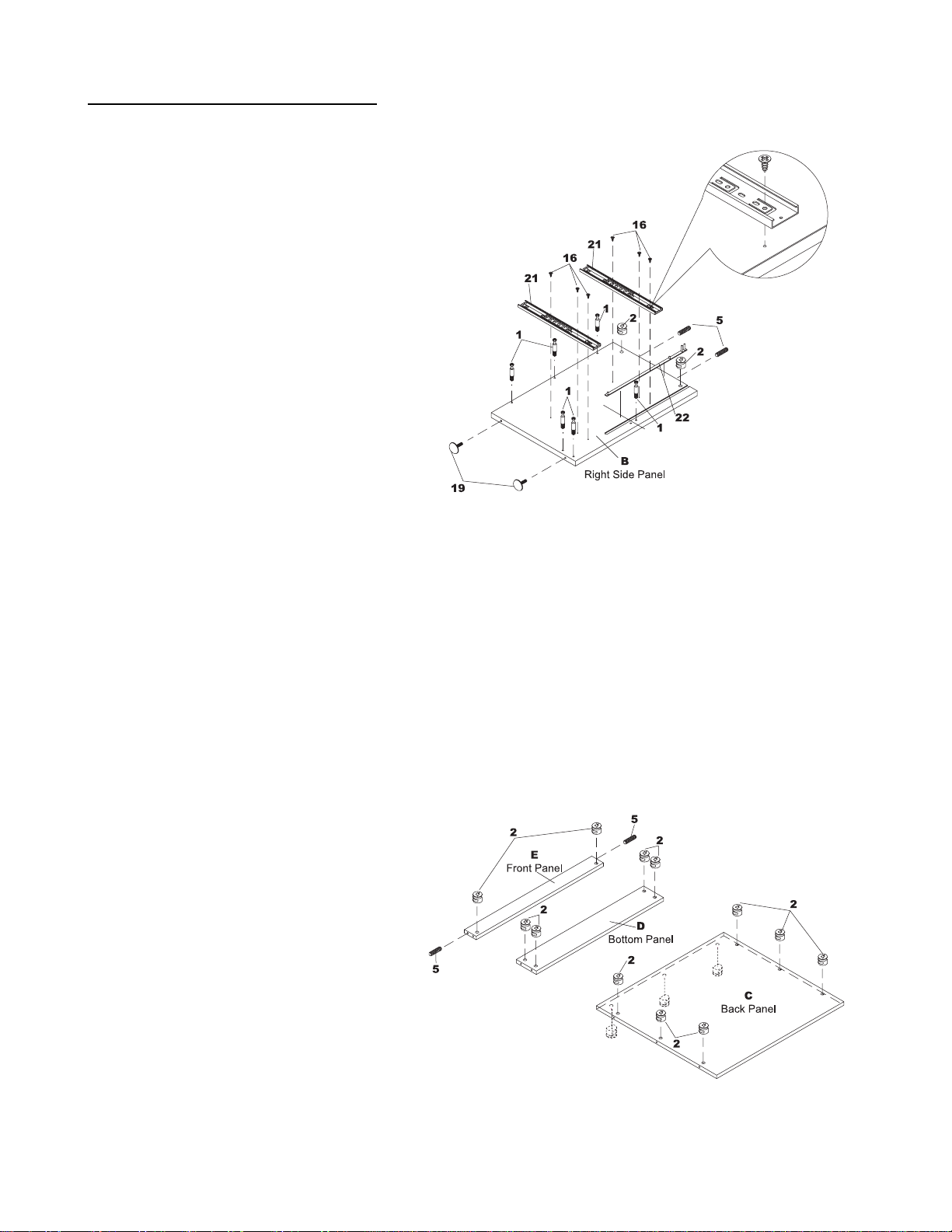

With the Right Side Panel laying on a
non-abrasive surface insert with a Phillips
Screw Driver 6 each Cam Screw (1) in the
positions shown on the drawing.
In the positions shown on the drawing
insert 2 each Cam Lock (2). When
inserting the cam lock make sure that the
arrow is facing toward the cam screw
entry.
Place the Lock Bar (22) into the slot
provided. Note that the two pins located
on the one end of the Lock Bar (22) are to
at the top of the Right Side Panel (B).
With the Lock Bar (22) in place, attach 2
each File Drawer Suspension - Case Slide
(21) to the Right Side Panel (B) in the
position shown. Secure in place with 3
each M4X10 Screw (16) per slide. NOTE
SCREW POSITION PER DRAWING.
Attach 2 each Adjustable Foot (19) into
the base of the Right Side Panel (B).
Insert 2 each Wood Dowel (5) in the other
end of the Right Side Panel (B). Tap
securely into position with a Rubber
Mallet or Hammer.
Step 2
In the Bottom Panel (D), Front Panel (E)
and Back Panel (C) insert 15 each Cam
Lock (2) in the position shown on the
drawing. Note that on the Back Panel (C),
some of the Cam Locks (2) are located on
the opposite side on of the panel.
On the Front Panel (E), insert 2 each
Wood Dowel (5) in the hole position
shown on the drawing.
LLR44521/44522_071904 Page 5 of 27
Step 3

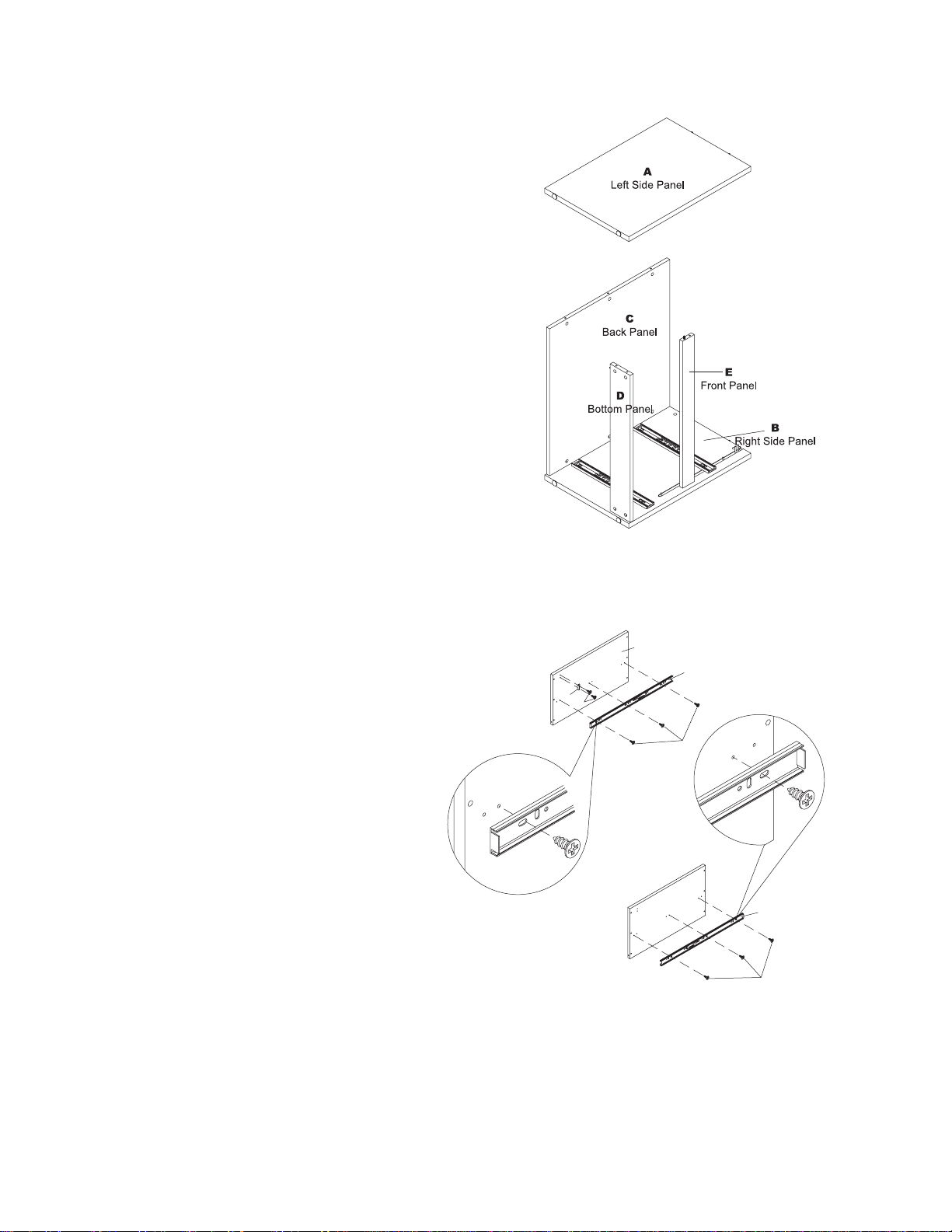

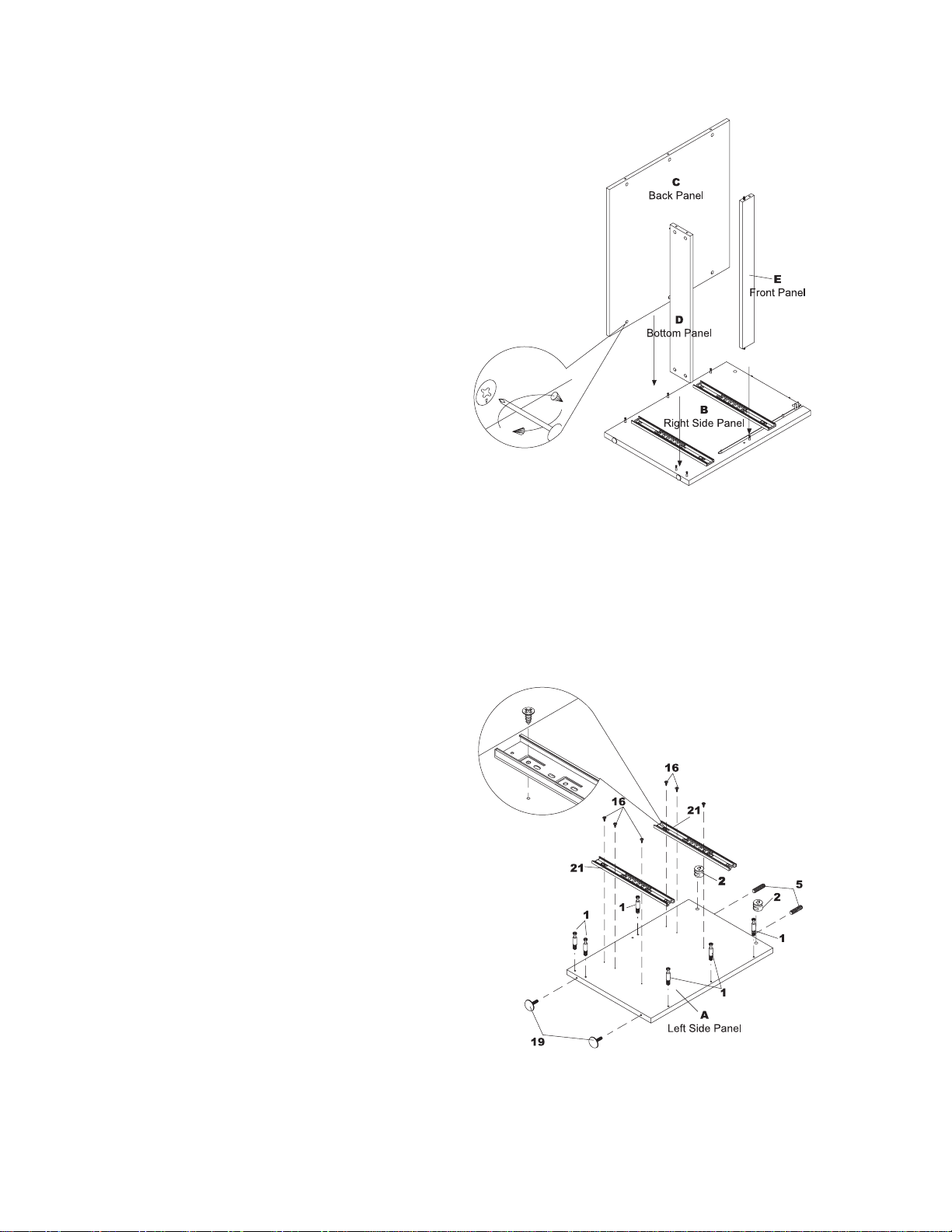

Attach the Back Panel (C) to the Right
Side Panel (B) so that 3 each Cam Screws
(1) located on the Right Side Panel (B)
engage with the Cam Locks (2). With a
Phillips Screw Driver rotate the cam locks
1/2 turn clockwise until snug. DO NOT
OVERTIGHTEN.
Attach the Bottom Panel (D) to the Right
Side Panel (B) in the position shown on
the drawing. Ensure that the 2 each Cam
Screws (1) properly engage with the Cam
Locks (2). With a Phillips Screw Driver
rotate the cam locks 1/2 turn clockwise
until snug. DO NOT OVERTIGHTEN.
Attach the Front Panel (E) to the Right
Side Panel (B) in the position shown on
the drawing. Ensure that the Wood Dowel
(5) securely seat into position and that the
Cam Screw (1) properly engage with the
Cam Lock (2). With a Phillips Screw
Driver rotate the cam lock 1/2 turn
clockwise until snug. DO NOT
OVERTIGHTEN.
Step 4
On the Left Side Panel (A) insert 6 each
Cam Screws (1) into the positions shown on
the drawing with a Phillips Screw Driver.
On the Left Side Panel (A) insert 2 each
Cam Locks (2) in the position shown on
the drawing. When inserting the cam lock,
make sure that the arrow is facing toward
the cam screw entry.
With a Phillips Screw Driver and 6 each
M4X10 Screw (16) install 2 each File
Drawer Suspension - Case Slide (21) to
the Left Side Panel (A) in the position
shown in the drawing. NOTE THE HOLE
LOCATION TO BE UTILIZED FOR
THE FIRST SCREW. In the Left Side
Panel (A) insert 2 each Adjustable Foot
(19) in the location shown on the drawing.
Insert by tapping lightly with a Rubber
Mallet or Hammer 2 each Wood Dowel
(5) into the top of the Left Side Panel (A)
as shown on the drawing.
LLR44521/44522_071904 Page 6 of 27
7
16
16
20
16
20
I
Drawer Side Panel
(Left Side View)
I
Drawer Side Panel
(Right Side View)
Step 5
Attach the Left Side Panel (A) to the
partially assembled unit containing the
Back Panel (C), Bottom Panel (D) and
Front Panel (E). Make sure that the Cam
Screws (1) located on the Left Side Panel
properly engage with the Cam Locks (B).
With a Phillips Screw Driver rotate the
cam lock 1/2 turn clockwise until snug.
DO NOT OVERTIGHTEN.
Step 6
On the 4 each Drawer Side Panel (I)
attach the File Drawer Suspension Drawer
Slide (20) using 3 each M4X10 Screw
(16) per slide. NOTE: TWO OF THE
SLIDES ARE LEFT SIDE ATTACHED
AND TWO NEED TO BE RIGHT
SIDE ATTACHED. SEE DRAWING
FOR POSITIONS.
NOTE DRAWING FOR INITIAL
SCREW PLACEMENT AS THIS
DETERMINES THE PROPER
ALIGNMENT OF THE SLIDE
On the 2 each Right Side Drawer Side
Panel (I) attach a Lock Clip (7) with 2
each M4X10 Screw (16) in the position
shown on the drawing.
LLR44521/44522_071904 Page 7 of 27
Step 7

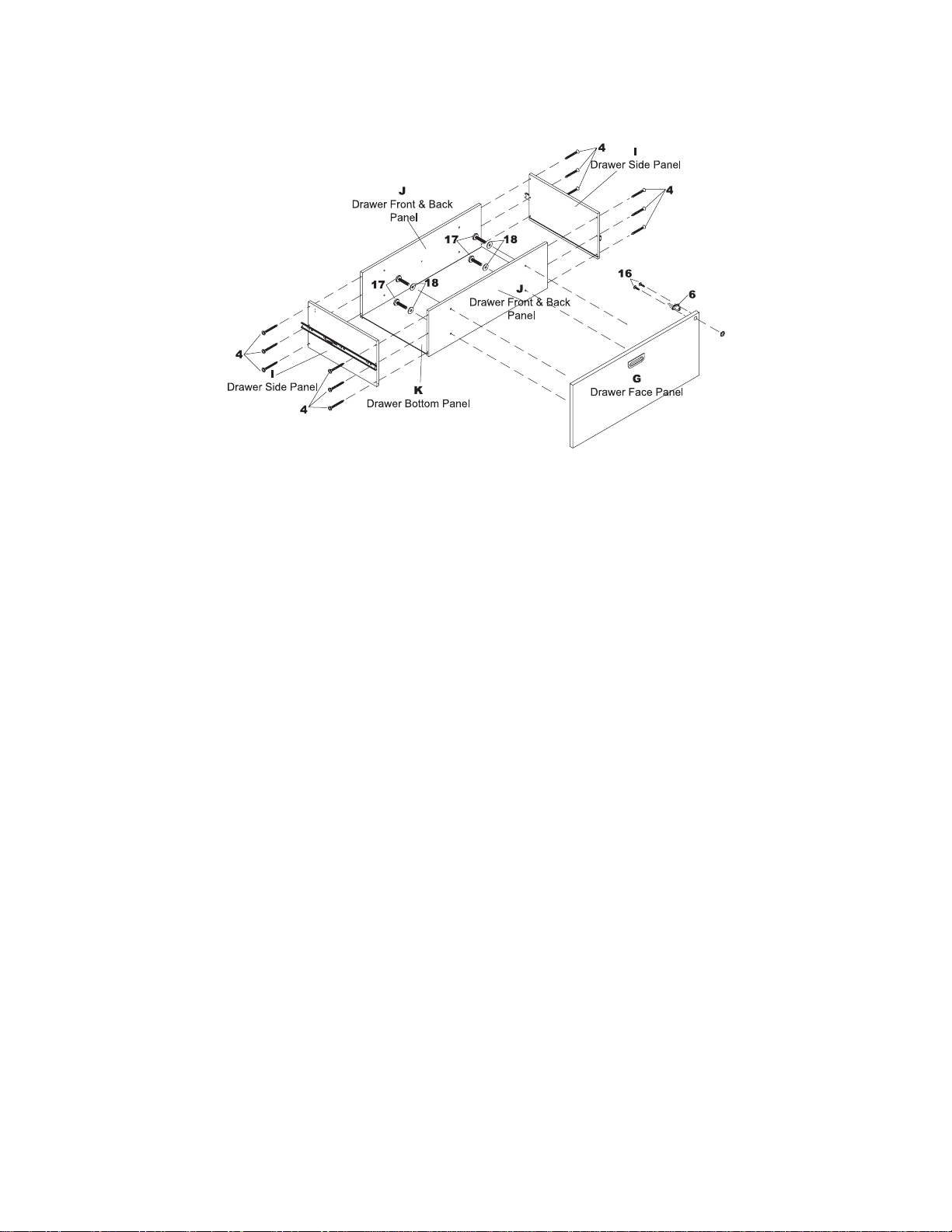

Inserting the Drawer Bottom Panel (K) into the groove provided on the Drawer Front and Back Panel (J), attach
the left side Drawer Side Panel (I) as shown. Make sure that the Drawer Bottom Panel also fits securely into the
groove on this panel as well.
Secure in place with 6 each M4X40 Screw (4).
In the same manner, attach the right side (with lock clip) Drawer Side Panel (I) as shown and secure in place
with 6 each M4X40 Screw (4).
Repeat the above steps to make another drawer unit.
Attach the Upper Drawer Face Panel to the Drawer Front Panel with 4 each M6X21 Bolt (17) and Washer D16 (18).
Attach the Lock & Key Unit (6) with 2 each M4X10 Screw (16) by inserting the lock through the hole located
in the Upper Drawer Face Panel (G) so that the screw enters the back of the Upper Drawer Face Panel (G) and
only the lock cylinder is exposed on the outside of the panel.
On the second drawer attach the Lower Drawer Face Panel with 4 each M6X21 Bolt (17) and Washer D16 (18).
With both drawers closed test the Lock Unit (6) to make sure that both drawers are locked when the key is in
the locked position. Adjust the Lock Clip as necessary. If the top drawer is locking but not the bottom, make
sure that the Lock & Key Unit (6) is properly engaging with the Lock Bar (22). The Lock Bar (22) should move
vertically when the lock is rotated.
LLR44521/44522_071904 Page 8 of 27
Step 8

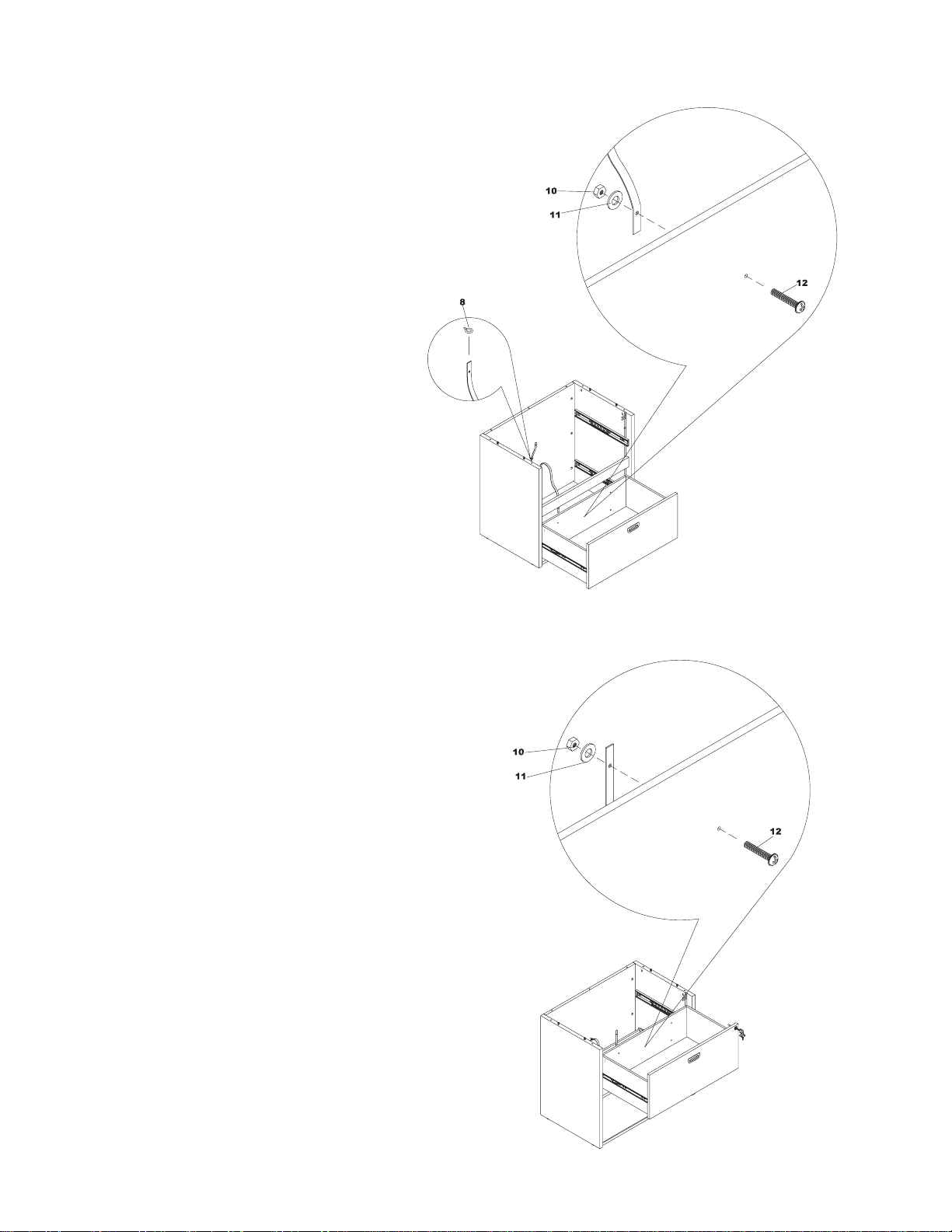

Using Pliers, screw the Innerlock
Eyehook (8) into the Back Panel (C) in
the hole located in the center of the panel.
Insert the completed Lower Drawer into
the cabinet ensuring that the File Drawer
Suspensions lock securely in place.
On the back of the Lower Drawer attach
the Innerlock Strip (9) with M4X26 Bolt
(12), Washer D12 (11) and Nut M4 (10).
Note the proper position of the washer in
the drawing.
Step 9
Insert the completed Upper Drawer into
the cabinet ensuring that the File Drawer
Suspension locks securely in place.
On the back of the Upper Drawer attach
the other end of the Innerlock Strip (9)
with a M4X26 Bolt (12), Washer D12 (11)
and Nut M4 (10). Note the proper position
of the washer in the drawing.
LLR44521/44522_071904 Page 9 of 27
Step 10

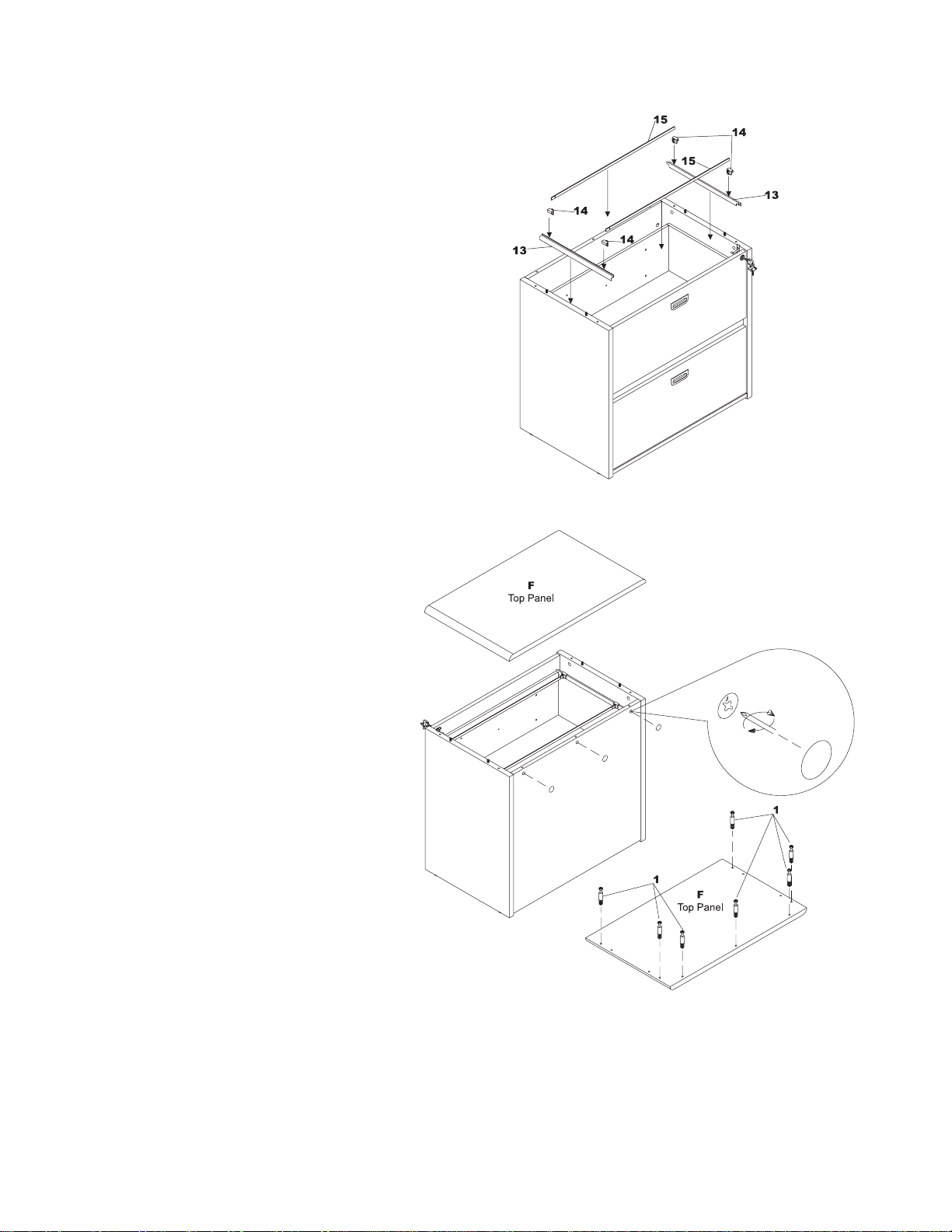

Roll out the Bottom Drawer and insert the
2 each Hangrail (13) onto the Drawer Side
Panel (I).
With the use of a Hanging File Folder,
attach the File Bracket (14) so that when
the File Support (15) is attached the
proper spacing to support the folder is
correct.
Repeat the above steps for the Top
Drawer.
Step 11
Insert 7 each Cam Screws into the Top
Panel (F) with a Phillips Screw Driver.
Install the Top Panel (F) onto the cabinet
so that the Cam Screws (1) and Wood
Dowels (5) properly engage with the Cam
Locks (2) and holes provided. With a
Phillips Head Screw Driver rotate the cam
locks on the back of the unit 1/2 turn
clockwise until snug. Open the top
drawer of the cabinet and rotate the two
cam locks 1/2 turn clockwise until snug.
DO NOT OVERTIGHTEN.
You have now successfully completed the assembly of this unit.
Thank you for your purchase!
