Logitech Keys-To-Go Manuel utilisateur

Keys-To-Go

Ultra-portable keyboard for Android™and Windows®

aK1041 超便携键盘适用于 Android™和Windows®

Setup Guide

Keys-To-Go - Ultra-portable keyboard

Contents / 目录

English. . . . . . . . . . . . . . . . . . . 3 简体中文 . . . . . . . . . . . . . . . . . . 12

English 3

Keys-To-Go - Ultra-portable keyboard

Know your product

www.logitech.com/support/keys-to-go-tablet

PDF

1 2

2.5 h

Keys-To-Go AW

Keys-To-Go

Ultra-portable keyboard Clavier ultra-portable

OFF

1. Hot keys

2. Keyboard

3. Bluetooth® connect key

4. Battery check key

5. Bluetooth and battery status light

6. On/o switch

7. Micro-USB charging port

8. Micro-USB charging cable

9. Documentation

4 English

Keys-To-Go - Ultra-portable keyboard

Set up your product

1. Turn on the keyboard:

Bluetooth discovery starts automatically

and continues for 15 minutes. The status

light blinks blue.

If the status light brieﬂy turns red,

charge the battery. For more information,

see “Charge the battery.”

2. Establish Bluetooth connection:

Keys-To-Go AW

Make sure your tablet’s Bluetooth feature is

on. Go to Settings > Network connections

section, and turn on the Bluetooth function.

3. Pair the keyboard with your tablet:

(i) In your tablet’s Bluetooth settings

page, select “Keys-To-Go AW” in the list

of Available devices.

(ii) When prompted, enter the PIN

displayed using the keyboard.

When successful connection is made,

the status light turns solid blue for a short

time, and then turns o.

(iii) Press enter to conﬁrm the PIN code.

Tip: If “Keys-To-Go AW” isn’t in the list, you can

try pressing and holding the Bluetooth connect

key on your keyboard for 2 seconds or press

scan (or equivalent) on your tablet to search for

Bluetooth devices.

English 5

Keys-To-Go - Ultra-portable keyboard

Charge the battery

You should charge the battery when:

• the status light turns red brieﬂy when

you turn on the keyboard, or

• the status light blinks red when you press

the battery check key:

A fully charged battery provides about

3 months of power when the keyboard is used

about two hours a day.

Charging your battery

1. Use the micro-USB charging cable provided

to connect the keyboard to your computer

or a USB power adaptor. The status light

blinks green while the keyboard is charging.

USB

2. Charge your keyboard until the status light

turns solid green.

Each minute of charging gives you about

two hours’ use.

Note: This ratio is approximate and is based on the

standard user experience. Your result may vary.

It takes 2.5 hours to fully charge the battery.

6 English

Keys-To-Go - Ultra-portable keyboard

Hot keys

fn + Back: Esc

Android home/

Windows browser home

Switch applications

Android menu/

Windows contextual menu

Mail

Music

Previous track

Play/Pause

Next track

Volume down

Volume up

Print screen

Bluetooth connect

fn + battery check:

Android lock screen/

Windows 8 lock screen/

Windows 7 sleep

English 7

Keys-To-Go - Ultra-portable keyboard

Function keys

fn + X = Cut

fn + C = Copy

fn + V = Paste

Windows Start key

Android search/Windows search

fn + Left arrow = Home

fn +Up arrow = Page up

fn + Down arrow = Page down

fn + Right arrow = end

fn + Back = Forward delete

For Android:

ctrl + space =

Language layout switch*

For Windows:

alt + shift =

Language layout switch*

Note: To select a function key, press and hold the fn key, and then press the key indicated above.

*Language layout switch:

1. Choose the key combination which is applicable to your speciﬁc operating system.

2. Please ensure you have more than one language layout selected in order to switch between them.

8 English

Keys-To-Go - Ultra-portable keyboard

Use your product

Status light indications

Light Description

Blinking green The battery is charging.

Solid green When charging, indicates that the battery

is fully charged (100%).

When you press the battery check key,

solid green for 2 seconds indicates that

the battery power is good (above 20%).

Blinking red Battery power is low (less than 20%).

Recharge the battery.

Solid red When you ﬁrst turn on your keyboard,

the status light shows solid red brieﬂy

if battery power is low.

Blinking blue Fast: The keyboard is in discovery mode,

ready for pairing.

Slow: The keyboard is trying to reconnect

to your tablet.

Solid blue Bluetooth pairing or reconnection

is successful.

Connecting to a dierent device

1. Make sure the keyboard is turned on.

2. On your device, check that Bluetooth is turned on.

Select Settings > Bluetooth > On.

3. Press and hold the Bluetooth connect key on

the keyboard for 2 seconds. The keyboard turns

discoverable for 3 minutes.

4. Select “Keys-To-Go AW” from the Devices menu.

English 9

Keys-To-Go - Ultra-portable keyboard

Use with optional Smartphone Stand

1. Attach the stand to the keyboard.

2. Set your smartphone in stand.

3. You are ready to type.

When you’ve ﬁnished using your product

When not in use, turn o the keyboard to conserve battery power.

Note:

• The keyboard enters sleep mode if powered on and not used for 2 hours. To exit sleep mode, press any key.

OFF

10 English

Keys-To-Go - Ultra-portable keyboard

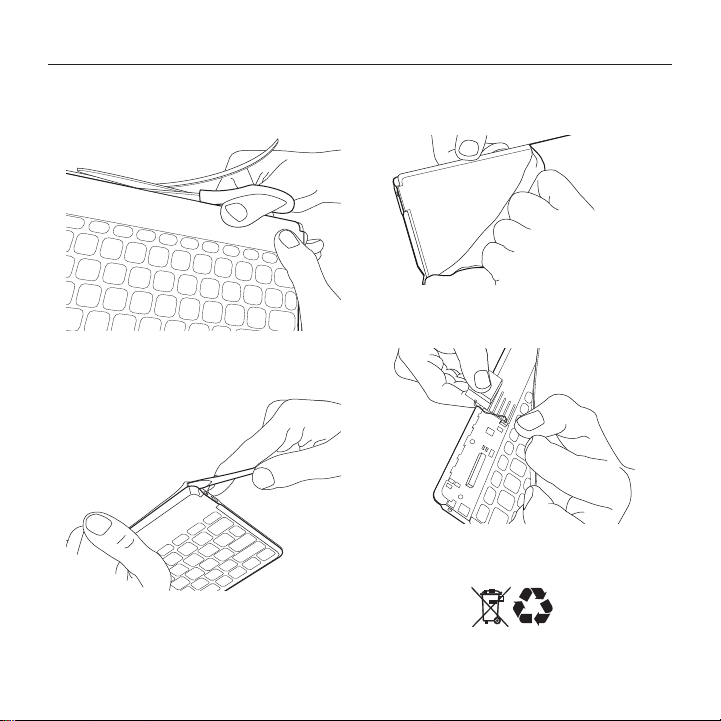

Battery disposal at product end of life

1. Cut along the fabric at the top edge

of the keyboard:

2. Use a screwdriver to pry the fabric away

from the area around the on/o switch:

3. Separate the inner and outer fabric layers,

and pull them away from the corner:

4. Pull back the yellow plate to reveal

the battery and remove it:

5. Dispose of the battery according

to local laws.
