Logitech Fold-Up Keyboard Manuel utilisateur

for iPad 2

Getting started with

Premiére utilisation

Logitech® Fold-Up Keyboard

for iPad 2

Getting started with

Premiére utilisation

Logitech® Fold-Up Keyboard

Contents

English. . . . . . . . . . . . . . . . . . 4

Français . . . . . . . . . . . . . . . . 10

Español . . . . . . . . . . . . . . . . 16

Português . . . . . . . . . . . . . . . 22

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Logitech® Fold-Up Keyboard

44 English

Setup and turn on

1. Insert iPad 2

Slide your iPad 2 into the tray. Make

sure that the connector port is aligned

with the connector opening on the tray.

Push the iPad into place. The “Click”

lets you know that the iPad is securely

attached.

2. Open the keyboard

Press the release button and lift the iPad

tray to expand the keyboard. The keyboard

turns on when it is fully open.

Logitech® Fold-Up Keyboard

5English 5

Pairing the Fold-Up Keyboard

The Bluetooth Fold-Up Keyboard should

only need to pair to your iPad 2 once.

1. On the open keyboard, press the

CONNECT button.

The Bluetooth status light blinks.

The keyboard is “discoverable”

for three minutes, or until it is paired

with the iPad 2.

2. On the iPad 2, select: Settings >

General > Bluetooth > On.

3. Select “Logitech Fold-Up Keyboard

(IPD)” from the iPad 2 list of available

devices. The iPad 2 displays a code.

4. Type the code on the keyboard

and press Enter. The Fold-Up Keyboard

is paired to the iPad 2.

LED Indicators

Bluetooth LED

• Pairing Blinks while discoverable,

or until paired.

• Power ON Solid glow for the ﬁrst

six seconds after power on.

Charging LED

• Solid green glow while charging;

turns o when fully charged.

• Blinks red when battery status drops

below 5%, or less than one hour.

LED continues to blink until battery is

completely dead and the unit turns o.

Logitech® Fold-Up Keyboard

66 English

Function keys

The Fold-Up Keyboard is designed with

special function keys (F-key) for more

control of your iPad 2. To use the enhanced

functions, press and hold the fn key

followed by an F-key.

1. Home Returns you to the iPad 2

home screen

2. Search Brings up the iPad 2 search

screen

3. Slideshow Starts playing slideshow

of saved pictures

4. Virtual keyboard Allows you to hide

or show iPad 2 onscreen keyboard

5. Previous track Skips to previous track

on current playlist

6. Play/Pause Starts or stops current

playlist

7. Next track Skips to next track

on current playlist

8. Mute Mutes audio on iPad 2

9. Volume down Decreases volume

on iPad 2

10. Volume up Increases volume

on iPad 2

11. Lock Makes the iPad 2 screen go dark

and come back when pressed again

1 2 3 4 5 6 7 8 9 10 11

Logitech® Fold-Up Keyboard

7English 7

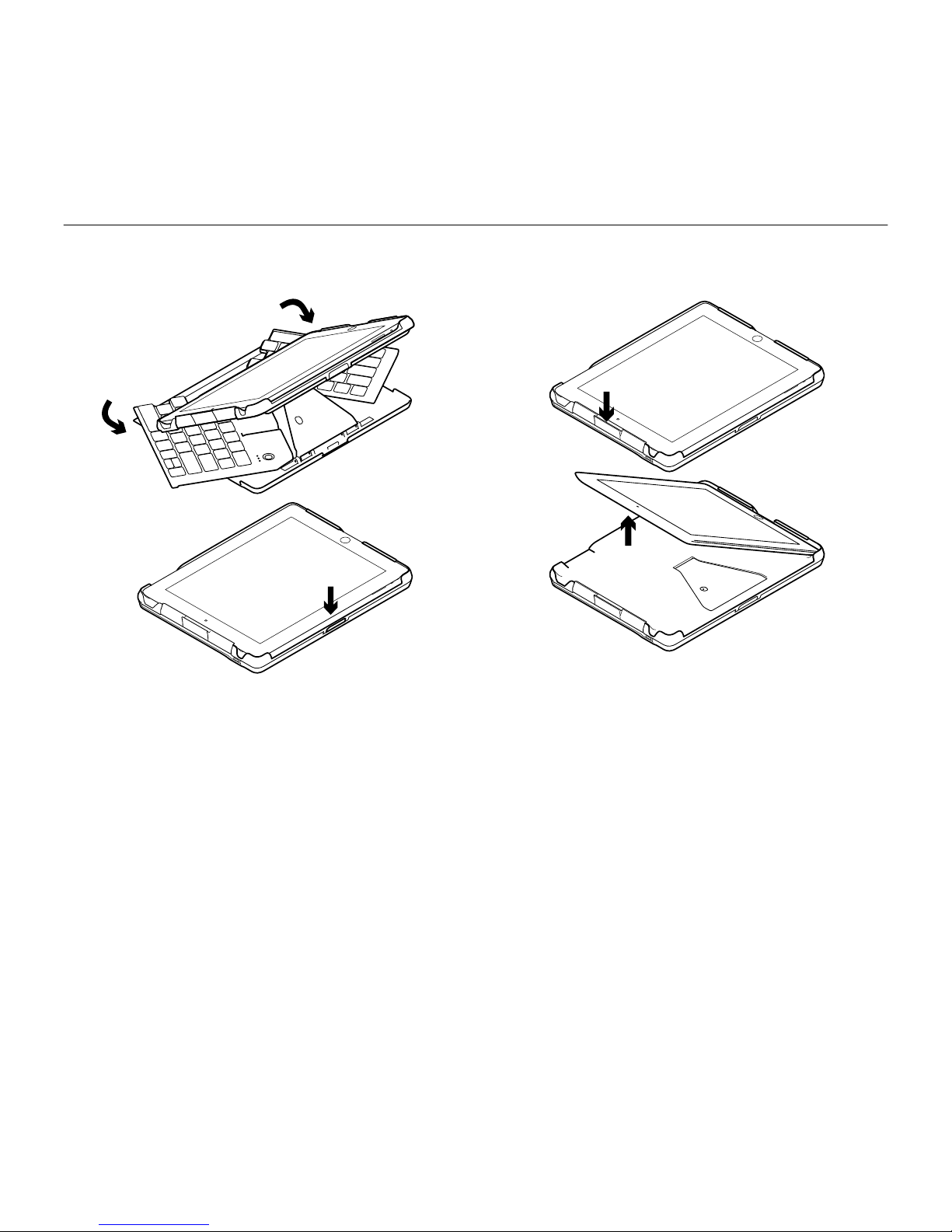

Close and turn o

1. Close the keyboard

Hold and gently push both front corners

of the keyboard towards the back

of the unit until completely closed.

Closing the unit turns o the keyboard.

Caution

• Hold the keyboard until fully closed

to prevent the iPad 2 from falling.

• Avoid putting your ﬁngers between

the tray and the bottom case to prevent

pinching.

2. Remove the iPad

Press down on the iPad release to remove

it from the tray.

Tip: During ﬂights, keep keyboard closed.

Logitech® Fold-Up Keyboard

88 English

Battery Management

The Fold-Up Keyboard features a rechargeable battery.

Charging information

• To recharge the keyboard, use the

provided USB cable. Plug the micro

USB end into the unit and the other end

into an iPad 2 adapter or a computer

USB port. The keyboard will charge

when open or closed:

• The battery LED is green while charging.

It turns o when the keyboard is fully

charged.

• It takes about 3 hours to completely

recharge the keyboard.

• The battery life is approximately

500 hours of typing.

USB

Logitech® Fold-Up Keyboard

9English 9

Product end of life: keyboard battery disposal

Removing the battery requires disassembly

and will destroy the unit.

1. Remove each rubber foot located on

the bottom of the Fold-Up Keyboard.

2. Remove the screws located below

each rubber foot.

3. Turn the unit right side up.

4. Remove the iPad tray.

5. Remove the keyboard from

the bottom case.

6. On the bottom of the keyboard,

use a tool to break the battery cover.

7. Remove the battery.

8. Dispose of the battery according to local

regulations. Recycle the remaining

keyboard part.

What do you think?

Please take a minute to tell us. Thank you for purchasing our product.

www.logitech.com/ithink

Logitech® Fold-Up Keyboard

1010 Français

Installation et mise sous tension

1. Insertion de l’iPad 2

Glissez votre iPad 2 dans le plateau.

Assurez-vous que le port du connecteur

s’aligne avec l’ouverture du plateau.

Poussez l’iPad jusqu’à ce qu’un cliquetis

vous indique qu’il est correctement installé

dans le logement.

2. Ouverture du clavier

Appuyez sur le bouton permettant

de libérer le clavier et soulevez le plateau

pour extraire le clavier. Le clavier se met

sous tension une fois ouvert.
