LIVARNO LUX HG03444A Caractéristiques techniques

LED OUTDOOR SPOTLIGHT 8.5 W

IAN 288404

LED-AUSSENSTRAHLER 8,5W

Montage-, Bedienungs- und Sicherheitshinweise

LED OUTDOOR SPOTLIGHT 8.5 W

Assembly, operating and safety instructions

LED VENKOVNÍ REFLEKTOR 8,5 W

Pokyny k montáži, obsluze a bezpečnostní pokyny

LED VONKAJŠÍ REFLEKTOR 8,5 W

Pokyny pre montáž, obsluhu a bezpečnostné pokyny

ZUNANJI LED-REFLEKTOR 8,5 W

Navodila za montažo, uporabo in varnostna navodila

LED KÜLTÉRI REFLEKTOR 8,5 W

Szerelési, használati és biztonsági tudnivalók

GB Assembly, operating and safety instructions Page 5

HU Szerelési, használati és biztonsági tudnivalók Oldal 15

SI Navodila za montažo, uporabo in varnostna navodila Stran 25

CZ Pokyny k montáži, obsluze a bezpečnostní pokyny Strana 37

SK Pokyny pre montáž, obsluhu a bezpečnostné pokyny Strana 47

DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 57

1 2

2.5 m

5GB

List of pictograms used..................................................Page 6

Introduction.............................................................................Page 6

Intended use..................................................................................Page 6

Parts description............................................................................Page 6

Technical Data ..............................................................................Page 7

Scope of delivery..........................................................................Page 7

General safety instructions........................................Page 7

Before installation.............................................................Page 9

Before use.................................................................................Page 9

Installation...............................................................................Page 9

Start-up .......................................................................................Page 11

Adjusting the motion detector.......................................................Page 11

Setting the lighting duration..........................................................Page 11

Adjusting the sensitivity of the sensor...........................................Page 11

Setting the daylight level ..............................................................Page 12

Aligning the motion detector........................................................Page 12

Cleaning and Care.............................................................Page 13

Disposal......................................................................................Page 13

Warranty...................................................................................Page 13

6 GB

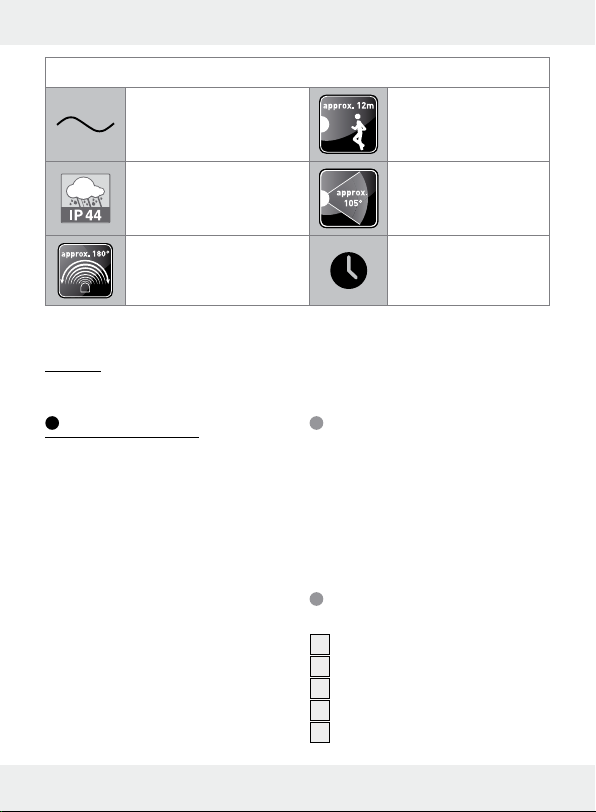

List of pictograms used

Alternating current Motion sensor cover-

age distance: 12m

Splashproof LED illuminating

angle: 105 deg

Motion sensor detection

angle: 180 deg LED lifespan

LED Outdoor Spotlight

8.5W

Introduction

We congratulate you on the pur-

chase of your new product. You

have chosen a high quality product.

The instructions for use are part of

the product. They contain important

information concerning safety, use

and disposal. Before using the prod-

uct, please familiarise yourself with

all of the safety information and

instructions for use. Only use the

product as described and for the

speciﬁed applications. If you pass

the product on to anyone else,

please ensure that you also pass

on all the documentation with it.

Intended use

The product is intended for auto-

matic lighting in both indoor and

outdoor areas. This product is solely

intended for private use.

Parts description

1Spotlight

2Spring washer

3Metal Nut

4Mounting stirrup

5Locking screw

7GB

6Connection box

7Cable gland

8Fastening screws

9Motion detector

10 Rotary control SENS (sensitivity)

11 Rotary control TIME (switched

on duration)

12 Rotary control LUX (light

sensitivity)

13 Terminal block

14 Cable clamp

Technical Data

Operating voltage: 230 V∼ 50Hz,

8.5W

LEDs: 16 x LED x

0.5W

Dimming switch: Adjustable

from 10lx–

20,000lx

Light on time: Adjustable

between

approx.10 s –

4min

Protection class: I

Protection class: IP44

(Splashproof)

Dimensions

(H x W x D): approx. 197 x

149 x 121mm

Projected area: max. 190 x

149mm

Mounting height: approx. 2.5 m

Weight: approx. 640 g

Scope of delivery

1 LED Spotlight with motion

detector

2 Wall plugs (Ø 6mm)

2 Screws

1 Set of mounting and operating

instructions

General safety

instructions

Before using the product, please

familiarise yourself with all of the

safety information and instructions

for use! When passing this product

on to others, please also include

all the documents!

8 GB

DANGER TO LIFE

AND ACCIDENT

HAZARD FOR

TODDLERS AND SMALL

CHILDREN! Never leave chil-

dren unattended with the pack-

aging material. The packaging

material represents a danger of

suﬀocation. Children frequently

underestimate the dangers.

Please keep children away

from the product at all times.

This product may be used by

children age 8 years and up,

as well as by persons with re-

duced physical, sensory or

mental capacities, or lacking

experience and/or knowledge,

so long as they are supervised

or instructed in the safe use of

the product and understand

the associated risks. Children

should not be allowed to play

with the product. Cleaning and

user maintenance should not

be performed by children with-

out supervision.

Risk of electric

shock

Always check product for dam-

age before connecting it to

power. Never use the product

if it shows any signs of damage.

Prior to installation, verify that

the mains voltage on site corre-

sponds with the operating volt-

age required for the product

(230V∼ 50Hz). Otherwise do

not install the product.

CAUTION! DANGER OF

BURN INJURIES! To prevent

burns, verify the product is

switched oﬀ and has cooled

down for at least 15min before

touching it. The product can

become very hot.

0.5m

FIRE HAZARD!

Fit the product so

that it is at least

0.5m away from the material

to be illuminated. Excessive

heat can result in a ﬁre.

CAUTION! RISK

OF INJURY! Bro-

ken lamp glass must

be replaced before any further

use is made of the product.

9GB

Only intended for installations

out of normal reach.

This product does not contain

any parts that can be serviced

by the user. The LEDs cannot

be replaced by end user.

If the LEDs fail at the end of their

lives, they must be repaired by

qualiﬁed electrician or the en-

tire product must be replaced.

The spotlight is only suited for

use with the built-in LED control

gear.

The product continues to draw

a small amount of power even

if the lamp is oﬀ as long as

product is connected to supply

mains. To switch the product

oﬀ completely, the mains switch

should be switched oﬀ.

Before installation

Important: The electrical con-

nection must be established by a

qualiﬁed electrician or a person

trained to perform electrical instal-

lations. This person must be familiar

with the properties of the product

and the connection regulations.

Before installation ensure that

the circuit, to which the product

will be connected, is not ener-

gised. To do so, remove the fuse

or switch oﬀ the circuit breaker

in the fuse box (0 position).

Use the voltage tester to verify

the de-energised status.

The included mounting material

is suitable for ordinary solid

concrete or masonry construc-

tion. Check which mounting

material is suitable for your

chosen mounting surface. If

necessary, seek expert advice.

Before use

Note: Remove all packaging

materials from the product.

Installation

Make sure you will not be drill-

ing into electrical, gas or water

lines inside the wall. Use a

power drill to drill the holes into

the brick wall. Always observe

all safety instructions for the

10 GB

power drill in the manual for

the power drill. Death or injury

due to electric shock may

otherwise result.

When selecting the mounting loca-

tion, pay attention to the following:

Make sure that the spotlight 1

illuminates the desired area.

You can move the spotlight 1

vertically.

Make sure the motion detector

9covers the desired area.

The motion detector 9has a

maximum coverage range of

12m, with a coverage angle

of about 180° (depending on

the mounting height – a height

of 2.50m is ideal) (Fig. D).

Make sure the motion detector

9is not illuminated at night

by street lighting. This can inﬂu-

ence its functioning.

During mounting, proceed as

described below:

Unscrew locking screw 5by

using a screw driver (cross

type) to detach the mounting

stirrup 4from the spotlight 1.

Hold the mounting stirrup 4

so that it is horizontal (possibly

with a spirit level) against the

wall and mark the fastening

holes.

Now drill the fastening holes

(Ø 6mm) and push the wall

plugs into the drill holes (Fig. A).

Secure the mounting stirrup 4

onto the wall using the screws

provided.

Now use the screw driver (cross

type) to attach the spotlight 1

to the mounting stirrup 4by

using the previously removed

locking screw 5, spring washer

2, and metal nut 3(Fig A).

Open the connection box 6

after you have released the lid

of the connection box 6with

a cross type screwdriver.

Insert the connection cable (not

include in the product), type

H05RN-F 3G 1.0mm2 , through

the cable gland 7and into

the connection box 6. The

length for the connection cable

line should not exceed 2.5m.

Fix the connection cable with

the cable clamp 14 ﬁrst and

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels LIVARNO LUX Éclairage extérieur

LIVARNO LUX

LIVARNO LUX 310325 Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 279106 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 54315 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 93673 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 298692 Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 273603 Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX Z31170A Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 104775 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX LSLB 30 A1 Fiche d'information produit

LIVARNO LUX

LIVARNO LUX 298812 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 273536 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX HG05866A Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 7317-012L Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 282451 Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 10346A Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 60305 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX LSL 10 A4 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 298451 Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 298486 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 30866 Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 279554 Caractéristiques techniques

LIVARNO LUX

LIVARNO LUX 2973-010L Manuel utilisateur

LIVARNO LUX

LIVARNO LUX 101253 Instructions d'installation et d'utilisation

LIVARNO LUX

LIVARNO LUX HG00776A Caractéristiques techniques

Manuels Éclairage extérieur populaires d'autres marques

Sealey

Sealey LED37 Manuel utilisateur

nordlux

nordlux VEJERS Guide de l'utilisateur

SImx

SImx ELITE LED LHTC637 Manuel utilisateur

GEV

GEV CAROLINE 10833 Manuel utilisateur

NEBO

NEBO NEB-LSP-0020 Manuel utilisateur

WE-EF

WE-EF PFL540 LED Manuel utilisateur

Lindby

Lindby 9949029 Manuel utilisateur

HEPER

HEPER DOGO Side LW6048.585-US Instructions d'installation et d'utilisation

HEPER

HEPER LW8034.003-US Instructions d'installation et d'utilisation

Maretti

Maretti VIBE S 14.6080.04.A Manuel utilisateur

BEGA

BEGA 84 253 Manuel

HEPER

HEPER MINIMO Instructions d'installation et d'utilisation

LIGMAN

LIGMAN BAMBOO 3 Manuel utilisateur

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manuel utilisateur

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manuel utilisateur

urban ambiance

urban ambiance UQL1273 Manuel utilisateur

TotalPond

TotalPond 52238 Manuel utilisateur

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manuel utilisateur
