Linksys SPA3102

Thank you for purchasing Linksys SPA 3102.

Package Contents:

•SPA3102 Body

•AC Adapter

•Modular Cable

•Ethernet Cable

•Instruction Manual

Disclaimer

•Product functions and specifications are subject to change without prior notice.

•Quality of call (e.g. choppy line, noise, etc.) may be affected by company’s network

environment.

•Our company does not assume any responsibilities for a difference in call quality due to

personal hearing impairment.

•Our company is not responsible for service that may not be available outside the

country.

•Linksys SPA3102 may temporarily suspend the service for routine maintenance without

prior notice.

•We would not assume any liability for product failure due to device malfunction.

Linksys SPA 3102

Analog Calls Routed over the Internet

Internet telephone service is now more accessible than before. The SPA 3102 Voice Gateway

is a part of Cisco Small Business Voice Gateways and ATAs. It allows automatic routing of

local calls from mobile phones and landlines to Voice over Internet Protocol (VoIP) service

providers, and vice versa. Reduce or eliminate long-distance charges by first calling the local

number on the SPA3102.

Calls can be safely redirected to a traditional carrier via standard analog interface in the event

of power loss or Internet access is unavailable.

Additional Features

•One RJ-11 POTS (Plain Old Telephone Service) FXS port for an existing analog phone

or fax machine connection.

•One PSTN FXO port for a Telco or PBX circuit connection.

•Two 100 BaseT RJ-45 Ethernet interfaces for home or office LAN connection and an

Ethernet connection to a broadband modem or router.

•FXS and FXO lines that can be independently configured.

•Secured encryption-based methods for communication, provisioning and servicing.

Router (Back)

Router (Front)

Power: Router gateway Turn on / off

Internet: Supplies Internet connection to the router and

Internet access to PC.

Ethernet: Provides Ethernet connection to PC.

Phone: Device(s) connected to the router (Needs to be

configured to the router first).

Line: Connects the main telephone line to the router for

an analog telecom provider.

Installation (hardware)

1. Connect the power cable to your SPA3102.

2. Connect the network cable from your SPA3102 to your DHCP enabled modem / router

OR connect the network cable from your modem to the SPA3102 WAN port and

connect your PC via Ethernet cable to the LAN port of the SPA3102.

3. Connect an analog phone to the [Phone] port in the SPA3102.

4. Turn the power on.

5. Pick up the phone and dial [＊＊＊＊] (You should hear a voice saying Linksys

Configuration Menu.)

6. Dial [110#]. (Write down the IP address that is returned.)

7. Dial [7932#], then dial [1#] to enable the web server, then press [1] to save.

8. Hang up.

9. Connect your PSTN line to the [Line] port of the SPA3102.

* You can opt to upgrade firmware.

Configuring SPA3102 via Web Interface

1. Access the web Interface by opening a web browser and type [http://IPAddress of

SPA3102].

* By default the SPA 3102 does not have a username/password associated with it. If

you are prompted for a username and password, please enter the default username

and password: [user].

2. Click [Admin Login] !click [Advanced].

3. Click [Voice] !Click [Regional].

On [Distinctive Ring Pattern]

set [Ring1 Cadence] to [60

(1/2)]

On [Miscellaneous] set the

following:

[Set Local Date (mm/dd)]

[Set Local Time (HH/mm)]

[Time Zone]: Ex. [GMT +

09:00]

To manually set NTP Server:

1. Click [Admin Login] !click [Router].

2. Click [Wan Setup].

3. Go to [Optional Settings] !

in [Primary NTP

Server] type [ntp.jst.mfeed.ad.jp].

* Click [Submit All Changes] to save changes made.

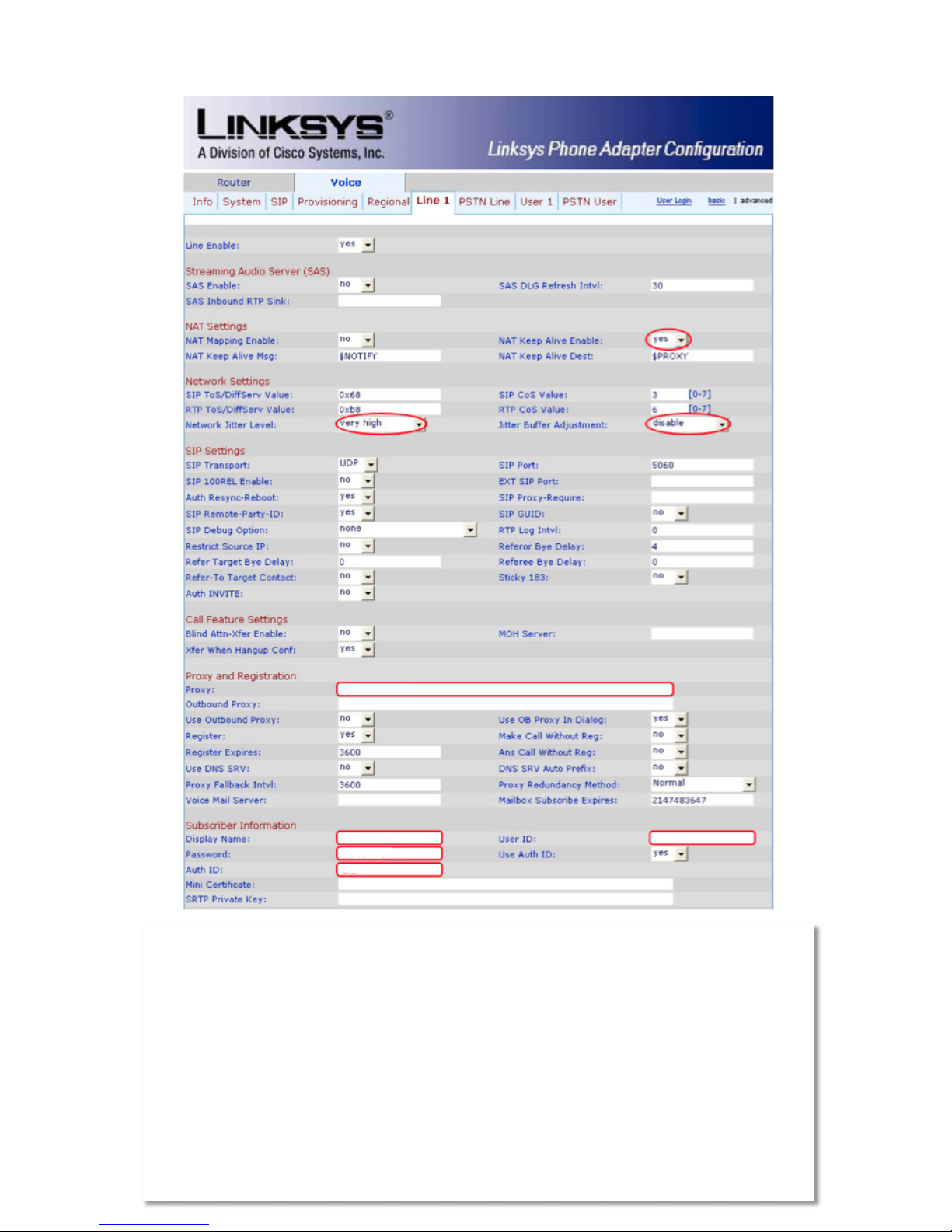

4. Click [Voice] !Click [Line 1].

VoIP Server

Unique ID

Password

Unique ID

VoIP Server

Set the following:

[NAT Settings]

NAT Keep Alive Enables: Select [Yes].

[Network Settings]

Network Jitter Level: Select [Very High].

Jitter Buffer Adjustment: Select [Disable].

[Proxy Registration]

Proxy: Enter [VoIP Server].

[Subscriber Information]

Display Name, User ID, Auth ID: Enter [Unique ID].

Password: Enter the password provided during registration. If you changed your

password, enter your new password.

User Auth ID: Select [Yes].

[Dial Plan]

Dial Plan: Enter (<0000:>xx.<:@gw0>|xx.|*x.|**x.|***x.|*x.*x.|*x.*x.*x.|#x.|#x.*x.|#x.*x.*x.)

[Supplementary Service

Subscription]

Call Waiting Serv: Select [No].

Three Way Call Serv: Select

[No].

[Audio Configuration]

User Pref Codec Only: Select

[Yes].

DTMF Tx Method: Select

[AVT].

FAX Disabule ECAN: Select

[Yes].

FAX Enable T38: Select [Yes].

Silence Supp Enable: Select

[No].

Echo Canc Enable: Select

[No].

Echo Supp Enable: Select

[No].

FAX Passthru Codec: Select

[G711u].

FAX Passthru Method: Select

[ReINVITE].

5. Click [Voice] !Click [PST Line].

[NAT Settings]

NAT Keep Alive Enables:

Select [No].

[Network Settings]

Network Jitter Level:

Select [Very High].

Jitter Buffer Adjustment:

Select [Disable].

[Audio Configuration]

Use Pref Codec Ony: Select

[Yes].

FAX Disabule ECAN: Select

[Yes].

Silence Supp Enable: Select

[No].

Echo Canc Enable: Select

[No].

Echo Supp Enable: Select

[No].

FAX Passthru Codec: Select

[G711u].

FAX Passthru Method:

Select [ReINVITE].

DTMF Tx Method: Select

[AVT].

[PSTN-To-VoIP Gateway Setup]

PSTN-To-VoIP Gateway Enable: Select [No].

* Click [Submit All Changes] to save changes made.

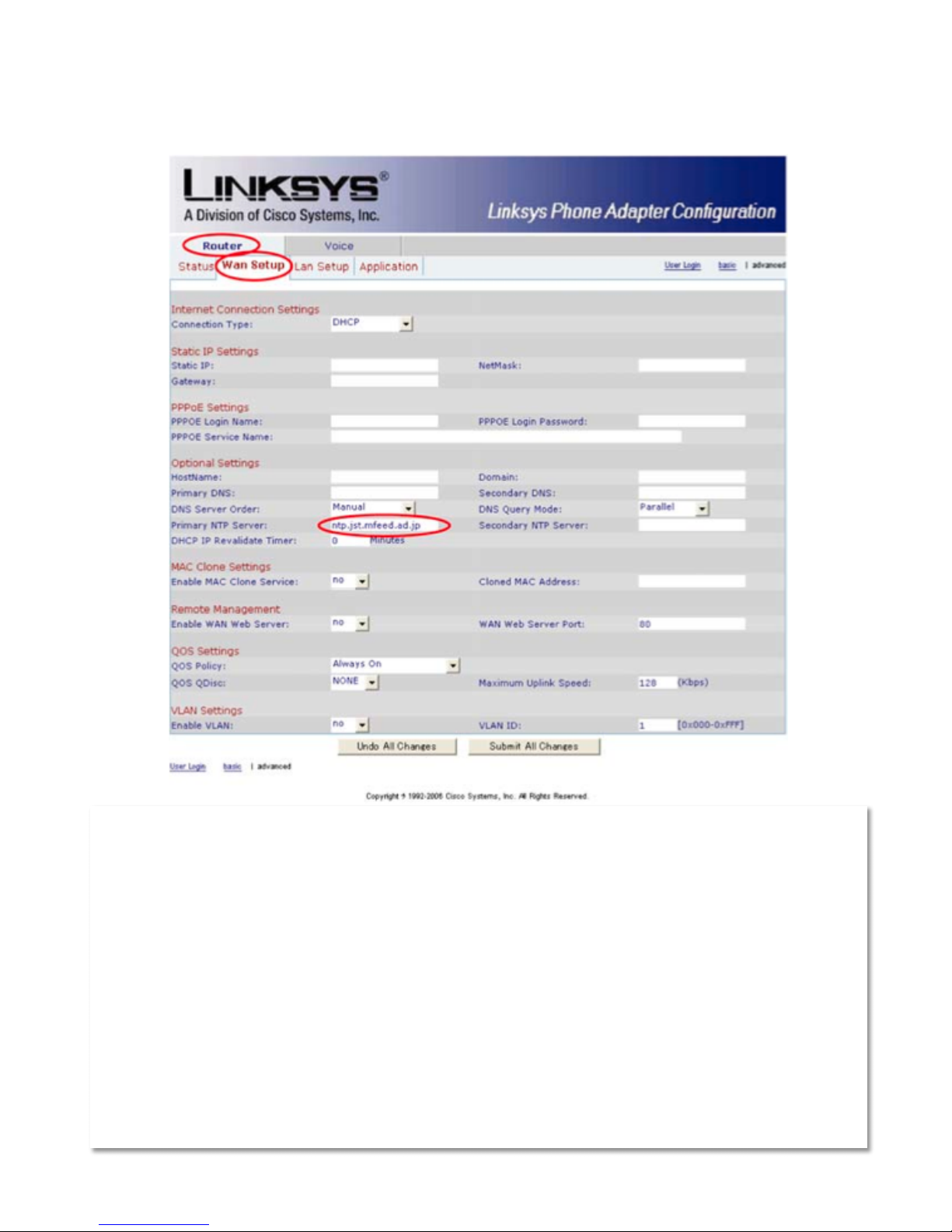

Router Configuration

* This setting applies only to SPA3102.

1. Click [Admin Login] !Click [Router] !Click [Wan Setup].

[Internet Connection Settings]

[Static IP Settings]

[PPPoE Settings]

[Optional Settings]

Primary NTP Server: Enter [ntp.jst.mfeed.ad.jp].

[MAC Clone Settings]: Select [Yes].

* MAC Address is a 12-digit code assigned to a unique piece of hardware for identification.

[Remote Management]: Select [Yes].

* This depends on the assigned web server port.

* Click [Submit All Changes] to save changes made.

Precautions & Safety Instructions

The following instructions help use Linksys SPA3102 properly and prevent

accidents. Failure to follow these instructions would void the product’s

warranty and accident may happen.

•Immediately unplug the device from the power supply if there is a strange

smell and smoke. Don’t use the device and immediately contact the dealer for

repair. Do not disassemble or modify. The device may malfunction, cause

electric shock and fire.

•Do not insert metal and keep the device dry. The device may malfunction,

cause electric shock and fire.

•Do not touch the device when lightning occurs. Doing so may cause an

electrical shock. Don’t place near a flammable material. This may cause fire

or explosion.

•Holding the phone on wet hands may cause electric shock. Don’t place the

device in an extreme hot or cold place. Sudden temperature change may

cause malfunction of the device.

•Do not place in a damp, dusty or direct sunlight. This may trigger an

explosion of the device. Place in an even and stable location.

•Do not place the phone and earpiece near an absorbent and magnet

material. This may cause malfunction.

Troubleshooting

Please check the troubleshooting procedure before requesting a repair. If the

problem doesn’t get resolved, please contact us. Agile Shop ([email protected])

Initialization Method

Clear all data initialization process. You must set all the required information to start

initializing your service again.

1. Note the (000B82000xxxx) MAC address located at the bottom of the unit.

2. Press the [MENU] button and select [Config]. Then, select [Factory Reset] and

confirm by selecting [OK].

10!

PROBLEM

CAUSE

SOLUTION

General Failure

Plug and unplug from the power source. (Do this a few times).

Wait at least one minute before you again plug the device to

the power source.

If the problem is not resolved after doing this, contact us at:

sup@agile.ne.jp

Please provide your number and broadband products.

No ringer sound

Ethernet cable is

disconnected.

AC adapter is

disconnected.

Did you change

the volume

settings?

Did you change the settings

on the display?

Check the connection of the

Ethernet cable.

Check the connection of the

AC adapter.

Adjust the volume on the

volume button.

Revert the changed settings.

Disconnect the Ethernet cable

(Please reboot).

Call is interrupted

by noise

Are there any abnormalities in

the network environment?

Check your network

environment.

Reference: http://www.jmgtechnology.com.au/spa_3102_guide.pdf

http://faktortel.com.au/support/telephone_adapters_phones/linksys/spa3102_auto_setup.php

Please check our website for FAQ.

For more information on features

and settings, please check

http://www.agile.ne.jp/support /

Inquiries by telephone and email:

Send to: sup@agile.ne.jp

Telephone number: 03-6365-1506

Weekdays: 10:00 - 19:00
