Configuration Guide
for the
Linksys PAP2
Landose Configuration Guide for the Linksys PAP2
SET UP YOUR PAP2
1. Using a standard telephone cable (RJ-11), connect an analog phone to the Phone1 port on the PAP2.
2. Using a standard network cable (RJ-45), connect the LAN port on the PAP2 to your network
connection (e.g., LAN).
3. Power on the PAP2 by plugging its power supply into an AC outlet and then plugging the power
cable into the Power port on the PAP2.
The table below lists some useful IVR options for the PAP2.
PAP2 MENU OPTIONS
ACTION CODE USER INPUT BEHAVIOR NOTES
Enter IVR Menu **** N/A
Wait until you hear the announcement,
“Configuration menu. Please enter
option followed by the pound (#) key,
or hang up to exit.”
Check DHCP 100 N/A
You will hear the system announce the
DHCP status, either enabled or
disabled.
Set DHCP 101 To enable, enter 1.
To disable, enter 0.
Press the number corresponding with
the desired option, followed by the
pound (#) key.
Check IP address 110 N/A
Set IP Address 111
Use the phone’s keypad to
enter the IP address. Press
the star (*) key to enter the
“dots” in the IP address.
After entering the IP address, press the
pound (#) key. Ensure that DHCP is
“Disabled.” If it is “Enabled,” the
system announces, “Invalid Option” if
you try to set this value.
Check Net Mask 120 N/A
Set Net Mask 121
Use the phone’s keypad to
enter the Net Mask address.
Press the star (*) key to enter
the “dots” in the IP address.
After entering the Net Mask address,
press the pound (#) key. Ensure that
DHCP is “Disabled.” If it is “Enabled,”
the system announces, “Invalid Option”
if you try to set this value.
Check Gateway 130 N/A
Set Gateway 131
Use the phone’s keypad to
enter the gateway address.
Press the star (*) key to enter
the “dots” in the IP address.
After entering the gateway address,
press the pound (#) key. Ensure that
DHCP is “Disabled.” If it is “Enabled,”
the system announces, “Invalid Option”
if you try to set this value.
Check MAC Address 140 N/A The system announces the PAP2’s MAC
address.
Check Firmware
Version 150 N/A The system announces the PAP2’s
firmware version.
Manual Reboot 7326668 N/A
Once the system announces, “Option
successful,” you may hang up the
phone. The PAP2 reboots automatically.
Page 1
Landose Configuration Guide for the Linksys PAP2
CONFIGURE YOUR PAP2 FOR OUTBOUND CALLING
To connect to the PAP2 Web interface:
1. Pick up the handset of the phone connected to the PAP2, and then, using the phone’s keypad, press
the star key (*) four times: ****.
2. When you hear an Interactive Voice Response (IVR) prompt, press 110#. When the system
announces the PAP2’s IP address, write it down.
To configure the PAP2 to make outbound calls:
1. Using a PC on the same network as the PAP2, launch a Web browser, and in the Address bar, enter
the PAP2’s IP address (obtained in the previous section).
2. Click the Admin Login link, located in the upper right-hand corner of the page.
3. Click the switch to advanced view link.
4. Click the tab for Line1 or Line2 at the top of the page, depending on which line you are configuring.
5. In the NAT Settings section, change the value of the following field:
NAT Keep Alive Enable—no
6. In the Proxy and Registration section, change the value of the following fields:
Proxy— sip.landose.com
Use Outbound Proxy— no
Use OB Proxy In Dialog— no
Make Call Without Reg— yes
Ans Call Without Reg— yes
DNS SRV Auto Prefix— no
7. In the Subscriber Information, enter No_Number in the Display Name field.
8. Enter the User ID (account number) and Password (passcode).
Note:
Line 1 and Line 2 must have a different account number and passcode.
9. Change the value of the Use Auth ID field to no.
Page 2
Landose Configuration Guide for the Linksys PAP2
Line 1 Configuration Page – Top

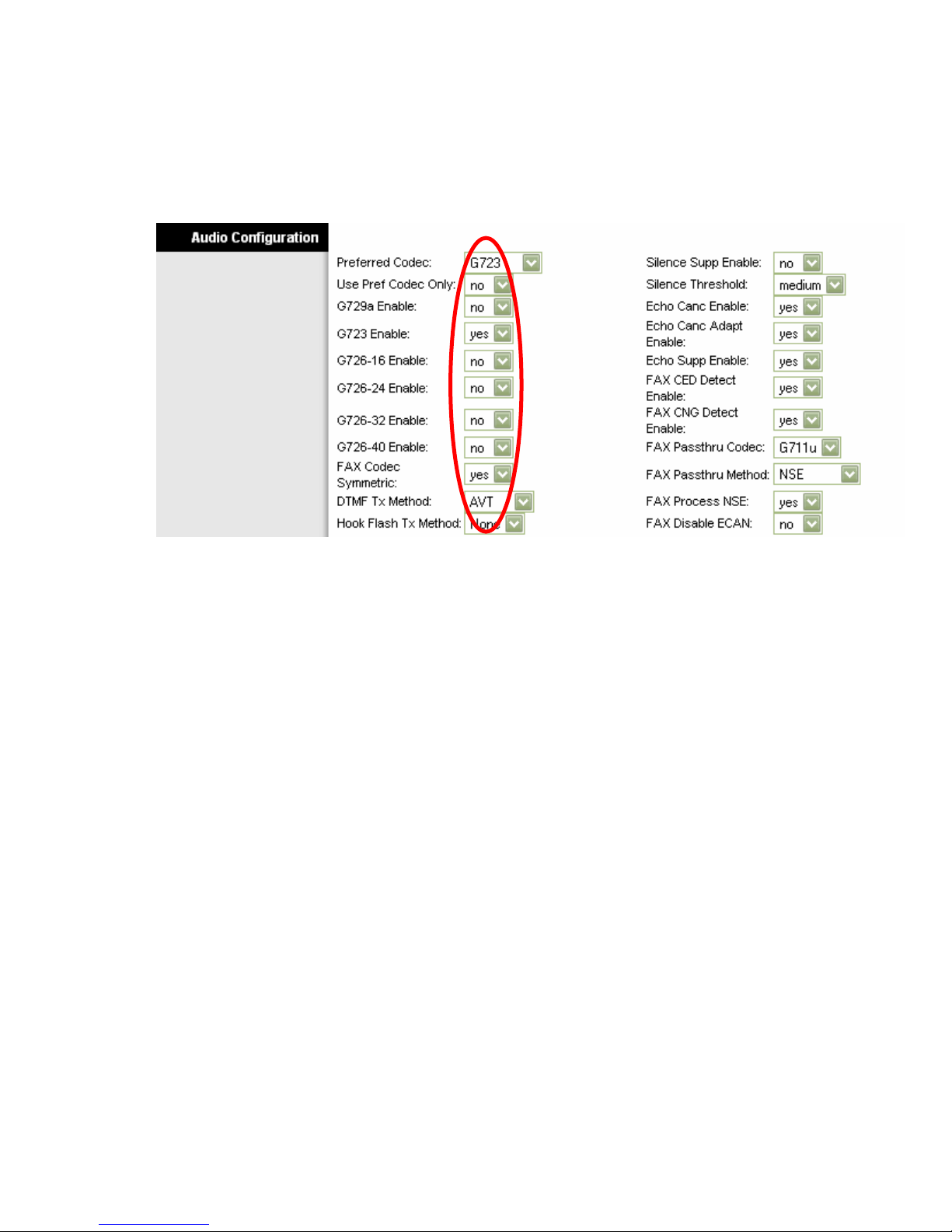

10. In the Audio Configuration section, change the value of the following fields:
Preferred Codec— G723
Use Pref Codec Only—no
G729a Enable—no
G723 Enable—yes
G726-16 Enable—no
Page 3
Landose Configuration Guide for the Linksys PAP2
G726-24 Enable—no
G726-32 Enable—no
G726-40 Enable—no
DTMF Tx Method—AVT
Line 1 Configuration Page – Bottom
11. In the Dial Plan section, change the value of the Dial Plan field to match the dialing pattern used in
your country (where you are using the Landose service).
For US calls, insert “1” as the first digit. For non-US calls, insert “011” before the rest of the phone
number. For information on customizing your dial plan, refer to the PAP2 manual.
12. To save these settings, click the Submit All Changes button.
13. On the Line 1 and Line 2 configuration pages of the Linksys PAP2, please change the following
settings in the Supplementary Service Subscription section from "Yes" to "No":
Three Way Call Serv
Three Way Conf Serv
Attn Transfer Serv
Unattn Transfer Serv
Page 4
