Linksys WAPPOE Manuel utilisateur
Power Over Ethernet
Adapter Kit
Model No: WAPPOE
USER GUIDE
i
About This Guide
i
Power Over Ethernet Adapter Kit
About This Guide
Icon Descriptions
While reading through the User Guide you may see various icons that call
attention to specific items. Below is a description of these icons:
NOTE: This check mark indicates that there is a note of interest and
is something that you should pay special attention to while using
the product.
WARNING: This exclamation point indicates that there is a caution
or warning and it is something that could damage your property or
product.
WEB: This globe icon indicates a noteworthy website address or e-
mail address.
Online Resources
Website addresses in this document are listed without http:// in front of the
address because most current web browsers do not require it. If you use an older
web browser, you may have to add http:// in front of the web address.
Resource Website
Linksys www.linksys.com
Linksys International www.linksys.com/international
Glossary www.linksys.com/glossary
Network Security www.linksys.com/security
Copyright and Trademarks
Linksys is a registered trademark or trademark of Cisco Systems,
Inc. and/or its affiliates in the U.S. and certain other countries.
Copyright © 2008 Cisco Systems, Inc. All rights reserved. Other
brands and product names are trademarks or registered
trademarks of their respective holders.
ii
Table of Contents
ii Power Over Ethernet Adapter Kit
ii
Chapter 1: Product Overview 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Injector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Splitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 2: Connection 5
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power on a Device that Uses a Standard Power Adapter . . . . . . . 6
Power on a Device that Uses Inline Power . . . . . . . . . . . . . . . . 7
Appendix A: Specications 9
Appendix B: Warranty Information 11
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix C: Regulatory Information 13
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . 14
Avis d’Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
User Information for Consumer Products Covered by EU Directive
2002/96/EC on Waste Electric and Electronic Equipment (WEEE) 14
1
Chapter 1
Product Overview
1
Power Over Ethernet Adapter Kit
Chapter 1: Product Overview
Introduction
Thank you for choosing the Linksys Power Over Ethernet Adapter Kit,
comprised of the Injector and Splitter. The Injector sends power and
data over the Ethernet cable to the Splitter. Then the Splitter separates
the data and power back into two cables and delivers them to the
remotely located access point or other network device that requires
a five-volt power input. The Injector can also be used by itself with
any Power Over Ethernet (POE)-enabled network device that accepts
48 volts directly on a POE port.
NOTE: If your Linksys product uses a 12-volt power input, then
you should use the 12-volt kit, model number: WAPPOE12.
Injector
The Injector’s built-in cable and ports are located on side panels.
Injector’s First Side Panel
The Power & Data OUT port is located on the Injector’s first side panel.
Power & Data OUT This port allows you to connect the
Injector to the Splitter or a network device that supports inline
power. (You will use the included Ethernet network cable to
make this connection.)

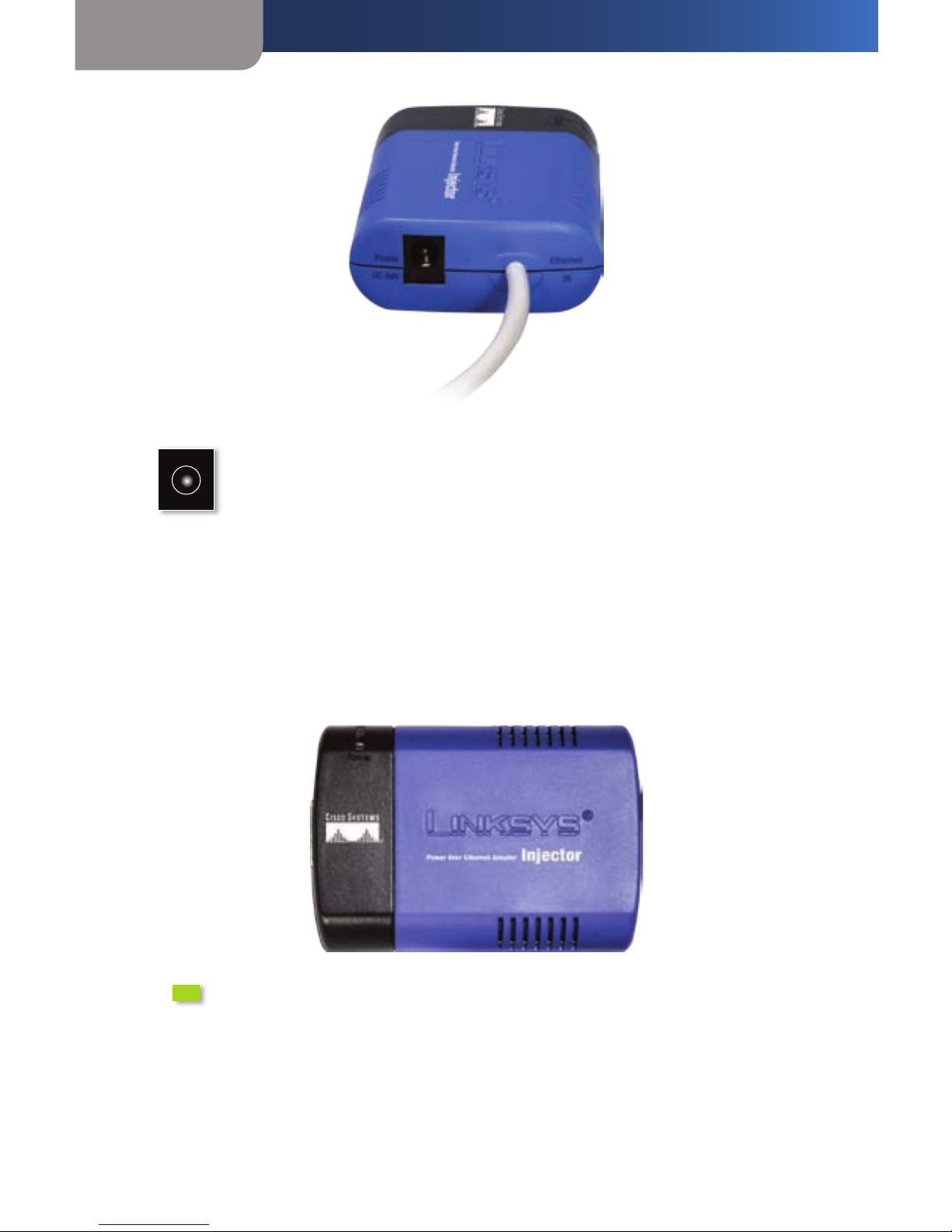

Injector’s Second Side Panel
The built-in Ethernet network cable and Power port are located on the
Injector’s second side panel.
2
Chapter 1 Product Overview
2Power Over Ethernet Adapter Kit
2
Power The Power port is where you will connect the included
adapter.
Ethernet IN The Injector has a built-in Ethernet network
cable. You will connect this cable to one of the Ethernet
network ports on your router or switch.
Injector’s LED
The Power LED is located on the top of the Injector.
Power (Green) The Power LED lights up when the Injector is
powered on and ready for use.
Splitter
The Splitter’s built-in cables and port are located on side panels.
3
Chapter 1
Product Overview
3
Power Over Ethernet Adapter Kit
Splitter’s First Side Panel
The Power & Data IN port is located on the Injector’s first side panel.
Power & Data IN This port allows you to connect the Splitter
to the Injector. (You will use the included Ethernet network
cable to make this connection.)
Splitter’s Second Side Panel
The built-in Ethernet network and Power cables are located on the
Splitter’s second side panel.
Ethernet OUT The Splitter has a built-in Ethernet network
cable. You will connect this cable to the Ethernet network
port of your remotely located access point or other network
device.
Power The Splitter has a built-in power cord.You will connect
this cord to the Power port of your remotely located access
point or other network device.
4
Chapter 1 Product Overview
4Power Over Ethernet Adapter Kit
4
Splitter’s LED
The Splitter’s LED is located on the top of the Splitter.
Power (Green) The Power LED lights up when the Splitter is
powered on and ready for use.
5
Chapter 2
Connection
5
Power Over Ethernet Adapter Kit
Chapter 2: Connection
Overview
This chapter gives instructions on how to connect the Power Over
Ethernet Kit. Once connected, the Kit will transmit data and power over
the Ethernet network cable to your remotely located network device.
The diagram shows an example of how the Kit can be connected to a
wired switch and a wireless access point.
Power Adapter
(24V typical)
Injector Splitter
Power Over Ethernet
Ethernet Cable
Network
Workgroup
Switch
Wireless
Access Point
Ethernet Cable
Ethernet Cable
Power Cable
Power Cable
Up to 328 feet
(100 m)
To connect the Kit to a device with a conventional power port, proceed
to the section, “Power on a Device that Uses a Standard Power Adapter.”
To connect the Injector to a device that supports inline power, proceed
to the section, “Power on a Device that Uses Inline Power.”
6
Chapter 2 Connection
6Power Over Ethernet Adapter Kit
6
Power on a Device that Uses a Standard
Power Adapter
Use the Injector and Splitter to power up a device that uses a standard
power adapter. Follow these instructions:
Connect the Injector’s built-in Ethernet network cable to your router,
switch, or other network device.
Connect the Kit’s included Ethernet network cable to the Injector’s
Power & Data OUT port.
NOTE: If this cable is not long enough, then you can use your
own Ethernet network cable.
Then connect the other end to the Splitter’s Power & Data IN port.
Connect the Splitter’s built-in Ethernet network cable to the Ethernet
port of your remotely located access point or other network device.
Connect the Splitter’s Power cord to the Power port of your remotely
located access point or other network device.
1.
2.
3.
4.
5.
