Preliminary

Linear Technology Confidential

LTC5584 Demo Board (DC1670A) Quick Start Guide

Quick Start Procedures:

1. Connect test equipments as shown in Figure 1 with all signal sources and DC supplies off.

2. Turn on the 5V DC power supply.

3. Connect EN to VCC_SENSE.

4. Monitor the DC volt meter, and adjust the DC supply voltage until VCC_SENSE is 5V.

5. Verify ICC is approximately 190mA.

6. Turn on the RF and the LO signal generators.

7. Adjust the spectrum analyzer settings. Be sure to use enough input attenuation to avoid over-

driving the spectrum analyzer.

8. Take measurement.

Using the IIP2 and DC Offset adjustment features:

Method 1 (On-board trim pots):

1. Install jumpers to all 6 positions of jumper block JP1

2. Apply 1V DC to VCTRL.

3. Connect EIP2 and EDC to VCC_SENSE.

4. Adjust REF trim pot until the voltage on the REF test point reaches 0.5V.

5. Adjust IIP2 and DC Offset using the on-board trim pots.

Method 2 (External voltage sources):

1. Remove jumpers from all 6 positions of jumper block JP1.

2. Connect EIP2 and EDC to VCC_SENSE.

3. Using 5 separate DC power supplies, apply 0.5V to each of the demo board REF, IP2I, IP2Q,

DCOI, and DCOQ test points.

4. Vary the voltages on IP2I, IP2Q, DCO1, and DCOQ to adjust IIP2 and DC Offset.

All manuals and user guides at all-guides.com

all-guides.com

Preliminary

Linear Technology Confidential

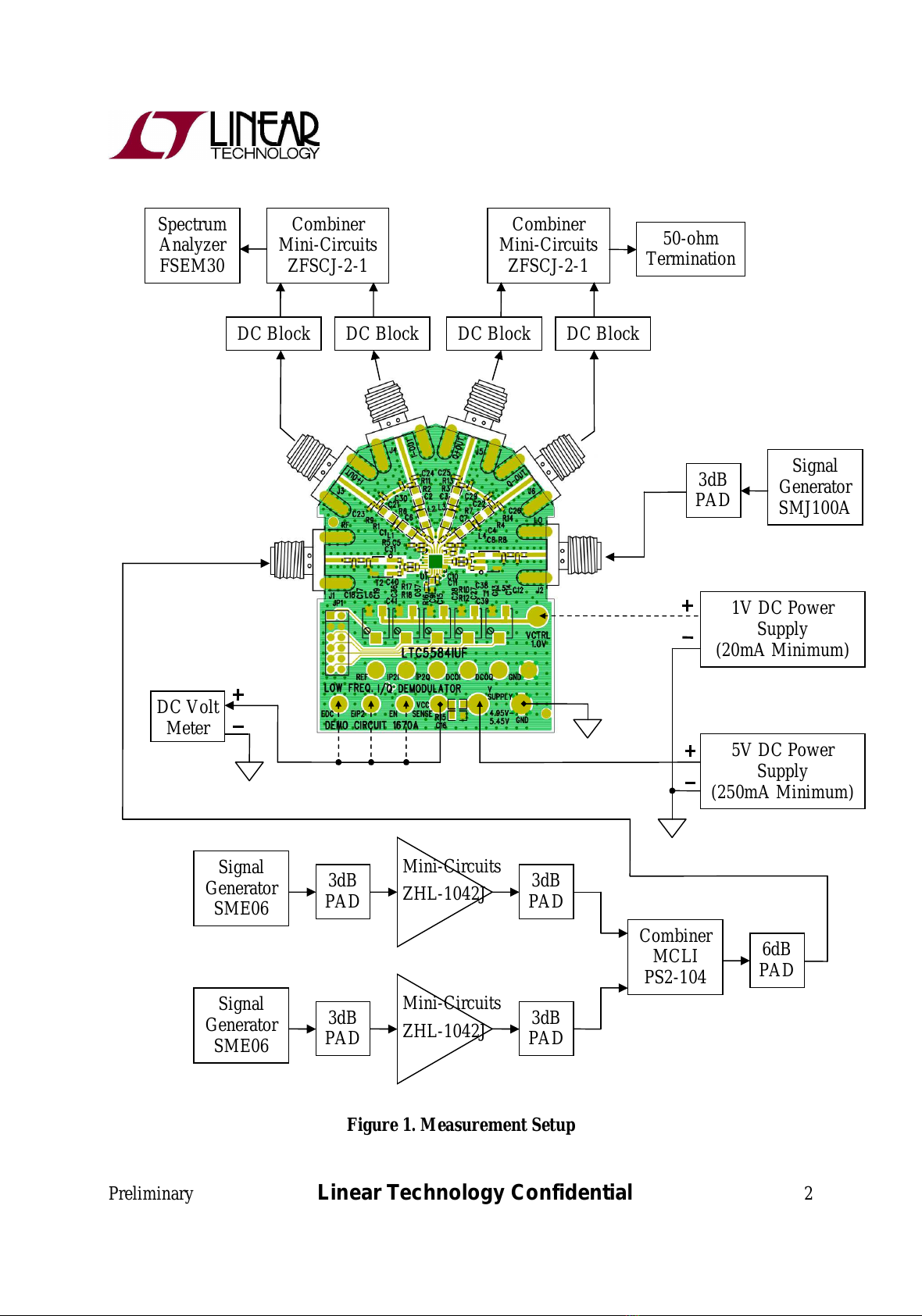

Figure 1. Measurement Setup

Signal

Generator

SMJ100A

3dB

PAD

DC Block DC Block

Combiner

Mini-Circuits

ZFSCJ-2-1

Spectrum

Analyzer

FSEM30

DC Block DC Block

Combiner

Mini-Circuits

ZFSCJ-2-1

50-ohm

Termination

Signal

Generator

SME06

Signal

Generator

SME06

3dB

PAD

3dB

PAD

ZHL-1042J

3dB

PAD

3dB

PAD

Combiner

MCLI

PS2-104

6dB

PAD

Mini-Circuits

DC Volt

Meter

1V DC Power

Supply

(20mA Minimum)

5V DC Power

Supply

(250mA Minimum)

All manuals and user guides at all-guides.com

Preliminary

Linear Technology Confidential

Figure2. Demo Board Schematic

All manuals and user guides at all-guides.com

Preliminary

Linear Technology Confidential

Item Qty Reference Part Description Manufacturer / Part #

1 0 C1-C8,C14,C19,C23-C28,C36,C37,R5-R8,R16 OPT, 0402

2 0 C9 OPT, 0603

3 7 C10,C11,C31-C35 CAP., X7R, 0.1µF, 10%, 16V, 0402 MURATA, GRM155R71C104KA88D

4 6 C12,C18,R10,R12,R17,R18 RES., CHIP, 0 Ohm, 0402 VISHAY, CRCW04020000Z0ED

5 1 C13 CAP., COG, 2.2pF, +/- 0.05pF, 50V, 0402 MURATA, GJM1555C1H2R2WB01D

6 5 C15,C38-C41 CAP., X5R, 0.01uF, 10%,50V, 0402 MURATA, GRM155R71H103KA88D

7 1 C16 CAP., X7R, 4.7uF, 10%, 16V, 0805 MURATA, GRM21BR71C475KA73L

8 1 C17 CAP., COG, 1.5pF, +/- 0.05pF, 50V, 0402 MURATA, GJM1555C1H1R5WB01D

9 4 C21,C22,C29,C30 CAP., X5R, 1µF, 10%, 10V, 0402 MURATA, GRM155R61A105KE15D

10 10 E1-E6,E8-E10,E13 TESTPOINT, TURRET, .063" MILL-MAX, 2308-2-00-80-00-00-07-0

11 3 E7,E11,E12 TESTPOINT, TURRET, .094" MILL-MAX, 2501-2-00-80-00-00-07-0

12 6 J1-J6 CONN., SMA, 50-OHM, EDGE-LANCH E.F.JOHNSON, 142-0701-851

13 1 JP1 HEADER, 6X 2 PIN, 2mm SAMTEC TMM-106-02-L-D

14 6 XJP1 (6 LOCATION FORJP1) SHUNT SAMTEC 2SN-BK-G

15 8 L1-L4,R1-R4 RES., CHIP, 0 Ohm, 0805 VISHAY, CRCW08050000Z0EA

16 1 L5 IND., MULTILAYER, 3.9nH, +/-0.3nH, 0402 MURATA, LQG15HS3N9S02D

17 1 L6 IND., MULTILAYER, 5.6nH, +/-0.3nH, 0402 MURATA, LQG15HS5N6S02D

18 5 PT1,PT2,PT3,PT4,PT5 POT., 4mm SMD, 500 Ohm BOURNS, 3214X-1-501-E

19 4 R9,R11,R13,R14 RES., CHIP, 100 Ohm, 1%, 1/16W, 0402 VISHAY, CRCW0402100RFKED

20 1 R15 RES., CHIP, 1 Ohm, 1%, 1/8W, 0805 VISHAY, CRCW08051R00FNEA

21 2 T1,T2 TRANSFORMER, RF, 1:1, 4.5-3000MHz MINI-CIRCUITS, TC1-1-13M+

22 1 U1 IC, LTC5584IUF#PBF, QFN 4mm X 4mm LINEAR TECH., LTC5584IUF#PBF
