DEMO MANUAL DC2479A-A

DESCRIPTION

LTM4650EY

Dual Phase Single 50A

DC/DC μModule Regulator

Demonstration circuit 2479A-A features the LT M

4650EY,

the high efficiency, high density, dual 25A, single 50A

switch mode step-down power module regulator. The

input voltage is from 4.5V to 15V. The output voltage is

programmable from 0.6V to 1.8V. DC2479A-A is con-

figured as dual-phase, single-output, which can deliver

up to 50A maximum. The board designs with minimum

components to demonstrate this high efficiency, high

density µModule. As explained in the data sheet, output

current de-rating is necessary for certain VIN, VOUT, and L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

BOARD PHOTO

thermal conditions. These features and the availability of

the LTM4650EY in a compact 16mm ×16mm ×5.01mm

BGA package make it ideal for use in many high-density

point-of-load applications. The LTM4650 data sheet must

be read in conjunction with this demo manual for working

on or modifying the demo circuit DC2479A-A.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2479A-A

Figure 1. LTM4650/DC2479A-A Demo Board

dc2479aaf

DEMO MANUAL DC2479A-A

QUICK START PROCEDURE

Demonstration circuit DC2479A-A is easy to set up to

evaluate the performance of the LTM4650EY. Please refer

to Figure 1 for proper measurement setup and follow the

procedure below:

1. With power off, connect the input power supply, load

and meters as shown in Figure 2. Preset the load to 0A

and VIN supply to 12V.

2. Turn on the power supply at the input. The output volt-

age should be 1.0V ± 1.5% (0.985V~1.015V).

3. Oncetheproperoutputvoltageisestablished,adjustthe

load within the operating range and observe the output

voltage regulation, output voltage ripple, efﬁciency and

other parameters. Output ripple can be measured at J6

with BNC cables.

4. (Optional) For optional load transient test, apply an

adjustable pulse signal between “IOSTEP CLK” and

“GND” test point. Pulse amplitude (3V~3.5V) sets the

loadstepcurrentamplitude.Theoutputtransientcurrent

can be monitored at the BNC connector J5 (10mV/A).

The pulse signal should have very small duty cycle

(< 10%) to limit the thermal stress on the transient

load circuit.

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS/NOTES VALUE

Input Voltage Range 4.5V ~ 15V

Output Voltage VOUT VIN = 4.5~15V, IOUT = 0~50A 1.0V ± 1.5% (0.985V ~ 1.015V)

Maximum Continuous Output Current De-Rating is Necessary for Certain VIN, VOUT and Thermal Conditions,

See Data Sheet for Detail.

50A

Default Operating Frequency 500kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 50A, fSW = 500 kHz 86.6%, See Figure 4

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 25A to 37.5A < 60mVP-P, See Figure 5

dc2479aaf

DEMO MANUAL DC2479A-A

QUICK START PROCEDURE

+–

LOAD (0A ~ 50A)

1mΩ

VOUT

VIN

4.5V-15V

+–

–

+–

dc2479aa F02

Figure 2. Test Setup of DC2479A-A

Figure 3. Measuring Output Voltage Ripple

+ –

VOUT GND

COUT

dc2479aaf

DEMO MANUAL DC2479A-A

QUICK START PROCEDURE

70%

75%

80%

85%

90%

1 5 10 15 20 25 30 35 40 45 50

EFFICIENCY

LOAD CURRENT dc2479 F04

Figure 4. Efficiency vs Load Current at VIN = 12V, VO= 1V, fSW = 500kHz

Figure 5. Measured 25A – 37.5A Load Transient Response (VIN = 12V, VOUT = 1.0V, fSW = 500kHz)

VO(20MHz BW) [20mV/DIV, AC COUPLED]

25A-37.5A LOAD STEP

dc2479 F05

dc2479aaf

DEMO MANUAL DC2479A-A

QUICK START PROCEDURE

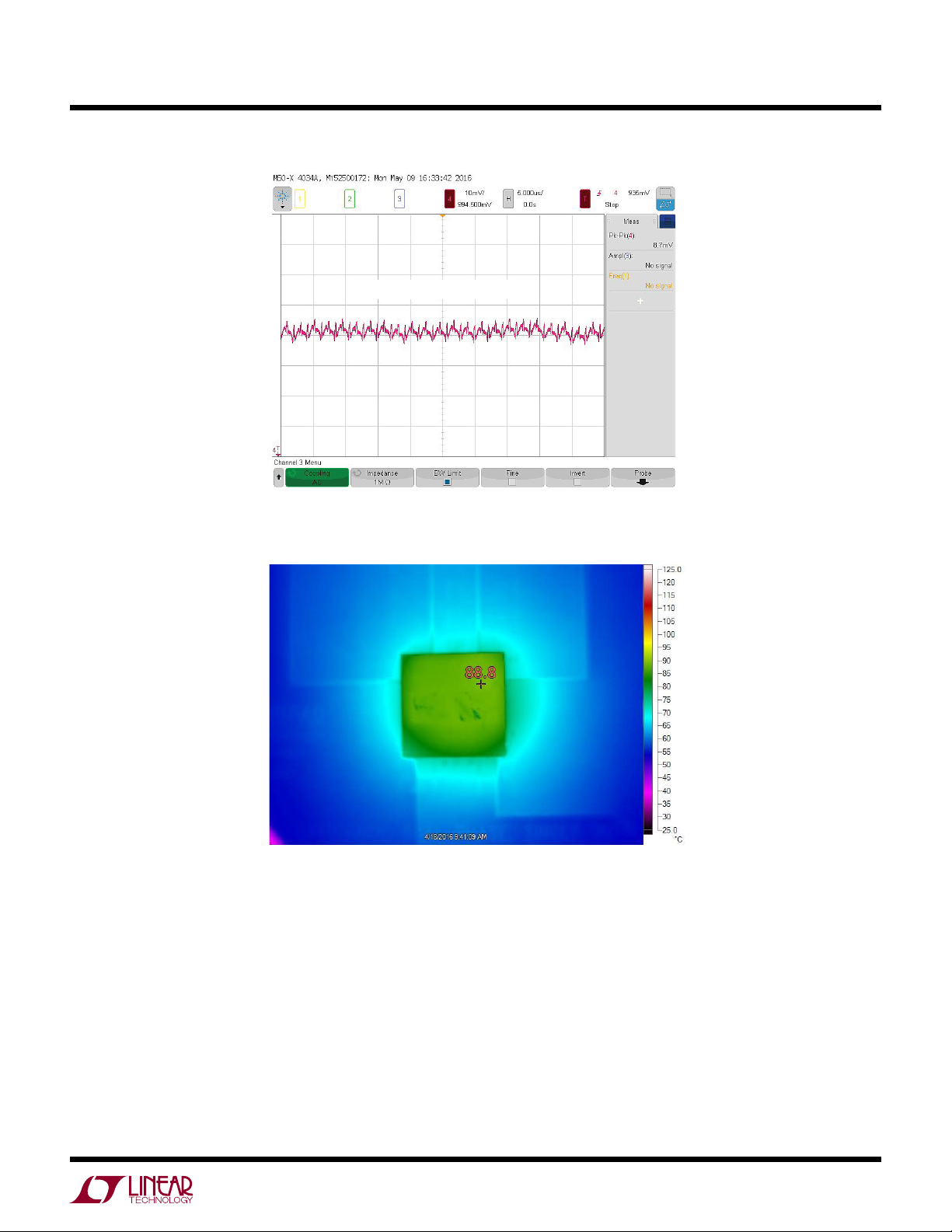

Figure 6. Output Voltage Ripple at VIN = 12V, VOUT = 1V, IOUT = 50A, fSW = 500kHz

Figure 7. Thermal Performance at VIN = 12V, VOUT = 1V, IOUT = 50A, TA= 23.8°C, No Air Flow

VOUT (20MHz BW) [10mV/DIV

dc2479 F06

dc2479aaf

DEMO MANUAL DC2479A-A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 CAP., 150µF, 25V, Aluminum Electr., SUN ELECT., 25CE150AX

2 4 CIN2, CIN3, CIN4, CIN5 CAP., X5R, 22µF, 25V, 10%, 1210 MURATA, GRM32ER61E226KE15L

3 4 COUT2, COUT4, COUT6, COUT8 CAP., 470µF, 2.5V, POSCAP, F8 SANYO-D4D PANASONIC, 2R5TPF470M6L

4 1 C4 CAP., X5R, 2.2µF, 10V, 10%, 0603 MURATA, GRM188R61A225KE34D

5 1 C7 CAP., X5R, 0.1µF, 25V, 10%, 0603 AVX, 06033D104KAT2A

6 3 C8, C9, C10 CAP., X7R, 1µF, 10V,10%, 0603 AVX, 0603ZC105KAT2A

7 1 Q1 XSTR, SUD50N04-8M8P-4GE3 MOSFET VISHAY, SUD50N04-8M8P-4GE3

8 2 R1, R3 RES., 10, 1%,1/10W, 0603 VISHAY, CRCW060310R0FKEA

9 2 R2, R9 RES., 121k, 1%,1/10W, 0603 VISHAY,CRCW0603121KFKEA

10 2 R4, R18 RES., 10k, 1%,1/10W, 0603 VISHAY, CRCW060310K0FKEA

11 1 R11 RES., 1k, 1%,1/10W, 0603 VISHAY, CRCW06031K00FKEA

12 1 R16 RES., 0.01Ω, 1W, 2512 VISHAY, WSL2512R0100FEA

13 1 R19 RES., 90.9k, 1%,1/10W, 0603 VISHAY, CRCW060390K9FKEA

14 1 U1 LTM4650EY#PBF, 16×16×5.01 BGA LINEAR TECH., LTM4650EY#PBF

Additional Demo Board Circuit Components

1 8 COUT1, COUT3, COUT5, COUT7,

COUT11, COUT12, COUT13,

COUT14

CAP., X5R, 100µF, 6.3V, 20%,1210 AVX, 12106D107MAT2A

2 0 COUT9, COUT10 CAP., OPT, SANYO-D4D OPT

3 0 C1, C3, C5, C11 CAP., OPT, 0603 OPT

4 0 R8, R10 RES., OPT, 0603 OPT

5 2 R12, R14 RES., 0Ω,1/10W, 0603 VISHAY, CRCW06030000Z0EA

6 0 R13 RES., OPT, 0603 OPT

7 0 R20 RES., OPT, 2512 OPT

Hardware: For Demo Board Only

1 9 E1-E7, E17, E18 TESTPOINT, TURRET, .094" MILL-MAX, 2501-2-00-80-00-00-07-0

2 0 E8-E14 TESTPAD SMD TESTPAD SMD

3 1 JP1 HEADER, 3 PIN 2mm SINGLE ROW WURTH ELEKTRONIK, 620-003-111-21

4 2 J1, J3 JACK BANANA KEYSTONE, 575-4

5 2 J2, J4 STUD, TESTPIN PEM KFH-032-10

6 4 J2, J4 (×2) NUT, BRASS 10-32 ANY #10-32

7 2 J2, J4 RING, LUG #10 KEYSTONE #10

8 2 J2, J4 WASHER, TIN PLATED BRASS ANY #10

9 2 J5, J6 CONN, BNC, 5 PINS CONNEX 112404

10 1 XJP1 SHUNT 2mm WURTH ELEKTRONIK, 608-002-134-21
