DEMO MANUAL DC2003A

Description

LTC3622EDE

17V, Dual 1A, Synchronous Step-Down Regulator

with Ultralow Quiescent Current

Demonstration circuit 2003A is a synchronous step-down

regulatorusingthepower-saving LTC3622EDE monolithic

buck regulator in a compact 14-pin DFN (4mm × 3mm)

package. The DC2003A operates from an input voltage

range of 2.7V to 17V and provides dual 1A outputs with

an adjustable output voltage range from 1.2V to 5V. The

LTC3622 IC quiescent current can be as low as 5µA in

BurstMode

operation with both channels enabledand less

than 0.1µA in shutdown mode. The switching frequency is

fixed to 1MHz or 2.25MHz with a ±50% synchronization

range to an external clock. A user-selectable mode input

is provided to allow the user to trade off ripple noise for

L, LT, LTC, LTM, Linear Technology, Burst Mode and the Linear logo are registered trademarks

of Linear Technology Corporation. All other trademarks are the property of their respective

owners.

performance summary

light load efficiency. Burst Mode operation provides the

highestefficiency at light loads, while pulse-skipping mode

provides the lowest ripple noise.

It is recommended to read the data sheet LTC3622 with

this demo manual prior to working on or making any

changes to DC2003A.

Design files for this circuit board are available at

http://www.linear.com/demo

Specifications are at TA= 25°C

PARAMETER CONDITIONS VALUE

Default IC LTC3622EDE

Default Switching Frequency 1MHz

Default Operation Mode Burst Mode Operation

Input Voltage Range 2.7V to 17V

Onboard User Selectable Output Voltages VIN = 2.7V to 17V, IOUT1 = IOUT2 = 0A to 1A

(VOUT ≤ VIN)

VOUT1: 1.2V, 1.8V, 2.5V, 3.3V

VOUT2: 1.5V, 1.8V, 3.3V, 5V

Default Output Voltage VOUT1 = 3.3V

VOUT2 = 5V

Per Channel Maximum Continuous Output

Current

VIN = 2.7V to 17V IOUT1 = IOUT2 = 1A

Efficiency, VOUT1 (Burst Mode Operation) VIN = 12V, VOUT1 = 3.3V, IOUT1 = 1A 88.2% (See Figure 3)

Efficiency, VOUT2 (Burst Mode Operation) VIN = 12V, VOUT2 = 5.V, IOUT2 = 1A 90.8% (See Figure 4)

Output Voltage Ripple, VOUT1 VIN = 12V, VOUT1 = 3.3V, IOUT1 = 1A <5.9mVP-P (See Figure 5)

Output Voltage Ripple, VOUT2 VIN = 12V, VOUT2 = 5V, IOUT2 = 1A <7.8mVP-P (See Figure 6)

Load Transient Response, VOUT1 VIN = 12V, VOUT1 = 3.3V, IOUT1 = 100mA to 1A See Figure 7

Load Transient Response, VOUT2 VIN = 12V, VOUT2 = 5V, IOUT2 = 100mA to 1A See Figure 8

Thermal Image VIN = 12V, VOUT1 = 3.3V, VOUT2 = 5V, IOUT1 = IOUT2 = 1A See Figure 9

Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

Quick start proceDure

Demonstration circuit 2003A is easy to set up to evaluate

the performance of the LTC3622. Please refer to Figure 1

for proper measurement equipment setup and follow the

procedure below:

1. Place jumpers in the following positions:

Table 1. Jumper Selection

JP1 JP2 JP3 JP4 JP5

RUN1 RUN2 MODE/SYNC PHASE ILIM

ON ON BURST 180° 1A

2. Place VO1 SELECT jumper in 3.3V position (JP9) and

VO2 SELECT jumper in 5V position (JP14).

3. With power off, connect the input power supply at VIN1

and GND.

4. Connect the Loads between VOUT1 and GND, VOUT2 and

GND. Preset the loads to 0A.

5. Connect the DMMs to the input and output to monitor

the input voltage and output voltages.

6. Turn on the power supply at the input. The RUN1 and

RUN2 pin jumpers should be at ON position. Measure

and make sure the input supply voltage is 12V. The

output voltage VOUT1 should be 3.3V±1%, and VOUT2

should be 5V±1%.

7. Once the input and output voltages are properly es-

tablished adjust theloads within the operating range (0A

to 1A max) and observe the output voltage regulations,

output ripple voltages, switch node wave-forms and

other parameters. Refer to Figure 2 for proper input/

output voltage ripple measurement.

8. To select other output voltages, use the on board user

selectable output voltage jumpers. Shutting down

LTC3622 by placing RUN1 and RUN2 pin jumpers to

the OFF position or turn off the input power supply.

Refer to the following tables (Table 2 and Table 3) for

the output voltage selections and repeat step 3 to 6:

Table 2. VOUT1 Jumper Selection

JP6 JP7 JP8 JP9 JP10

1.2V 1.8V 2.5V 3.3V *USER SELECT

Table 3. VOUT2 Jumper Selection

JP11 JP12 JP13 JP14 JP15

1.5V 1.8V 3.3V 5V *USER SELECT

*Note: If JP10 or JP15 is selected, R5 or R15 needs to be calculated

and inserted to obtain the desired output voltage.

Note 1: To measure the input/output voltage ripple prop-

erly, do not use the long ground lead on the oscilloscope

probe. See Figure 2 for the proper scope probe technique.

Short, stiff leads need to be soldered to the (+) and (–)

terminals of an output capacitor. The probe’s ground ring

needs to touch the (–) lead and the probe tip needs to

touch the (+) lead.

Note 2: DC2003A can also be used to evaluate

LTC3622EDE-2 (2.25MHz) by simply changing U1 to

LTC3622EDE-2, L1 to 1µH(Coilcraft XFL4020-102ME)

and L2 to 2.2µH (Coilcraft XFL4020-222ME).

Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

Quick start proceDure

+ –

VOUT GND

COUT

Figure 1. Proper Equipment Measurement Setup

Figure 2. Scope Probe Placements for Measuring Input or Output Ripple

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

LOAD CURRENT (A)

EFFICIENCY (%)

DC2003A F03

100

0.0001 0.1 10.010.001

BURST MODE OPERATION

PULSE-SKIPPING MODE

LOAD CURRENT (A)

EFFICIENCY (%)

DC2003A F04

100

0.0001 0.1 10.010.001

BURST MODE OPERATION

PULSE-SKIPPING MODE

Quick start proceDure

Figure 3. VOUT1 Measured Efficiency at VIN = 12V, VOUT1 = 3.3V, L1 = 3.3µH,

FSW = 1MHz (with VOUT2 OFF)

Figure 4. VOUT2 Measured Efficiency at VIN = 12V, VOUT2 = 5V, L2 = 4.7µH,

FSW = 1MHz (with VOUT1 OFF)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

DC2003a F05

20MHz BW LIMIT

VOUT1

10mV/DIV

t(2µs/DIV)

DC2003a F06

20MHz BW LIMIT

VOUT2

10mV/DIV

t(2µs/DIV)

Quick start proceDure

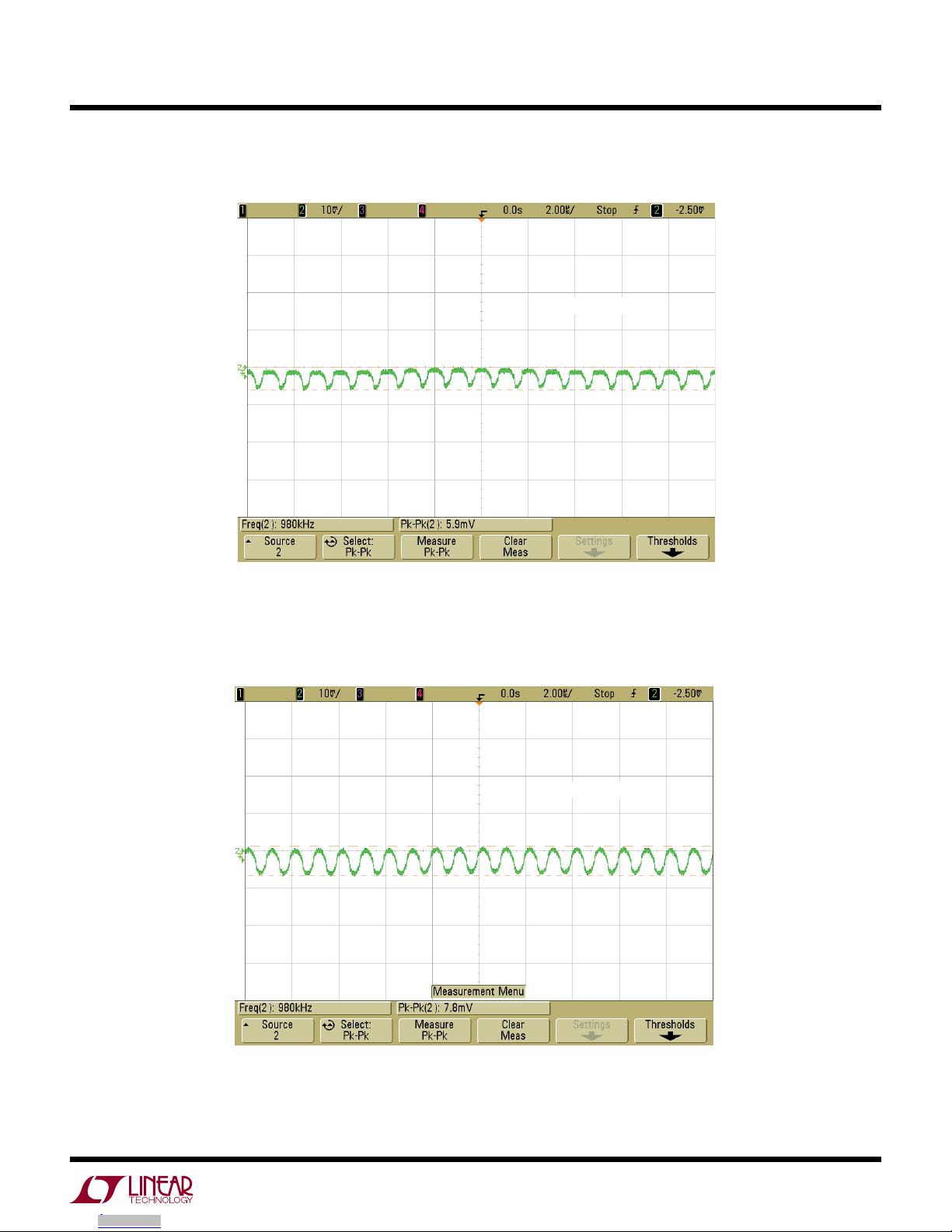

Figure 5. VOUT1 Measured Output Voltage Ripple at VIN = 12V, VOUT1 = 3.3V, IOUT1 = 1A, FSW = 1MHz

Figure 6. VOUT2 Measured Output Voltage Ripple at VIN = 12V, VOUT2 = 5V, IOUT2 = 1A, FSW = 1MHz

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

DC2003a F08

IOUT2: 100mA-1A

IOUT2

0.5A/DIV

VOUT2

200mV/DIV

t(100µs/DIV)

DC2003a F07

IOUT1: 100mA-1A

IOUT1

0.5A/DIV

VOUT1

200mV/DIV

t(100µs/DIV)

Quick start proceDure

Figure 7. Load Transient Response at VIN = 12V, VOUT1 = 3.3V, IOUT1 = 100mA-1A, FSW = 1MHz, Burst Mode Operation

Figure 8. Load Transient Response at VIN = 12V, VOUT2 = 5V, IOUT2 = 100mA-1A, FSW = 1MHz, Burst Mode Operation

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

DC2003a F09

Quick start proceDure

Figure 9. Thermal Performance at VIN = 12V, VOUT1 = 3.3V, IOUT1 = 1A, VOUT2 = 5V, IOUT2 = 1A, FSW = 1MHz, No Airflow

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A

parts List

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 2 CFF1, CFF2 CAP, 0402 22pF 5% 50V NPO AVX 04025A220JAT2A

2 2 CIN1, CIN2 CAP, 7343 22µF 20% 35V TANT AVX TPSY226M035R0200

3 2 C1, C2 CAP, 1206 47µF 20% 16V X5R TDK C3216X5R1C476M160AB

4 2 C5, C6 CAP, 1206 10µF 20% 25V X5R TDK C3216X5R1E106M

5 1 C7 CAP, 0402 1µF 20% 10V X5R TDK C1005X5R1A105M

6 1 L1 IND, 3.3µH 20% COILCRAFT XFL4020-332MEC

7 1 L2 IND, 4.7µH 20% COILCRAFT XFL4020-472MEC

8 2 RPG1, RPG2 RES, 0402 100kΩ 1% 1/16W VISHAY CRCW0402100KFKED

9 3 RSET1, R1, RSET2 RES, 0402 619kΩ 1% 1/16W VISHAY CRCW0402619KFKED

10 2 R2, R12 RES, 0402 309kΩ 1% 1/16W VISHAY CRCW0402309KFKED

11 1 R3 RES, 0402 196kΩ 1% 1/16W VISHAY CRCW0402196KFKED

12 2 R4, R13 RES, 0402 137kΩ 1% 1/16W VISHAY CRCW0402137KFKED

13 1 R6 RES, 0805 0Ω JUMPER VISHAY CRCW08050000Z0ED

14 2 R7, R8 RES, 0402 0Ω JUMPER VISHAY CRCW04020000Z0ED

15 1 R11 RES, 0402 412kΩ 1% 1/16W VISHAY CRCW0402412KFKED

16 1 R14 RES, 0402 84.5kΩ 1% 1/16W VISHAY CRCW040284K5FKED

17 1 U1 IC, DUAL SYNCHRONOUS STEP-DOWN CONVERTER LINEAR TECHNOLOGY LTC3622EDE

Additional Demo Board Circuit Components

1 0 C3, C4 CAP, 0402 OPTION OPTION

2 0 R5, R15 RES, 0402 OPTION OPTION

Hardware: For Demo Board Only

1 12 E1, E2, E3, E4, E5, E6, E7, E8,

E9, E10, E11, E12

TURRET MILL-MAX 2501-2-00-80-00-00-07-0

2 2 JP1, JP2 HEADER, 3PIN, 2mm SULLINS NRPN031PAEN-RC

3 2 JP3, JP5 HEADER, 3PIN, DBL ROW 2mm SULLINS NRPN032PAEN-RC

4 1 JP4 HEADER, 2mm DBL ROW (2X2) 4PIN SULLINS NRPN022PAEN-RC

5 10 JP6, JP7, JP8, JP9, JP10, JP11,

JP12, JP13, JP14, JP15

HEADER, 2PIN, 2mm SULLINS NRPN021PAEN-RC

6 7 XJP1, XJP2, XJP3, XJP4, XJP5,

XJP6, XJP13

SHUNT, 2mm SAMTEC 2SN-BK-G

7 4 MH1, MH2, MH3, MH4 STANDOFF, SNAP ON KEYSTONE_8831

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2003af

DEMO MANUAL DC2003A
