DEMO MANUAL DC1472A

DESCRIPTION

LTM4618EV:

6A Step-Down Power

µModule Regulator

Demonstration circuit 1472 features the LTM

4618EV

μModule

regulator, a complete high efﬁciency synchro-

nous buck regulator. The DC1472 input range is from 4.5V

to 26.5V and is capable of delivering up to 6A of output

current. However, current derating maybe necessary under

certain VIN, VOUT, frequency and thermal conditions. The

output voltage for the board is jumper programmable from

1.2V to 5V and can be set as low as 0.8V, the reference

voltage of the LTM4618EV.

Layout is simple, requiring only a few bulk input and output

capacitors externally. The TRACK/SS pin allows the user to

program the output voltage ramp-up and ramp-down, as

well as coincidentally or ratiometrically track an external

voltage. The LTM4618EV may be enabled or disabled by

the RUN pin. The MODE jumper (JP3) is available to select

L, LT, LTC, LTM, μModule, Burst Mode, Linear Technology and the Linear logo are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

BOARD PHOTO

frompulse-skipping orBurst Mode

operationfor improved

efﬁciency at light load. DC1472 has a default switching

frequency of 500 kHz and is synchronizable to an external

clock from 250 kHz up to 750 kHz. These features and the

availability of the LTM4618EV in a compact 9mm ×15mm

×4.32mm LGA package make the demonstration circuit

ideal for use in many high density point-of-load regula-

tion applications. The LTM4618 data sheet must be read

in conjunction with this demo manual for working on or

modifying the demo circuit 1472A.

Design ﬁles for this circuit board are available at

http://www.linear.com/demo

dc1472af

DEMO MANUAL DC1472A

QUICK START PROCEDURE

PERFORMANCE SUMMARY

PARAMETER CONDITIONS/NOTES VALUE

Input Voltage Range 4.5V to 26.5V

Jumper Selectable Output Voltage, VOUT VIN = 4.5V – 26.5V, IOUT = 0A – 6A 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V ±2%

Maximum Continuous Output Current Derating is Necessary for Certain Operating Conditions.

See Data Sheet for Details

6ADC

Default Operating Frequency R3 = 10kΩ, R4 = 3.16kΩ 500kHz

External Clock Sync. Frequency Range 250kHz to 750kHz

Efﬁciency VIN = 12V, VOUT = 2.5V, IOUT = 6A 88.7% See Figure 2

Demonstration circuit 1472 is easy to set up to evaluate the

performance of the LTM4618EV. Please refer to Figure1

for proper measurement equipment setup and follow the

procedure below.

1. With power off, connect the input power supply, load

and meters as shown in Figure 1. Preset the load to 0A

and VIN supply to be 0V. Place jumpers in the following

positions for a typical 1.5VOUT application:

JP6 JP3 JP4 JP2

VOUT Select MODE RUN TRACK/SS

1.5V CCM OFF SS

2. Turn on the power at the input. Increase VIN to 12V

(Caution: Do not hot plug the input supply or apply

more than the rated maximum voltage of 26.5V to the

board or the part may be damaged).

3. Set the RUN pin jumper (JP4) to the on position. The

output voltage should rise to 1.5V. The output voltage

meter should read the selected output voltage ±2%.

4. Vary the input voltage from 6V to 24V and adjust the

load current from 0A to 6A. The output voltage meter

should read the selected output voltage ±2%. Set the

input voltage to 12V and the load current to 6A.

5. Measure the output voltage ripple at J5 with a BNC

cable and oscilloscope.

6. To set the output voltage to 5V, turn off the input supply

power, apply the following changes listed below and

repeat steps 2 to 5:

JP10 JP3 JP4 JP2

VOUT Select MODE RUN TRACK/SS

5V CCM OFF SS

7. Set the load current to 0A. Set the RUN pin jumper

(JP4) to the OFF position. Power off the input supply.

8. For loadtransient tests,apply an adjustablepositive pulse

signal between IOSTEP CLK and GND test points. The

pulse amplitude sets the load step current amplitude.

The pulse width should be short (<1ms) and pulse duty

cycle should be low (<15%) to limit the thermal stress

on the load transient circuit. The load step current can

be monitored with a BNC connected to J6 (10mV/A).

dc1472af

DEMO MANUAL DC1472A

QUICK START PROCEDURE

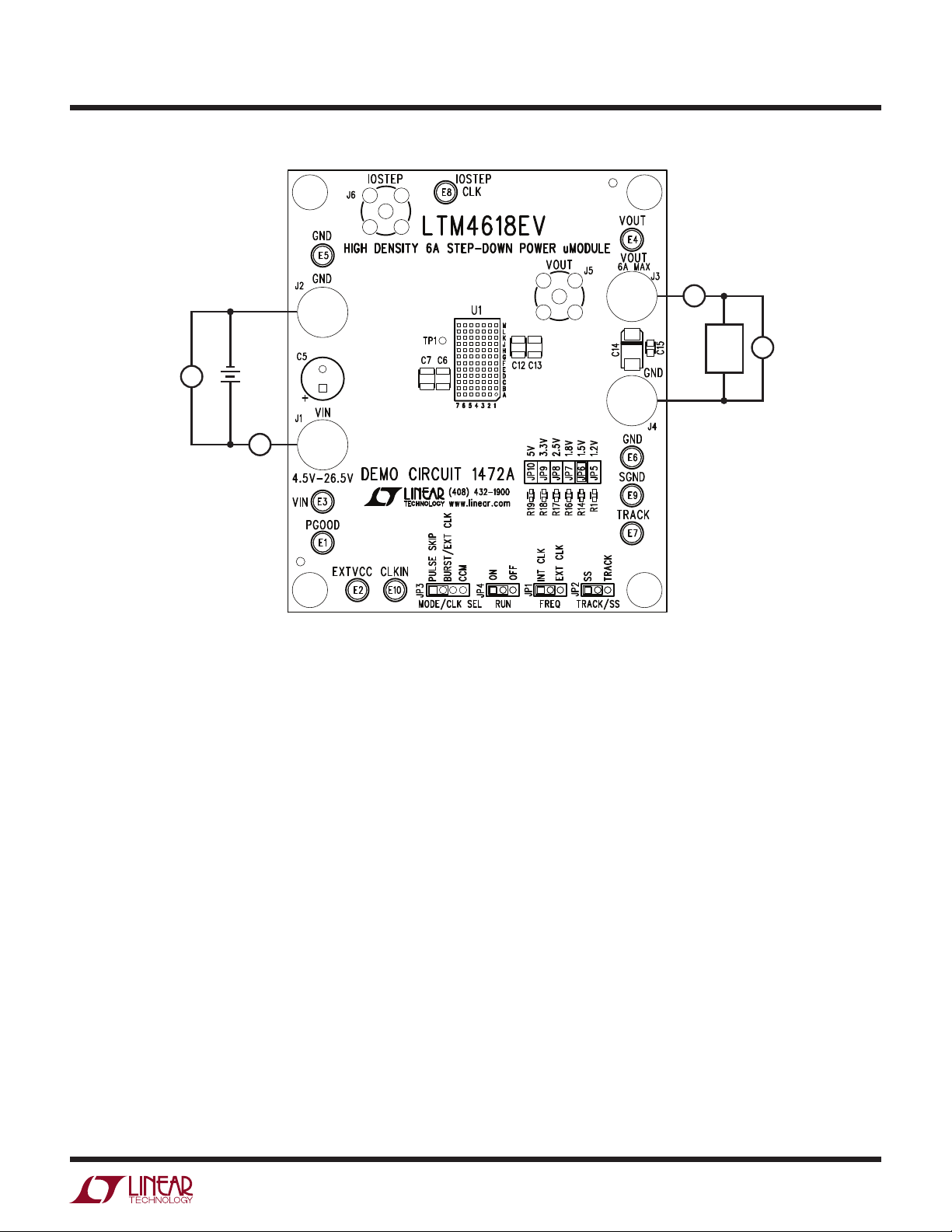

Figure 1. Proper Measurement Equipment Setup

–

–+

+–

VIN

LOAD

dc1472af

DEMO MANUAL DC1472A

Figure 2. Measured Supply Efﬁciency at 12VIN and 24VIN

Efﬁciency vs Load Current, 12VIN

Efﬁciency vs Load Current, 24VIN

QUICK START PROCEDURE

LOAD CURRENT (A)

EFFICIENCY (%)

DC1472 F02a

70 246

5VOUT

3.3VOUT

2.5VOUT

1.8VOUT

1.5VOUT

1.2VOUT

fSW = 500kHz

CCM Mode

LOAD CURRENT (A)

EFFICIENCY (%)

DC1472 F02b

70 246

5VOUT

3.3VOUT

2.5VOUT

1.8VOUT

1.5VOUT

fSW = 500kHz

CCM Mode

dc1472af

DEMO MANUAL DC1472A

VIN (V) VOUT (V) COUT BULK COUT CERAMIC

12 1.5 330μF/6.3V POSCAP 1 ×47μF 10V

VIN (V) VOUT (V) IOUT (A) AIRFLOW AMBIENT (°C)

12 1.5 6 Natural Convection 27

Figure 3. Measured Load Transient Response (0A to 6A Load Step)

Figure 4. Measured Thermal Capture

QUICK START PROCEDURE

VOUT

100mV/DIV

IOUTSTEP

5A/DIV

dc1472af

DEMO MANUAL DC1472A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 C5 CAP, 150μF 35V, ALUM SANYO, 35ME150WXV+TS

2 2 C6, C7 CAP, X5R, 10μF 35V, 1210 TAIYO YUDEN, GMK325BJ106MN-T

3 1 C12 CAP, X5R, 47μF 10V, 1210 TDK, C3225X5R1A476M

4 1 C14 CAP, POSCAP, 330μF 6.3V, 7343 SANYO, 6TPC330MA

5 1 C15 CAP, X5R, 1μF 10V, 0805 AVX, 0805ZD105MAT2A

6 1 C20 CAP, X7R, 0.1μF 16V, 0603 AVX, 0603YC104KAT2A

7 1 R1 RES., 121k 1/16W 1%, 0603 VISHAY, CRCW0603121KFKEA

8 4 R3, R11 RES., 10k 1/16W 1%, 0603 VISHAY, CRCW060310K0FKEA

9 1 R4 RES., 3.16k 1/16W 1%, 0603 VISHAY, CRCW06033K16FKEA

10 1 R5 RES., 60.4k 1/16W 1%, 0603 VISHAY, CRCW060360K4FKEA

11 1 R14 RES., 69.8k 1/16W 1%, 0603 VISHAY, CRCW060369K8FKEA

12 1 R16 RES., 48.7k 1/16W 1%, 0603 VISHAY, CRCW060348K7FKEA

13 1 R17 RES., 28.7k 1/16W 1%, 0603 VISHAY, CRCW060328K7FKEA

14 1 R18 RES., 19.1k 1/16W 1%, 0603 VISHAY, CRCW060319K1FKEA

15 1 R19 RES., 11.5k 1/16W 1%, 0603 VISHAY, CRCW060311K5FKEA

16 1 U1 IC, LTM4618EV LINEAR TECH., LTM4618EV LGA

Additional Demo Board Circuit Components

1 0 C1-C4, C16, C19, C21-C24 CAP, 0603 Optional

2 0 C8, C9, C10, C11, C13 CAP, 1210 Optional

3 2 C17, C18 CAP, X5R, 1μF 10V, 0603 TAIYO YUDEN, LMK107BJ105MA-T

4 0 R6, R8, R10, R12 RES, 0603 Optional

5 4 R7 RES., 10k 1/16W 1%, 0603 VISHAY, CRCW060310K0FKEA

6 1 R9 RES., 0.01Ω 5% 1W, 2512 IRC, LRC-LRF2512LF-01-R010-J

7 1 R15 RES., 10k 1/16W 1%, 0603 VISHAY, CRCW060310K0FKEA

8 1 R2 RES., 100k 1/16W 1%, 0603 VISHAY, CRCW0603100KFKEA

9 1 R13 RES., CHIP, 0, 1/16W, 0603 VISHAY, CRCW06030000Z0EA

10 1 D1 DIODE, ZENER 350MW 4.7V, SOT-23 DIODES INC., BZX84C4V7-7-F

11 1 Q1 XSTR, SUD50N03-10CP MOSFET SILICONIX, SUD50N03-10CP

Hardware

1 10 E1-E10 TP, TURRET, 0.094", PBF MILL-MAX, 2501-2-00-80-00-00-07-0

2 3 JP1, JP2, JP4 JMP, 1X3, 0.079" SAMTEC, TMM-103-02-L-S

3 1 JP3 JMP, 1X4, 0.079" SAMTEC, TMM-104-02-L-S

4 6 JP5, JP6, JP7, JP8, JP9, JP10 JMP, 1X2, 0.079" SAMTEC, TMM-102-02-L-S

5 4 J1, J2, J3, J4 JACK, BANANA KEYSTONE, 575-4

6 2 J5, J6 CONN, BNC, 5 PINS CONNEX, 112404

7 5 JP1-JP4, JP6 SHUNT, 0.079" CENTER SAMTEC, 2SN-BK-G

8 4 4 Corners STANDOFF, SNAP ON, 0.50" KEYSTONE, 8833
