Lincoln Electric K3589-1 Manuel utilisateur

IM10521Jan-19 ©Lincoln Global Inc. The graphics may not exactly reflect the latest design.

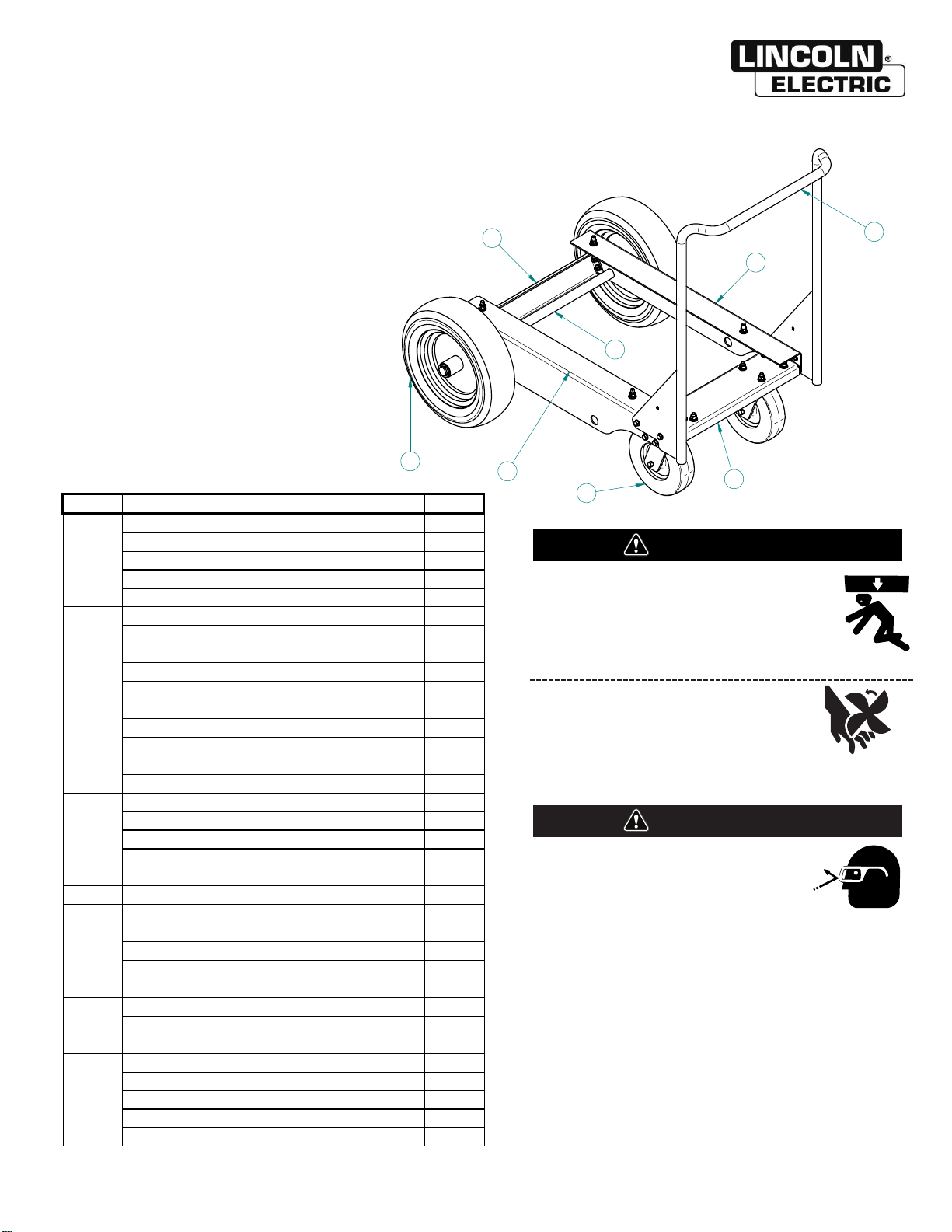

ITEM PART NO. DESCRIPTION QTY.

L17286 SIDE RAIL 1

T8833-86 3/8-16 X 1.25" HEX HEAD CAP SCREW 2

CF000067 3/8-16 HEX NUT 2

S9262-120 3/8" PLAIN WASHER 4

E106A-16 3/8" LOCK WASHER 2

L17287 SIDE RAIL 1

T8833-86 3/8-16 X 1.25" HEX HEAD CAP SCREW 2

CF000067 3/8-16 HEX NUT 2

S9262-120 3/8" PLAIN WASHER 4

E106A-16 3/8" LOCK WASHER 2

L17288 FRONT CROSSMEMBER 1

S24739-43 5/16-18 X .75" HEX HEAD CAP SCREW 4

CF000029 5/16-18 HEX NUT 4

S9262-121 5/16" PLAIN WASHER 4

E106A-14 5/16" LOCK WASHER 4

L17289 REAR CROSSMEMBER 1

S24739-43 5/16-18 X .75" HEX HEAD CAP SCREW 4

CF000029 5/16-18 HEX NUT 4

S9262-121 5/16" PLAIN WASHER 4

E106A-14 5/16" LOCK WASHER 4

5 M26317 AXLE SHAFT 1

M26562-1 CASTER WHEEL 2

T8833-86 3/8-16 X 1.25" HEX HEAD CAP SCREW 8

CF000067 3/8-16 HEX NUT 8

S9262-120 3/8" PLAIN WASHER 16

E106A-16 3/8" LOCK WASHER 8

S32770 PNEUMATIC WHEEL 2

S32843 E-CLIP 2

S9262-24 1" PLAIN WASHER 2

G9190 HANDLE ASSEMBLY 1

S24739-43 5/16-18 X .75" HEX HEAD CAP SCREW 4

CF000029 5/16-18 HEX NUT 4

S9262-121 5/16" PLAIN WASHER 4

E106A-14 5/16" LOCK WASHER 4

K3589-1 -RANGER FACTORY UNDERCARRIAGE

REQUIRED TOOLS

9/16” Wrench and Socket

1/2” Wrench and Socket

Ratchet

TORX T-30 Bit or Driver

Grease Gun

Hammer or Mallet

Crane or Hoist

PARTS INCLUDED

FALLING EQUIPMENT can cause

injury.

• Lift only with equipment of adequate lifting

capacity.

• Be sure machine is stable when lifting.

WARNING

MOVING PARTS can injure.

• Stop engine before installation.

• Assemble on level ground.

•Push only from the front using the

Undercarriage handle.

• Wear safety glasses in work area at all

times.

CAUTION

INSTALLATION OF THE UNDERCARRIAGE

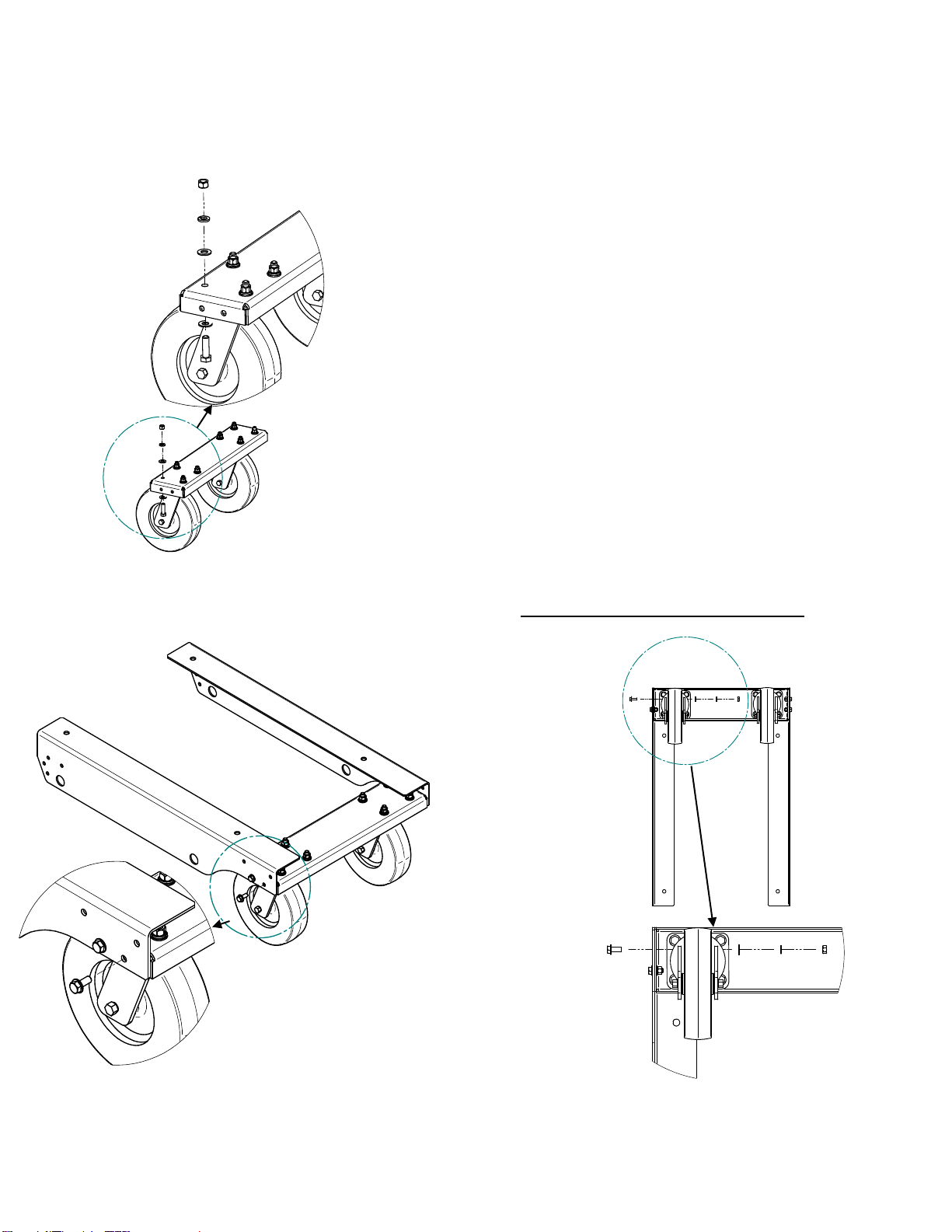

Step 1: Front Wheels

a. Using a 9/16” wrench and socket, assemble the

caster wheels to the front crossmember (L17288).

Use (8) 3/8-16 x 1.25” hex head cap screw, (8) 3/8-

16 hex nuts, (8) 3/8” plain washers, and (8) 3/8”

lock washers. Torque 3/8-16 bolts to 15 ft-lbs.

Step 2: Front Crossmember

a. Loosely install the front cross member (L17288) to

the two side rails (L17286 & L17287). Use (4) 5/16-

18 x 1.00 hex head cap screw, (4) 5/16-18 hex

nuts, (4) 5/16” plain washers, and (4) 5/16” lock

washers. Leave bolted connections finger tight.

Rear Crossmember

a. Using a 1/2” wrench and socket, install the rear

crossmember (L17289) to the two side rails

(L17286 & L17287). Use (4) 5/16-18 x 1.00 hex

head cap screw, (4) 5/16-18 hex nuts, (4) 5/16”

plain washers, and (4) 5/16” lock washers. Tighten

all bolts on front and rear crossmember now.

Torque 5/16-18 bolts to 8 ft-lbs.

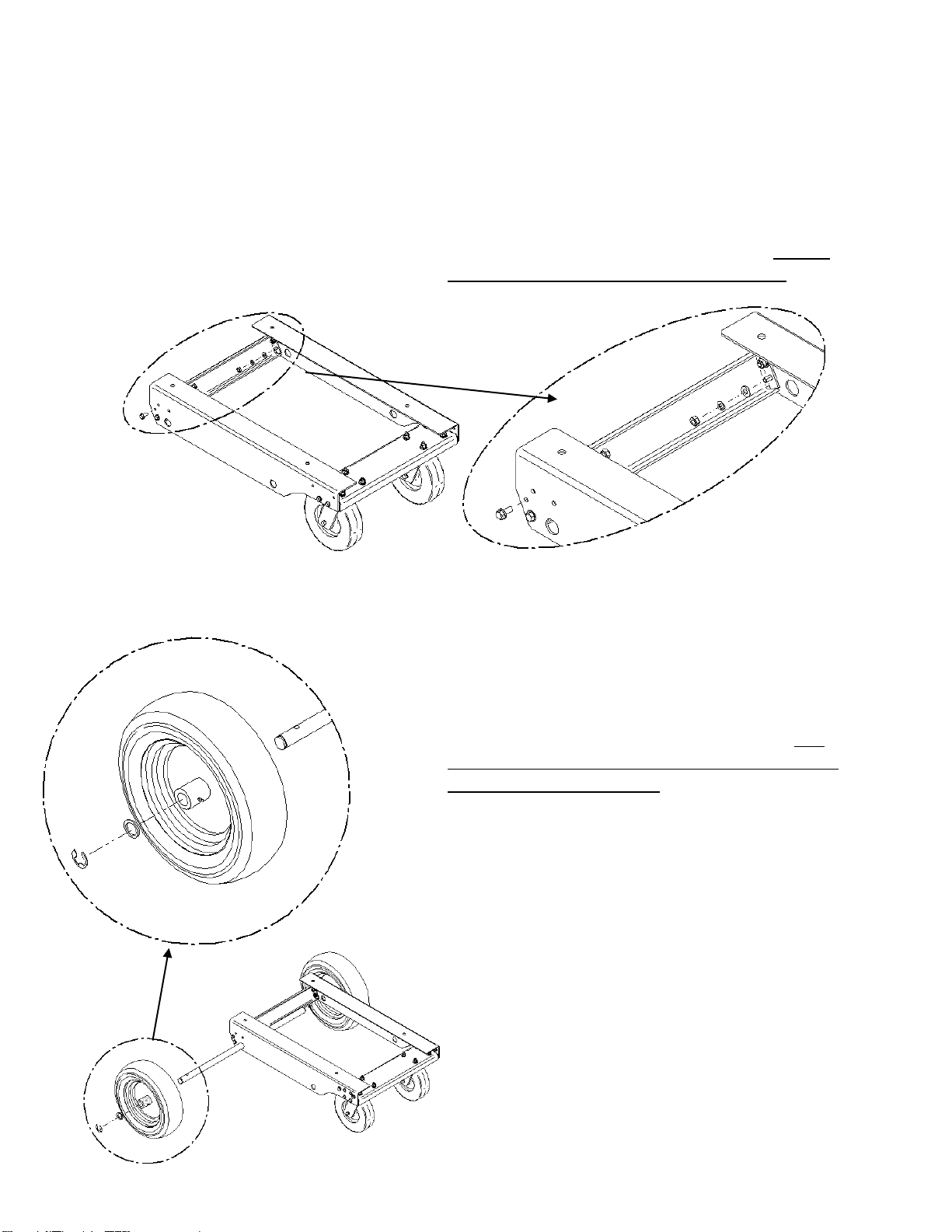

Step 4: Axle and Back Wheels

a. Slide axle shaft (M26317) through the side rails

holes.

b. Push a wheel onto each end of the axle shaft with

the longer hub oriented toward the side rail, and the

air valve hub side facing out.

c. Place a 1” washer on each axle end and then

attach an E-Clip to each end of the axle shaft to

hold the wheels in place.

d. Grease each wheel hub with grease gun.

Step 3:

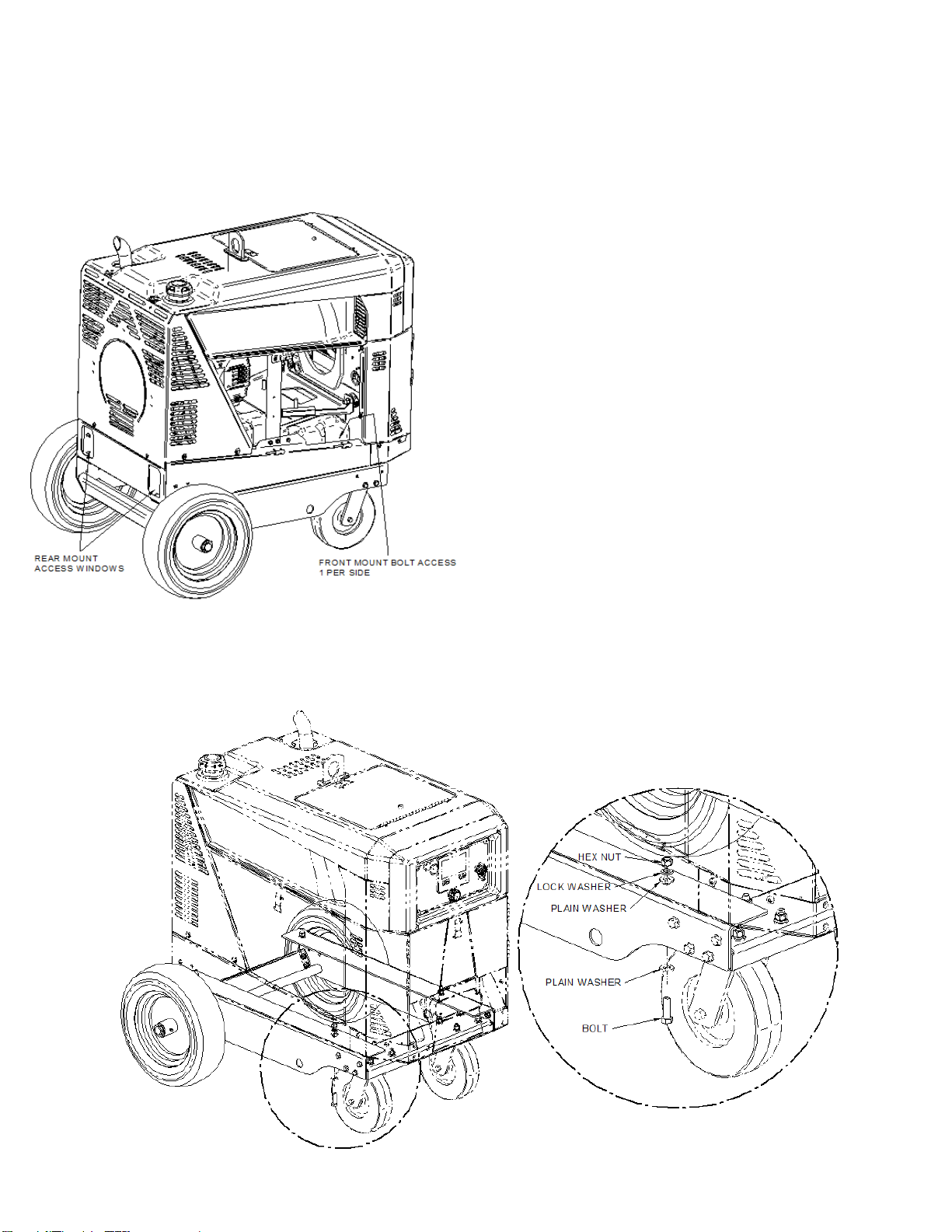

Step 5: Bolting Machine to Undercarriage

a. Place the machine on the undercarriage with crane

or hoist, aligning the (4) holes on the bottom of the

machine with the (4) holes on the cart. The side

doors will need to be removed to see the front (2)

holes on the machine.

b. Using a 9/16” wrench and socket, assemble the

undercarriage to the machine using the (2) holes on

each side rail. Use (4) 3/8-16 x 1.25” hex head cap

screw, (4) 3/8-16 hex nuts, (8) 3/8” plain washers,

and (4) 3/8” lock washers. Torque 3/8-16 bolts to

15 ft-lbs.

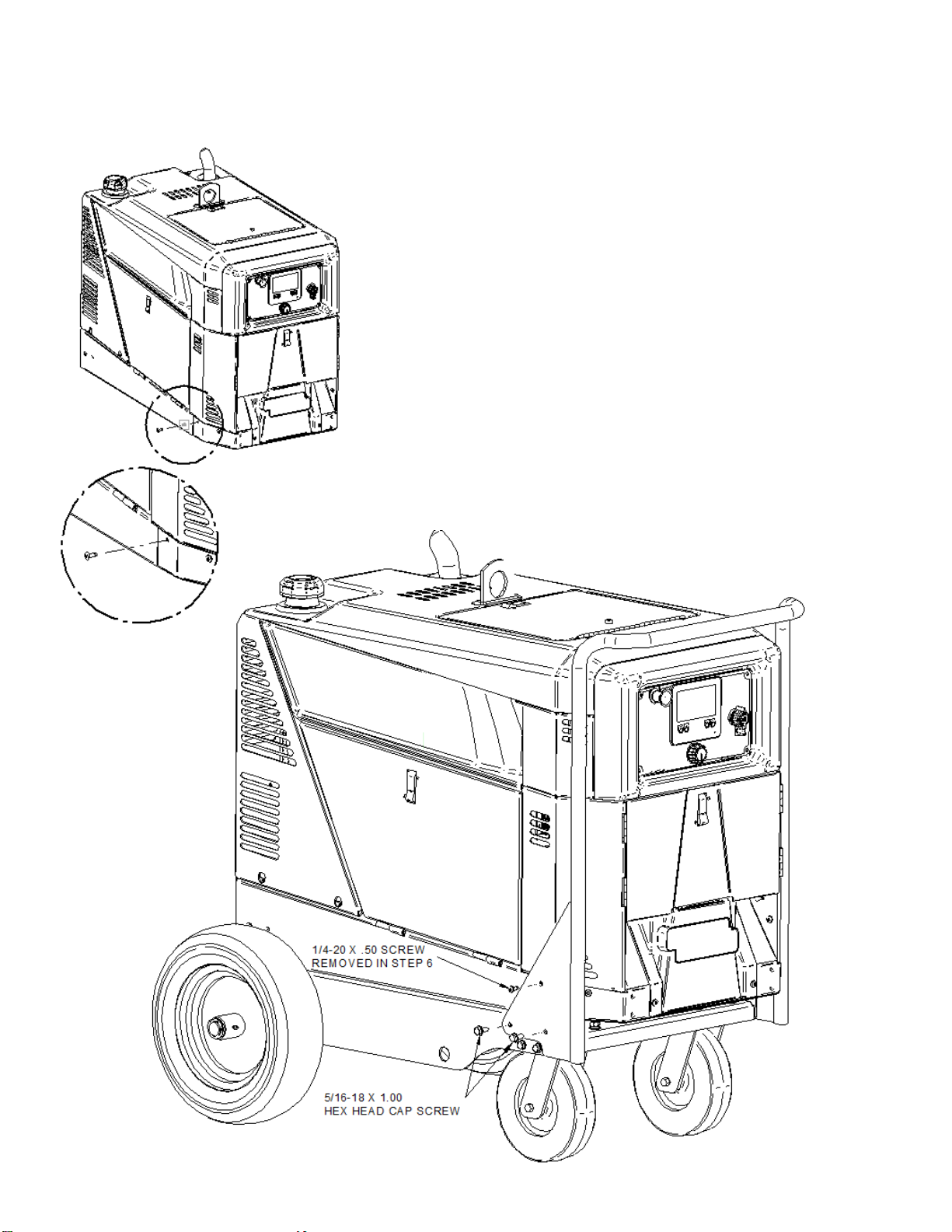

Step 6: Installing the Handle

a. Remove (2) ¼-20 x .50” pan head screws using a T30 bit

from the front left and front right sides of the welder. Keep

these screws for Step 6 c.

b. Using a 1/2” wrench and socket, install the handle

assembly (G9190) to the two side rails (L17286 & L17287).

Use (4) 5/16-18 x 1.00” hex head cap screw, (4) 5/16-18

Hex nuts, (4) 5/16” plain washers, and (4) 5/16” Lock

washers inserted into the bottom two holes. Leave loose

until after step 6 c.

c. Insert the (2) ¼-20 x .50” pan head screws (from Step 6 a.),

using a T30 bit, through the remaining ¼” hole on each

side of the undercarriage handle mount. Torque¼-20 pan

head screws to 50 in-lbs and 5/16-18 bolts to 8 ft-lbs.

Step 6 a.
