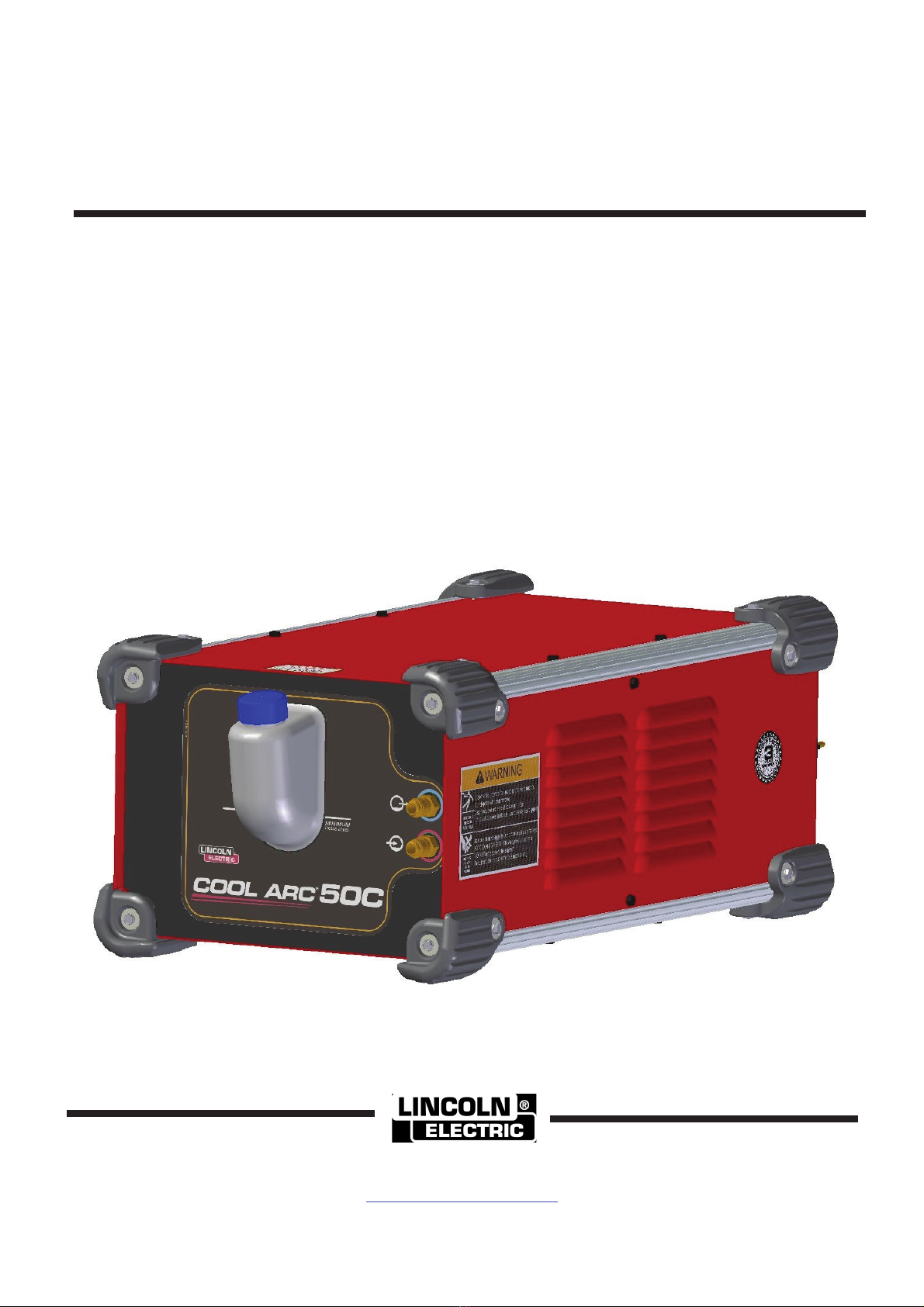

COOLARC-50C

OPERATOR’S MANUAL

LINCOLN ELECTRIC BESTER Sp z o.o.

ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland

www.lincolnelectriceurope.com

Declaration of conformity

Deklaracja zgodnoĞci

LINCOLN ELECTRIC BESTER Sp z o.o.

Declares that the welding cooler:

Deklaruje, Īe spawalnicze Ĩródło energii:

COOLARC-50C

conforms to the following directives:

spełnia nastĊpujące wytyczne:

73/23/CEE, 89/336/CEE

and has been designed in compliance with the following standards:

i Īe zostało zaprojektowane zgodnie z wymaganiami nastĊpujących norm:

EN 60974-2, EN 60974-1, EN 60974-10

(2011)

Paweł LipiĔski

Operational Director

LINCOLN ELECTRIC BESTER Sp z o.o., ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland

III

English

Do not dispose of electrical equipment together with normal waste!

In observance of European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) and its

implementation in accordance with national law, electrical equipment that has reached the end of its life must be

collected separately and returned to an environmentally compatible recycling facility. As the owner of the

equipment, you should get information on approved collection systems from our local representative.

By applying this European Directive you will protect the environment and human health!

12/05

THANKS! For having chosen the QUALITY of the Lincoln Electric products.

•Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified

immediately to the dealer.

•For future reference record in the table below your equipment identification information. Model Name, Code & Serial

Number can be found on the machine rating plate.

Model Name:

………………...…………………………….…………………………………………………………………………………………..

Code & Serial number:

………………….……………………………………………….. …………………………………………………….……………..

Date & Where Purchased:

…………………………………………………………………... ……………………….…………………………………………..

ENGLISH INDEX

Safety...................................................................................................................................................................................................1

Installation and Operator Instructions ...................................................................................................................................................2

Electromagnetic Compatibility (EMC) ...................................................................................................................................................5

Technical Specifications .......................................................................................................................................................................6

SKOROWIDZ POLSKI

BezpieczeĔstwo UĪytkowania...............................................................................................................................................................7

Instrukcja Instalacji i Eksploatacji..........................................................................................................................................................8

KompatybilnoĞü Elektromagnetyczna (EMC) ......................................................................................................................................11

Dane Techniczne ...............................................................................................................................................................................12

Safety

04/07

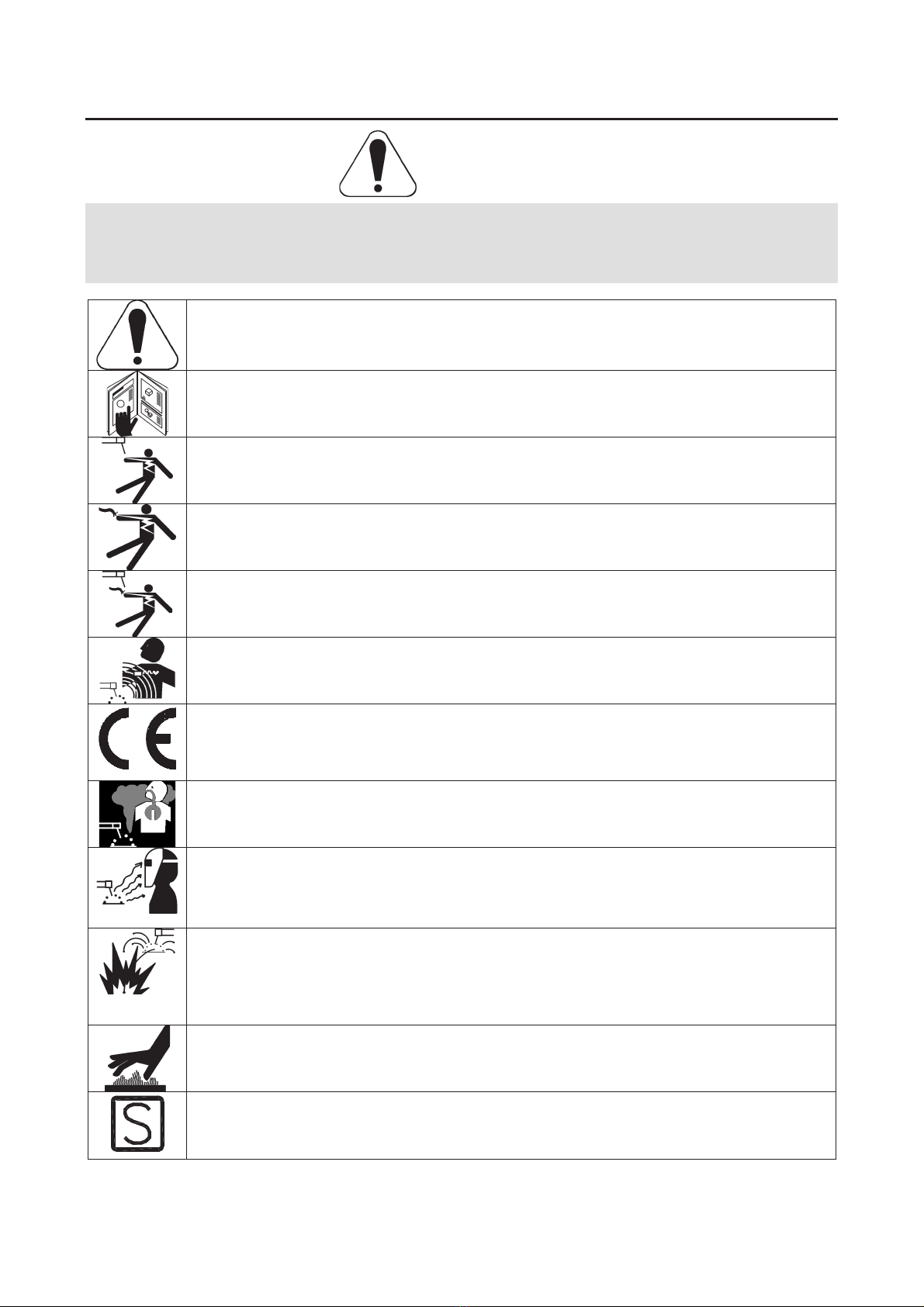

WARNING

This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair

procedures are performed only by qualified person. Read and understand this manual before operating this equipment.

Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this

equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible

for damages caused by improper installation, improper care or abnormal operation.

WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury,

loss of life, or damage to this equipment. Protect yourself and others from possible serious injury or

death.

READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating

this equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could

cause serious personal injury, loss of life, or damage to this equipment.

ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the

electrode, work clamp, or connected work pieces when this equipment is on. Insulate yourself from the

electrode, work clamp, and connected work pieces.

ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the

fuse box before working on this equipment. Ground this equipment in accordance with local electrical

regulations.

ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp

cables. If any insulation damage exists replace the cable immediately. Do not place the electrode

holder directly on the welding table or any other surface in contact with the work clamp to avoid the

risk of accidental arc ignition.

ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any

conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some

pacemakers, and welders having a pacemaker shall consult their physician before operating this

equipment.

CE COMPLIANCE: This equipment complies with the European Community Directives.

FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to

health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use

enough ventilation or exhaust to keep fumes and gases away from the breathing zone.

ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from

sparks and the rays of the arc when welding or observing. Use suitable clothing made from durable

flame-resistant material to protect you skin and that of your helpers. Protect other nearby personnel

with suitable, non-flammable screening and warn them not to watch the arc nor expose themselves to

the arc.

WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding

area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding

process can easily go through small cracks and openings to adjacent areas. Do not weld on any

tanks, drums, containers, or material until the proper steps have been taken to insure that no

flammable or toxic vapors will be present. Never operate this equipment when flammable gases,

vapors or liquid combustibles are present.

WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and

materials in work area can cause serious burns. Use gloves and pliers when touching or moving

materials in the work area.

SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in

an environment with increased hazard of electric shock.

CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the

correct shielding gas for the process used and properly operating regulators designed for the gas and

pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do

not move or transport gas cylinders with the protection cap removed. Do not allow the electrode,

electrode holder, work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders

must be located away from areas where they may be subjected to physical damage or the welding

process including sparks and heat sources.

Installation and Operator Instructions

Read this entire section before installation or operation

of the machine.

Product Description

COOLARC-50C is the cooler for semi automatic welding

with water cooled TIG, MIG.

COOLARC-50C cooler is designed for use with all water-

cooled gun’s up to 500A, TIG and MIG torches and

guns.

The COOLARC-50C coolers bring new technology in the

areas of pump, heat exchanger and reservoir designs to

the water cooler market. These technologies allow the

COOLARC-50C coolers to be lighter in weight, lower in

energy consumption.

Warranty

Warranty for this product is 3 year after the date of

purchase. For any warranty claim, contact a certified

Lincoln service center.

Installation

FIGURE 1

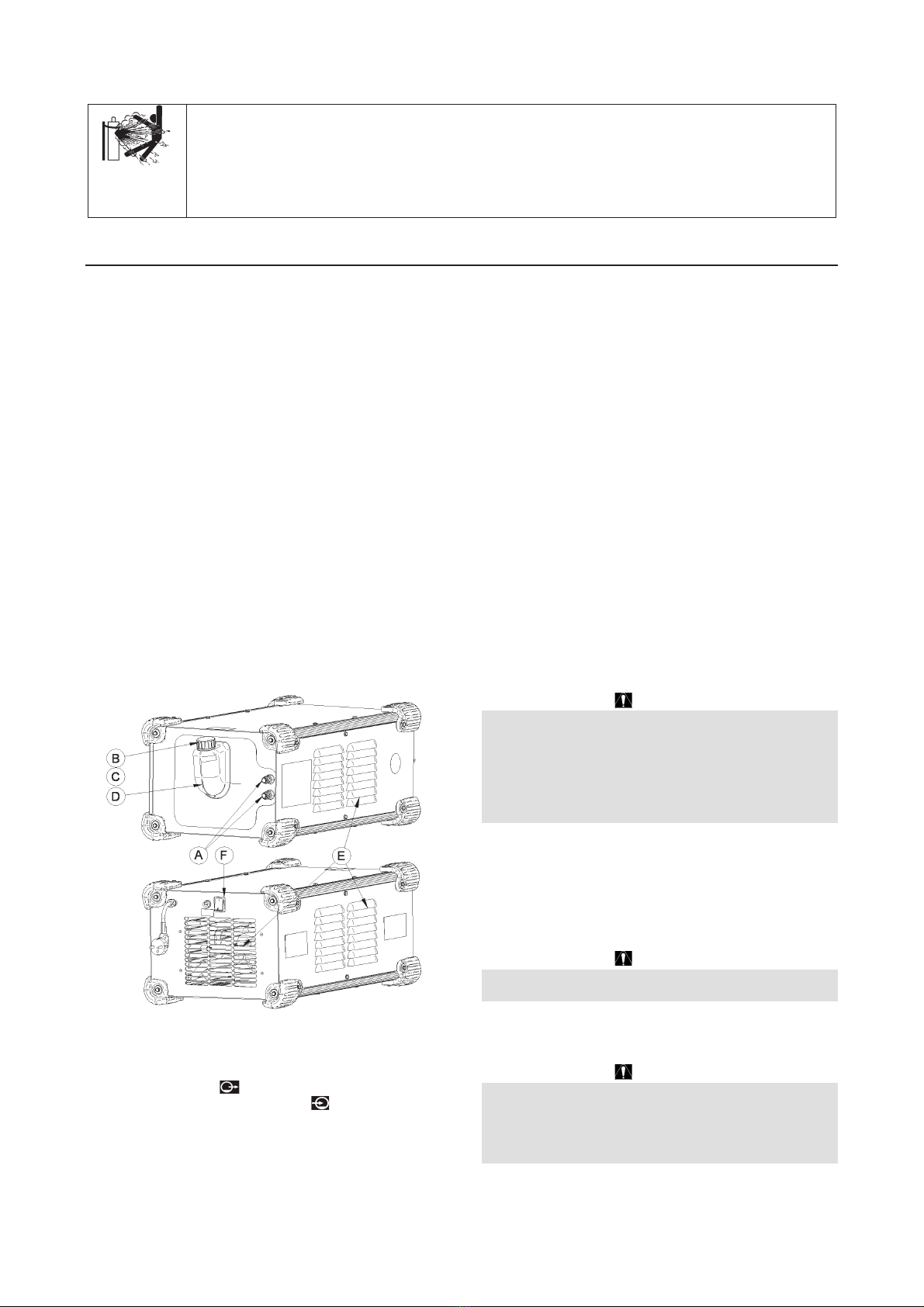

Coolant INLET and OUTLET fittings (A) type

21KATS09MPX are placed at the front of the unit. The

blue fitting is marked (supplies coolant to the welding

equipment); the red ones is marked (takes warm

coolant from the welding equipment).

The FILL CAP of the coolant reservoir is on front of unit

(B). Fill Cap can be removed by twisting it off.

The coolant FLOW INDICATOR is accessed by removal

of the reservoir fill cap. Actual return flow is directly

visible by the fill opening (C).

Coolant volume can be monitored through translucent

reservoir in the front (D). The minimum coolant level is

indicated by the line “MINIMUM LIQUID LEVEL” on

label.

Air flow louvers (E): Air flow louvers secure adequate air

circulation. The side louvers allows to suck in cold air

from bottom of the unit. Hot air is removed by the rear

louvers.

Power Switch and Power Indicator (F): After input power

is connected and the power switch is turned on, the

indicator will light up to indicate the machine is running.

Filling The Reservoir

Proper Coolant Addition

Acorox is recommended coolant for COOLARC-50C.

For use above freezing: Tap, distilled, deionized, mineral

water. For use below freezing: water and pure ethylene

glycol mixture (10% glycol between at 0°C and 30% at -

15°C).

WARNING

DO NOT USE PREPACKAGED WELDING INDUSTRY

COOLANTS. These coolants may contain oil-based

substances which attack the plastic components in the

pump of the COOLARC-50C cooler and severely reduce

pump life. Once added to the cooler, the substances are

virtually impossible to purge from the water lines and

heat exchanger.

To avoid freeze damage and water leakage in shipment,

every COOLARC-50C unit is delivered empty with no

coolant in the system. To fill the unit, locate the plastic

reservoir fill cap (B).

NOTE: The unit can be filled only horizontal.

WARNING

UNPLUG THE COOLER BEFORE FILLING THE

RESERVOIR.

Filling:

Pour 6 liters at last of coolant into the reservoir.

WARNING

AVOID SPILLING COOLANT INTO THE FRONT

CASING OF THE UNIT.

NOTE: DO NOT ADD MORE THAN 9 LITERS OF

COOLANT INTO THE RESERVOIR.

WARNING

AT FIRST STARTING OF THE COOLARC-50C

RESERVOIR FILL CUP MUST BE REMOVED FOR A

MOMENT TO AVOID GENERATE PARTIAL VACUUM

IN COOLING SYSTEM DURRING FILLING (THE

PUMP MUST BE FLOODING)

WARNING

IN ORDER TO EASY PUMP FLOODING DURING

FIRST START THE BYPASS (SHORT WATER HOSE)

CAN BE USED BY CONNECTING IT TO QUICK-

CONNECTORS INSTEAD OF THE TORCH.

The fill cap contains a pressure release air hole.

Be certain to replace the reservoir fill cap when the

reservoir is full. Operation of the COOLARC-50C cooler

without the fill cap in place can cause poor cooling

efficiency, evaporation loss of coolant, and low product

life.

Water Hoses Connection

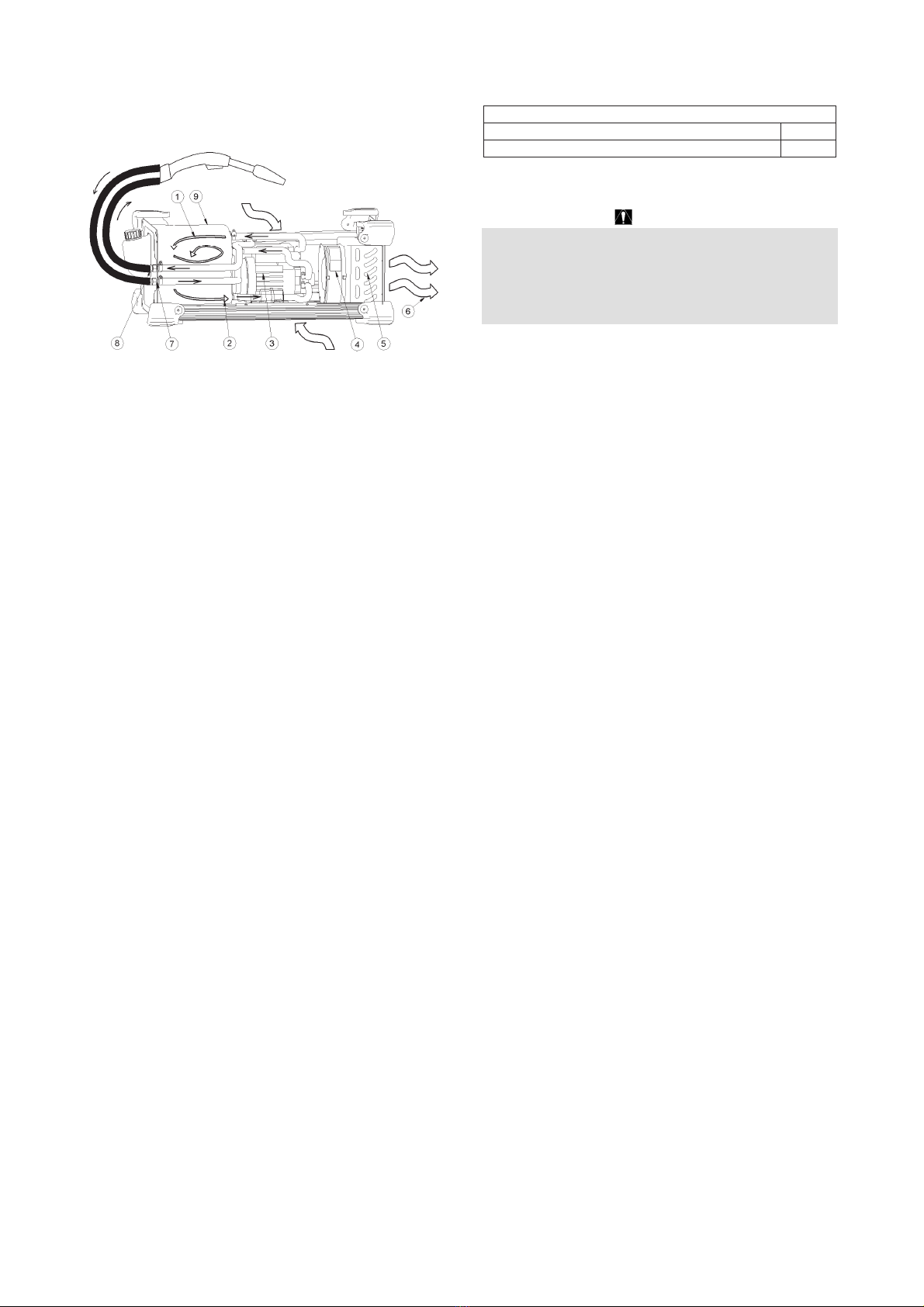

FIGURE 2:

Water Hoses Connection Diagram

A TO HEAT SOURCE (BLUE)

B FROM HEAT SOURCE (RED)

Water hoses connection is made with quick water fittings

(type 21KATS09MPX) which are equipped with the

automatic outflow blockade.

Before water hoses installing to the cooler, you should

check if the water hose connectors matches to the quick

water connectors placed in the connector block on the

front of the unit. You should:

•Take INLET hose (colored or tagged blue on most

hoses) and attach it into the coolant OUT line

marked . Then take the OUTLET hose (colored

or tagged red on most hoses) and attach it into the

coolant IN line marked .

WARNING

BE CERTAIN THAT NO LEAKS EXIST WHEN COOLER

IS TURNED ON. A LEAK WILL DEPLETE RESERVOIR

VOLUME, CAUSE POOR OR COOLING

PERFORMANCE AND REDUCE GUN, TORCH OR

PUMP LIFE.

The following should always be observed when

operating the COOLARC-50C:

•Never operate the cooler with case off.

•Immersion in water around electrical lines can

cause electrical shock.

•Never place fingers into openings of cooler. Moving

parts can injure.

•Unplug the cooler before filling the reservoir.

•Never operate the cooler with the reservoir fill cap

off.

•Never operate the cooler with the reservoir empty.

Operating Precautions

The following should always be observed when

operating any COOLARC-50C cooler:

•Check the reservoir daily.

•Keep the reservoir full especially after changing any

water lines.

•Avoid placing the cooler near areas of extreme heat.

•Avoid placing the cooler near a flux hopper or an

area where dust build-up is extreme.

•Avoid kinking or putting sharp bends in any water

lines.

•Keep all water lines clean.

Turning The System ON

After filling the reservoir and connecting the coolant

hoses to the COOLARC-50C cooler per the Installation

Sections, be certain that the power input into the unit

matches the cooler’s rated input. Plug the unit into an

electrical socket for start-up operation.

You will be able to hear the fan running and feel air flow

out of the back of the unit when the cooler is operating.

When first starting the unit, check all of the water lines to

insure that no water leaks are present. Water leakage

causes poor welding performance, poor cooling

performance, low welding component and pump life and

potential electrical safety hazards.

Cooling Efficiency

FIGURE 3

Circulation of COOLARC-50C.

1. COOLANT RETURN

2. COOLANT IN TAKE

3. PUMP

4. FAN

5. HEAT EXCHANGER

6. HEATED AIR OUT

7. COOLANT IN

8. COOLANT OUT

9. RESERVOIR

The high cooling efficiency COOLARC-50C offers a

cooler, more comfortable weld than conventional air-

cooled procedures as well as leading competitors water

cooled systems. Radiator improves heat convection with

minimal air flow restriction.

The COOLARC-50C cooler effectively removes the heat

of the arc away from the torch handle and places it into

the exiting air flow at the back of the cooler. Ambient air

temperature can affect the cooling parameters of the

COOLARC-50C.

For example:

•COOL day (50°F, 10°C): More HEAT is transferred

from the water in the heat exchanger to the air. The

water is COOLER and more HEAT is transferred

from the torch to the water.

RESULT: THE TORCH FEELS COOLER

•HOT day (100°F, 38°C): Less HEAT is transferred

from the water in the heat exchanger to the air. The

water is HOTTER and less HEAT is transferred from

the torch to the water.

RESULT: THE TORCH FEELS HOTTER.

Unlike other water coolers that depend on bulky

reservoir size, the high efficiency components of

COOLARC-50C cooler allows the reservoir size to be

small. The result is a lightweight, portable unit.

Cooling Efficiency - Recommended Values

COOLARC-50C ref: K14050-2

Max welding current TIG 100% duty cycle 500A

Max welding current MIG 100% duty cycle 500A

Maintenance

WARNING

For any maintenance or repair operations it is

recommended to contact the nearest Technical

Service Center or Lincoln Electric. Maintenance or

repairs performed by unauthorized service centers

or personnel will null and void the manufacturer's

warranty.

Heat Exchanger Maintenance

To maintain maximum efficiency, the heat exchanger

should be kept clean from dust and dirt buildup. Clean

the heat exchanger periodically using a vacuum hose or

low pressure air line. Avoid placing the unit near a flux

hopper or a flux waste container. A clean heat

exchanger offers better cooling performance and longer

product life. If extremely dirty conditions exist, it may be

necessary to remove the heat exchanger completely

from the cooler for a thorough soap and water cleaning

of the cooling fins. Use care to avoid damaging the fins.

Reservoir Maintenance

The reservoir volume should be checked daily before

using the cooler. You can do it by observation the level

of the coolant in the front panel. The unit is full when the

coolant level reaches upper part of reservoir. Keep the

reservoir full especially after changing the water lines.

The cooler should always be operated with the reservoir

fill cap on. In areas where dust can be introduced into

the reservoir through water lines or reservoir fill cap

removal, periodically flush the unit out. Dump the old

coolant and rinse the inside of the reservoir. Add new

coolant when finished. A reservoir free from particle

buildup and dirt offers better cooling efficiency and

longer pump, gun and torch life.

Troubleshooting

This Troubleshooting Guide is designed to be used by the machine Owner/Operator. Unauthorized repairs performed on

this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For

your safety, please observe all safety notes and precautions detailed in the Safety Section of this manual to avoid

electrical shock or danger while troubleshooting this equipment.

WARNING

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact

your local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

Cooler does not operate.

•

Blown fuses.

•Cord unplugged.

•No power at outlet.

•Cord damaged.

•Water lines blocked or crimped.

•Leak in gun or water hoses.

•Reservoir empty.

•

Replace fuses.

•Plug in cord.

•Check outlet circuit breaker.

•Repair damaged cord or order new cord.

•Clear blockage in hose. Avoid kinking or

putting sharp bends in water lines.

•Repair leak.

•Fill reservoir.

Internal water leak.

•

Hose clamp loose on one of internal hoses.

•Internal hose punctured.

•Heat exchanger leaking.

•

Tighten or replace hose clamp.

•Replace punctured hose with new hose.

•Replace heat exchanger.

Leak at inlet/outlet

connector block.

•

Hose clamp loose.

•

Tighten hose clamp onto hose.

Torch runs hot.

•

Unit placed by area of extreme heat.

•Low coolant flow.

•No coolant flow.

•Fan not operating.

•

Move unit away from hot air.

•See Low Coolant Flow Section.

•See No Coolant Flow Section.

•Reference fan section.

Fan operates but there is

low coolant flow.

•

Leak in torch/gun or hoses.

•Torch/gun or hoses partially obstructed.

•Reservoir empty or very low.

•

Repair leak.

•Clear obstruction.

•Refill reservoir.

Fan operates but there is

no coolant flow.

•

Pump failure.

•Pump seized.

•

Replace pump.

•Replace pump.

Pump operates, but fan

does not.

•

Fan blade contacting heat exchanger.

•Fan motor failure

•

Replace fan.

•Replace fan.

Cooler trips outlet circuit

breaker.

•

Circuit overloaded.

•Cooler electrical component failure.

•

Check outlet circuit breaker.

•Replace component inside of cooler.

Electromagnetic Compatibility (EMC)

11/04

This machine has been designed in accordance with all relevant directives and standards. However, it may still generate

electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or

other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this

section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.

This machine has been designed to operate in an industrial area. To operate in a domestic area it is

necessary to observe particular precautions to eliminate possible electromagnetic disturbances. The

operator must install and operate this equipment as described in this manual. If any electromagnetic

disturbances are detected the operator must put in place corrective actions to eliminate these disturbances

with, if necessary, assistance from Lincoln Electric.

Before installing the machine, the operator must check the work area for any devices that may malfunction because of

electromagnetic disturbances. Consider the following.

•Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the

machine.

•Radio and/or television transmitters and receivers. Computers or computer controlled equipment.

•Safety and control equipment for industrial processes. Equipment for calibration and measurement.

•Personal medical devices like pacemakers and hearing aids.

•Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure

that all equipment in the area is compatible. This may require additional protection measures.

•The dimensions of the work area to consider will depend on the construction of the area and other activities that are

taking place.

Consider the following guidelines to reduce electromagnetic emissions from the machine.

•Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take

additional precautions such as filtering the input supply.

•The output cables should be kept as short as possible and should be positioned together. If possible connect the

work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting the

work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.

•Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special

applications.

Technical Specifications

INPUT

Input Voltage

230 V ±10%

single phase

Rated current

1,2A

Frequency

50/60 Hz

RATED OUTPUT AT

40°C

Flow range

MIG

TIG

Open flow

0,5 to 3,3 l/min

with torch 4,5m: 1,7 ÷1,8 l/min

with torch 3,8m: 1,3 ÷1,4 l/min

3,3 l/min

Reservoir size 9,2 l

Coolant requirement:

Do not use prepackaged welding industry coolants. These

coolants may contain oil-based substances which attack

the plastic components in the pump.

Recommended

coolant

for

COOLARC

50C

: Acorox

Water or water and pure ethylene glycol mixture can be

used interchangeably.

The glycol % must not exceed 30%.

PHYSICAL

DIMENSIONS

Height

265 mm

Width

355 mm

Length

680 mm

Weight

20 Kg

Operating Temperature

–10°C (14°F) to +40°C (104°F)

Storage Temperature

-25°C (-13°F) to +55°C (131°F)

Table des matières

Autres manuels Lincoln Electric Accessoires de soudage

Lincoln Electric

Lincoln Electric IM573 Manuel d'utilisation et d'entretien

Lincoln Electric

Lincoln Electric OMNISHIELD Manuel utilisateur

Lincoln Electric

Lincoln Electric US-CW338 Manuel utilisateur

Lincoln Electric

Lincoln Electric X-Tractor 250FG Manuel utilisateur

Lincoln Electric

Lincoln Electric DownFlex 100-NF Manuel utilisateur

Lincoln Electric

Lincoln Electric POWER WAVE STT Manuel utilisateur

Lincoln Electric

Lincoln Electric LT-7 Tractor Manuel utilisateur

Lincoln Electric

Lincoln Electric ZIPLINE IM596-2A Manuel utilisateur

Lincoln Electric

Lincoln Electric MIL 800HPNi Manuel utilisateur

Lincoln Electric

Lincoln Electric VIKING 1740 Series Manuel utilisateur

Lincoln Electric

Lincoln Electric IM359-G Manuel utilisateur

Lincoln Electric

Lincoln Electric POWER FEED 10M Manuel utilisateur

Lincoln Electric

Lincoln Electric Innershield NR-212 Manuel utilisateur

Lincoln Electric

Lincoln Electric VRTEX 360 Manuel utilisateur

Lincoln Electric

Lincoln Electric LN-35 Manuel utilisateur

Lincoln Electric

Lincoln Electric ZIPLINE BOOM PACKAGE Manuel utilisateur

Lincoln Electric

Lincoln Electric Magnum PRO Curve HDE 350 Manuel utilisateur

Lincoln Electric

Lincoln Electric 900 Manuel utilisateur

Lincoln Electric

Lincoln Electric VIKING 2450ADV Series Manuel utilisateur

Lincoln Electric

Lincoln Electric K3091-1 Manuel utilisateur

Lincoln Electric

Lincoln Electric Harris Port-A-Torch 19601 Manuel utilisateur

Lincoln Electric

Lincoln Electric CAN-CW800-C Manuel utilisateur

Lincoln Electric

Lincoln Electric US-M1745-LS Manuel utilisateur

Lincoln Electric

Lincoln Electric IDEALARC AC-1200 Manuel utilisateur

Manuels Accessoires de soudage populaires d'autres marques

Weco

Weco Trolley R Manuel utilisateur

Cornwell Tools

Cornwell Tools MMWC1 Manuel utilisateur

Dohle

Dohle ExOn2A Manuel utilisateur

Nederman

Nederman Fume Eliminator FE 840/2500/P150 Manuel utilisateur

3M Speedglas 9100 Series Manuel utilisateur

Miller Electric

Miller Electric OM-842 Manuel utilisateur

Miller

Miller A-200 Series Manuel utilisateur

Abicor Binzel

Abicor Binzel ABIMIG WT Series Manuel utilisateur

optrel

optrel lifeflip autopilot Manuel utilisateur

Miller

Miller MIGmatic M-25 Manuel utilisateur

Tregaskiss

Tregaskiss TOUGH GUN TT3 Reamer Manuel utilisateur

Abicor Binzel

Abicor Binzel xFUME PRO Manuel utilisateur

Sealey

Sealey SR20.V2 Manuel utilisateur

iWeld

iWeld NORED EYE Manuel utilisateur

Sthor

Sthor 74483 Manuel utilisateur

Leister

Leister TWINNY T7 Manuel utilisateur

Miller

Miller I-22 CE Manuel utilisateur

LAHTI PRO

LAHTI PRO L1540400 Manuel utilisateur
