WIRE FEEDER
DIX WD 300
SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE
DEVICE N° W000315522
EDITION : EN Instructions for use REF : 8695 5601
REVISION : D
DATE : 07-2019 Original instructions
Thank for the trust you have expressed by purchasing this equipment, which
will give you full satisfaction if you follow its instructions for use and
maintenance.
Its design, component specifications and workmanship comply with
applicable European directives.
Please refer to the enclosed CE declaration to identify the directives
applicable to it.
The manufacturer will not be held responsible where items not recommended
by themselves are associated with this product.
For your safety,there follows a non-restrictive list of recommendations or
requirements, many of which appear in the employment code.
Finally we would ask you kindly to inform your supplier of any error which
you may find in this instruction manual.
8695 5601
TOPTIG I
CONTENTS
A - SAFETY INSTRUCTIONS............................................................................................................1
1 - SERVICING.........................................................................................................................1
2 - PERSONAL PROTECTION................................................................................................1
B - TECHNICAL SPECIFICATIONS..................................................................................................2
C - STARTING UP..............................................................................................................................3
1 - INSTALLING THE REEL HOLDER.....................................................................................3
2 - CONTROLS ........................................................................................................................4
3 - DIX WDW 100 COOLING KIT.............................................................................................4
4 - WDA 303 TIG BUNDLE CONNECTING KIT ......................................................................5
5 - OTHER ELEMENTS ...........................................................................................................6
6 - ADAPTATION TO WIRE DIAMETER.................................................................................7
7 - WIRE LOADING..................................................................................................................8
D - MAINTENANCE AND TROUBLESHOOTING.............................................................................9
1 - MAINTENANCE..................................................................................................................9
2 - TROUBLESHOOTING........................................................................................................10
3 - WIRING DIAGRAM.............................................................................................................11
4 - SPARE PARTS...................................................................................................................13
PERSONAL NOTES ..........................................................................................................................16
8695 5601
II TOPTIG
REVISIONS
REVISION B 07/06
DESIGNATION
PAGE
To change logos
-
REVISION C 07/17
DESIGNATION
PAGE
Complete update
-
REVISION D 07/19
DESIGNATION
PAGE
To change logos
-
8695 5601 / D
TOPTIG A-1
A - SAFETY INSTRUCTIONS
ELECTROMECHANICAL EQUIPMENT USED AS THE SUBASSEMBLY OF AN
INSTALLATION.
This equipment can be associated with a
welding installation, in which case it is covered by
safety instructions described in the instructions for the
welding installation
If this equipment is used in other cases, a
minimum of instructions must be respected, in
particular :
1 - SERVICING
Check often that the insulation and connections of
the electrical equipment and accessories are in
good condition: plugs, cables, flexible cables,
sheaths, connectors, extension cables, workpiece
clamps, electrode holders or torches...
Maintenance and repair work on insulating
sheaths and covers should never be carried out in
a makeshift manner.
Have defective accessories repaired by a
specialist or, better still, replace them.
Periodically check that electrical connections are
properly tightened and do not overheat.
2 - PERSONAL PROTECTION
RISK OF EXTERNAL INJURY
The operator must be properly dressed and
protected for the work he is carrying out
Ensure that no part of the operator's body or of his
assistant's body can come in contact with metal
parts and workpieces which are energized or
which could accidentally become energized
and/or which are moving.
Do not wrap electrical cables around your body.
8695 5601 / D
B-2 TOPTIG
B - TECHNICAL SPECIFICATIONS
Welding process
TIG or plasma, welding and brazing.
Wire feed speed
0 - 20m/min
Wire diameter
0.8/1.0/1.2/1.6mm
Welding metal
Steel alloys and non alloys, high-alloy steels, aluminium alloys,
magnesium alloys, copper alloys and nickel alloys
Max. welding current.
500 A 60% (ambient temperature 40 °C)
400A 100%
Welding voltage
see welding station
Max. no-load voltage
Uo = 113 V (peak value)
Max. connecting voltage
42 V / 50 Hz
Capacity
100 VA
Degree of protection
IP 23
Sound level
< 70 dB (A)
Dimensions
275/ 220/ 259 - (L/W/H in mm)
Weight
7.2 kg
Reel holder
DIX WDS 300 (reel Ø 300 mm)
Ambient operating temperature
-10 °C to +40 °C
Ambient transport and storage
temperature
-10 °C to +55 °C
8695 5601 / D
TOPTIG C-3
C - STARTING UP

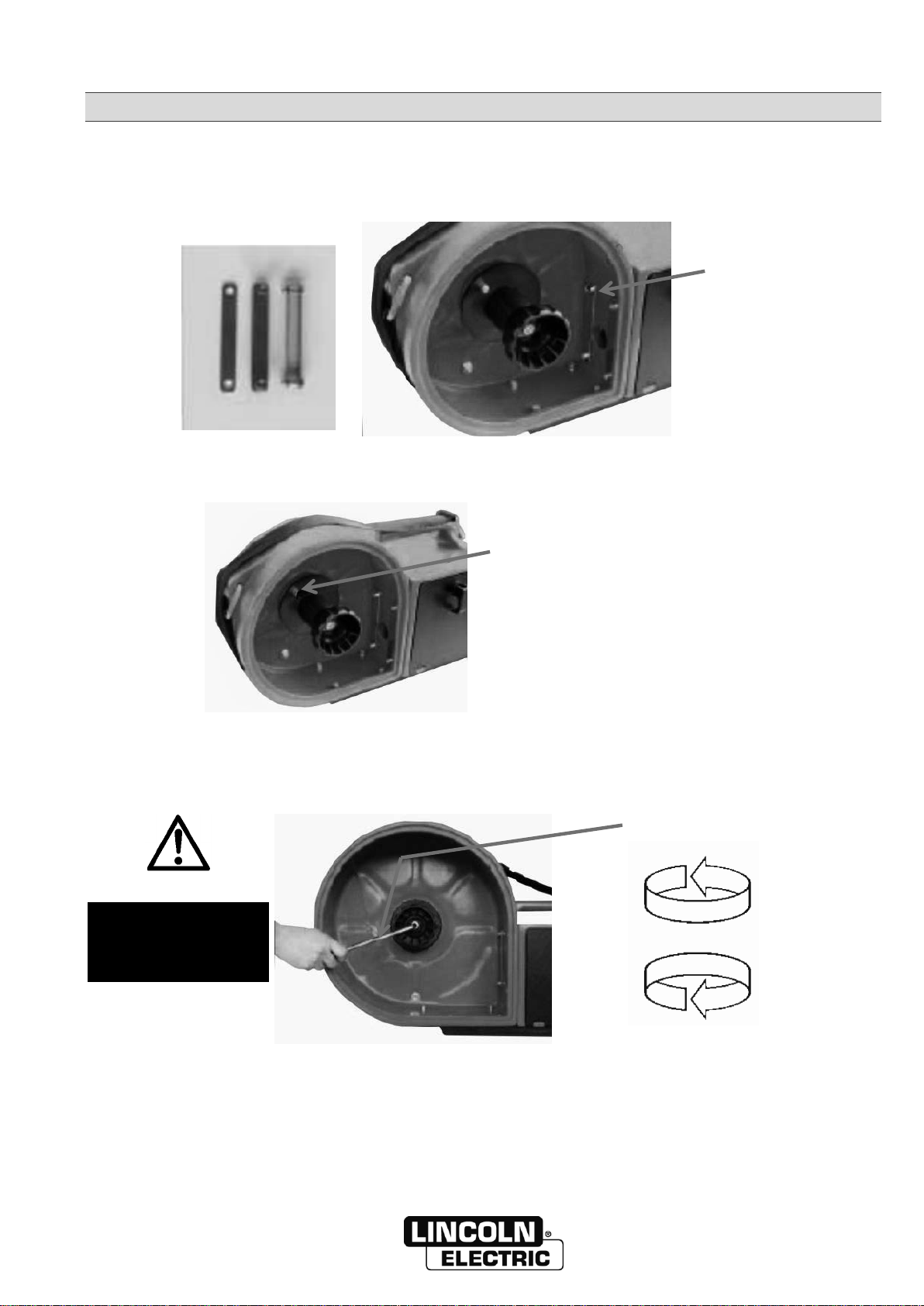

1 - INSTALLING THE REEL HOLDER
The DIX WD 300 and reel holder are assembled with the help of the DIX WDV 100 connecting kit
Connecting kit
Installing the reel
Drive pin
When you put in place the wire reel, make sure that the
reel drive hole rests on the core drive pin.
Adjusting the reel brake
The reel core has a braking screw, which must be adjusted so that the reel of wire stops moving when it is stopped.
Female 5-mm hex key.
Protect the brake from
impurities!
Applying the brake excessively will stop continuous feeding (movement in jolts), with a risk of overloading the drive
motor.
If the braking force is not sufficient, the stopped wire reel could continue to turn due to inertia and the wire may get
entangled or come off.
Use a female 5-mm hex
key.
Released
Applied
C - STARTING UP 8695 5601 / D
C-4 TOPTIG

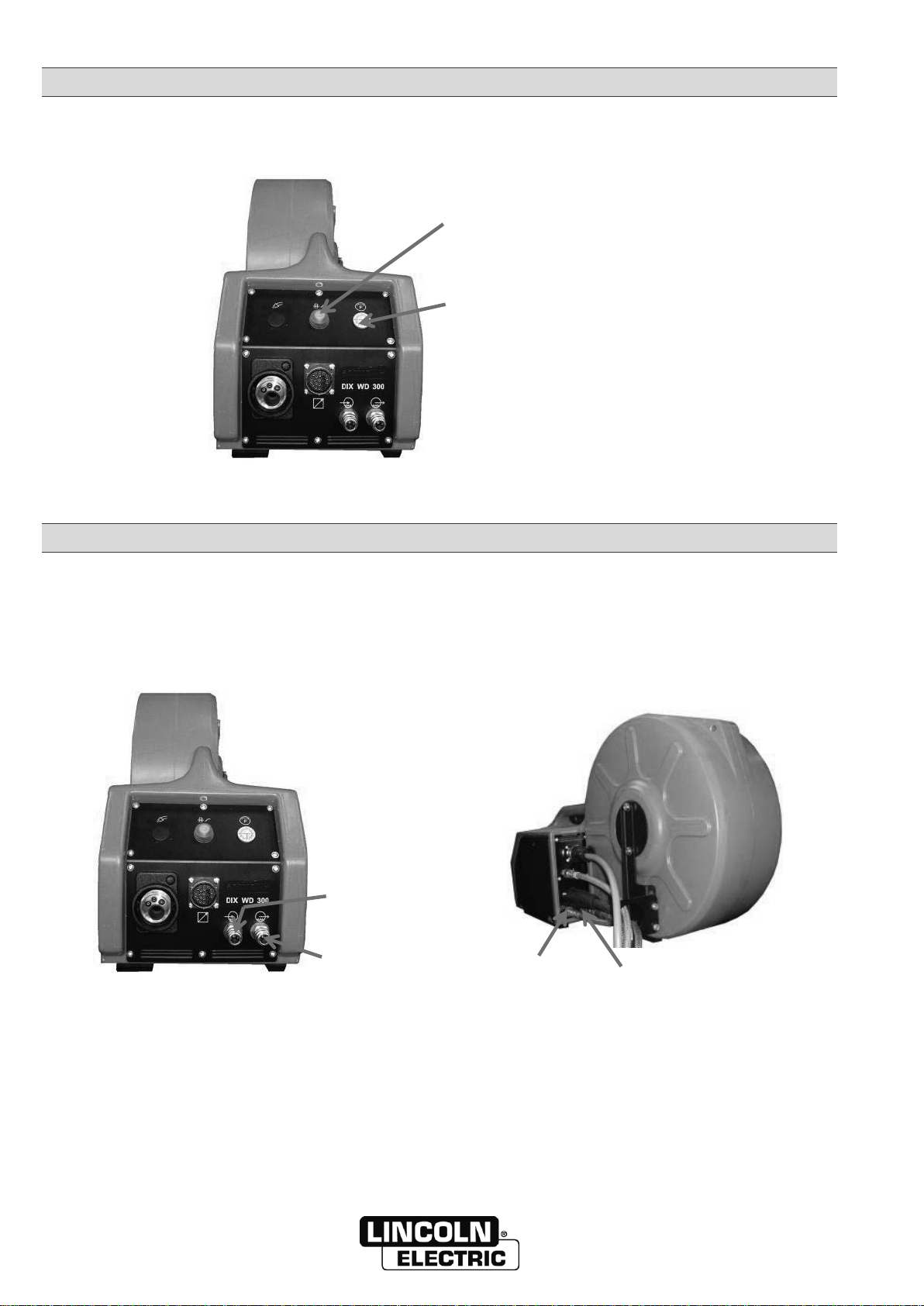

2 - CONTROLS
The main controls are on the front.
Wire feed pushbutton
Torque adjustment potentiometer
(wire feed force)
3 - DIX WDW 100 COOLING KIT
The rapid union system is used to automatically lock the connection when the homologous element of the coupler
is pushed home. Unlocking is by sliding the bush towards the unit.
Front
Rear
Water out
Water return
Water out
Water return
8695 5601 / DC - STARTING UP
TOPTIG C-5
4 - WDA 303 TIG BUNDLE CONNECTING KIT
Bundle connecting kit:
DIX WDA 300 - (CI77500.280)
with welding current
C - STARTING UP 8695 5601 / D
C-6 TOPTIG

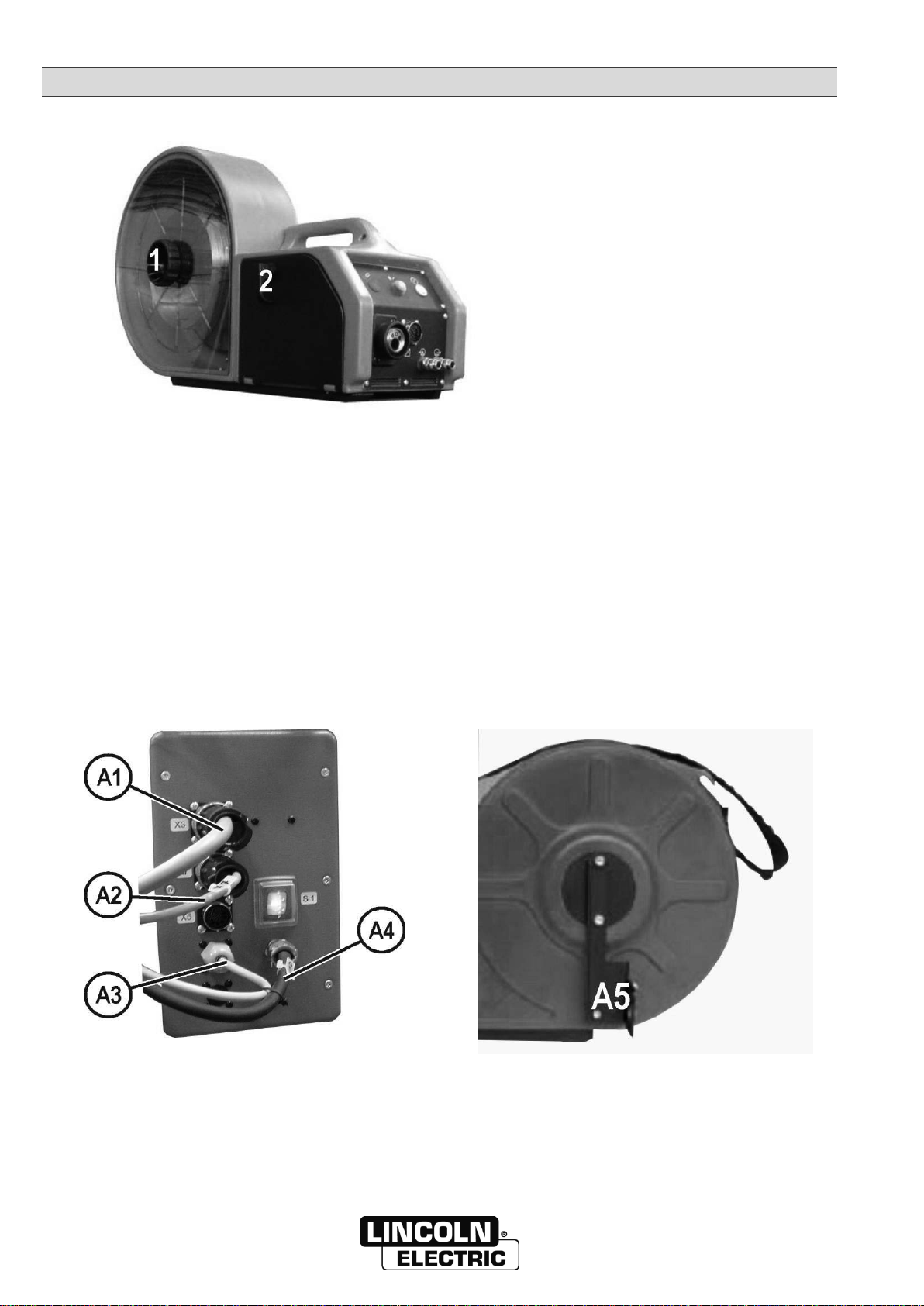

5 - OTHER ELEMENTS
1. Reel nut
for opening and closing the reel holder
cover.
2. Cover lock
closing the unit cover.
Rear connection
A1
Connection to wire feeder
A2
Connection to power source
A3
Torch impact safety output
A4
Primary power supply
A5
Support plate A5
Fastening the intermediate bundle
Pull-relief for the connecting bundle.
