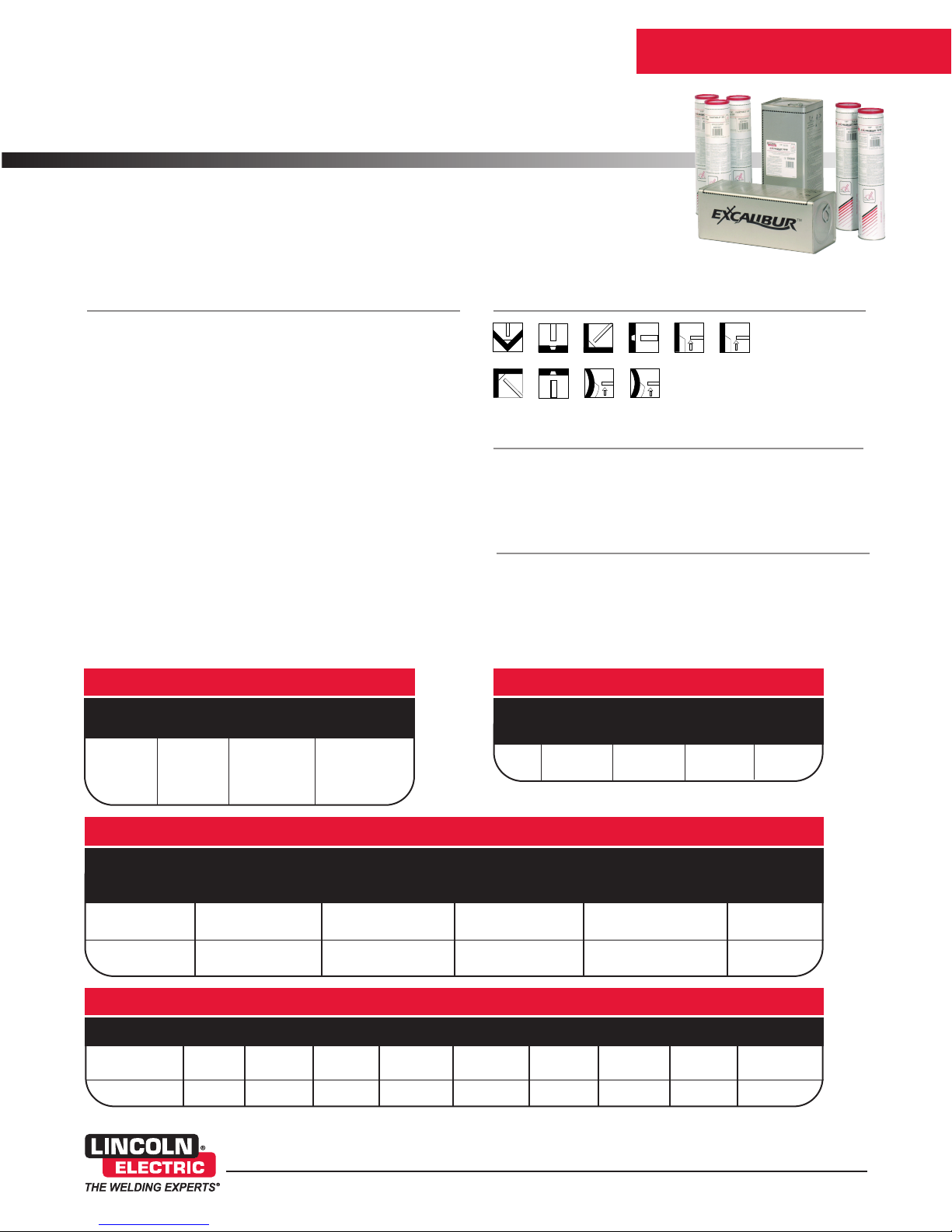

Excalibur®11018M MR™

Publication C2.10.1 10/06

www.lincolnelectric.com

STICK

Basic, Low Hydrogen, Low Alloy Steel SMAW Electrode

(AWS E11018M-H4R)

Excalibur®11018M MR™is designed primarily for joining high strength steel types in the as-

welded or stress relieved conditions with excellent low temperature impact properties and

robust welding procedures. All-position welding, except vertical down.

Advantage Lincoln

Integrated Silicate Technology™

Increased moisture resistance and decreased coating fragility.

Easy Strike™ Tip

Consistent, smooth arc starts.

Square Burn-Off

Focused arc for hard to access welds.

X-Ray Quality

Demanding applications.

Hermetically Sealed Packaging – Easy Open Cans

Delivers quality product, performance reliability and

consistent results.

ISO 9001 and 14001 Certified

Manufactured to standards for environmental and quality

management systems.

Welding Positions

Conformance

AWS A5.5/A5.5M:2006 E11018M-H4R / E7618M-H4R

ASME SFA 5.5:1996 E11018M-H4R

CSA W48-01: E7618-M-H4

DIAMETERS / LENGTH / PACKAGING

Diameter Length 10 Lb. (4.5 kg) 50 Lb. (22.7 kg)

in. (mm) in. (mm) Easy Open Can Easy Open Can

3/32 (2.4) 14 (350) ED031972 ED031975

1/8 (3.2) 14 (350) ED031973 ED031976

5/32 (4.0) 14 (350) ED031974 ED031977

3/16 (4.8) 14 (350) ED031978

➔

%C %Mn %Si %P %S %Ni %Cr %Mo %V

Requirements 0.10 max 1.30 - 1.80 0.6 max 0.030 max 0.030 max 1.25 - 2.50 0.40 max 0.25 - 0.50 0.05 max

AWS E11018M-H4R

Test Results 0.04 - 0.05 1.55 - 1.80 0.40 - 0.55 0.010 - 0.030 0.005 - 0.020 1.90 - 2.50 0.02 - 0.15 0.35 - 0.50 0.005 - 0.015

DEPOSIT COMPOSITION – As required per AWS A5.5/A5.5M:2006

Charpy V-Notch Diffusible

Tensile Strength Yield Strength Elongation ft*lbf (Joules) Hydrogen

psi (MPa) psi (MPa) % @-60°F (-50°C) ml/100g

Requirements 110 (760) 98 - 110 20 20 (27) ≤4

AWS E11018M-H4R min. (680 - 760)

Test Results 111 - 117 100 - 110 20-25 40 - 65 1-4

As-welded (765 - 807) (690 - 758) (54 - 88)

MECHANICAL PROPERTIES – As Required per AWS A5.5/A5.5M:2006

TYPICAL OPERATING PROCEDURES

Polarity Current Range (Amps)

3/32 in. 1/8 in. 5/32 in. 3/16 in.

(2.4 mm) (3.2 mm) (4.0 mm) (4.8 mm)

DC+ 70-110 90-160 130-210 180-300

Typical Applications

• Certain Weldable Quenched & Tempered Steels, such as

- T1, A514, A517 and A709

• General Fabrication Requiring E11018-G or E11018M

Electrode Classification.

➔

➔

➔
