Lightolier Brisa FC14U Manuel utilisateur

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier is a Philips group brand

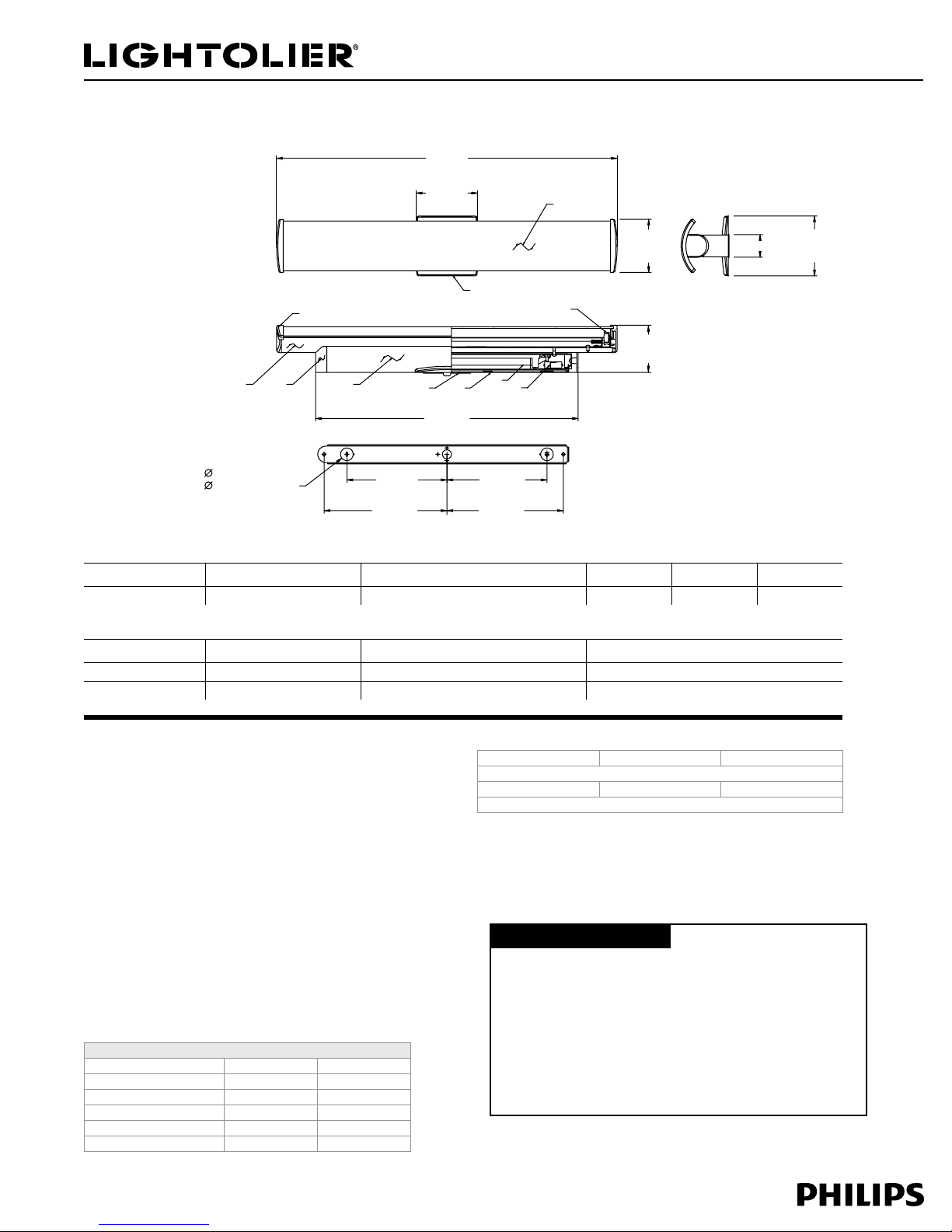

Brisa™Linear Curve Surface Mount FC14U

Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

7/8"

[ 22mm] Knockout (x2)

6 7/8"

[175mm]

6 7/8"

[175mm]

[203mm]

8 7/16"

[214mm]

611

23 3/8"

[594mm]

4 3/16"

[107mm]

3 5/8"

[92mm]

4 1/8"

[104mm]

3 1/4"

[82mm]

18"

[458mm]

Backplate Detail

1 1/2" [38mm]

Features

1. Diffuser Holder: (2) Die-cast aluminum. One stationary and one spring

loaded for ease of diffuser removal and lamping.

2. Lamp Housing: Extruded aluminum.

3. Ballast Housing: (2) Die-cast aluminum.

5. Junction Box Mounting Plate: 18ga. C.R.S zinc plated. For mounting

to standard 4” octagonal junction box. Not required for conduit mounted

installations.

6. Backplate: 18ga. C.R.S. zinc plated. Provided with (2) 7/8” diameter

conduit knockouts (for non junction box installation) and (2) 3/16” diameter

mounting holes for direct mounting to wall or ceiling surface (hardware not

provided).

7. Luminaire Ballast Disconnect: Meets NEC 410.130 (G) and CEC

disconnect requirements

8. Lampholder: Fluorescent- Mini Bi-Pin, G5 Base

9. Junction Box Cover: (2) Die-cast aluminum, easy installation (provided

with luminaire). Not required for conduit mounted installation.

10.Diffuser: Either 3mm curved opal acrylic or opal glass.

Electrical

11. Ballast (Electronic 120-277V)

Voltage 120V 277V

Total Input Watts 18W 18W

Max. Line Current (Amps) 0.15A 0.07A

Power Factor 0.98 0.90

THD <10% <15%

Min. Starting Temp 0°F, -18°C 0°F, -18°C

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 14W T5 Linear Fluorescent

F14W/T5/*/ECO FP14/* F14T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp

FC14U Linear Curve Surface Mount Satin aluminum 14W 120V-277V (1) T5

Diffuser Ordering Information

Catalog No. Description Finish Dimensions (Nominal)

FCA1 Acrylic Curve Diffuser Opal 4" X 24"

FCG1 Glass Curve Diffuser Cased Opal (Sandblasted Outside Surface) 4" X 24"

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

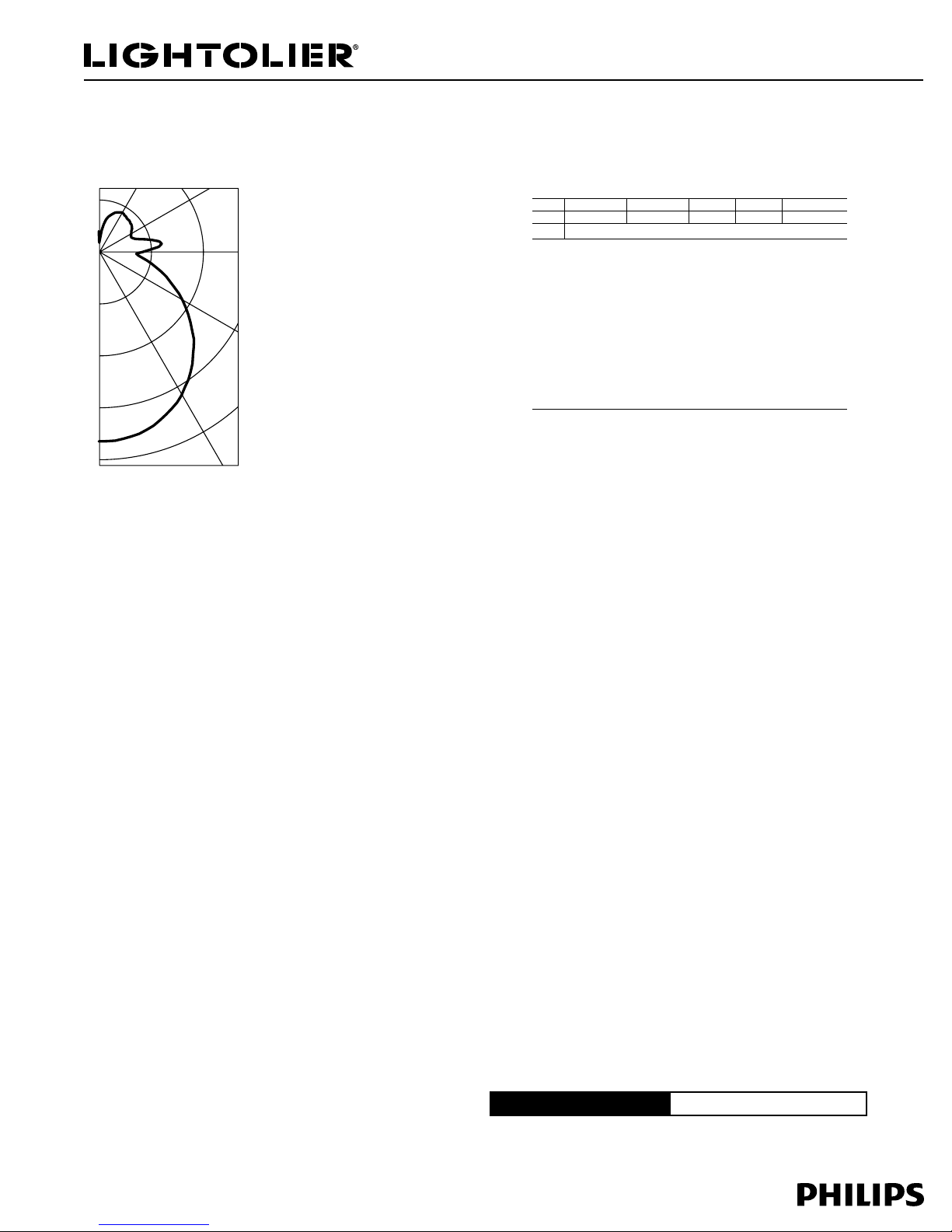

Brisa™Linear Curve Surface Mount FC14U

Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

Lightolier is a Philips group brand

100

150

200

0°30°

60°

90°

Certiﬁed Test Report no.3629FR

Computed by LSI Program **TEST-LITE**

SC = 1.3

Prepared For:

Lightolier

Fall River, MA

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

Zonal Lumens and Percentages

Zone Lumens % Lamp %Luminaire

0-30 143 11.98 18.51

0-40 237 19.76 30.53

0-60 426 35.56 54.93

0-90 579 48.31 74.63

40-90 342 28.55 44.10

60-90 153 12.75 19.70

90-180 197 16.43 25.37

0-180 776 64.74 100.00

** Efﬁciency = 64.7% **

Coefﬁcients of Utilization

Ceiling 80% 70% 50% 30% 10%

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 .73 .73 .73 .73 .70 .70 .70 .70 .63 .63 .63 .57 .57 .57 .51 .51 .51 .48

1 .67 .63 .61 .58 .63 .60 .58 .56 .55 .53 .51 .49 .48 .47 .45 .43 .42 .40

2 .60 .55 .51 .47 .57 .53 .49 .45 .48 .45 .42 .43 .41 .39 .39 .37 .35 .33

3 .55 .49 .44 .40 .52 .46 .42 .38 .42 .38 .35 .38 .35 .33 .35 .32 .30 .28

4 .50 .43 .38 .33 .48 .41 .36 .32 .37 .33 .30 .34 .31 .28 .31 .28 .26 .24

5 .46 .38 .32 .28 .43 .36 .31 .27 .33 .29 .26 .30 .26 .24 .27 .24 .22 .20

6 .42 .34 .28 .24 .40 .32 .27 .23 .30 .25 .22 .27 .23 .21 .25 .21 .19 .17

7 .39 .30 .25 .21 .37 .29 .24 .20 .27 .22 .19 .24 .21 .18 .22 .19 .17 .15

8 .36 .27 .22 .18 .34 .26 .21 .18 .24 .20 .17 .22 .18 .15 .20 .17 .14 .13

9 .33 .25 .19 .16 .31 .24 .19 .15 .22 .17 .14 .20 .16 .13 .18 .15 .12 .11

10 .31 .22 .17 .14 .29 .21 .17 .13 .20 .15 .13 .18 .14 .12 .16 .13 .11 .10

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 20.0

DECORATIVE LUMINAIRE CAT. # FC14U/FCA1 14W PHILIPS T-5

LAMPS. LUMEN RATING = 1200 LMS. BALLAST/ UNIVERSAL #B228PUNV-C

FC14U/FCA1

Candlepower Summary

Angle Along 22.5. 45 67.5 Across. Output

Lumens

0 182 182 182 182 182

5 182 182 182 182 182 17

15 176 176 177 177 177 50

25 164 165 166 166 166 77

35 147 148 149 150 150 93

45 125 126 127 129 129 98

55 98 100 102 104 105 91

65 69 70 74 78 80 74

75 36 39 47 54 57 50

85 8 15 26 34 38 30

90 2 12 26 37 42

95 5 13 36 51 58 33

105 21 14 24 39 47 30

27 22 28 31 34 28

125 27 33 33 37 39 30

135 26 33 37 40 42 28

145 25 28 41 43 43 23

155 25 25 33 41 42 15

165 21 21 24 31 35 7

175 25 23 20 15 13 2

180 20 20 20 20 20
