Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LSB-15

1BHFPG -ZUFTQSFBEÜ-4#3BEJBM-PVWFS-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Features

1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with

no exposed fasteners or hardware.

2. Lamping: Three T5, 28 or 54 watt (as specified) fluorescent lamps per 4-foot

nominal section. Provided by others.

3. Reflector: Precision die-formed specular aluminum.

4. Radial Louver: Precision die-formed aluminumstraight blade louver, blades

Electrical

Ballast is <10% THD, .98 ballast factor, pre-heat start. 18 gauge wire. Color-

coded quick connectors allow ease of connection for joiner modules. Power feed

is 18 gauge white SJT. For special circuiting consult factory. Factory installed

ballast disconnect allows the ballast to be disconnected fromand reconnected to

incoming power under load without turning the entire circuit off.

Finish

Powder coated baked white or aluminumfinish. Customcolors available, consult

factory.

Options and Accessories

Emergency circuiting; special circuiting; X, T & L joiner blocks - consult factory.

Labels

UL, cUL and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate

number of CABLE/CORD ASSEMBLIES.

Complete ordering instructions below.

Ordering Information

Family Lamps Voltage Finish

3= 3-Lamp T5 D= Radial Louver AL = Aluminum

WH = White

LSB 3 D

Length Shielding Ballast

1 = 120 volt

2 = 277 volt

4= 4-Foot

8= 8-Foot

28 = 28W T5

54 = 54W T5

5E = 54W T5 Emergency Pack

2E = 28W T5 Emergency Pack

5D = 54W T5 Dimming

are 5/8” (1.59cm) high and 5/8” (1.59cm) O.C.

Dimming: - 120/277 VAC 1% dimming level, 4 wire feed required.

Emergency Battery Pack: - 28 watt: 520 lumens @ 90 minutes, 54 watt: 700

lumens @ 90 minutes, 4 wire feed required.

Mountings

Cable suspension (not shown) - 4-1/2" (11.43cm) diameter canopy finished white

enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up to 36”

(91.44cm). Dual-screw draw-tight connector to create hairline seambetween joiner

modules.

Fixture Shown Half Scale

3-1/2" (8.89 cm)

2" (5.08 cm)

8-1/2" (21.60 cm)

1-3/4" (4.45 cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LSB-15

1BHFPG -ZUFTQSFBEÜ-4#3BEJBM-PVWFS-JHIU51FS'PPU/PNJOBM4FDUJPO

#

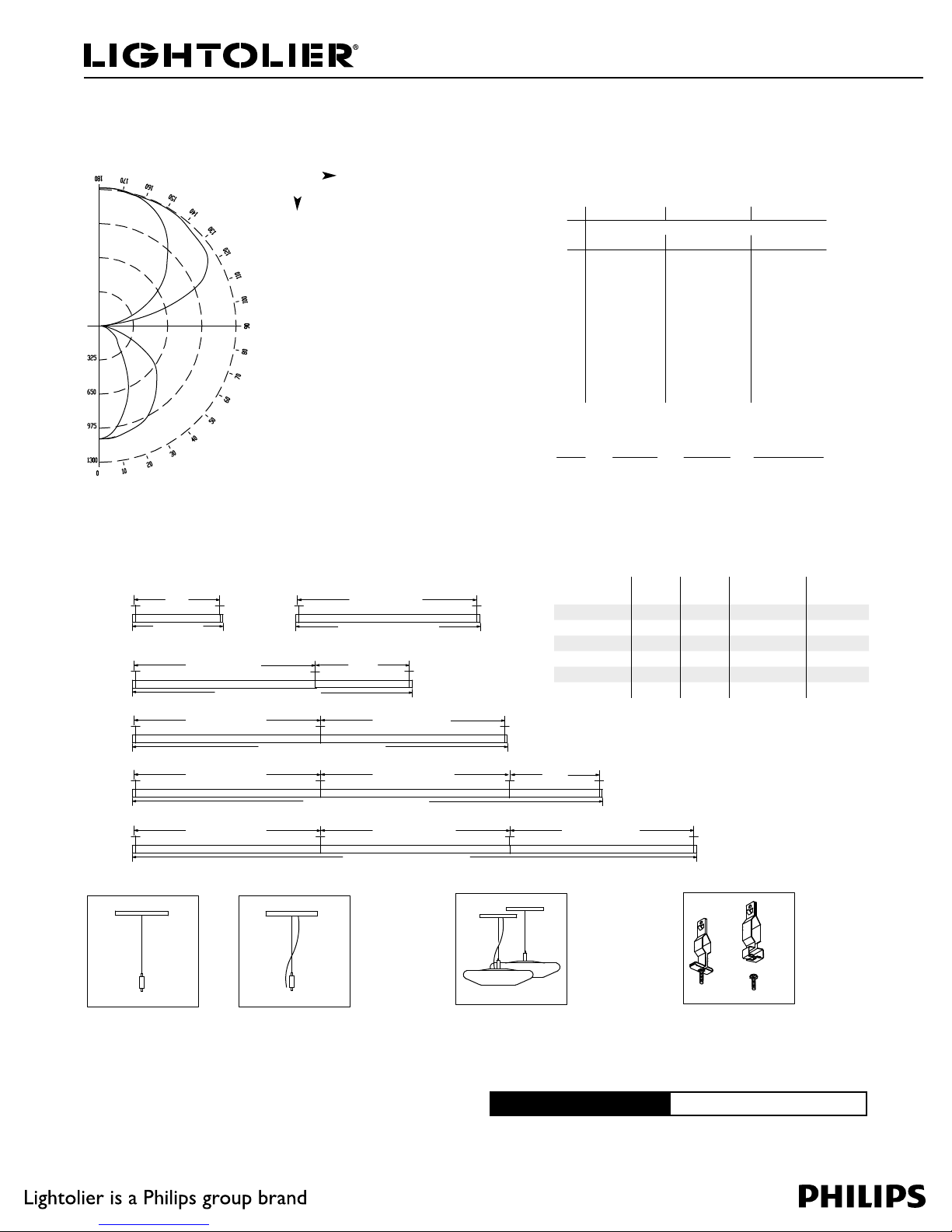

Performance

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 1313 1313 1313 1313 1313

175 1315 1313 1319 1314 1314

165 1291 1295 1300 1302 1287

155 1225 1236 1259 1293 1292

145 1101 1139 1197 1277 1285

135 914 984 1094 1238 1251

125 738 838 1029 1266 1235

115 499 659 922 1076 1097

105 268 485 637 636 634

95 71 126 110 83 81

90 15 20 23 25 19

85 25 30 35 43 45

75 69 74 79 100 160

65 115 126 140 226 388

55 195 205 237 481 645

45 254 275 354 608 771

35 416 466 570 782 896

25 655 693 770 932 1000

15 868 892 934 1023 1042

5 1046 1052 1063 1074 1077

0 1076 1076 1076 1076 1076

REPORT NO: LRL 300-1K

CAT NO: LSB34D28

LAMPS: 3 F28T5

LUMENS: 2900

EFFICIENCY: 83.3%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0858585767676606060

1787572706764535150

2716661645955474442

3655853585248423836

4605246544742373431

5554640494236343027

6514235463832302724

7473731423428272320

8433428393125252118

9403125362823231916

10 38 28 22 34 25 20 21 17 14

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 2093 24.1 28.9

90-180 5157 59.3 71.1

0-180 7250 83.3 100.0

Calculations are for 28 watt T5 lamps, for 54 watt T5 lamps multiply by 1.7

Fixture Lengths & Mounting Locations

48"

(121.92cm)

4' 5-1/8"

(134.94cm)

96" (243.84cm)

8' 5-1/8" (256.86cm)

96" (243.84cm)

96" (243.84cm) 96" (243.84cm)

96" (243.84cm) 96" (243.84cm) 96" (243.84cm)

48"

(121.92cm)

48"

(121.92cm)

12' 5-1/8" (378.78cm)

16' 5-1/8" (500.70cm)

20' 5-1/8" (622.62cm)

24' 5-1/8" (744.54cm)

4-Foot 8-Foot

12-Foot

16-Foot

20-Foot

24-Foot

Mounting Accessories

Power Feed End Set

Straight Cord: LSBEC36WH (white)

LSBEC36AL (aluminum)

4 Wire Cord*: LSBEC36WHX4 (white)

LSBEC36ALX4 (aluminum)

Cable Assembly

Single Cable: LSBC36

Ceiling Grid Kit

CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

*Use for dimming, switching, and emergency battery packs.

Cable/Cord Assembly

Single Cable & Cord: LSBCC36

Single Cable & 4 Wire Cord*: LSBCC36X4

4-Foot

Module

8-Foot

Module

Cable/

Assembly

Power Feed

End Set

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11 1 1

16-Foot Run 21 1

20-Foot Run 12 2 1

24-Foot Run 32 1
