631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

ProSpec™Track Lighting 28702

Page 1 of 1 Metallics™ Low-Voltage Adapter

6 3/8”

2 3/16”

2 3/8”

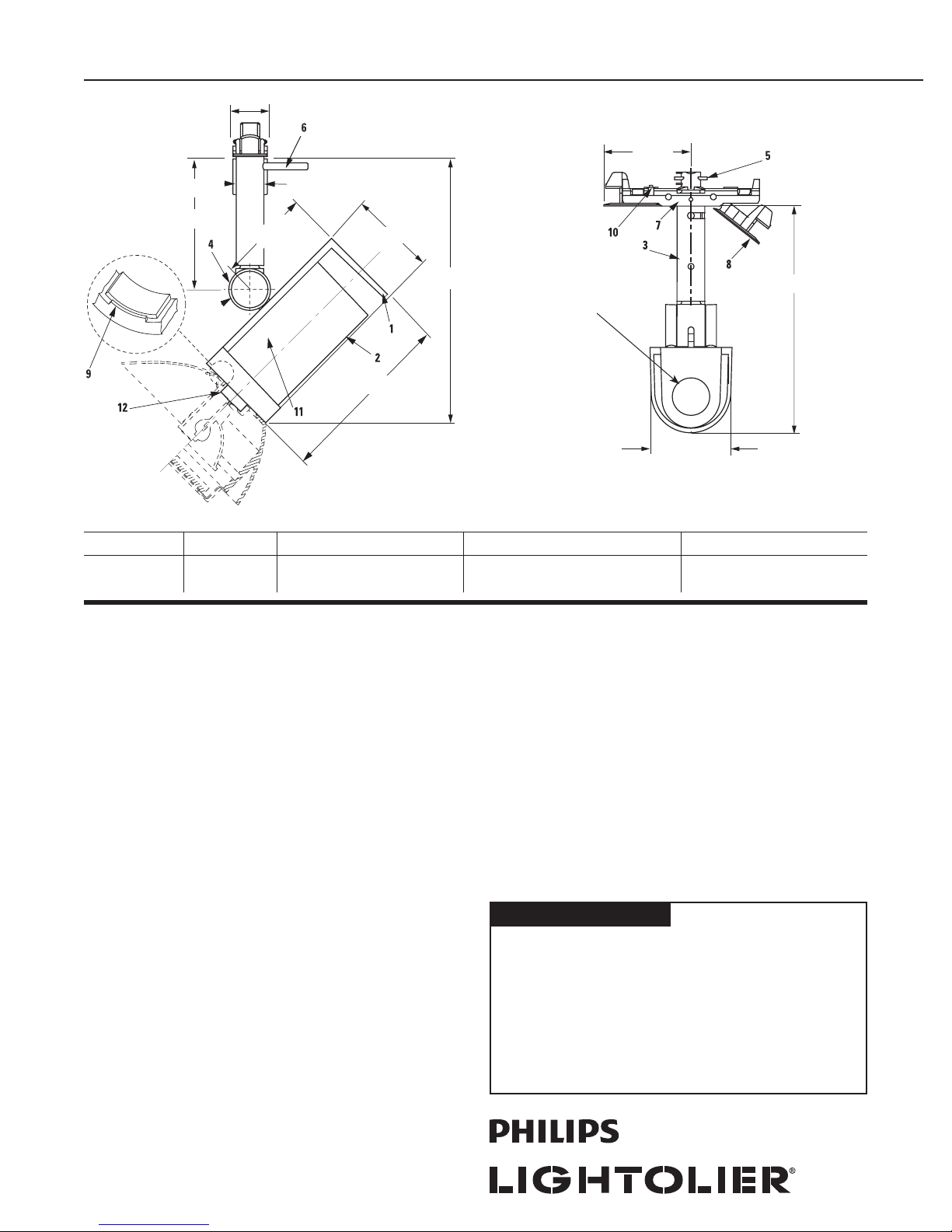

Features

1. Arm: Die-cast aluminum, brushed and clear coated finish.

2. Socket Cover: Injection-molded thermoplastic.

3. Stem: Stainless steel, brushed and clear coated finish, with a permanently

tensioned horizontal rotation stop (315° rotation).

4. Stem Base: Die-cast aluminum, brushed and clear coated finish with a

permanently tensioned 90° vertical rotation stop (0° to 90°).

5. Contact Holder: High temperature thermoplastic. Secures fixture

mechanically and makes electrical contact with track.

6. Locking Lever: Nickel-plated steel. For mechanical/electrical connection

to track.

7. Track Attachment Fitting: Die-cast aluminum with separate mechanical

and electrical functions. Fitting cannot be engaged or disengaged while

fixture is powered. Polarity is not a concern with ProSpec Track because of

it’s symmetrical positioning of circuits within the track, adapters are reversed

to access one or the other circuit.

8. Clamping Tabs: Black or White, injection-molded plastic. Expands or

releases gripper springs from track ledge; gripper springs hold attachment

fitting securely within track.

9. Embossed Keyway: For attachment of MetallicsTM OptiSpotTM shades.

10.Ground Spring: Grounds fixture to track.

11. Transformer: Electronic step-down transformer with integral radio

frequency interference filter and anti-crossover circuit for increased

reliability.

12.Socket: Bi-pin base ceramic socket, wired with No. 16 AWG stranded Teflon

leads.

13.Hot Aiming Handle: Opening in Arm provided to aim fixture while it is on.

Electrical/Dimming

Dimming controls: Use only dimmers specifically for use with electronic trans-

formers, such as, Lightolier Sunrise and Neptune Momentum (QE series).

Electrical/Dimming (continued)

Low voltage fixtures may produce audible sound when used with dimmers,

which may be objectionable in acoustically critical areas.

Options and Accessories

Accepts MetallicsTM 8° & 25° OptiSpotTM or MR16 Dome Shades. (See

Lightolier Specification Sheets 8710, 8730, & 8727M16).

Finish

Feature number 2 painted in White or Titanium. Other external components are

brushed metal with protective clear coat.

Features 7 & 8: White on 28702WH

Black on 28702TM

Labels

UL, I.B.E.W.

Ordering Information

Catalog No. Finishes Track Mountings Lamps When used with shades

28702WH

28702TM

Matte White

Dark Titanium

ProSpec™ Track System (DOES NOT

MOUNT ON Lytespan® TRACK)

50W MAX, 12v MR16 2-pin-GX 5.3 base 8727M16

15/16”

3 1/2”

4 3/4”

2 9/16”

2 1/4”

ø 1 1/8”

7 1/8”

ø 3/4”

Warning: 28702 must be used with Metallics™MR16

Dome shades for safety issues and to be UL listed.
