Lytespan® Track Lighting System 8114

Page 1 of 2 Mini HID Cylinder 39W T4.5 CMH

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Track Attachment Fitting: Molded polycarbonate. Integral color in gray,

black or white. Rotates into track and locks into place with the use of

push tabs.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum

4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in

Advent track.

5. Ground Contact : Solid brass

6. Pivot Mounts: Allows for 350° horizontal and 0-90° vertical rotation with

tensioned mounts for controlled aim.

7. Ballast Housing: Extruded housing with die-cast aluminum covers.

8. Ballast: High Power Factor metal halide electronic ballast. Thermally

protected, 0.40 amps maximum input current, 45 watts input power.

8. Lamp Housing: 0.04" (1.02mm) aluminum

9. Inner Housing: 0.04" (1.02mm) aluminum. Black finish.

10. Reflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector

without tool.

11. Lampholder: Lock G8.5 base bi-pin, self centering lamp design. 5kV (750V)

pulse rated porcelain body socket with nickel-plated contacts. 18 AWG teflon

leads with fiberglass outer sleeve.

12. Protective Glass: 0.13" (3.18mm) tempered glass. Ultra-violet (UV)

attenuation barrier.

13. Housing Cover: 0.04" (1.02mm) aluminum

14. Cover Knobs: Color steel knurled knobs. Finish matches luminaire color.

Detaches housing cover without tool.

Accessories

8195: Holds one accessory for 25 series (2 1/2" dia.)

AF25 Series: Diffusion/ Special Filters

ADF25 Series: Color Filters

AL35HC: Louver (Hex cell) black. Does not require 8195 accessory holder.

AF35SF: Softening lens does not require 8195 holder.

AF35FR: Frosted lens does not require 8195 holder.

Finish

All painted finishes are baked powder or enamel.

Markings

cCSAus Listed, for dry locations only.

Ordering Information

Catalog No. Finish Lamp Mounting Reflectors (Sold Separately)

8114AL

8114BK

8114WH

Aluminum

Black

White

39W T4.5 CMH (M130)

G8.5 Bi-pin base

Not Included

All Monopoint, Multipoint, recessed

track, suspension track, suspension

stems, sloped ceiling adapter, Basic,

Advent and Radius Track systems only.

Ceiling and horizontal or vertical wall

mounted. Not compatible with ProSpec

track system.

24MHT45RS Clear spot reflector

24MHT45RNF Clear narrow flood reflector

24MHT45RF Clear flood reflector

24MHT45RSCCZ Bronze spot reflector

24MHT45RNFCCZ Bronze narrow flood reflector

24MHT45RFCCZ Bronze flood reflector

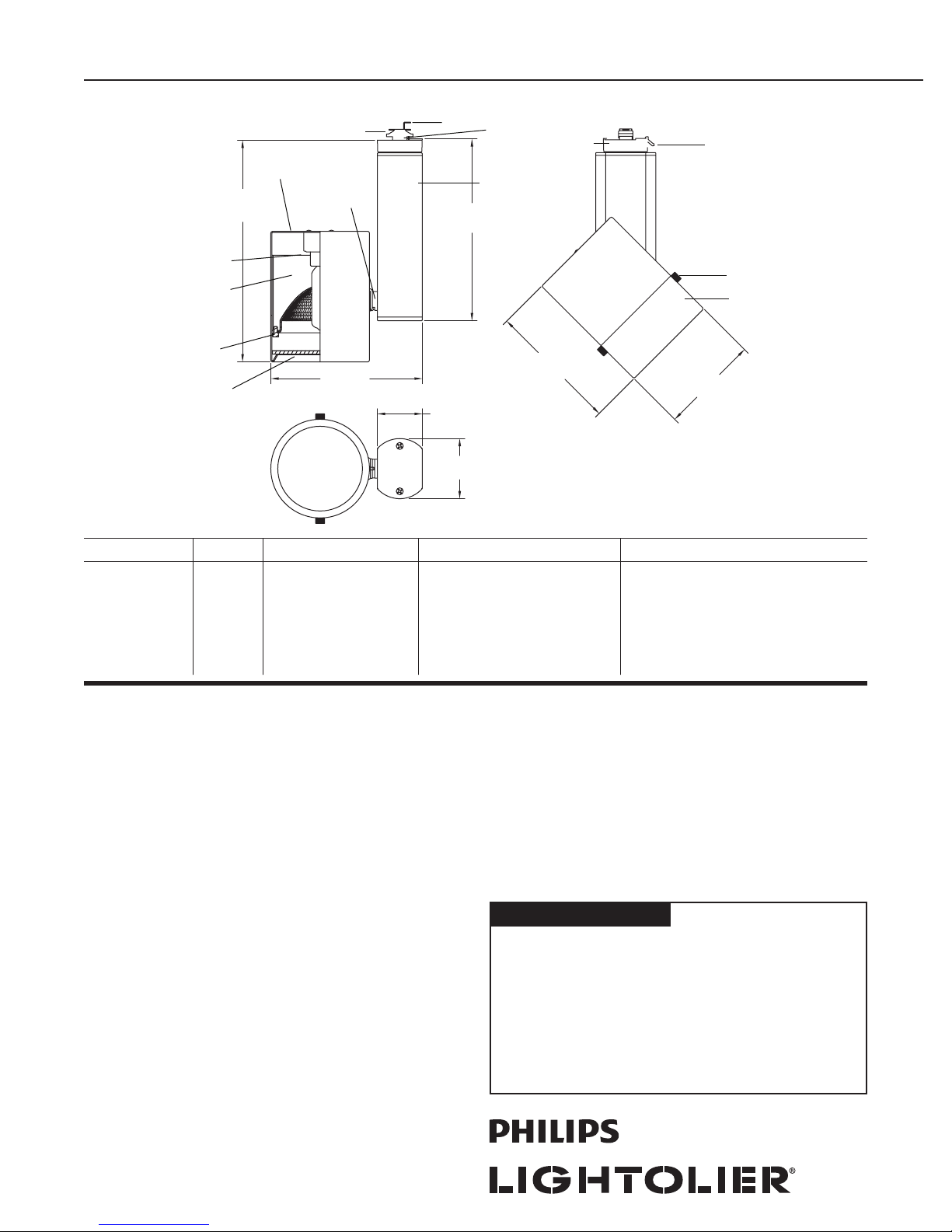

4 11/16"

(119 mm)

3 7/16"

(87 mm)

8 3/16"

(208 mm) 6 3/4"

(172 mm)

5 1/4"

(133.9 mm)

1 5/8"

(39.7 mm)

2 1/8"

(53.2 mm)

7, 8

Lytespan® Track Lighting System 8114

Page 2 of 2 Mini HID Cylinder 39W T4.5 CMH

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

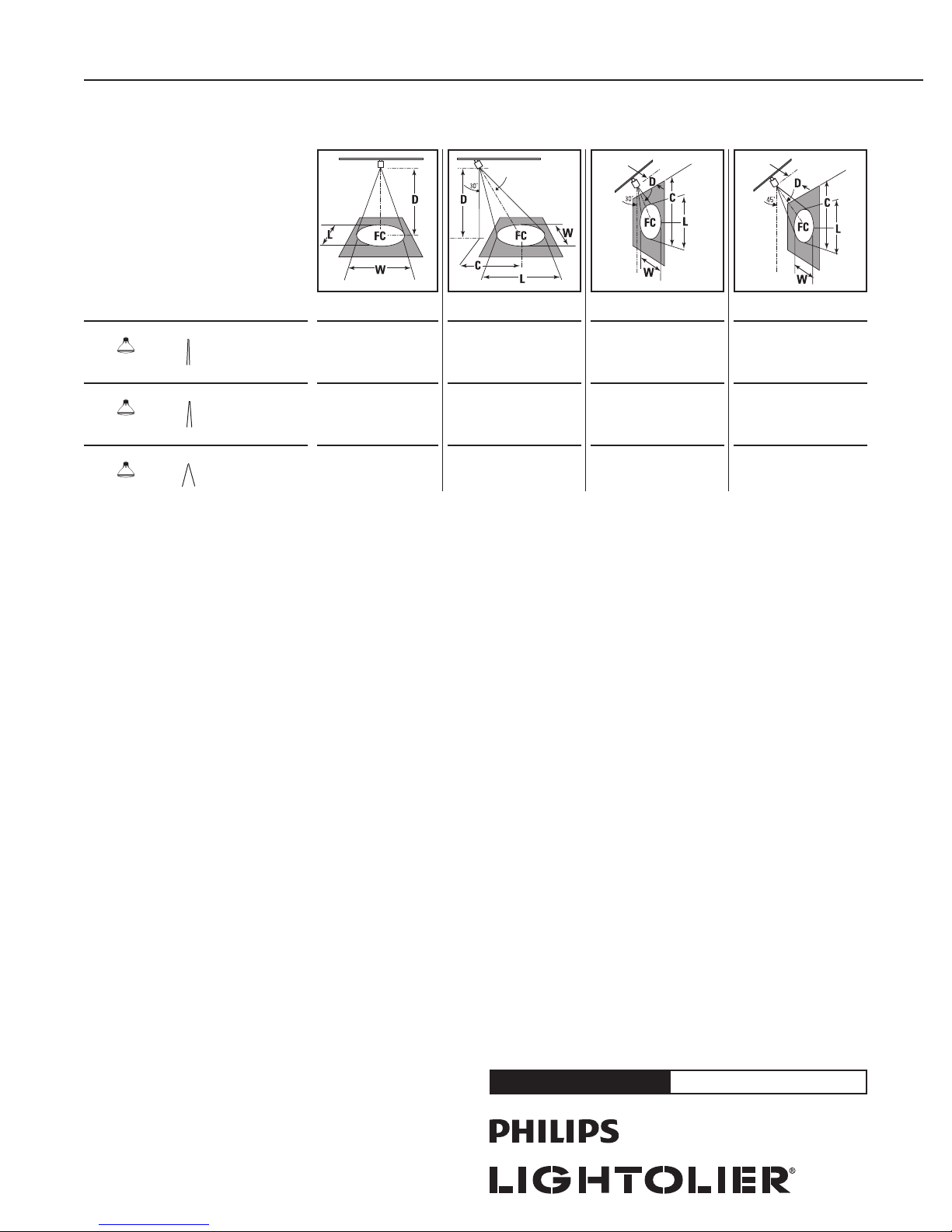

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width A Aiming Angle

C Distance to center beam FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

3639 10000

24MHT45RF

39W T4, FL 38°

29706 10000

24MHT45RS

39W T4, SPOT 9°

10839 10000

24MHT45RNF

39W T4, NFL 18°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

8 4.6 110 3.4 2.9

10 5.8 70 4.3 3.7

12 6.9 49 5.1 4.4

14 8.1 36 6.0 5.1

3 5.2 151 4.1 1.9

4 6.9 85 5.5 2.5

5 8.7 54 6.9 3.2

6 10.4 38 8.2 3.8

3 3.0 426 1.9 1.3

4 4.0 240 2.6 1.8

5 5.0 153 3.2 2.2

6 6.0 106 3.9 2.7

8 169 2.5 2.5

10 108 3.2 3.2

12 75 3.8 3.8

14 55 4.4 4.4

12 6.9 134 2.5 2.2

14 8.1 98 2.9 2.5

16 9.2 75 3.4 2.9

18 10.4 60 3.8 3.3

4 6.9 232 2.6 1.3

5 8.7 149 3.2 1.6

6 10.4 103 3.8 1.9

7 12.1 76 4.5 2.2

6 6.0 292 1.9 1.3

7 7.0 214 2.2 1.6

8 8.0 164 2.5 1.8

9 9.0 130 2.9 2.0

14 152 2.2 2.2

16 116 2.5 2.5

18 92 2.8 2.8

20 74 3.1 3.1

6 3.5 66 5.7 4.8

7 4.0 48 6.7 5.6

8 4.6 37 7.6 6.4

9 5.2 29 8.6 7.2

2 3.5 114 8.6 2.8

3 5.2 51 12.8 4.1

4 6.9 28 17.1 5.5

5 8.7 18 21.4 6.9

3 3.0 143 4.7 2.9

4 4.0 80 6.3 3.9

5 5.0 51 7.8 4.9

6 6.0 36 9.4 5.8

6 101 4.1 4.1

7 74 4.8 4.8

8 57 5.5 5.5

9 45 6.2 6.2

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reﬂector "warms" the beam to 2700K.
