Lightolier F7000-19 Manuel utilisateur

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

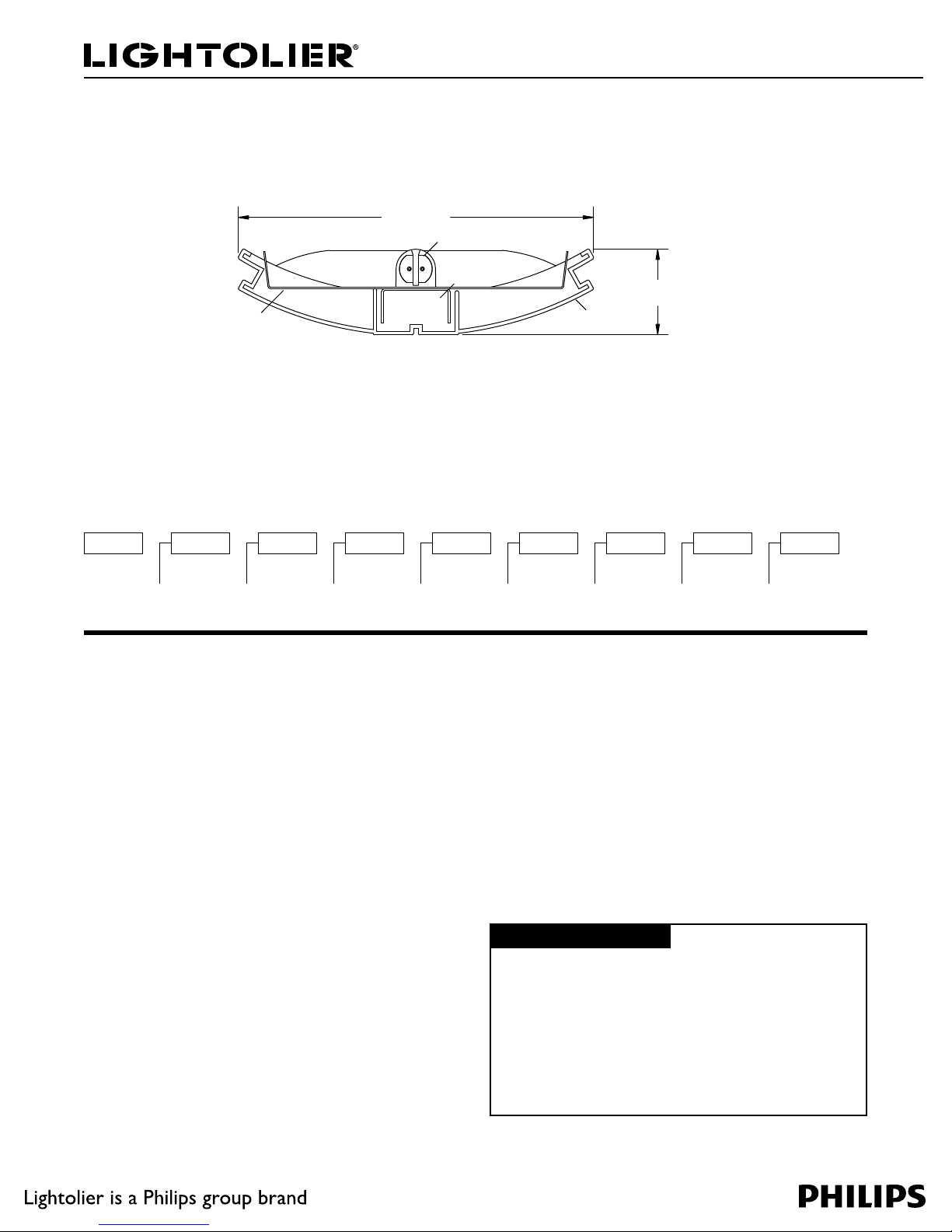

Lighting Systems F7000-19

1BHFPG '4FSJFT-JHIU54PMJE

&

Armstrong®5FDI;POFÜ$PNQBUJCMF

Features

1. Housing: Single piece of high purity extruded aluminum, a portion from

recycled material.

2. Housing End: Die-cast aluminum, welded in place.

3. End Cap: Die-cast aluminum. Encloses the suspension cable and power feed

cord for the end of the run.

4. Lamps: F28T5 or F54T5HO as specified. By others. Installed fromthe ceiling

side of the luminaire.

5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound

rating specifications. Low THD. Maximumballast size is 1.2” (3.05cm) wide by

0.625” (1.59cm) high.

6. Reflector: Die-formed specular aluminum.

Electrical

Connections: Pre-wired with 18 gauge wires and polarized cannon plug con-

nectors for simultaneous mechanical/electrical connection.

Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520

lumens for 28W.

Power Feeds: Standard 18/3 power feed is rated for 10 amps. X4 power feed

is 18/4 and is rated for 7 amps. Observe amperage limitations and provide addi-

tional Intermediate Power Cables, as required. When providing an additional

power feed, the through wiring fromthe previous module must be disconnected

fromthe cannon plug and capped.

Mounting

Cable suspension is on 48” (121.92cm) and 96” (243.94cm) centers and consists of

a 4 1/2” (11.43cm) diameter canopy finished white enamel and a 1/16” (0.16cm)

diameter stainless steel aircraft cable adjustable up to 36” (91.44cm).

Labels

UL, cUL and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1. Order one MODULE.

2. Order one POWER FEED END SET.

Continuous Rows:

1. Order the appropriate number of MODULES for the complete run.

2. Order one POWER FEED END SET.

3. Order one INTERMEDIATE CABLE SET per MODULE minus one.

4. For runs that exceed amperage limits, order the appropriate number of

CABLE/CORD SETs.

Finish

Powder-coated, baked enamel, white or aluminum, as specified.

Ordering Information

Complete Ordering Instructions below.

6.75” (17.15cm)

1.63”

(4.14cm)

Family Series

Type Lamps Color Wattage Voltage Length Options

1 1

5= Curved 1= Solid 1= 1 LampAL = Aluminum

WH = White

1= 28W

2= 54W

4= 28W EM

6= 54W EM

1= 120v

2= 277v

4= 4’ (121.92cm)

8= 8’ (243.84cm)

X4 = 4 Through

Wires

X5 = 5 Through

Wires

Factory installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems F7000-19

1BHFPG '4FSJFT-JHIU54PMJE

&

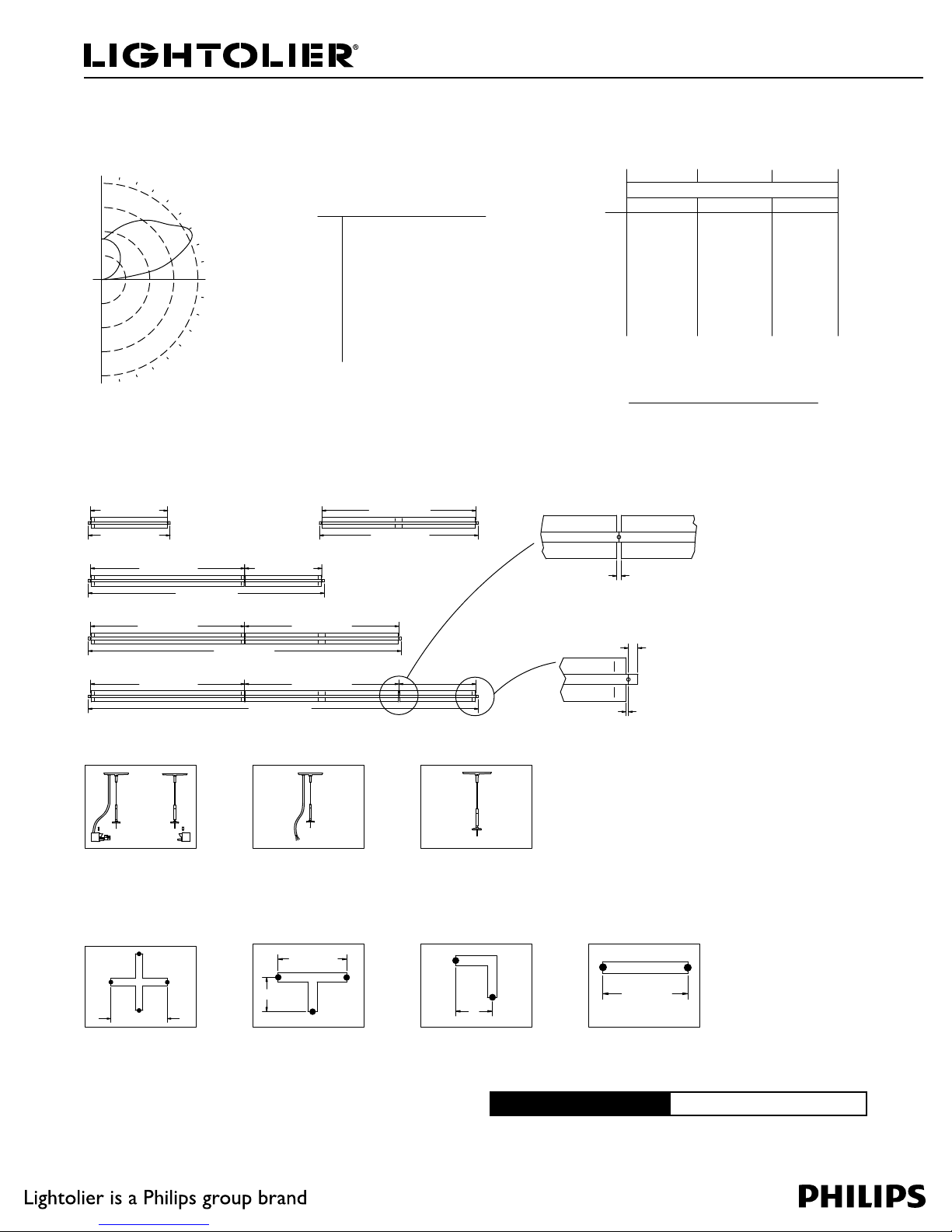

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

90 0 3 11 17 20

95 18 266 304 323 308

105 93 474 880 1013 1047

115 188 508 996 1363 1450

125 288 559 912 1222 1360

135 382 594 885 1098 1183

145 464 612 828 990 1055

155 528 614 755 856 900

165 570 607 672 720 742

175 591 593 600 605 611

180 590 590 590 590 590

Performance

CANDLEPOWER CURVE

1400

1050

700

350

100

110

120

130

140

150

160

170

180

REPORT NO.: ITL54693.IES

LAMPS: 1-F54T5

LUMENS: 5000 each

EFFICIENCY: 90.1%

CAT. NO: F7511WH214

DISTRIBUTION

Zone Lumens % Lamp %Luminaire

0 - 90 0 0.0 0.0

90 - 180 4503 90.1 100.0

0 - 180 4503 90.1 100.0

Mounting Accessories

Power Feed End Set:

F7EC36WH = White

F7EC36AL = Aluminum

F7EC36WHX4 = White 4 Wire

F7EC36ALX4 = Aluminum4 Wire

F7EC36WHX5 = White 5 Wire

F7EC36ALX5 = Aluminum5 Wire

Intermediate Power Cable

F7CC36 = 3 Wire

F7CC36X4 = 4 Wire

Intermediate Cable Set

F7C36

80% 70% 50%

50 30 10 50 30 10 50 30 10

0 868686 7373 73 505050

1 747168 6461 59 444241

2 656056 5652 48 383634

3 575146 4944 40 343128

4 504439 4338 34 302624

5 443833 3833 29 262320

6 393328 3428 24 232017

7 352924 3025 21 211715

8 322521 2722 18 191513

9 292218 2519 16 171411

10 26 20 16 22 17 14 16 12 10

20% FLOOR CAVITY REFLECTANCE

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

WALL REFLECTANCE

ROOM CAVITY RATIO

“X” Joiner Block

F7XWH = White

F7XAL = Aluminum

12" (30.48cm)

“T” Joiner Block

F7TWH = White

F7TAL = Aluminum

6" (15.24cm)

12" (30.48cm)

“L” Joiner Block

F7LWH = White

F7LAL = Aluminum

(15.24cm)

Fixture Lengths & Mounting Reflected (Plan View)

4'-0" (121.92cm)

8'-0" (243.84cm)

4'-0"

(121.92cm)

3/4" (1.91cm)

1-1/2"

(3.81cm)

3/8" (0.95cm)

END OF ROW DETAIL

GAP BETWEEN FIXTURES

JOINING DETAIL

4'-3" (129.54cm)

8'-0" (243.84cm)

4'-0" (121.92cm)

12'-3" (373.38cm)

8'-0" (243.84cm)

16'-3" (495.30cm)

8'-3" (251.46cm)

8'-0" (243.84cm)

20'-3" (617.22cm)

8'-0" (243.84cm)

Inline Joiner Block

F7ILWH = White 1’ (30.48cm)

F7ILAL = Aluminum1’ (30.48cm)

F7IL2WH = White 2’ (60.96cm)

F7IL2AL = Aluminum2’(60.96cm)

F7IL4WH = White 4’ (121.92cm)

F7IL4AL = Aluminum4’ (121.92cm)

F7IL8WH = White 8’ (243.84cm)

F7IL8AL = Aluminum8’ (243.84cm)

12" (30.48cm)
