Lightolier Calculite ProSpec PB2P3810 Manuel utilisateur

PB2P3810BL = (Flanged) Black/White

PB2P3810WL = (Flanged) White

PB2P3810BTL = (Trimless) Black

PB2P3810WTL = (Trimless) White

Calculite®ProSpec®Linear Downlight PB2P3810

Page 1 of 2 2 Light PAR38 Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

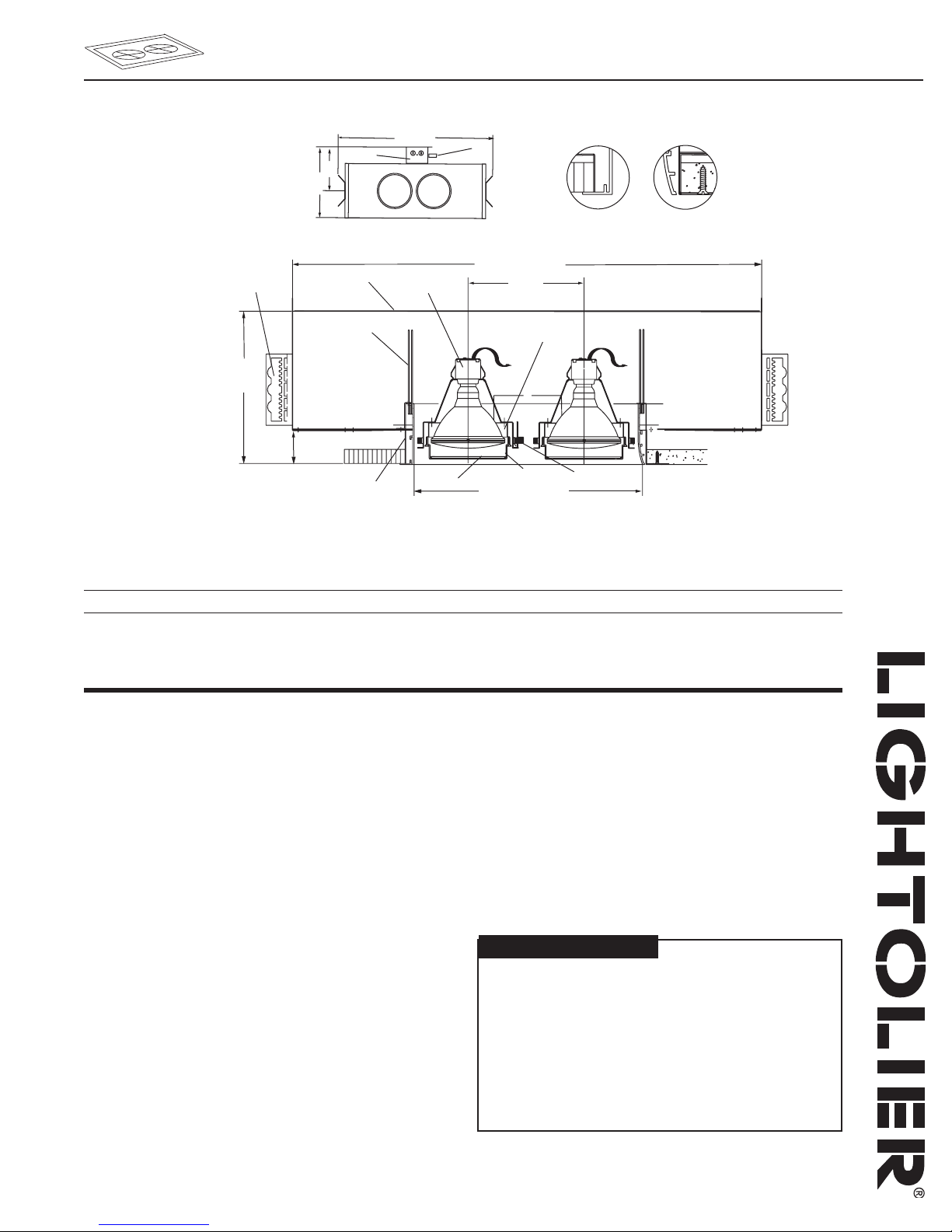

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of one accessory.

Easily installed and removed for lamping with a simple twisting motion.

Constructed of die formed aluminum.

3. Adjustable Ring: Allows 360° horizontal and 30°, max. 45° (on length); 40°

(on width) vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed 22 ga. steel. Finish: Black

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, UL, and CSA requirements.

8. Lampholder: Porcelain medium based; nickel plated screw shell. Prewired

with #18 SF-1 leads to junction box.

9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from

below.

10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media

Cartridge.

11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12

AWG, 90° C.

Finish

All painted finishes are powder coated baked enamel.

Ceiling Cutout: 15 1/16" L X 8 3/16" W

Ordering Information: PAR 38 Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB2P3810BL (2) 100W PAR38 Overlap Black with White Flange

PB2P3810WL (2) 100W PAR38 Overlap White with White Flange

PB2P3810BTL (2) 100W PAR38 Trimless Black

PB2P3810WTL (2) 100W PAR38 Trimless White

Options & Accessories

Accessories: 4 3/4" dia. series, filters, lenses, screens, and louvers (1) max.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

27 1/2" L X 10" W

7" OC

8 3/4"

Depth

14" L X 7" W Opening

111 23

30 1/4"

13"

Top View

Flanged Trimless

Calculite®ProSpec®Linear Downlight PB2P3810

Page 2 of 2 2 Light PAR38 Series B

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

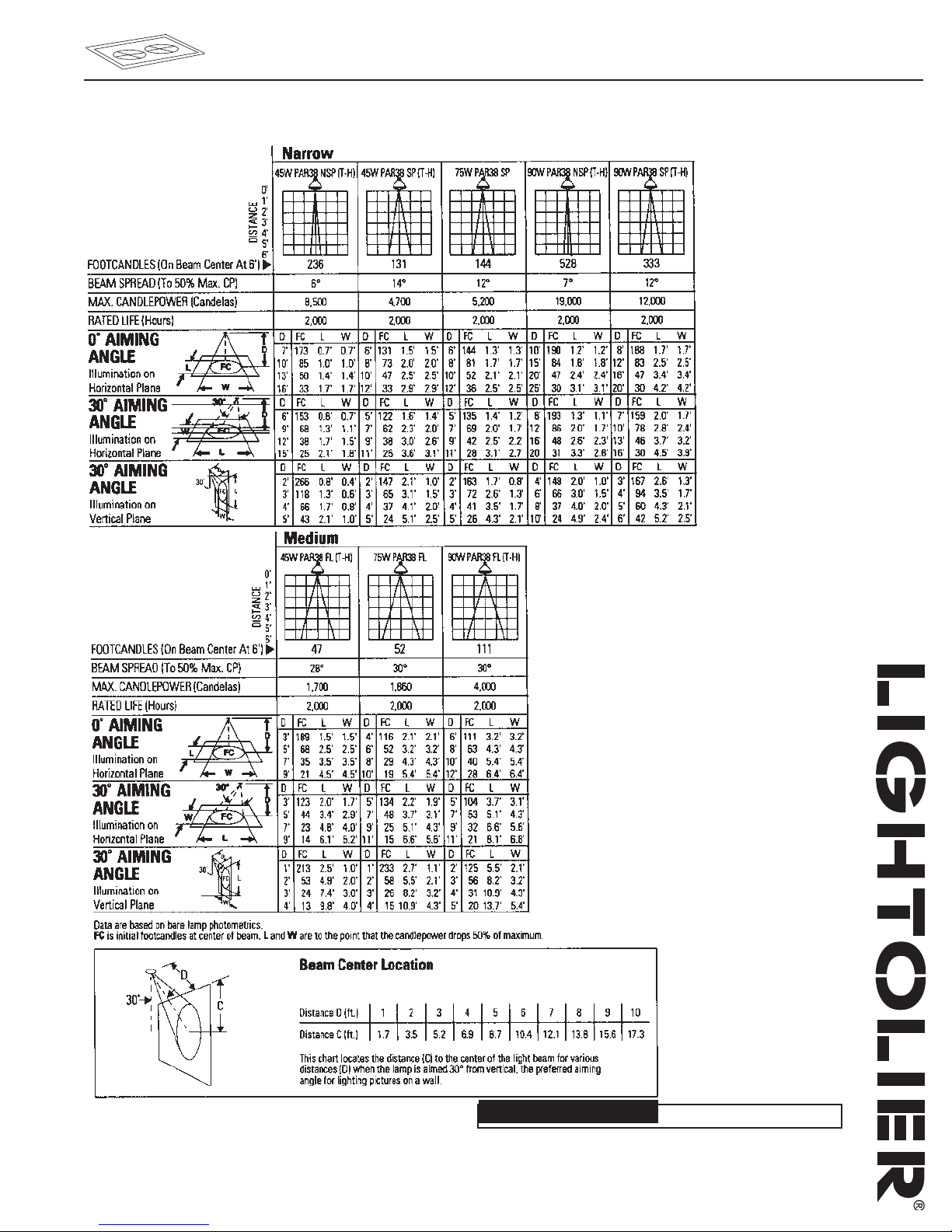

Lighting Performance Data
