8121

Lytespan, Mini HID Cylinder 39W T6 CMH (M130)

Page 1 of 4

Ordering Information

Catalog

No. Finish Lamp Reflectors (Sold Separately)

8121AL

8121BK

8121WH

Aluminum

Black

White

39W T6 CMH (M130) MHT6RS Clear Spot Reflector

MHT6RNF Clear Narrow Flood Reflector

MHT6RF Clear Flood Reflector

MHT6RSCCZ Champagne Bronze Spot Reflector

MHT6RNFCCZ Champagne Bronze Narrow Flood Reflector

MHT6RFCCZ Champagne Bronze Flood Reflector

MHT6RSWRM Incandescent Warming Spot Reflector

MHT6RNFWRM Incandescent Warming

Narrow Flood Reflector

MHT6RFWRM Incandescent Warming Flood Reflector

6 3/4"

(172mm)

8 3/16"

(208mm)

6-3/4"

(171mm)

(127mm)

5-1/2"

(140mm)

Job Information Type:

8121

Lytespan, Mini HID Cylinder 39W T6 CMH (M130)

Page 2 of 4

6 3/4"

(172mm)

8 3/16"

(208mm)

6-3/4"

(171mm)

(127mm)

5-1/2"

(140mm)

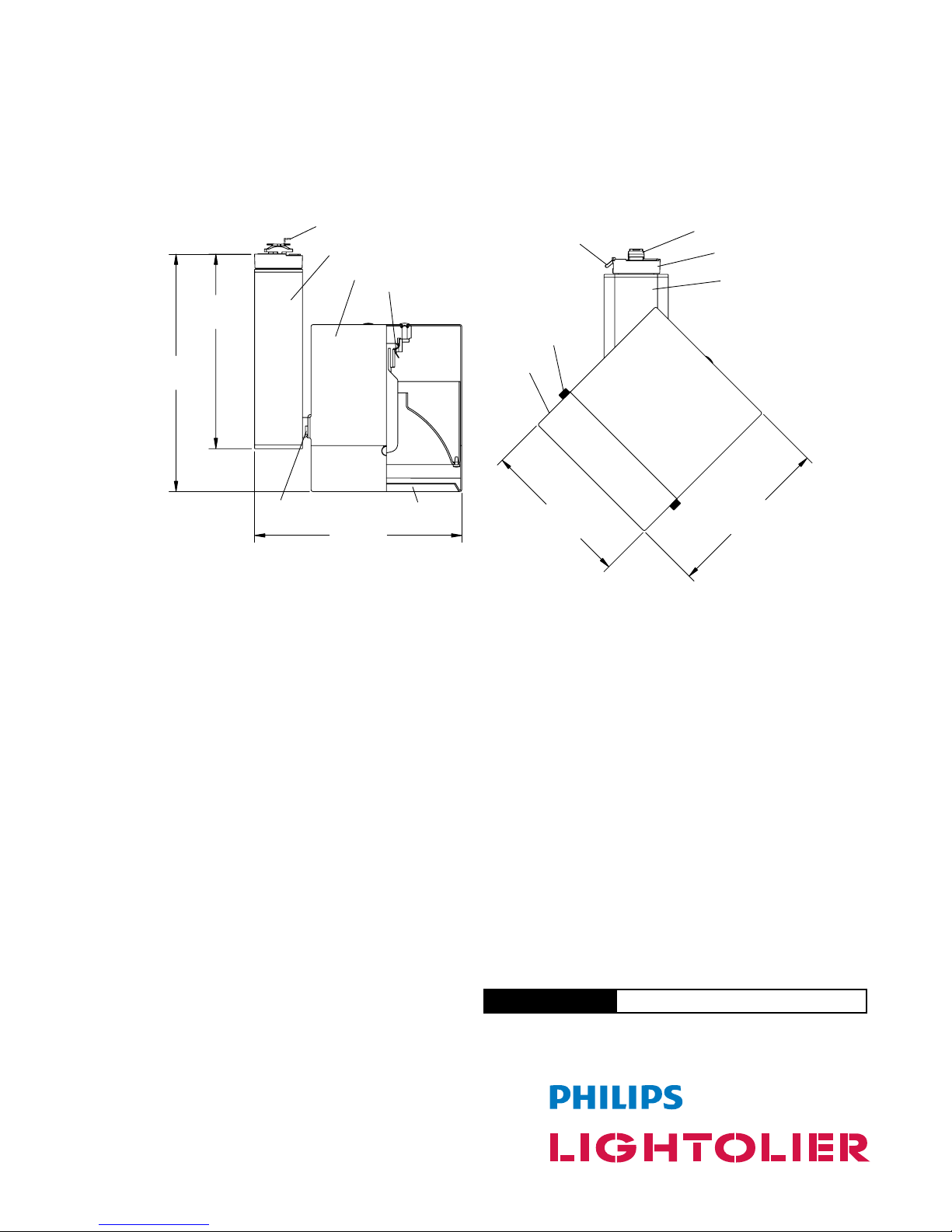

Features

1. Track attachment fitting: Molded polycarbonate, rotates into

track. Integral polarity keyguard.

2. Push tab: Molded polycarbonate white, black or gray finish.

Detaches unit.

3. Track adaptor housing: Die-cast aluminum.

4. Movable contact: Solid brass. Extends for connection to 2nd

circuit in Advent track.

5. Ballast housing: Extruded housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast.

Thermally protected, 0.40A maximum input current, 45W

input power.

7. Pivot mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Housing: 0.04" (1.02mm) aluminum.

9. Lampholder: Bi-pin G12 single-ended base. 5kV (750V) pulse

rated porcelain body socket with nickel-plated contacts. 18

AWG silicone leads with fiberglass outer sleeve hidden inside

of housing.

10. Protective glass: 0.13" (3.18mm) tempered glass.

11. Housing cover: 0.04" (1.02mm) aluminum.

12. Knobs: Steel painted knurled knob.

Accessories (Holds one accessory only)

Diffusion/Special Filters: AF4 series

Color Filters: ADF4 series

Louver (Hex Cell): AL4HC

Markings

cCSAus Certified for dry locations only.

Mounting

On Monopoint, Multipoint, recessed track, sloped ceiling

adapter, Basic, Radius and Advent track systems only. Ceiling

and horizontal or vertical wall mounted. Not compatible with

ProSpec track system.

Finish

All painted finishes are baked powder or enamel.

Job Information Type:

8121

Lytespan, Mini HID Cylinder 39W T6 CMH (M130)

Page 3 of 4

3,849 9000

39W T-6 to

40° 15,000

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

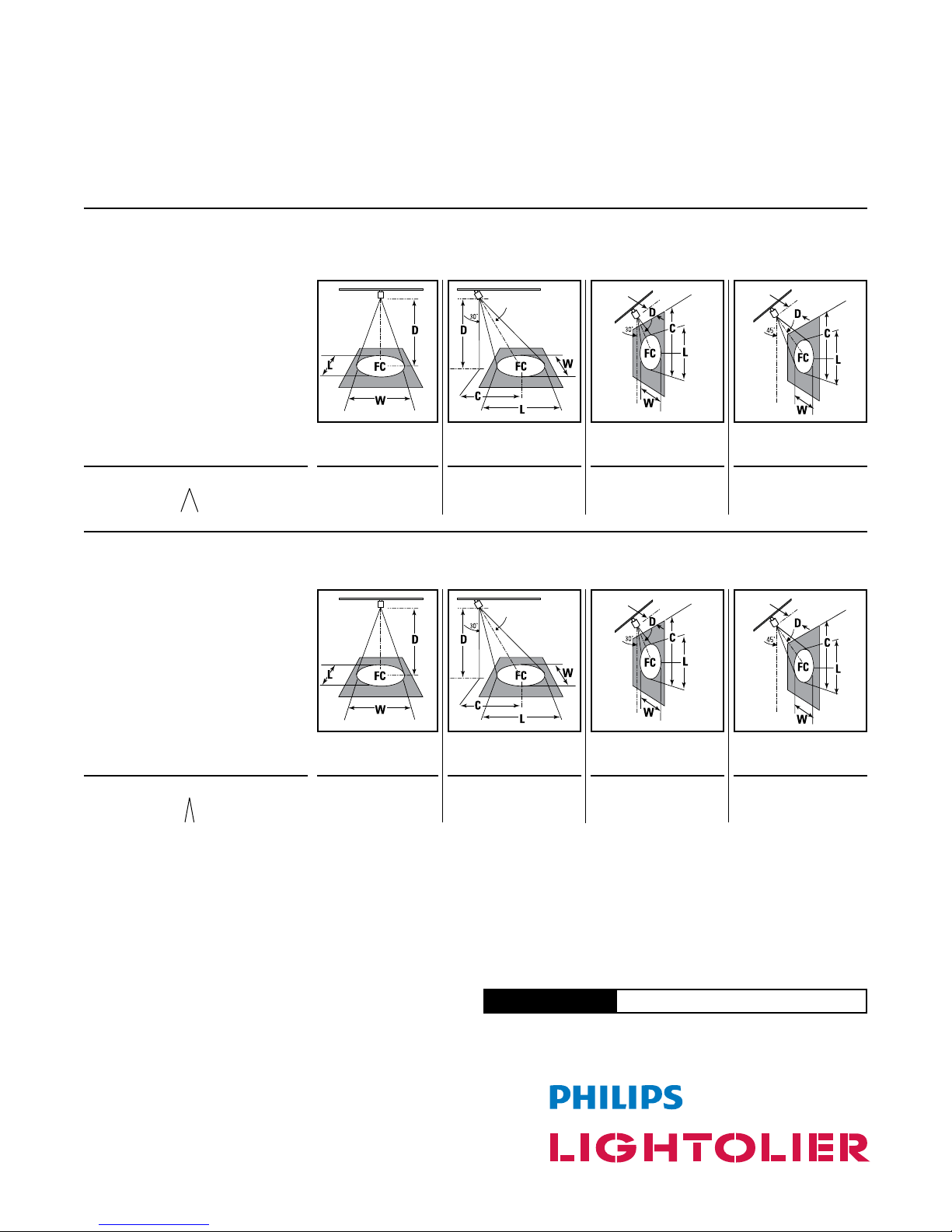

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam Length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

6' 3.5' 69 6.1' 5.0'

8' 4.6' 39 8.1' 6.7'

10' 5.8' 25 10.2' 8.4'

12' 6.9' 17 12.2' 10.1'

2' 3.5' 120 9.7' 2.9'

3' 5.2' 53 14.5' 4.4'

4' 6.9' 30 19.3' 5.8'

5' 8.7' 19 24.2' 7.3'

3' 3.0' 151 5.0' 3.1'

4' 4.0' 85 6.7' 4.1'

5' 5.0' 54 8.4' 5.1'

6' 6.0' 38 10.1' 6.2'

6' 107 4.4' 4.4'

8' 60 5.8' 5.8'

10' 38 7.3' 7.3'

12' 27 8.7' 8.7'

MHT6RNF Metal Halide T-6 Narrow Flood

10,932 12,000

21°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam Length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

6' 4.5' 111 4.0' 5.0'

8' 5.8' 71 5.0' 6.7'

10' 6.9' 49 6.0' 8.4'

12' 8.1' 36 7.0' 10.1'

2' 5.2' 152 5.0' 2.2'

3' 6.9' 85 6.6' 3.0'

4' 8.7' 55 8.3' 3.7'

5' 10.4' 38 9.9' 4.4'

5' 5.0' 155 3.8' 2.6'

6' 6.0' 107 4.6' 3.1'

7' 7.0' 79 5.4' 3.7'

8' 8.0' 60 6.1' 4.2'

6' 171 3.0' 3.0'

8' 109 3.7' 3.7'

10' 76 4.4' 4.4'

12' 56 5.2' 5.2'

MHT6RF Metal Halide T-6 Reflector Flood

Flood Reflector

with 39W T-6 Master Color Ceramic Metal Halide Philips (Clear) Lamp

Narrow Flood Reflector

with 39W T-6 Master Color Ceramic Metal Halide Philips (Clear) Lamp

Job Information Type:

8121

Lytespan, Mini HID Cylinder 39W T6 CMH (M130)

Page 4 of 4

MHT6RS Metal Halide T-6 Reflector Spot

28,105 9,000

39W T6 CMH

10° 12,000

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam Length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

6' 4.6' 285 1.9' 1.6'

12' 6.9' 127 2.8' 2.4'

16' 9.2' 71 3.7' 3.2'

20' 11.5' 46 4.7' 4.0'

4' 6.9' 220 2.9' 1.4'

6' 10.4' 98 4.3' 2.1'

8' 13.9' 55 5.7' 2.8'

10' 17.3' 35 7.2' 3.5'

6' 6.0' 276 2.1' 1.5'

9' 9.0' 123 3.2' 2.2'

12' 12.0' 69 4.2' 3.0'

15' 15.0' 44 5.3' 3.7'

10' 281 1.7' 1.7'

15' 125 2.6' 2.6'

20' 70 3.5' 3.5'

25' 45 4.4' 4.4'

Spot Reflector

with 39W T6 Master Color Ceramic Metal Halide Philips (Clear) Lamp

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.

For Incandescent Warm (WRM), multiply FC values by 0.85.
