Lightolier SL103A Manuel utilisateur

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Spectral Architectural Lighting SL103A

Page 1 of 2 UltraFlat 1 Flat Forms 2-28W/54W T5

Features

1. Form: UltraFlat 1 features low profile 5/8" (16mm) and elegant detailing

sought in architectural flat pendants. The perforated area presents a unique-

ly shaped square-in-square pattern designed to emulate the rectangular

straight lines of the luminaire form. Mitred corner aluminum frame.

2. Optical System: Light is projected through the edge of the specially treated

acrylic surface to give a uniform soft white glow. Direct light passes through

a unique square in square pattern and indirect light is controlled by a wide

spacing optic.

3. Acrylic Element: A cast acrylic element with polished edges and a spe-

cially treated surface to create a soft even glow.

4. Perforated Element: A square in square pattern creates a small downlight

component and a soft balanced glow.

5. Slim Profile: Slim T5 luminaire design profile with matching contoured

forms.

6. Light Distribution: Direct / Indirect light distribution.

7. Central Ballast Channel: Balanced design central ballast channel accepts

all T5 ballasts and emergency options.

8. Suspension: Two 3/64" (1.2mm) steel cables with glider adjusting hardware

for leveling.

Mounting

Dual Mount Canopy: Dual cable Spectral canopy suitable for mounting on

standard octagonal box for plaster ceiling, exposed ceiling or T-Bar ceiling

mounts.

Twin Adjustable Cable: Twin steel cables adjust for height leveling.

Mounting Height: Luminaire comes standard with 8' (2.4 meters) of mounting

steel cables and electrical wires.

Luminaire Weight: 24 lbs.

Electrical

Ballast: Electronic Program Rapid Start slim profile 2-lamp T5 linear ballast.

Universal voltage “U” ballasts automatically detect 120 volts or 277 volts opera-

tion.

Lampholder: G5 AirPass Rotor base, miniature Bi-pin.

Cord: Lightolier cords 300 volts for 120/277 volts operation or 600 volts for 120/

277/347 volts operation. 18AWG AWM leads, 10 Amps maximum. White color.

Wiring: Luminaires come prewired. No need to open luminaire for wiring.

Options and Accessories

Dimming: Full range of analog or digital T5 dimming ballast option. Use

Lightolier fluorescent ballast designations.*

Emergency: Bodine emergency battery pack. The emergency ballast senses

the power failure and immediately switches to the emergency mode illuminate

one lamp at a reduced lumen output for a minimum 90 min. The battery fully

recharges within 24 hours. Add code (-EM).

Fuse: 2 Amps internal fusing.*

Add code (-F1) for 120 volts, (-F2) for 277 volts or (-F3) for 347 volts.

DALI Interface: Digital Addressable Lighting Interface available upon request

for individual luminaire addressable control.*

Color End Luminious Element: Available in blue and green.

Radio Interference Filter: Inductive capacitor circuit designed interference

from line radiation or feedback. Add code (-RFI).

Finish

All painted parts are with powder coat paint process.

Labels

UL “c/us” Listed. Suitable for damp locations.

Ordering Guide (complete unit only)

Cat. No. Lamp (linear) Volt Finish

SL103APIU 2-28W T5 120/277V Textured Light Grey & Clear Acrylic with White Lacquer

SL103API3 2-28W T5 347V Textured Light Grey & Clear Acrylic with White Lacquer

SL103BPIU 2-54W T5 High Output 120/277V Textured Light Grey & Clear Acrylic with White Lacquer

SL103BPI3 2-54W T5 High Output 347V Textured Light Grey & Clear Acrylic with White Lacquer

2 1/4"

(57mm)

16 3/8"

(416mm)

46 7/8"

(1191mm)

2 3/8"

(60mm)

57 1/4"

(1454mm)

96"

(2438mm)

* Consult your Lightolier representative for more information.

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Spectral Architectural Lighting SL103A

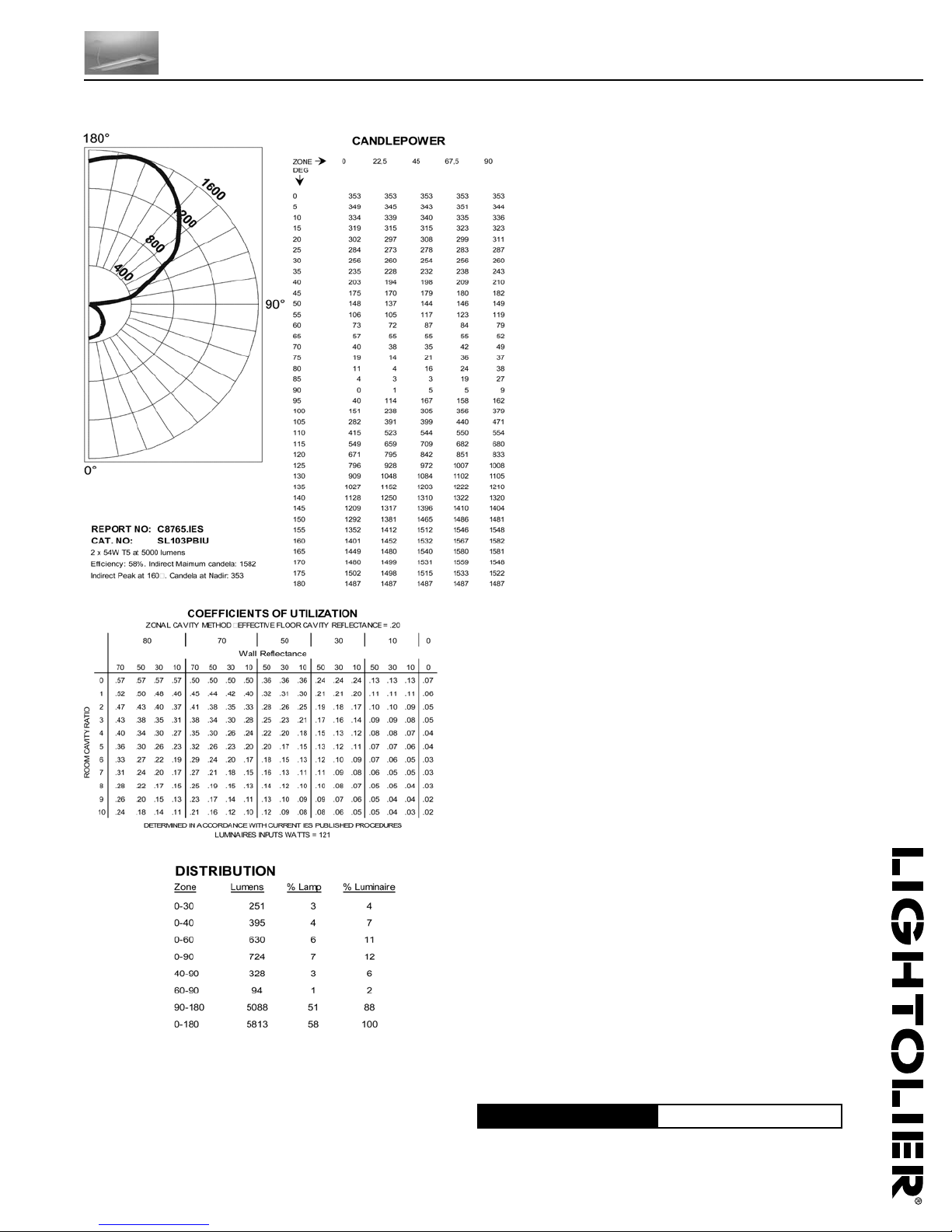

Page 2 of 2 UltraFlat 1 Flat Forms 2-28W/54W T5
