Lightolier Calculite C4P20L Manuel utilisateur

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

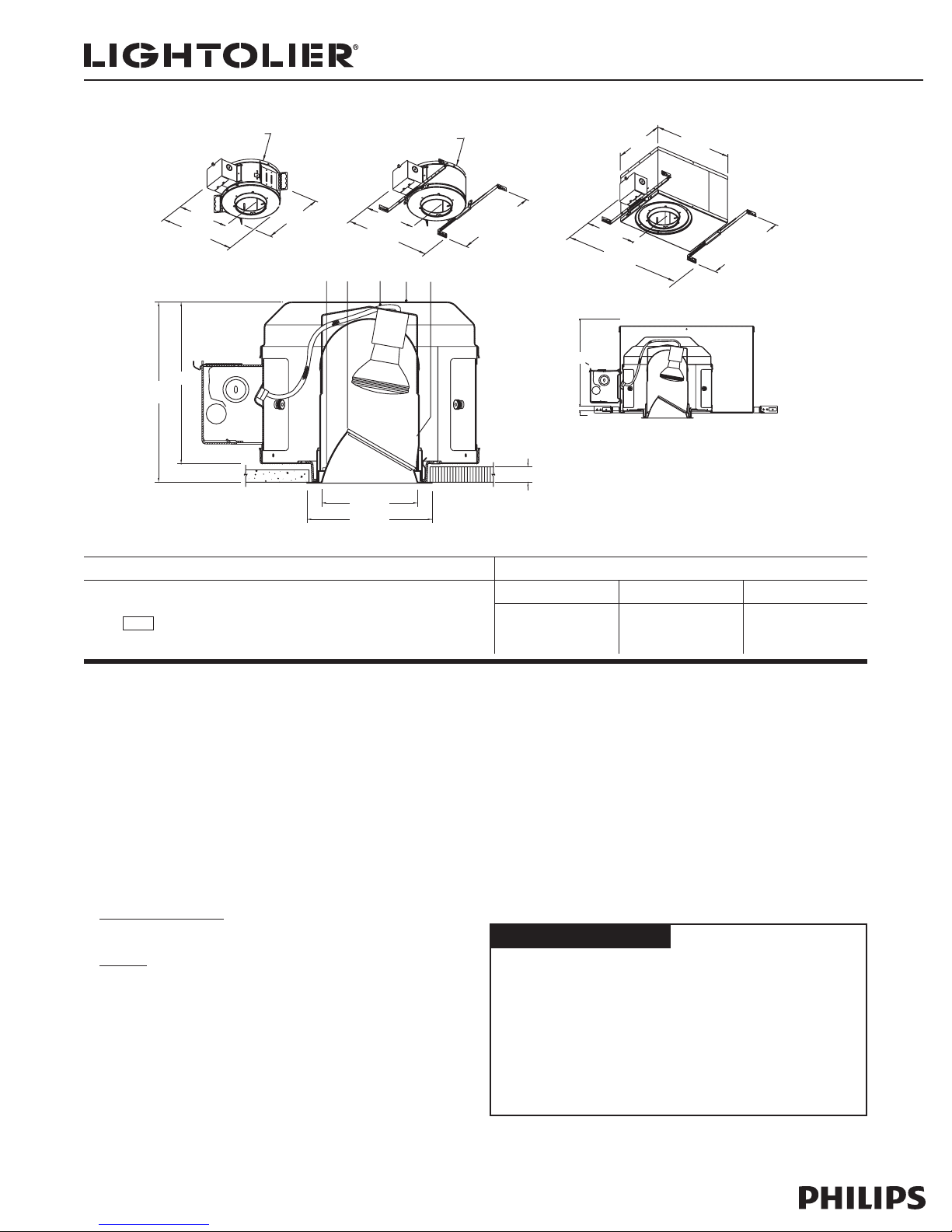

Calculite®Evolution C4P20L

Page 1 of 2 4 1/2" Aperture PAR20 / PAR16 Incandescent Lensed Wall Washer Reflector Trim

14 1/4"

Adjustment

(mounting bars

included)

13 3/4" to 24"

(IC AirSeal®)

C4AIC

10"

Adjustment

(mounting bars

included)

13 3/4" to 24"

O.A.

20 1/4"

8 1/2"

9 1/2" Dia.

O.A.

14 3/8"

7 3/4"

9 1/2" Dia.

O.A.

12 3/8"

7 3/4"

(Non-IC)

C4120

12 1/2"

(Non-IC AirSeal®)

C4A120

5431

C4P20LCLW / C4A120

C4P20LCLW / C4120 or

*7 3/4"min. is for up to 3/4" thick ceiling. 4 1/8" Dia.

5 1/2" Dia.

8 1/4"max.

7 3/4"min.*

1 1/4" Max. Ceiling Thk.

9 1/4"

C4P20LCLW / C4AIC

1/2" to 1" Max. Ceiling Thk.

Reflector Trim Frame-In Kit

C4P20L CLW

C4P20L CLP

C4P20L

Specular Clear, White Flange

Specular Clear, Polished Flange

Add suffix. See options for other finishes.

Non-IC Non-IC AirSeal®IC-AirSeal®

C4120

50W PAR20

75W PAR16

C4A120

50W PAR20

75W PAR16

C4AIC

50W PAR20

45W PAR16

Features

1. Aperture Cone: 16 ga. aluminum, 50° visual cut-off to lamp image. Keyed

to kick reflector to prevent incorrect installation of cone. Hinged, and snaps

onto kick reflector for easy tool-less installation. Available with painted

white or polished flange. Interchangeable with other Evolution 4 1/2" line

voltage trims.

2. Kick Reflector: 16 ga. aluminum. Specular kick reflector with directional

spread lens distributes light smoothly for vertical surface wall washing.

3. Directional Spread Lens: High temperature, tempered glass. Precisely

contoured to fit onto cone; replaceable.

4. Socket Harness: Medium base porcelain socket with nickel plated

screw shell, No. 18 SF-1 leads to keyed plug-in quick connector for power

connection to junction box.

5. Frame-In Kit: Compatible Frame-In Kits are listed above. See separate

Frame-In Kit specification sheets for details.

Non-IC and Non-IC AirSeal® - Insulation must be kept 3" away from fixture

sides and wiring compartments and must not be placed above fixture in a

manner which will entrap heat.

IC-AirSeal® - Fixture may be in direct contact with insulation.

Options & Accessories

Reflector Finishes1

Clear: CL Gold: GD White: WH

Black: BK Pewter: CPW

Comfort Clear Diffuse: CCD

Champagne Bronze: CCZ

1Specify desired flange WWhite, P Polished

Labels

UL Listed (suitable for wet locations), I.B.E.W.

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

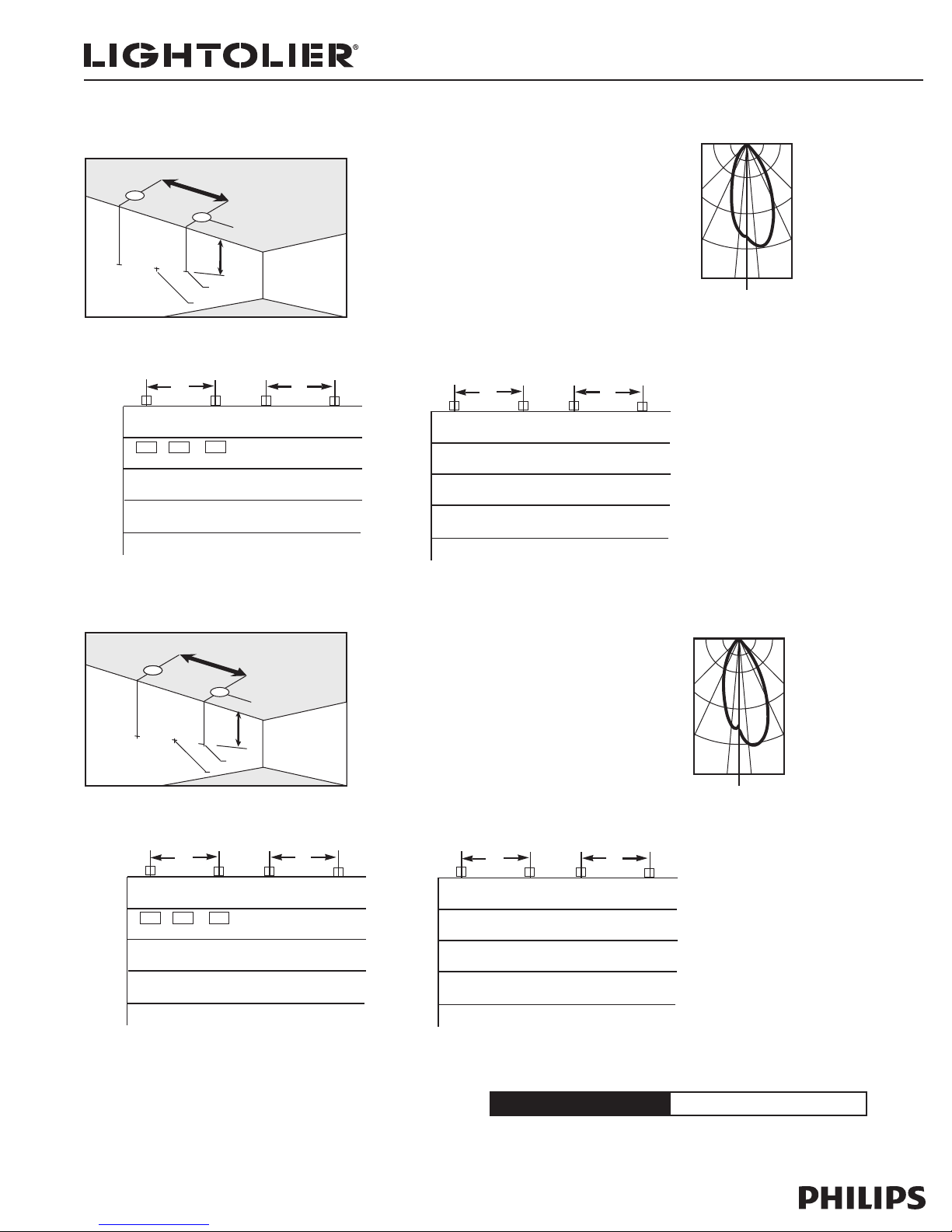

Calculite®Evolution C4P20L

Page 2 of 2 4 1/2" Aperture PAR20 / PAR16 Incandescent Lensed Wall Washer Reflector Trim

Footcandle values are averaged and rounded off and are based on a minimum of five units.

75W PAR16 NFL

EXAMPLE: With multiple units located 2' from

wall and 2’ on center, the illumination on the

wall 3’ down from the ceiling is 12 f.c. beneath

and 11f.c. between fixtures.

Footcandles values are averaged and rounded off and are based on a minimum of five units. For fixture-to-wall distances, other than

those shown, use maximum of 1 to 1 spacing (distance between fixtures not more than distance to wall) for best results.

2’

3’

12 f.c.

11 f.c.

Footcandles on Wall From Multiple Units

Conversion Factors:

37W IR and 50W MR16 FL: F.C. x 0.6

37W IR and 35W MR16 FL: F.C. x 0.4

37W IR and 20W MR16 FL: F.C. x 0.2

2' 3'

1’ 44 4424

2’ 10 910757

3’ 12 11 12 979

4’ 13 12 13 979

5’ 11 11 11 878

6’ 99 9666

7’ 77 7555

8’ 66 6444

9’ 55 5333

Units 2 Feet From Wall

Distance From Ceiling, Ft.

3' 4'

1’ 11 1111

2’ 333323

3’ 44 4434

4’ 55 5434

5’ 656545

6’ 656545

7’ 55 5444

8’ 55 5444

9’ 44 4333

Units 3 Feet From Wall

Distance From Ceiling, Ft.

50W PAR20 NFL

EXAMPLE: With multiple units located 2’ from

wall and 2’ on center, the illumination on the

wall 3’ down from the ceiling is 7 f.c. beneath

and 6 f.c. between fixtures.

Footcandles values are averaged and rounded off and are based on a minimum of five units. For fixture-to-wall distances, other than

those shown, use maximum of 1 to 1 spacing (distance between fixtures not more than distance to wall) for best results.

2’

3’

7 f.c.

6 f.c.

Footcandles on Wall From Multiple Units

Conversion Factors:

37W IR and 50W MR16 FL: F.C. x 0.6

37W IR and 35W MR16 FL: F.C. x 0.4

37W IR and 20W MR16 FL: F.C. x 0.2

2' 3'

1’ 22 2212

2’ 555434

3’ 7 6 7535

4’ 7 7 7545

5’ 6 6 6444

6’ 555333

7’ 444222

8’ 333222

9’ 33 3222

Units 2 Feet From Wall

Distance From Ceiling, Ft.

3' 4'

1’ 11 1111

2’ 212111

3’ 22 2212

4’ 32 3222

5’ 333323

6’ 333323

7’ 33 3222

8’ 33 3222

9’ 22 2222

Units 3 Feet From Wall

5˚5˚

25˚25˚

45˚45˚

Candlepower Curve

Report 0851FR

Efficiency = 37.3%

Down Wall

5˚5˚

25˚25˚

45˚45˚

Report 0852FR

Efficiency = 42.0%

Footcandle values are averaged and rounded off and are based on a minimum of five units.

Down Wall

Distance From Ceiling, Ft.

Candlepower Curve
