Lytecaster®Recessed Downlighting 1022

Page 1 of 2 5” Aperture Baffle Eyeball Reflector Trim

Reflector Trim

❏1022 Matte White with

Matte Black Step Baffle

❏1022WH Matte White with

Matte White Step Baffle

Lytecaster®

Recessed

Downlighting 1022

Complete Fixture consists of FRAME-IN KIT & REFLECTOR TRIM. Select each separately.

Features Options & Accessories

Labels

1. Housing: Aluminum, .040” (18 ga.); matte white flange.

2. Eyeball Housing: Die-formed, one piece, aluminum, 18 ga.;

provides 358˚ horizontal rotation and 0˚ to 40˚ vertical adjustment;

matte white finish.

3. Step Baffle: Die-cast aluminum with stepped conical surface for

low brightness; precision-fitted into eyeball housing; matte black

finish.

4. Frame-In Kit: (1002P1 standard frame shown). Other frames listed

above and shown on the right. See Frame-In Kit specification sheets

for more details.

Retaining Clips: 1955 - For installing in existing ceiling

Extra Wide Flange Trim Kit: 1957 - 7” O.D.

UL (Suitable for Damp Locations - Covered Ceiling); I.B.E.W.;

U.S. Patent Numbers: 4,313,154; 4,327,403; 5,045,985

Other U.S. & Foreign Patents Pending

5” Aperture

Baffled Eyeball

Reflector Trim C0101

TYPE:

40˚

7 1/2”

1022/1004IC

0™Convertible

IC/Non-IC

1022/1003R

0™ Non-IC

Remodeler Ring

1022/1004ICR

0™Convertible

Remodeler IC/Non-IC

7 1/2”

1022/1002P1 Series

Standard Incandescent

6 7/8”

Incandescent

Frame-In Kit - See Individual Frame-In Kit Specification Sheets

Lamping Height

Frame-In Kit

❏ 100P1

❏ 1003R

❏ 1000IC

❏ 1000AICM

❏ 1004ICX/N

❏ 1004IC/N

❏ 1004ICR

IC Remodeler

50W PAR20

75W R20

7 5/16”

7 1/4”

7 1/2”

❏ 1004IC/N

❏ 1004ICR

Non-IC

Non-IC Remodeler

50W PAR20

75W R20

7 1/2”

Non-IC

Non-IC Remodeler

50W PAR20

75 W R20

6 7/8”

Ceiling Type

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS,

AND FINISH.

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, MA 02720

40°

Features

1. Housing: Aluminum, .040” (18 ga.); matte white flange.

2. Eyeball Housing: Die-formed, one piece, aluminum, 18 ga.; provides 358°

horizontal rotation and 0° to 40° vertical adjustment; matte white finish.

3. Step Baffle: Die-cast aluminum with stepped conical surface for low

brightness; precision-fitted into eyeball housing; matte black or

Matte White finish.

4. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Options & Accessories

Retaining Clips: 1955 - For installing in existing ceiling

Extra Wide Flange Trim Kit: 1957 - 7” O.D.

Labels

UL (Suitable for Damp Locations - Covered Ceiling), I.B.E.W.

1022/1002P1 Series

Standard Incandescent

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Incandescent

Frame-In Kit Ceiling Type Lamping Height

1022 1002P1 Non-IC 50W PAR20 6 7/8”

Matte White with 1003R Non-IC 75W R20 6 7/8”

Matte Black Step Baffle Remodeler

1022WH 1000IC IC 50W PAR20 7 5/16”

Matte White with 1000AICM IC AirSeal 75W R20 7 5/16”

Matte White Step Baffle 1004ICX/N IC AirSeal 7 1/4”

1004IC/N IC 7 1/2”

1004ICR IC Remodeler 7 1/2”

1004IC/N Non-IC 50W PAR20 7 1/2”

1004ICR Non-IC Remodeler 75W R20 7 1/2”

7 1/2”

1022/1004ICR

0™Convertible

Remodeler IC/Non-IC

7 1/2”

1022/1004IC

0™Convertible

IC/Non-IC

1022/1003R

0™

Non-IC Remodeler

6 7/8”

Lytecaster®Recessed Downlighting 1022

Page 2 of 2 5” Aperture Baffle Eyeball Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Reflector Trim

❏1022 Matte White with

Matte Black Step Baffle

❏1022WH Matte White with

Matte White Step Baffle

Lytecaster®

Recessed

Downlighting 1022

Complete Fixture consists of FRAME-IN KIT & REFLECTOR TRIM. Select each separately.

Features Options & Accessories

Labels

1. Housing: Aluminum, .040” (18 ga.); matte white flange.

2. Eyeball Housing: Die-formed, one piece, aluminum, 18 ga.;

provides 358˚ horizontal rotation and 0˚ to 40˚ vertical adjustment;

matte white finish.

3. Step Baffle: Die-cast aluminum with stepped conical surface for

low brightness; precision-fitted into eyeball housing; matte black

finish.

4. Frame-In Kit: (1002P1 standard frame shown). Other frames listed

above and shown on the right. See Frame-In Kit specification sheets

for more details.

Retaining Clips: 1955 - For installing in existing ceiling

Extra Wide Flange Trim Kit: 1957 - 7” O.D.

UL (Suitable for Damp Locations - Covered Ceiling); I.B.E.W.;

U.S. Patent Numbers: 4,313,154; 4,327,403; 5,045,985

Other U.S. & Foreign Patents Pending

5” Aperture

Baffled Eyeball

Reflector Trim C0101

TYPE:

40˚

7 1/2”

1022/1004IC

0™Convertible

IC/Non-IC

1022/1003R

0™ Non-IC

Remodeler Ring

1022/1004ICR

0™Convertible

Remodeler IC/Non-IC

7 1/2”

1022/1002P1 Series

Standard Incandescent

6 7/8”

Incandescent

Frame-In Kit - See Individual Frame-In Kit Specification Sheets

Lamping Height

Frame-In Kit

❏ 100P1

❏ 1003R

❏ 1000IC

❏ 1000AICM

❏ 1004ICX/N

❏ 1004IC/N

❏ 1004ICR

IC Remodeler

50W PAR20

75W R20

7 5/16”

7 1/4”

7 1/2”

❏ 1004IC/N

❏ 1004ICR

Non-IC

Non-IC Remodeler

50W PAR20

75W R20

7 1/2”

Non-IC

Non-IC Remodeler

50W PAR20

75 W R20

6 7/8”

Ceiling Type

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS,

AND FINISH.

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, MA 02720

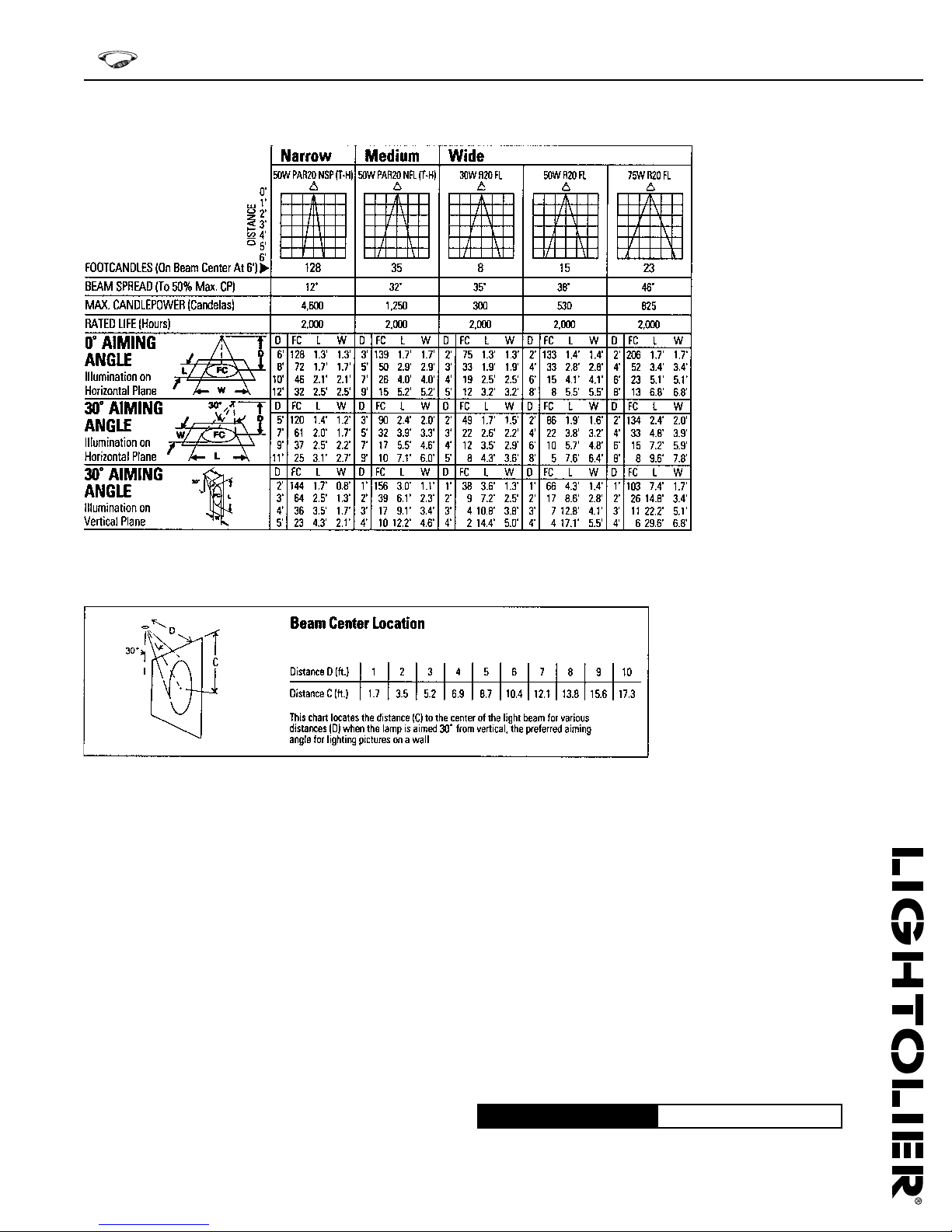

Lighting Performance Data

Data are based on bare lamp photometrics.

FC is initial footcandles at center of beam. Land Ware to the point that the candlepower drops 50% of maximum.
