Lytespan®Track Lighting System 6296

Page 1 of 2 MR16 Ring Electronic

6296

6297

6497

Features

1. Transformer Housing: Die-cast aluminum. Fitter twists onto track and

locks on.

2. Housing: Die-cast aluminum.

3. Lamp Guard: Tempered glass.

4. Trunion Mounting: Tensioned, provides 90° vertical adjustment for

lighting unit.

5. Pivot Mounting: Tensioned; 90° horizontal stop for each side.

6. Movable Brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

7. Polarity Key

8. Push Tab: Molded polycarbonate. Detaches unit.

Electrical/Dimming

Light-weight, electronic, low voltage transformer with integral radio frequency

interface filter; soft-start feature for longer lamp life. Constant output lamp

voltage to maintain rated lamp life and light output. Two-pin base socket,

pre-wired with No. 18 braided SF-1 leads with fiberglas braided outer sleeve.

For dimming control, use only those dimmers specifically designed for use with

electronic transformers like Lightolier’s Sunrise and Neptune Momentum QE

series. Call (800) 526-2731 for further information.

Options and Accessory

2” Series Color Filters and Spread Lens; Louver No. 7472.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

6 1/4”

3 1/16” Max.

2 5/16”

6”

2 1/4” Dia. 3 7/8”

Framing Projector

Accessory

(Order Separately)

Ordering Information

Catalog No. Mounting Finish Lamps

6296 All Lytespan Track Systems Matte White 20W-65W, MR-16 12V

6297 Matte Black

6497 Matte Black Framing Projector (For performance data see Lightolier Specification Sheet 6497)

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan®Track Lighting System 6296

Page 2 of 2 MR16 Ring Electronic

6296

6297

6497

DFC L

LBeam Length

WBeam Width

CDistance to center beam

DDistance

AAiming Angle

FC Footcandles

Land Ware the outer points where the

candle power drops to 50% of the maximum.

FC are the initial footcandles at the center

of the beam.

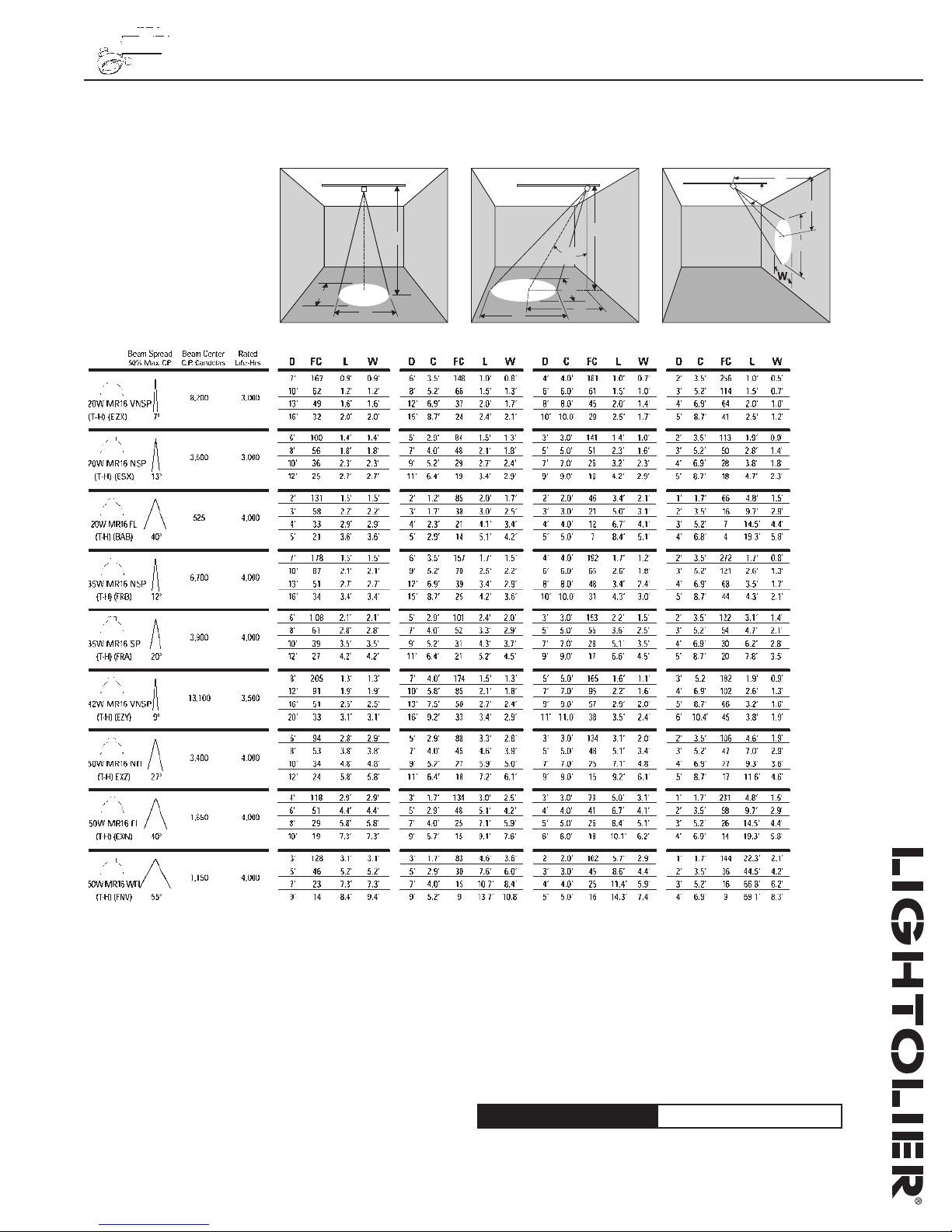

Lighting Data

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical
