Lightolier Lytespan 8102 Manuel utilisateur

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting 8102

Page 1 of 2 Cylinder Spot Mini HID 20W T4 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in

Advent track.

5. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast. Thermally

protected, 0.20A maximum input current, 24.5W input power.

7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Lamp Housing: 0.04" (1.02mm) aluminum.

9. Lampholder: Twist and lock base. 5kV (600V) pulse rated porcelain body

socket with nickel-plated contacts. 18 AWG silicone leads with fiberglass

outer sleeve (inside of housing).

10.Spot Reflector: 0.02" (0.51mm) specular anodized aluminum finish.

11. Protective Glass: 0.13" (3.18mm) tempered glass.

12.Cover Housing: 0.04" (1.02mm) aluminum.

13.Knobs: Painted steel knurled knob secures cover to housing.

Accessories

Holder: 8195, holds one accessory

Diffusion/ Special Filters: AF25 series

Color Filters: ADF25 series

Louver (Hex Cell): AL25HC

Mounting

All Monopoint, Multipoint, recessed track, suspension stems, sloped ceiling

adapter, Basic, Advent and Radius track systems only. Ceiling and horizontal

or vertical wall mounted. Not compatible with ProSpec track system.

Finish

All painted finishes are baked powder or enamel.

Markings

cCSAus Certified for dry locations only.

Catalog No. Finish Lamp

8102WH White

8102BK Black 20W T4 CMH (M156) GU6.5 Base

8102AL Aluminum Not Included

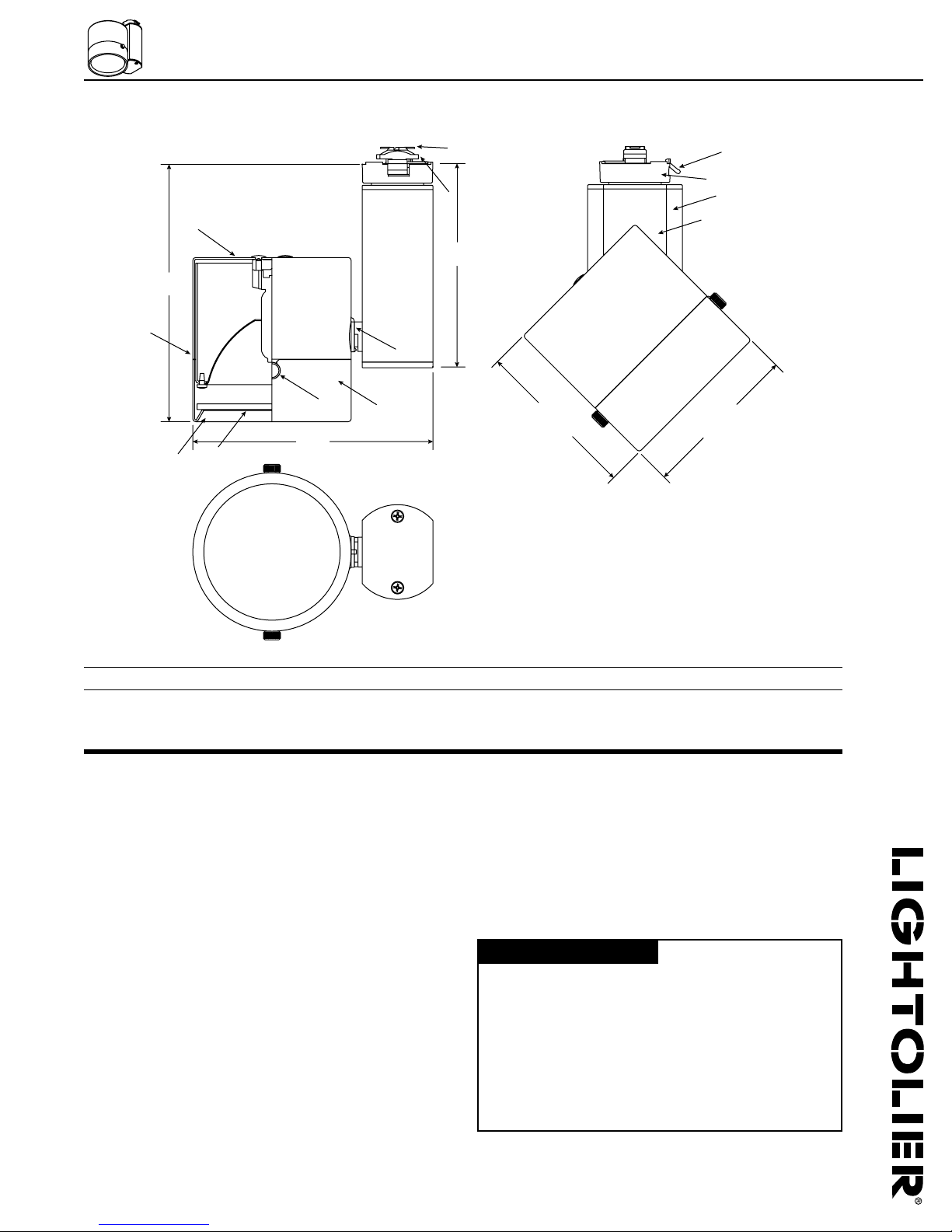

Bottom View

5.25"

5.75"

4.5"

3.63" 3.5"

10 11

13 12

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan®Track Lighting 8102

Page 2 of 2 Cylinder Spot Mini HID 20W T4 CMH

8558 9000

GE CMH20T/GU6.5

14°

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

D FC L W D C FC L W D C FC L W D C FC L W

8' 4.6' 87 2.6' 2.3'

10' 5.8' 56 3.3' 2.8'

12' 6.9' 39 3.9' 3.4'

14' 8.1' 28 4.6' 4.0'

4' 4.0' 189 2.0' 1.4'

5' 5.0' 121 2.5' 1.7'

6' 6.0' 84 3.0' 2.1'

7' 7.0' 62 3.5' 2.4'

3' 5.2' 119 3.1' 1.5'

4' 6.9' 67 4.1' 2.0'

5' 8.7' 43 5.1' 2.5'

6' 10.4' 30 6.2' 2.9'

8' 134 2.0' 2.0'

10' 86 2.5' 2.5'

12' 59 2.9' 2.9'

14' 44 3.4' 3.4'
