LEGO®CHARLES DICKENS TRIBUTE

#40410 LIGHT KIT

INSTALLATION GUIDE

Light My Bricks

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

LEGO®CHARLES DICKENS TRIBUTE 40410

INSTALLATION GUIDE

Hi There!

We’re here to help you get started on the LEGO®

Charles Dickens Tribute 40410 Light Kit.

This PDF details the instructions for the LED light kit only

If you run into any issues, please refer to the

troubleshooting section towards the end of this guide.

Have fun and enjoy!

INSTALLATION GUIDE

PACKAGE CONTENTS 3

PACKAGE CONTENTS:

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

2 x White 15cm Bit Light

3 x White 15cm Micro Bit Light

1 x 6-Port Expansion Board

1 x Micro 4-Port Expansion Board

1 x Flicker Eects Board

2 x 5cm Connecting Cable

1 x USB Power Cable

CONTENTS 4

Contents

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

Before You Begin 5

Blueprint 10

Instructions 11

Final Product 20

Troubleshooting 21

Contact 26

BEFORE YOU BEGIN 5

Before You Begin

Laying cables in between

and underneath bricks

Cables can ﬁt in between and underneath

LEGO®bricks, plates, and tiles providing

they are laid correctly between the LEGO®

studs. Do NOT forcefully join LEGO®

together around cables; instead ensure

they are laying comfortably in between

each stud.

CAUTION: Forcing LEGO®to connect over

a cable can result in damaging the cable

and light.

Connecting Cable

Connectors To Expansion

Boards

Take extra care when inserting connectors

to ports of Expansion Boards. Connectors

can be inserted only one way. With the

expansion board facing up, look for the

soldered “=” symbol on the left side of the

port. The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into the

port. If a plug won’t ﬁt easily into a port

connector, do not force it.

Incorrectly inserting the connector can re-

sult in bent pins inside the port or possible

overheating of the expansion board when

connected.

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 6

Before You Begin

Connecting Cable

Connectors To Strip Lights

Take extra care when inserting connectors

to ports on the Strip Lights. Connectors

can be inserted only one way. With the

Strip Light facing up, ensure the side of

the connector with the wires exposed is

facing down. If a plug won’t ﬁt easily into

a port connector, don’t force it. Doing so

will damage the plug and the connector.

Connecting Micro Cable

Connectors To Micro

Expansion Board Ports

Take extra care when inserting the

micro connectors to micro ports of Micro

Expansion Boards. Connecting Micro Bit

Lights to Micro Expansion Boards is similar

to connecting lights and cables to Strip

Lights. With the expansion board facing

up, ensure the side of the connector with

the wires exposed is facing down. If a plug

won’t ﬁt easily into a port connector, do

not force it. Use your ﬁngernail to push the

plastic part of the connector to the micro

port.

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 7

Before You Begin

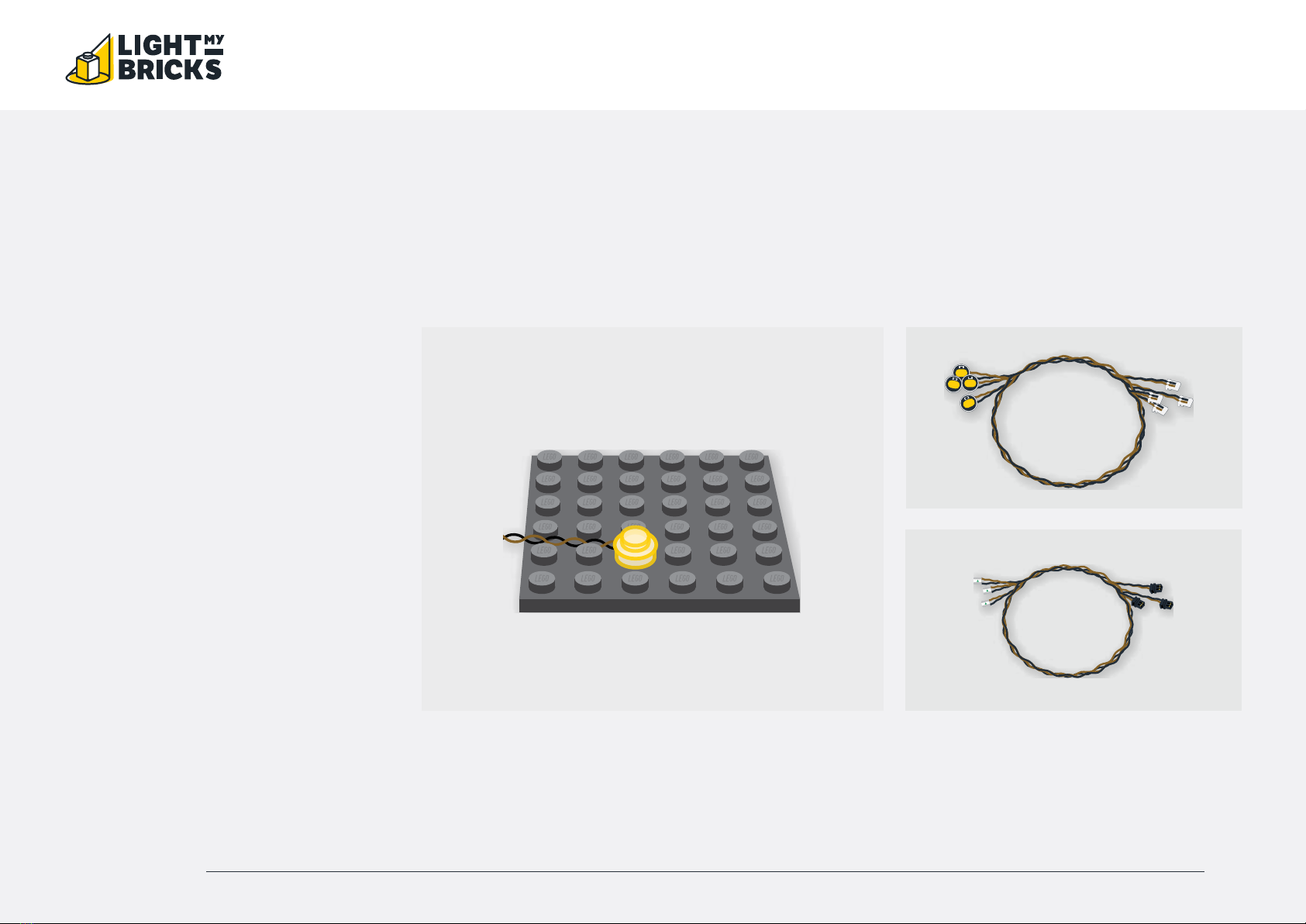

Installing Bit Lights Under

Lego® Bricks And Plates

When installing Bit Lights under LEGO®

pieces, ensure they are placed the correct

way up (Yellow LED component exposed).

You can either place them directly on top of

LEGO®studs or in between.

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 8

Before You Begin

Disconnect

Used when you need to

remove a LEGO piece or LMB

component.

Twist/ Braid

Used when a set of cables

need to be grouped and

twisted together.

Directional

Used to show where to route

cables, place components, or

move them.

Power On Test

Used at the end of a major

step to test the lights. Will be

located in the top left corner.

Bend/Pivot

Used when a component

needs to be bent, or part

folded or pivoted.

Note

Notes will be found alongside

the instruction photos and

explain what to do.

Connect

Used when you need to

connect a LEGO piece or LMB

component.

Turn/ Flip

Used when the set needs to

be rotated or ﬂipped. Will be

located in the top left corner.

Light Kit Component

This is the most important image

format as it indicates which part

to use from the Light Kit. Make

sure you pay close attention to

which part is shown.

The Symbols Used In This Guide

When going through the following guide you will

come across symbols and formats that will assist

with the installation of your light kit. Take notice of

them as each has a speciﬁc purpose.

White 30cm Bit Light

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 9

Before You Begin

Disconnect Note

Same as the other notes but

used when the topic focuses

on a component being

disconnected or like here, the

removed pieces.

Connect Note

This is the same as the above

note but used when the topic

focuses on a component

being connected, like the

shown Power Bank.

General Note

This is a sample note that is

used anywhere in this guide. It

will explain a dicult section

where photos are hard to

illustrate or easily confused.

NOTE

Connect to a 5V USB Power Bank,

5V USB Wall Adaptor, or USB to AA

Battery Pack (sold separately)

NOTE

You should have these parts left

over that were removed from the

LEGO set

NOTE

Connect the 5cm Connecting

Cable from the 4-Port Micro

Expansion Board into the “IN” port

of the Flicker Eects Board

Connect Focus

Used to highlight a hard to

see area where a component

is being connected.

Disconnect Focus

Used to highlight a hard to

see area where a component

is being disconnected.

General Focus

Used to highlight a hard to

see area where a component

needs to be acted on.

Repeat Step

Repeat the previous step eg.

Make a spotlight, then make a

second spotlight.

Removed Pieces

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE

BLUEPRINT 10

BLUEPRINT

LEGO®CHARLES DICKENS TRIBUTE 40410 LIGHT KIT INSTALL GUIDE
