Lightmybricks R2-D2 LED Lighting Kit Manuel utilisateur

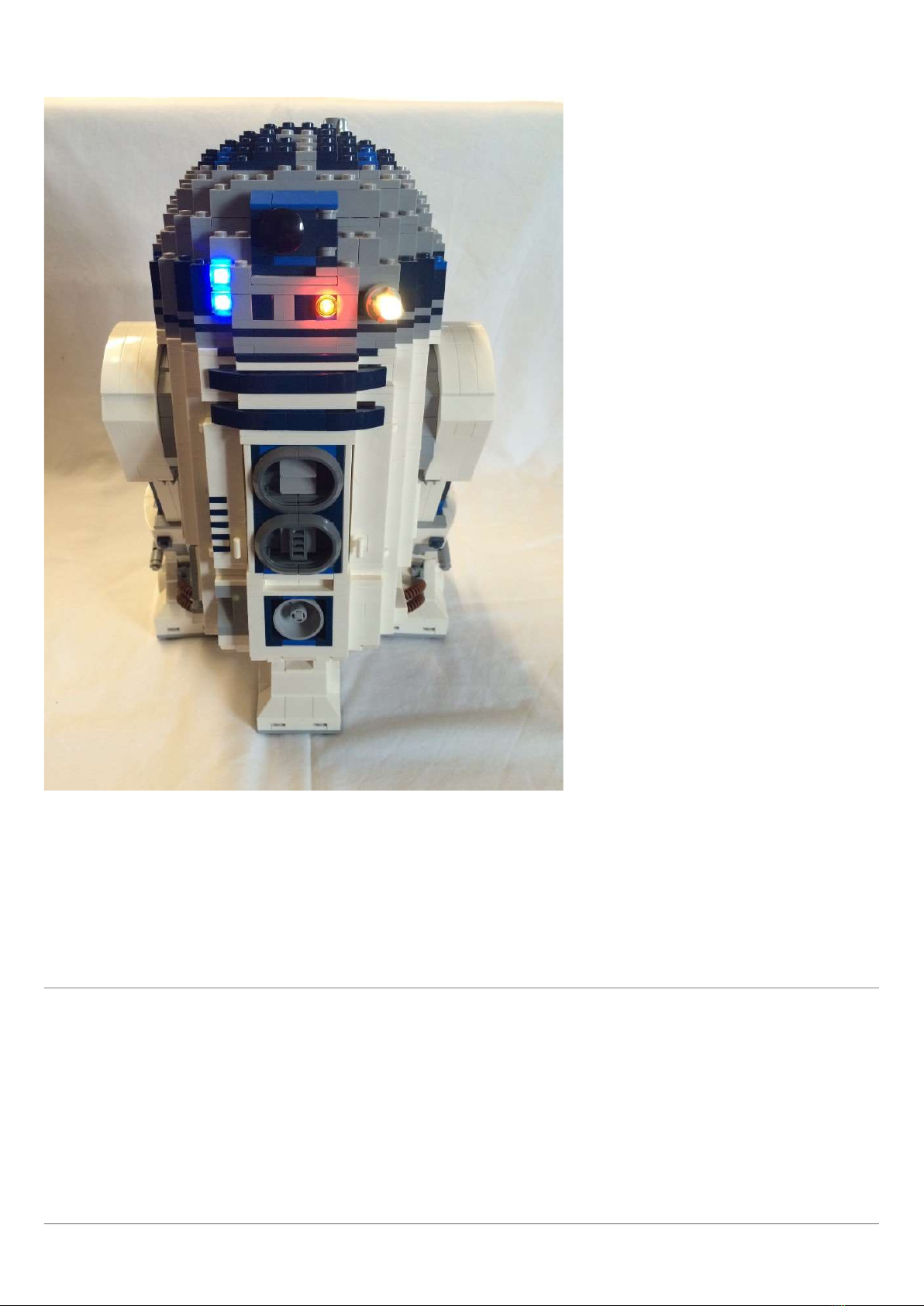

Light My Bricks : R2-D2 LED Lighting Kit

Here is the instruction document for the Lego R2-D2 LED lighting kit. Please read and

follow the steps carefully to ensure this lighting kit is installed properly.

If you run into any issues, please refer to the online troubleshooting guide.

To ensure a trouble-free installation of your light kit, please read and follow each step

carefully.

Package contents:

2 x White 30cm Bit Lights

2 x Blue 30cm Bit Lights

1 x 6 Port Expansion Board

1 x Battery Pack (3 x AA Batteries not included)

Important things to note:

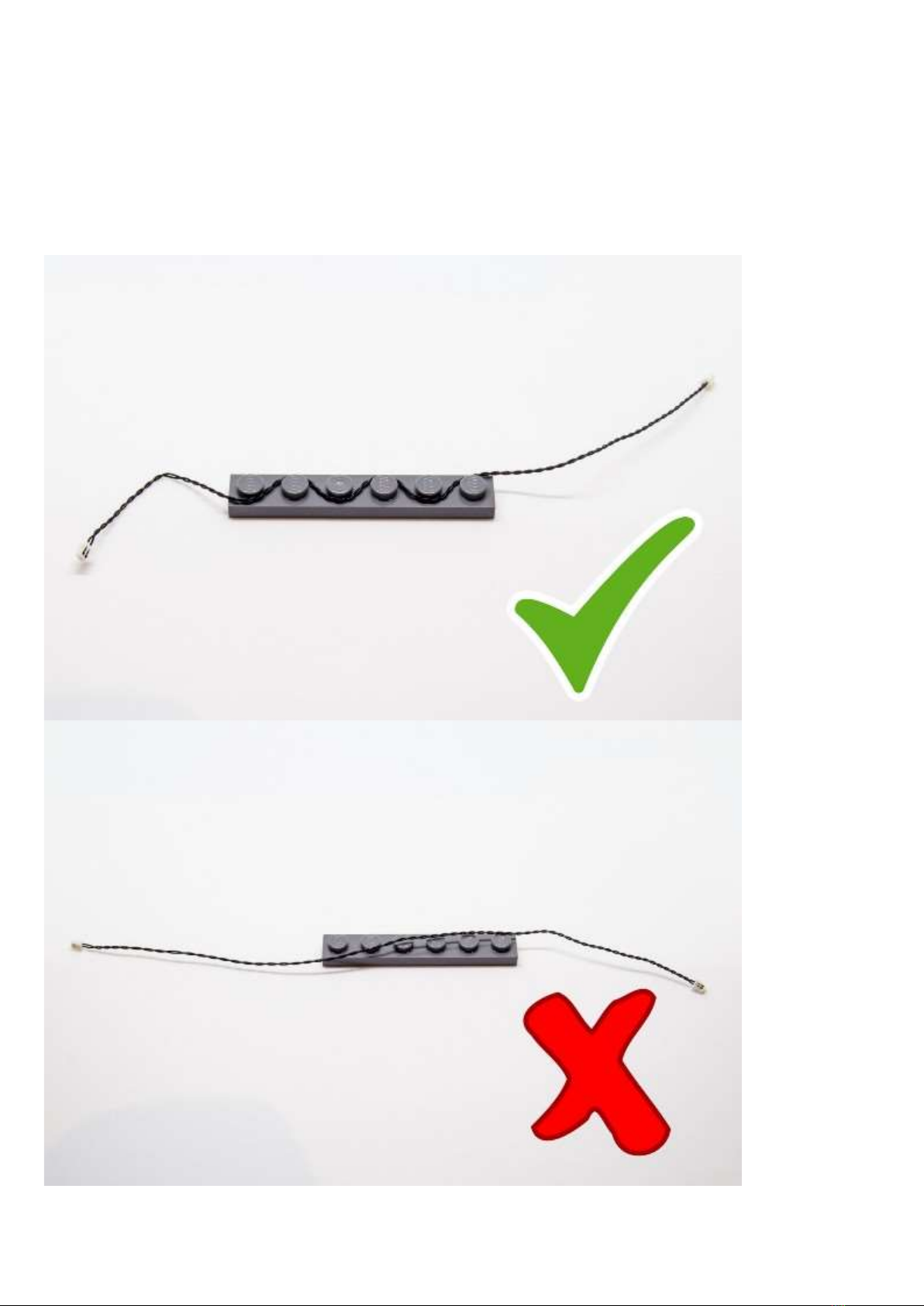

Laying cables in between and underneath bricks

Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they

are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together

around cables; instead ensure they are laying comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable

and light.

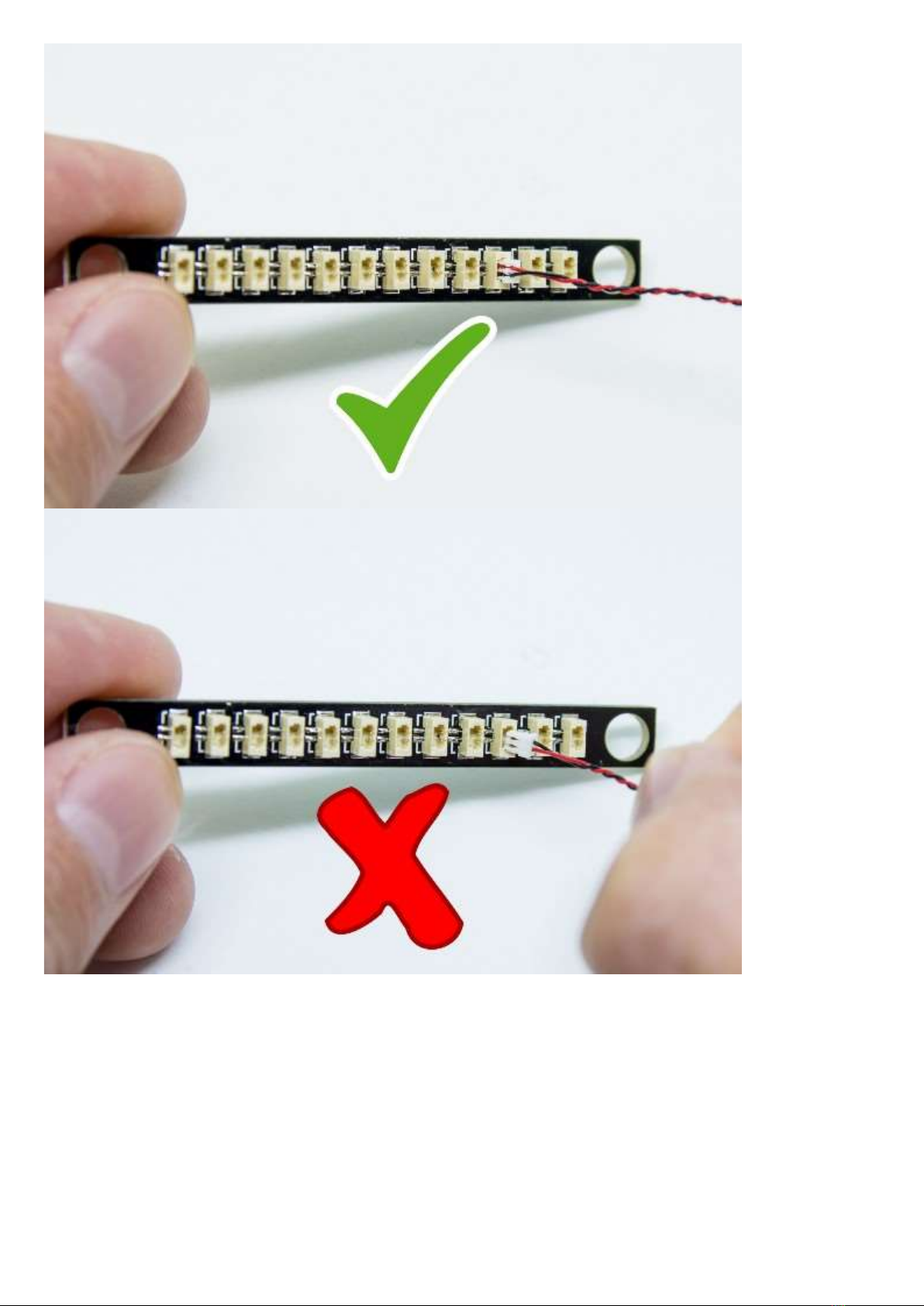

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion Boards. Connectors can

be inserted only one way. With the expansion board facing up, look for the soldered “=”

symbol on the left side of the port. The connector side with the wires exposed should be

facing toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily

into a port connector, do not force it.

WARNING: Incorrectly inserting the connector can result in bent pins inside the port or

possible overheating of the expansion board when connected.

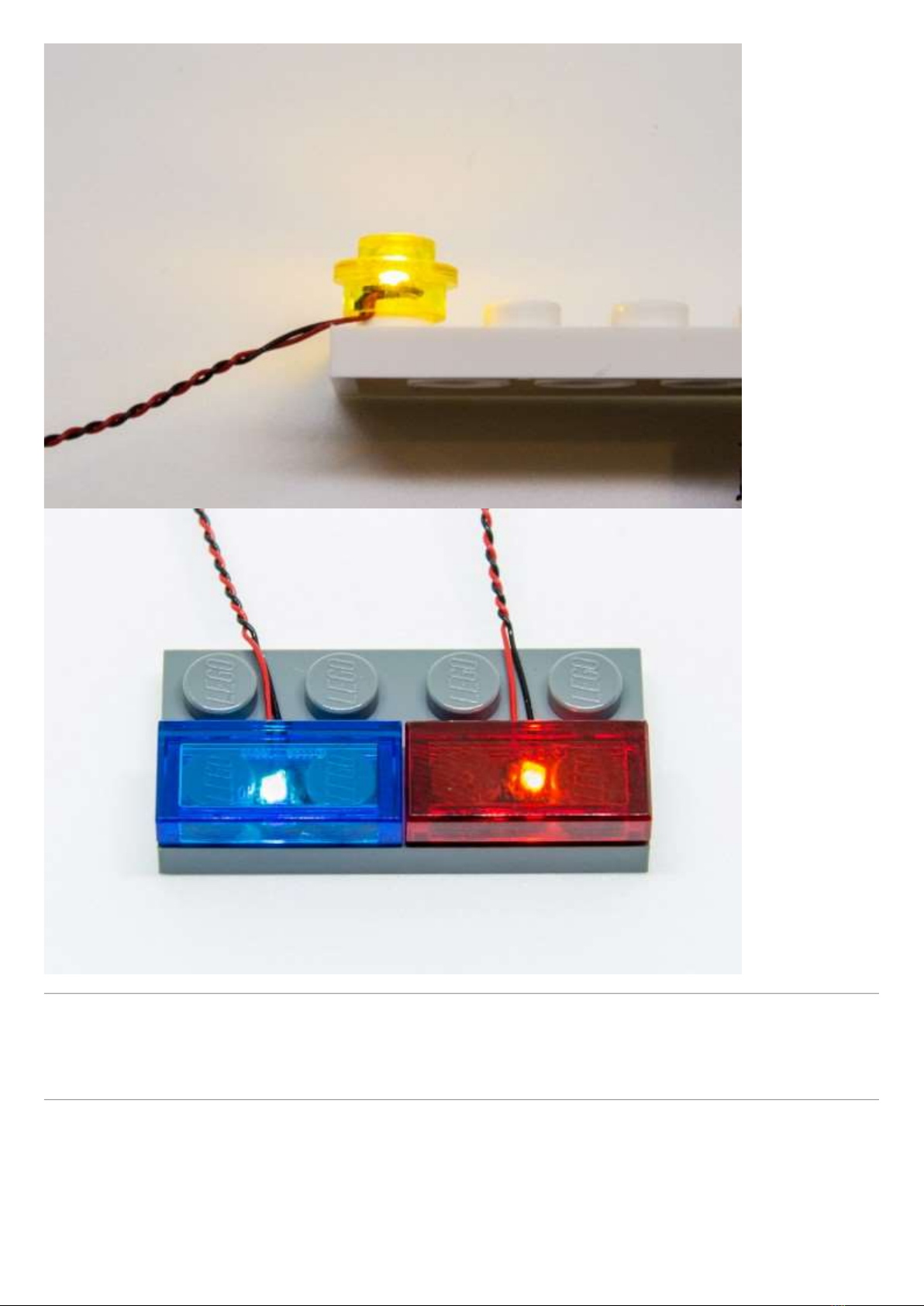

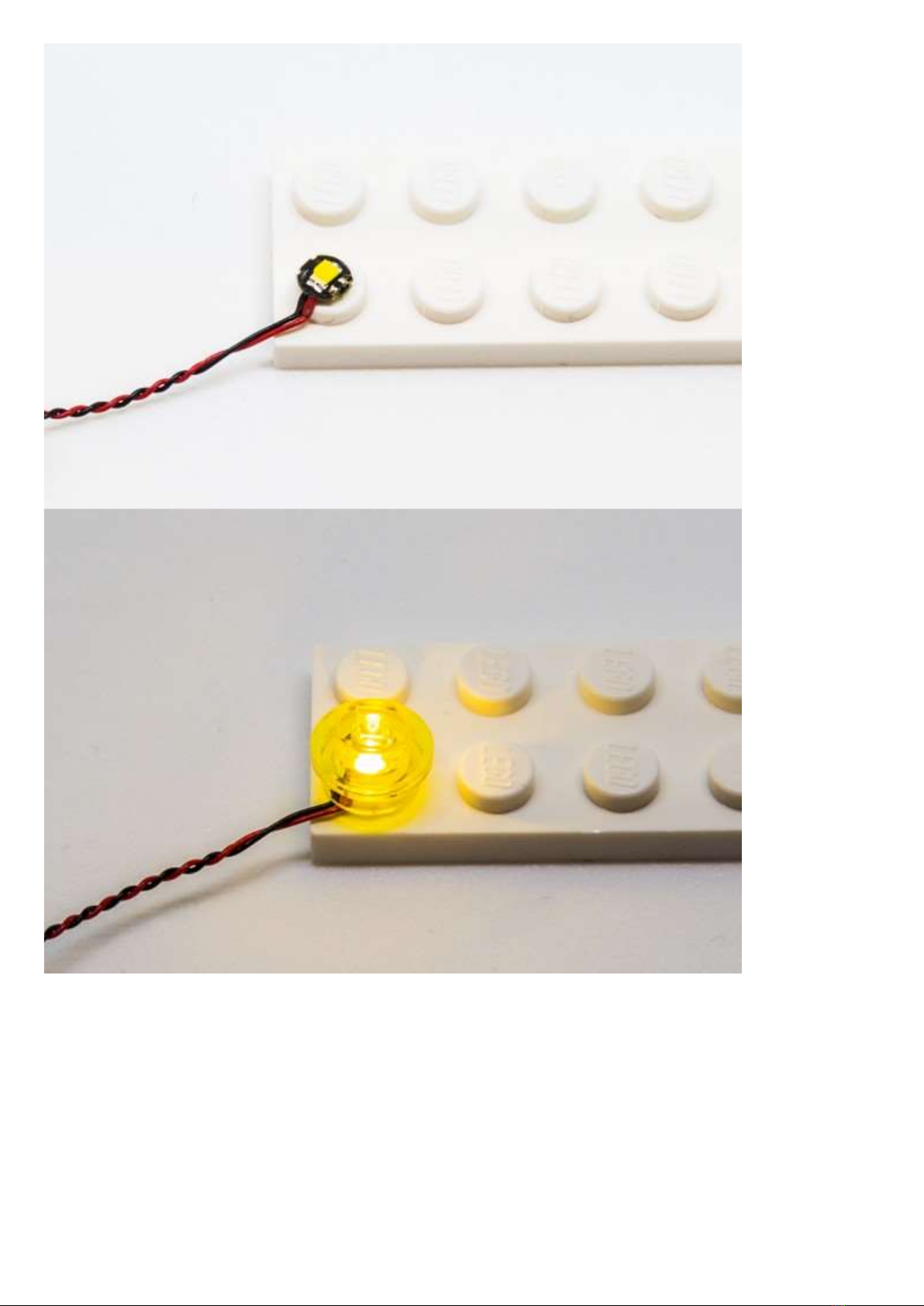

Installing Bit Lights under LEGO® bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way

up (Yellow LED component exposed). You can either place them directly on top of

LEGO® studs or in between.

OK, Let’s Begin!

Instructions for installing this kit

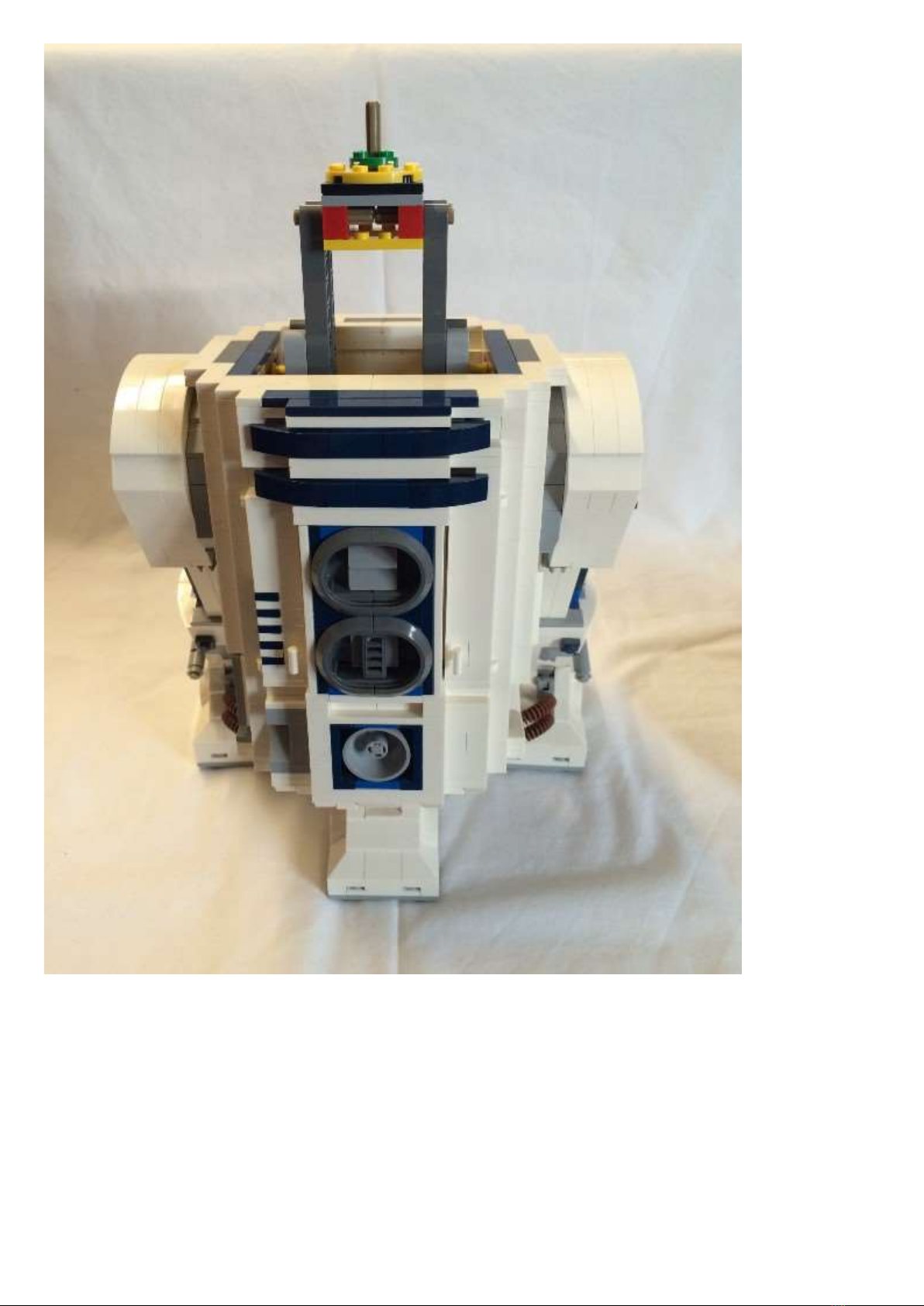

The first thing we need to do is take R2’s head off. I know, it sounds brutal but he can’t

feel it anyway, right??

If you gently hold his head and lift upward, it should easily come off.

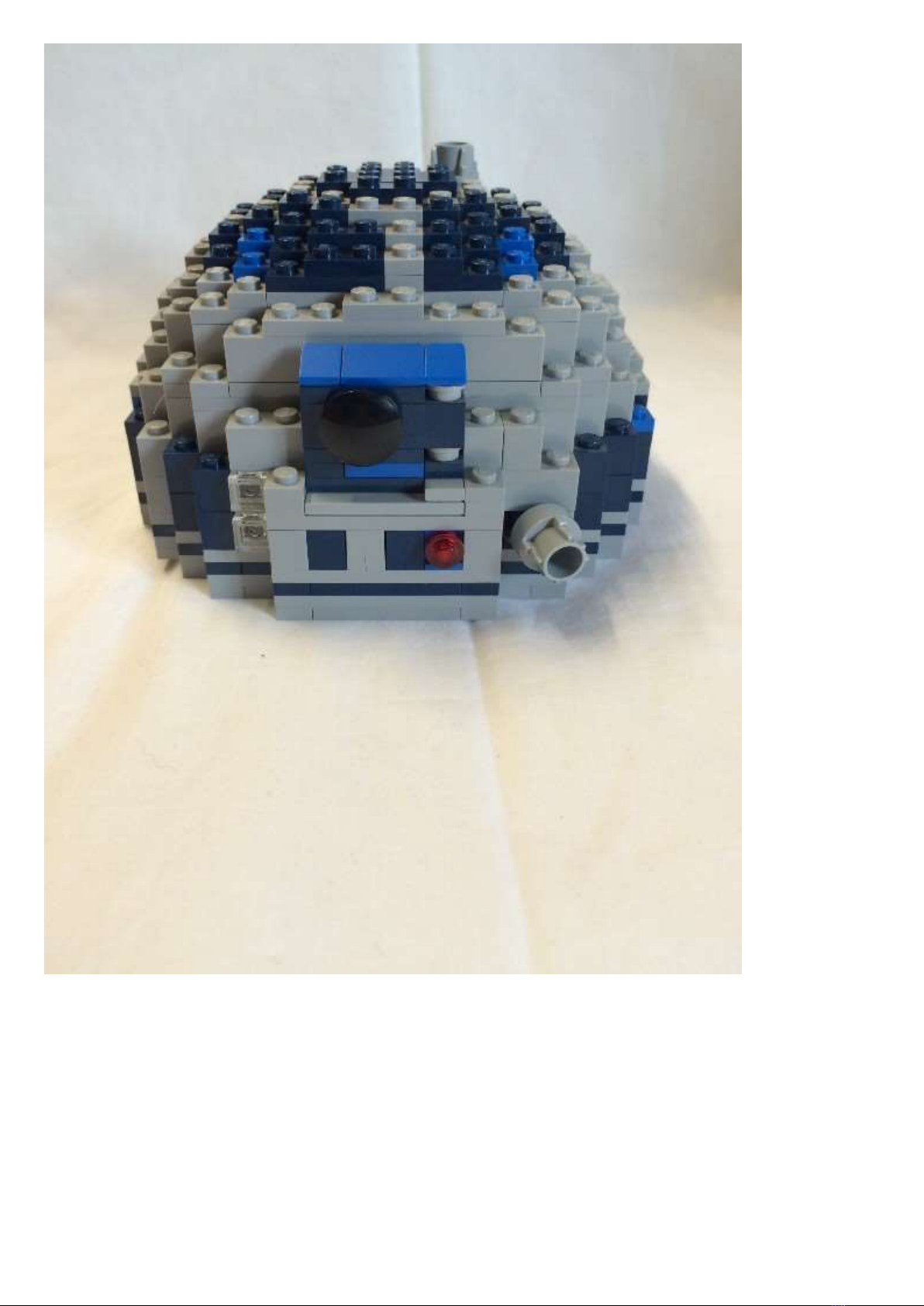

Look at the front of R2’s head, look for two trans-clear 1×1 plates and remove them.

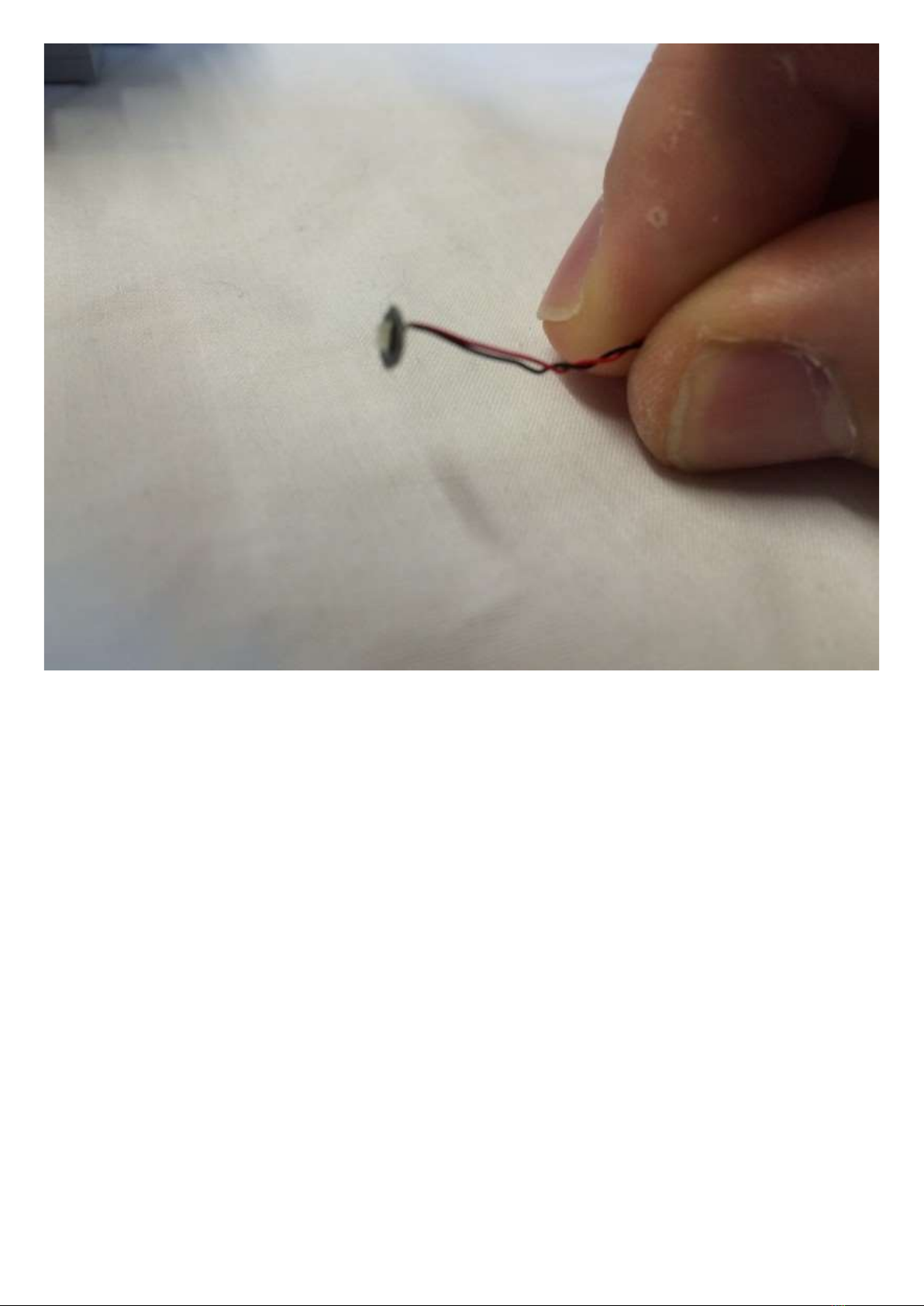

Grab two of the bit lights and angle the end so that the light is perpendicular to the wire.

Feed the connector end of each bit light into the square hole left by removing the 1×1

trans-clear plates.
