Lightmybricks LEGO INFINITY GAUNTLET 76191 Manuel utilisateur

LEGO® INFINITY GAUNTLET

#76191 LIGHT KIT

INSTALLATION GUIDE

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

INSTALLATION GUIDE 2

Light My Bricks

LEGO® INFINITY GAUNTLET #76191 LIGHT KIT

INSTALLATION GUIDE

Hi There!

We’re here to help you get started on the LEGO®

Iﬁnity Gauntlet (76191) Light Kit.

This PDF details the instructions for the LED light & sound kit

only. If you are wishing to purchase this product, please click

here to view the product page.

If you run into any issues, please refer to the troubleshooting

section towards the end of this guide.

Have fun and enjoy!

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

PACKAGE CONTENTS 3

PACKAGE CONTENTS: LEGO PIECES:

13 x Cool White 15cm Bit Lights *

1 x Green 30cm Large Bit Light

3x Warm White 30cm Large Bit Lights

1 x 6-Port Expansion Board

3 x 8-Port Expansion Boards *

• 2 × Black Plate 1x6

• 3 × Black Round Plate 1x1 w Open Stud

• 2 × Black Arm Skeleton, Bent w Clips (Horizontal Grips)

• 5 × Black Plate 1x1 Modiﬁed Rounded w Handle

• 1 × Black 1x1 Tile w/ Clip Rounded Edges

• 1 × Black Dish 2x2 Inverted

1 x Pulse Eects Board

2 x 5cm Connecting Cables

2 x 15cm Connecting Cables *

1 x USB Power Cable

(Power Source not Included)

Asterisks * indiciates 1 extra component has been included just in case!

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

CONTENTS 4

Contents

Before You Begin 5

Instructions 8

Final Product 29

Troubleshooting 30

Contact 35

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 5

Before You Begin

Laying cables in between

and underneath bricks

Cables can ﬁt in between and underneath

LEGO® bricks, plates, and tiles providing

they are laid correctly between the

LEGO® studs. Do NOT forcefully join

LEGO® together around cables; instead

ensure they are laying comfortably in

between each stud.

CAUTION: Forcing LEGO® to connect over

a cable can result in damaging the cable

and light.

Connecting Cable

Connectors To Expansion

Boards

Take extra care when inserting connectors

to ports of Expansion Boards. Connectors

can be inserted only one way. With the

expansion board facing up, look for the

soldered “=” symbol on the left side of the

port. The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into the

port. If a plug won’t ﬁt easily into a port

connector, do not force it.

Incorrectly inserting the connector can

can result in bent pins inside the port or

possible overheating of the expansion

board when connected.

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 6

Before You Begin

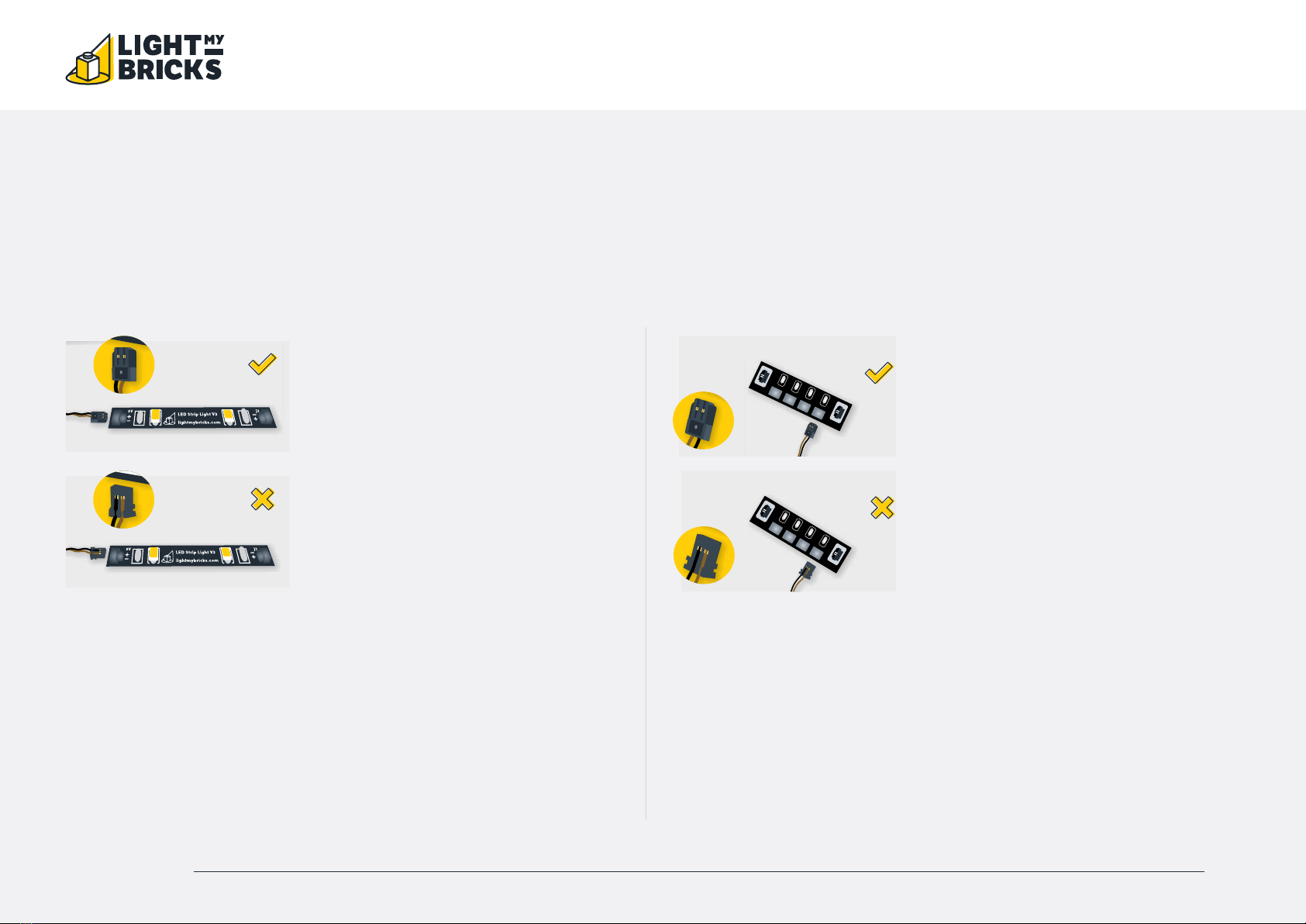

Connecting Cable

Connectors To Strip Lights

Take extra care when inserting connectors

to ports on the Strip Lights. Connectors

can be inserted only one way. With the

Strip Light facing up, ensure the side of

the connector with the wires exposed is

facing down. If a plug won’t ﬁt easily into

a port connector, don’t force it. Doing so

will damage the plug and the connector.

Connecting Micro Cable

Connectors To Micro

Expansion Board Ports

Take extra care when inserting the

micro connectors to micro ports of Micro

Expansion Boards. Connecting Micro Bit

Lights to Micro Expansion Boards is similar

to connecting lights and cables to Strip

Lights. With the expansion board facing

up, ensure the side of the connector with

the wires exposed is facing down. If a plug

won’t ﬁt easily into a port connector, do

not force it. Use your ﬁngernail to push the

plastic part of the connector to the micro

port.

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 7

Before You Begin

Installing Bit Lights Under

Lego® Bricks And Plates

When installing Bit Lights under LEGO®

pieces, ensure they are placed the correct

way up (Yellow LED component exposed).

You can either place them directly on top of

LEGO® studs or in between.

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 8

INSTRUCTIONS

To ensure a smooth installation of

your light kit, please read and follow

each step carefully. If you run into

any issues, please refer to the online

troubleshooting guide.

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 9

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON

LEGO INFINITY GAUNTLET 76191 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 10

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON

This element

will be permanently

removed
