1. Brief Description

ZONE motorized treadmill (diagram 1) can help complete your goal of keeping fit together

with unique and elegant appearance. Easily read panel parameter. Easily operated folding system

realizes space-saving. Auto speed range 1-20km/h and auto incline range 0-15. All makes it a hot

home use fitness equipment.

Diagram 1: ZONE Motorized Treadmill

2. Main Technical Features

Main use: Body and beauty building

This treadmill is for home use

Panel displays speed, time, distance, heart rate, calorie, MP3, body fat, etc.

Display Mode：LCD

Input voltage: 240V±10%

Frequency: 50HZ

Input current: ≤8A

Temperature for working: 5℃∽40℃

Speed range: 1∽20km/h

Auto incline: 0-15

Safety key

Heart rate sensor

Meter accessories

Handle

Power switch

Pillar accessories

Running belt

Footplate

Running belt adjustor

Handle

- 2 -

Time display range:0:00∽99:59(minute : second);

Distance display range:0.1~9.99kms

3. IMPORTANT SAFETY INSTRUCTIONS

Danger–To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPORPER

ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

 Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

 Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and treadmill

may result.

 Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of the

treadmill and any fixed object.

 Place your unit on a solid, level surface when in use.

 Never allow children on or near the treadmill.

 When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should you fall

or move too far back on the treadmill.

 Keep hands away from all moving parts.

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly

maintain your

treadmill may void your warranty.

- 3 -

 Never operate the treadmill if it has a damaged cord or plug.

 Keep the cord away from heated surfaces.

 Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly flammable environment.

 Never drop or insert any object into any openings.

 The treadmill is intended for in-home use only and not suitable for long time running.

 To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug from

the outlet.

 The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the

accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart

rate trends in general.

 Use handrails provided; they are for your safety.

 Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your treadmill.

Quality athletic shoes are recommended to avoid leg fatigue.

 Allowed temperature: 5 to 40 degrees.

 Before starting any exercise program, consult with your physician or health professional.

 Check all the bolts locked.

 We take no responsibility for any injuries due to above.

 Not recommend to do exercise within 40 minutes after meal.

 To prevent injury , please warm up before exercise.

 Consult with doctor before exercise if you have high blood pressure or any underlying conditions.

 The treadmill is designed for adults use only.

 Please Provide supervision for , elderly, children and handicapped with good care, guidance.

 Do not plug anything into any parts of this equipment, or it may cause damage to machine

 Do not change power lead length or change the cable plug; do not put anything heavy on cable or put the

cable near the heat source; do not use power board socket with multiple outlets ,these may cause over

load

 Turn off the power at wall outlet when the equipment is not in use. Do not pull on power lead to unplug

always use the plug to remove from wall .

- 4 -

Remove the safety key after use to prevent unauthorized treadmill operation.

IMPORTANT ELECTRICAL INFORMATION

WARNING!

 NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord

away from any moving part of the treadmill including the elevation mechanism and transport wheels.

 NEVER remove any cover without first disconnecting AC power.

 NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near a

pool, or in any other high humidity environment.

IMPORTANT OPERATION INSTRUCTIONS

 Be sure to read the entire manual before operating your machine.

 Understand that changes in speed and incline do not occur immediately. Set your desired speed on the

computer console and release the adjustment key. The computer will obey the command gradually.

 Use caution while participating in other activities while walking on your treadmill; such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in the

centre of the belt; which may result in serious injury.

 In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the

treadmill while the belt is moving. This unit starts with a very low speed. Simply standing on the belt

during slow acceleration is proper after you have learned to operate this machine.

 Always hold on to handrail while making control changes.

 A safety key is provided with this machine. Remove the safety key will stop the walking belt immediately;

the treadmill will shut off automatically. Insert the safety key will reset the display.

 Do not use excessive pressure on console control keys. They are precision set to function properly with

little finger pressure.

- 5 -

4. Installation: See “Installation sketch”

5. Use and Operation

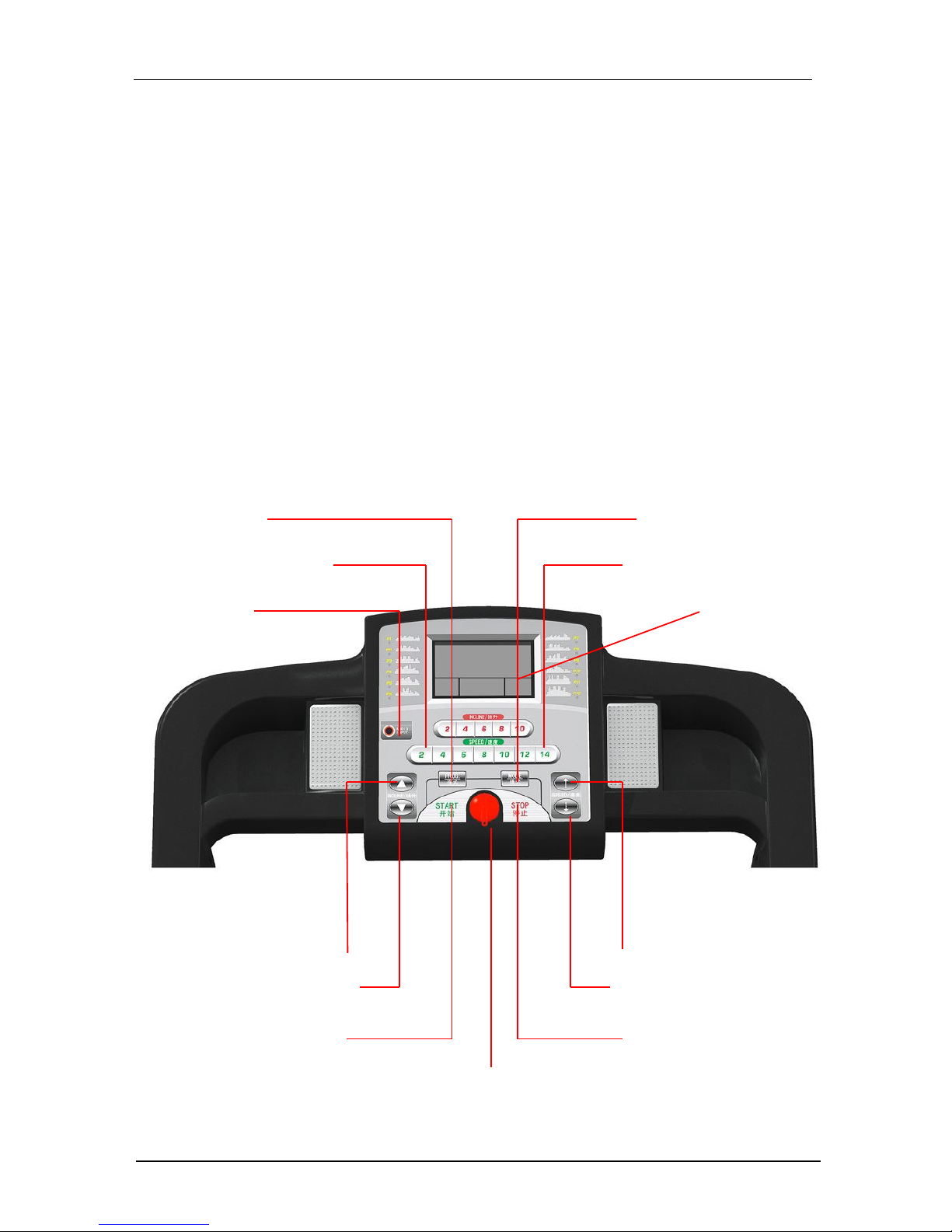

5.1 Panel Keys and Function

（4）incline-up

（5）incline-down

（1）incline shortcut key

（10）speed-down

（11）speed-up

（3）speed shortcut key

（9）safety key

（7）start （14）stop

（6）program

（12）mode

（13）music （

）

LCD window

- 6 -

(1) “program”

Under ready condition, press this key to select programs from P1 to P99.

(2)“mode”

Under ready condition , there are three different manual models . .TIME is countdown time

model , DIST is countdown distance model , CAL means countdown calorie model . As you select

these three models , you can use “ speed-up “ or “speed – down” to set the countdown value

you need .

.Then press “start” to run .

(3)“speed-up” & “speed-down”

Under running condition ,These keys are used for adjusting the speed. Adjustment range:0.1KM /

time .

(4)“incline-up” & “incline-down”

Under running condition ,These keys are used for adjusting the incline value .Adjustment range:1

level / time .

(5)“start”

Under ready condition ,Press this key to make treadmill run .

(6)“stop”

Under ready condition ,Press this key to stop running .

(7)“speed shortcut key”

Under running condition ,Press this key to directly set the speed you need .

(8)“incline shortcut key ”

Under running condition ,Press this key . The incline goes directly to the chosen height .

(9) LCD Window

a.“ SPEED” : It shows speed ( range:1KM/H-20KM/H)

b. “ INCLINE” : It shows incline (range:0-15 levels)

c. “ TIME”: It shows time ( range:00:00---99.95)

d. “ DIST” : It shows the distance ( range:00:00---99.95)

e. “ CAL” : It shows the Calorie (range:0---995calorie)

f.“ PULSE” : As two hands touch the heart rate sensor , it shows the heart rate value

(range :60---200/minute)

5.2 Unload operating

1. Insert power plug into the socket with earth wire, turn the switch to “1” position which is on

the frame

2. Put the safe key in the right position, then circuit is on, press “start”, keep it run in unload

- 7 -

condition. Test the condition of running belt (testing from low speed to high ones), after testing,

press “stop”.

3. If everything is ok, then start to run.

5.3 Meter operating instruction

5.3.1

1. Insert power plug into the socket with earth wire, turn the switch to “1” position which is on

the frame. Place the safe key to the appointed position. After a few seconds, panel will show that

the machine is ready.

2. Nip another end of safe key to your clothes, and stand on the footplate on both sides.

3. Press "start” key, running belt moves at the lowest speed (0.8km/h). Speed windows will

display your running speed.

4. Start to run.

5 . Press speed key or incline key to adjust speed and incline, speed window and incline window

will display your speed and incline .

6. To end your exercise in a safe way, please first press “stop” key to close the treadmill. Please

leave the running belt until it stops slowly. Turn off the power.

5.3.2 Heart Rate Testing

Our treadmill can test your heart rate via the heart rate sensor. The data is only for reference.

5.4 Folding and Opening Treadmill

5.4.1 Folding

Firstly lift and fold the back part of the frame board by hand till you hear a light sound,

which means the folding system has been locked. At this time running board can’t be turned to

the opposite direction

5.4.2 Opening

Put the folded treadmill in a capacious position when you want to run. Then pull the

adjusting parts by hand to keep it is unlocked. Press the back part by your hands down to about

10%, release it, then it will open automatically.

6. MAINTENANCE

Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is maximized

when the belt and mat are kept as clean as possible.

WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE FUNCTION AND LIFE OF YOUR

TREADMILL AND THAT IS WHY WE RECOMMEND YOU CONSTANTLY LUBRICATE THIS FRICTION POINT TO

PROLONG THE USEFUL LIFE OF YOUR TREADMILL. FAILING TO DO THIS MAY VOID YOUR WARRANTY.

WARNING: UNPLUG POWER CORD BEFORE MAINTENANCE.

WARNING: STOP TREADMILL BEFORE FOLDING.

Maintenance and servicing

- 8 -

AFTER EACH USE (DAILY)

Clean and inspect, following these steps:

• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

• Wipe down the running belt, deck, motor cover, and console casing with a damp cloth. Never use solvents, as

they can cause damage to the treadmill.

• Inspect the power cord. If the power cord is damaged, contact Lifespan Fitness.

• Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched

or cut.

• Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any

other components on the treadmill by being misaligned.

EVERY WEEK

Clean underneath the treadmill, following these steps:

• Turn off the treadmill with the on/off switch, then unplugs the power cord at the wall outlet.

• Fold the treadmill into the upright position, making sure that the lock latch is secure.

• Move the treadmill to a remote location.

• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill.

• Return the treadmill to its previous position.

EVERY MONTH -IMPORTANT!

• Inspect all assembly bolts of the machine for proper tightness.

• Turn off the treadmill with the on/off switch, then unplug the power cord and wait 60 seconds.

• Remove the motor cover. Wait until ALL LED lights turn off.

• Clean the motor and lower board area to eliminate any lint or dust particles that may have accumulated

Failure to do so may result in premature failure of key electrical components.

EVERY 6 MONTHS

It may be necessary to lubricate your treadmill running deck at least once every six months to maintain optimal

performance of your treadmill (refer to section 4.4 for information). Only use lubricant provided by Lifespan

Fitness! Please contact Lifespan Fitness with questions about applying lubricant to your treadmill.

• Turn off the treadmill with the on/off switch, then unplug the power cord at the wall outlet.

• Loosen both the rear roller bolts. (For best results, place two removable marks on both sides of the frame

and note roller position).Once the belt is loosened, take the bottle of lubricant and apply it to the entire top

surface of the running deck. Tighten both rear roller bolts (matching up the marks for proper position) to

original position. After you have applied lubricant, plug in the power cord, key, start the treadmill and walk on

the belt for two minutes to spread the lubricant.

• Lubricate the air shocks with Teflon based spray.

EVERY 2 YEARS

It is necessary that you change your treadmill motor brushes once every 2 years to avoid damaging your motor.

If you fail to change the brushes this may cause the motor to burn out, voiding any warranty.

Table des matières

Autres manuels Life Span tapis roulant

Life Span

Life Span Workplace DT-3 Manuel utilisateur

Life Span

Life Span PERFORMER II Manuel utilisateur

Life Span

Life Span Power-S Manuel utilisateur

Life Span

Life Span SPRINTER XL Manuel utilisateur

Life Span

Life Span Torque Manuel utilisateur

Life Span

Life Span GOLD 2.0 Manuel utilisateur

Life Span

Life Span TR1200i Manuel utilisateur

Life Span

Life Span Reformer 2 Safety Manuel utilisateur

Life Span

Life Span TR7000iM Manuel utilisateur

Life Span

Life Span BALANCE Manuel utilisateur

Life Span

Life Span Diamond Manuel utilisateur

Life Span

Life Span Pursuit 2 Manuel utilisateur

Life Span

Life Span BOOMER PLUS Manuel utilisateur

Life Span

Life Span TR6000i Manuel utilisateur

Life Span

Life Span APEX Manuel utilisateur

Life Span

Life Span TR5000i Manuel utilisateur

Life Span

Life Span BOOMER XT Manuel utilisateur

Life Span

Life Span MyTread TR100 Manuel utilisateur

Life Span

Life Span Echo Manuel utilisateur

Life Span

Life Span PRO Series Manuel utilisateur

Life Span

Life Span Workplace DT-7 Manuel utilisateur

Life Span

Life Span LS Series Manuel utilisateur

Life Span

Life Span Chaser 3 Manuel utilisateur

Life Span

Life Span TR2500-HRC Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur
