Life Span BOOMER PLUS Manuel utilisateur

BOOMER

PLUS

USER’S

MANUAL

This is HIGH-POWER item; please DO NOT USE THE SAME OUTLET WITH OTHER

HIGH-POWER HOUSEHOLD APPLIANCE like air-conditioning etc.

Please choose an outlet exclusively for the machine and make sure the fuse is 10A.

Product may vary slightly from the item pictured due to model upgrades

IMPORTANT SAFETY PRECAUTIONS

CAUTION: Before starting any exercise program, consult with your physician or health

professional.

IMPORTANT: Read all instructions carefully before using this product. Retain

this owner’s

manual for the future reference.

1. Plug the power cord of the treadmill directly into a dedicated grounded circuit.

This product must be grounded well. If it has breakdown, grounding provides a path of least

resistance for electric current to reduce the risk of electric shock.

2. Position the treadmill on a clear and level surface. Do not place the treadmill on thick carpet as it

may interfere with proper ventilation. Also, do not place the treadmill near water or outdoors.

3. Position treadmill so that the wall plug is visible and accessible.

4. NEVER start the treadmill while you are standing on the walking belt. After turning the power on

and adjusting the speed control, there may be a pause before the walking belt begins to move,

ALWAYS stand on the foot rails on the sides of the frame until the belt is moving.

5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting

clothing which maybe caught by treadmill. Always wear running or aerobic shoes with rubber soles.

6. Always unplug the power cord before removing the treadmill’s motor cover.

7. Keep small children away from the treadmill during operation.

8. Don’t let go of your hands until you are getting used to treadmill’s waking or running.

9. If you want to stop the exercise or the Treadmill suddenly increases in speed due to an electronics

failure, please make sure to put your hands on the both uprights firstly, and then step on the ride rail

to avoid the damage by moving running belt.

10. Always attach the safety key rope to your clothing when using the treadmill. If the treadmill

suddenly increases in speed due to an electronics failure or the speed being inadvertently increased,

the treadmill will come to a sudden stop when the safety key is disengaged from the console. Pull off

the safety key and keep it well when you do not use the machine.

11. When the treadmill is not being used, the power cord should be unplugged and the safety key

should be removed.

12. Before starting any exercise program, consult with your physician or health professional. He or

she can help you to establish the exercise frequency, intensity (target heart zone) and time

appropriate to your particular age and physical condition. If you have any pain or tightness in your

chest, an irregular heartbeat, shortness of breath, feel faint or any discomfort while you exercise,

STOP IMMEDIATELY! Consult your physician before continuing.

13.If you observe any damage or wear on the mains plug or on any section of the mains lead then

please have these replaced immediately by a qualified electrician – do not attempt to change or

repair these yourself.

14.When the treadmill is not being used, please pull out the safety lock and store up it in order to

prevent the children and other people from incorrectly using of the treadmill.

15.The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

For your information, please note following electronical specification of Treadmill:

a. The input voltage: 240V±10% （50-60HZ）

b. Input current: ≤6A

C. The rating power: 1.5 Continuous HP

c. Time Range: 0:00-99:99

d. Speed Range: 0.8-16.00KM/H

e. Distance Range: 0.00-99.9KM

f. Calories range: 0-999CAL

g. Pulse range: 40-165times/ minute

IMPORTANT OPERATION INSTRUCTIONS

Be sure to read the entire manual before operating your machine.

Understand that changes in speed and incline do not occur immediately. Set your desired speed

on the computer console and release the adjustment key. The computer will obey the command

gradually.

Use caution while participating in other activities while walking on your treadmill; such as

watching television, reading, etc. These distractions may cause you lose balance or stray from

walking in the centre of the belt; which may result in serious injury.

In order to prevent losing balance and unexpected injury, NEVER mount or dismount the

treadmill while the belt is moving. This unit starts at a very low speed. Simply standing on the

belt during slow acceleration is proper before you have learned to operate this machine.

Always hold on to handrail while making control changes.

A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Insert the safety key will reset the

display.

Do not use excessive pressure on console control keys. They are precision set to function

properly with little finger pressure.

FOLDING INSTRUCTIONS

When folding the treadmill, pull out the handles on the holding spanner and place the main frame at

corresponding position. By then, the handle bolt will appear automatically. After that, move the

treadmill to another place so as to make it occupy a smaller area. Before usage, place the treadmill

to the position you would like to do exercise, and lift its main frame by right hand and pull out the

handles and place them on the floor slowly. Then the handles will appear automatically. Finally screw

down the handles firmly to release yourself from being worried about the safety during exercise.

PARTS LIST

# Name. Specification NR. # Name. Specification NR.

1 Computer See the program 1 38 Cross pan-headed

bolt ST4.2×15 17

2 Alloy cover See the program 1 39 Bowl cover 1

3 Flat washer D4 4 40 Semicircle knot Ф38 2

4 Cross pan-headed

bolt M4×12 4 41 Tube combine 1

5 M8 knob See the program 1 42 Square magnet 1

6 Foam grips Ф36×3×375 2 43 Motor 1.5HP 1

7 Trunk line1 2 44 Inner hexagonal

an-headed bolt M8×15 6

8 Tube 1 45 Sprint pin D8 6

9 Foam

column Ф36×3×375 2 46 Alloy cover 1

10 Cross pan-headed

olt ST3.5×30 2 47 Adjustable pin Ф5×1×12 2

11 Trunk line2 1 48 Transformer 1

12 Inner hexagonal

pan-headed bolt M10×20 4 49 Control board 1

13 washer D10 4

14 Flat washer D10 2

50 Magnetic ring Ф25×Ф15×12 1

15 Inner hexagonal

pan-headed bolt M10×65 2 51 Current wire Length 2060mm 1

16 Base combined 1 52 Current wire clasp 6N-4 1

17 washer 4 53 Protector 1

18 Cross pan-headed

bolt ST4.2×20 4 54 Switch KCD4 1

19 Round caps Ф38 2 55 Inner hexagonal

bolt M8×35 1

20 Running wheel Ф50×Ф8.2×22 2 56 Sleeve 1

21 Flat washer D8 10 57 Combination 1

22 Inner hexagonal

an-headed bolt M8×45 2 58 Nylon bolt M6 8

23 Sleeve 1 59 Trunk line3 Length

300

24 Cross pan-headed

olt M5×12 5

25 Flat washer D5 5

60 Motor cover(down) 1

26 Motor cover(up) 1 61 Detent pin 2

27 Foot rail 63×1070 2 62 pin 1

28 Cross

pan-headed bolt

ST4.2×15 head

Ф6 2 63 Tube combination 1

29 Belt 180J6 1 64 Inner hexagonal

olt M8×40 1

30 Inner hexagonal

olt M6×60 S5 3 65 Hollow bush 1

31 Front

roller 1 66 Tube combination 1

# Name. Specification NR. # Name. Specification NR.

32 Running belt 2300×400×1.6 1 67 Degree adjustable

M161

33 Inner hexagonal

sunk-headed bolt M6×30 S4 8 68 Blue connection

wire 1

34 Running board 1085×486×15 1 69 Red connection

wire 2

35 Rear roller 1 70 Stop washerD5 1

36 Cashion running

board

30×40×58 71 Nylon tube Length 200mm 1

37 Bowl cover 1 72 Wax tube Length 200mm 1

Assembly parts list:

Ⅳ

ⅢⅡⅠ

ⅥⅤ

Ⅶ

Hardware Contains:

Parts# Description Remarks Qty.

I Main frame1

II M8 knob 1

III Degree adjustable pin t 1

TOOLS AND NUTS LIST:

Part No. Name Specification Numbers

IV Inner hexagonal wrench S6 1

V Inner hexagonal wrench S5 1

VI Inner hexagonal wrench S4 1

VII Cross-head wrench S13，S14，S15 1

ASSEMBLY INSTRUCTIONS

1．Main frame and Support connection: Fix the Left support and Right support onto the Main frame

tightly with inner hexagonal pan-headed bolt (13) and the spring washer (22).

2.Fit the Table Block Associated onto the Left and Right support..

3．Take the computer(75) out from the carton, and fix it onto the Left and Right support with

adjustable bolt(34).

CAUTION:

1. Do not plug in power cord until final assembly is completed and motor cover is

installed.

2. Do not attempt to assemble the treadmill until the assembly instructions are

followed and the uprights are attached to the treadmill. Failure to follow this can result

in damage to the treadmill.

3. Your treadmill is a very heavy piece of exercise equipment and should be handled

with caution.

4. Children should not be allowed to play on the treadmill or move the treadmill deck up and down.

5. We recommend you have someone to assist you in lifting and assembling your Lifespan

treadmill. Following these instructions carefully which will make it’s easier to assemble

your Lifespan treadmill.

6. Ensure all fixings are tightly secured and the treadmill is well constructed.

OPERATION GUIDE

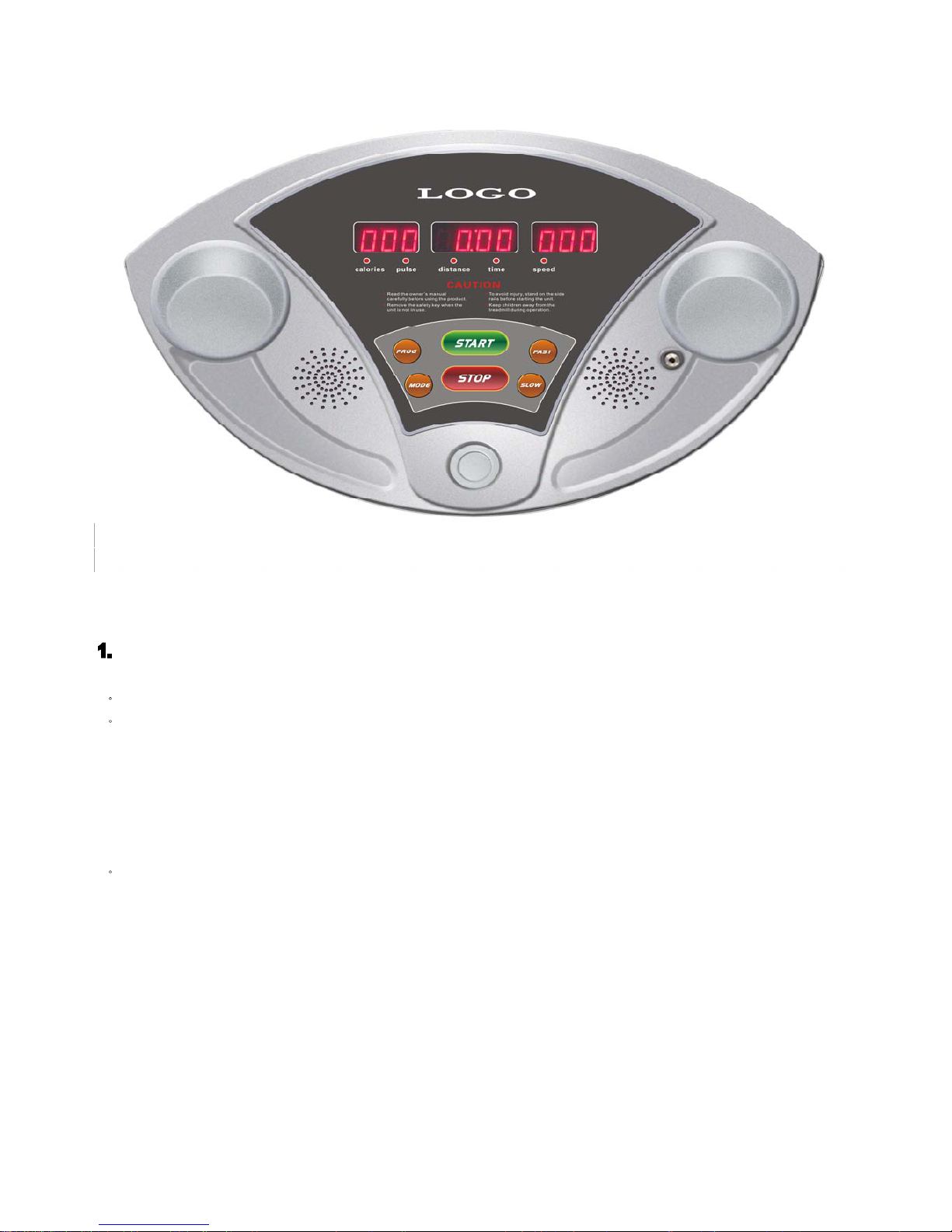

CONSOLE DISPLAYS, FEATURES AND FUNCTIONS:

Your treadmill comes with an innovative console designed to make your intense workout

fun and entertaining. Below are the features and benefits of the console:

Shown windows

4 LED windows: SPEED, TIMR/DIST,PULSE, CALORIES and 3 Arc indicator light.

1．Window SPEED: Displays the current speed. Speed Range: 0.8~16.00KM/H

2．Window PULSE: Displays the current heart rate. Pulse Range: 45~160 bpm. To use the

handgrip pulse sensor, firstly remove the films of clear plastic from the metal contacts on

the handgrip pulse sensor. Next, stand on the foot rails and hold the metal contacts with

your hands. Don’t move and shift your hands. When pulse is detected, your heart rate

will appear in the display. For the most accurate heart rate reading, continue to hold the

contacts for about 15 seconds. (For an official medical reading, please consult a

physician).

3．Window time/dist: Displays the current time and running distance. The corresponding

indicator light is on and the window displays time and distance separately every 5

seconds when the machine is default and working; The windows show programs No.

when the program is being setting, the windows show 3 seconds counting down, 3—2—1.

4. Windows calories: Displays dissipative calories. The calories range is 0.00-999.9Cal.

The window shows “0” if you waste the calories more than 999.9 cal and count on

sequentially. When you count down, the calorie is from “setting cal” to “0”.

5.Arc speed indicator light: The corresponding indicate is red when you reach to this

speed.

6.Arc pulse indicator light: The light “0” is on when it is pending; the light “30” is on when

the pulse is ≤“45 times/seconds”; the light “60” is on when the pulse is >”45

times/seconds” and ≤”75times/seconds”;All the lights will be on when the pulse is >＂

165times/seconds” by this way.
