Liebert 2700VA Manuel utilisateur

POWER AVAILABILITY

UPStation GXT 2U™ USER MANUAL

2700VA

208V

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . 1

GLOSSARY OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

MAJOR COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters . . . 5

Rectifier/Power Factor Correction (PFC) Circuit . . . . . . . . . . . . . . . . . . 5

Inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

DC to DC Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Dynamic Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

GXT 2U (Rear View) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tower UPS Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Rack-Mount UPS Conversion and Installation. . . . . . . . . . . . . . . . . . . . 9

External Battery Cabinet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CONTROLS AND INDICATORS. . . . . . . . . . . . . . . . . . . . . . . . . 14

ON/Alarm Silence/Manual Battery Test Button . . . . . . . . . . . . . . . . . . 14

Standby/Manual Bypass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Load/Battery Level Indicators (4 Green, 1 Amber) . . . . . . . . . . . . . . . 15

Fault Indicator LED (Red) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Bypass Indicator LED (Amber) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

UPS ON Indicator LED (Green) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Battery Indicator LED (Amber). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

AC Input Indicator LED (Green). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Output Voltage Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Normal Mode Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Bypass Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Battery Mode Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Battery Recharge Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

COMMUNICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Communications Interface Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Pins 4 & 5 - Remote Shutdown on Battery . . . . . . . . . . . . . . . . . . . . . 19

Pins 5 & 6 - Any-Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Auto-Enable Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Pin 6 Logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

UPS Intelligent Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

CONFIGURATION PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 22

GXT 2U Configuration Program Abilities . . . . . . . . . . . . . . . . . . . . . . . 22

What You Will Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Internal Battery Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

BATTERY CABINET SPECIFICATIONS . . . . . . . . . . . . . . . . . . . 31

BATTERY RUN TIMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Product Warranty Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important safety instructions. Read all safety, instal-

lation, and operating instructions before operating the Uninterruptible

Power System (UPS). Adhere to all warnings on the unit and in this man-

ual. Follow all operating and user instructions. Individuals without previ-

ous training can install and operate this equipment.

It is not intended for use with life support and other designated “critical”

devices. Maximum load must not exceed that shown on the UPS rating

label. The UPS is designed for data processing equipment. If uncertain,

consult your local dealer or Liebert representative.

This UPS is designed for use on a properly grounded (earthed), 50Hz or

60Hz, 208V supply (programmable for 200, 208, 220, 230, and 240VAC

output). Installation instructions and warning notices are located in this

manual.

ELECTROMAGNETIC COMPATIBILITY—The GXT 2U™ Series com-

plies with the limits for a CLASS A DIGITAL DEVICE, PURSUANT TO

Part 15 of FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may

cause undesired operation. Operating this device in a residential area is

likely to cause harmful interference that users must correct at their own

expense.

Operate the UPS in an indoor environment only in an ambient tempera-

ture range of 32°F to +104°F (0°C to +40°C). Install it in a clean environ-

ment, free from moisture, flammable liquids, gases and corrosive

substances.

!WARNING

Opening or removing the cover may expose you to lethal

voltages within this unit even when it is apparently not

operating and the input wiring is disconnected from the

electrical source. Observe all cautions and warnings in this

manual. Failure to do so MAY result in serious injury or

death. Refer all UPS and battery service to qualified service

personnel. Do not attempt to service this product yourself.

Never work alone.

This UPS contains no user serviceable parts except the internal battery

pack. The UPS ON/Standby push buttons do not electrically isolate inter-

nal parts. Under no circumstances attempt to gain access internally other

than to replace the batteries due to risk of electric shock or burn. Do not

continue to use the UPS if the front panel indications are not in accor-

dance with these operating instructions or if the UPS performance alters

in use. Refer all faults to your local dealer, Liebert representative or the

Liebert Worldwide Support Group.

Servicing of batteries should be performed or supervised by personnel

knowledgeable of batteries and the required precautions. Keep unautho-

rized personnel away from the batteries. PROPER DISPOSAL OF BAT-

TERIES IS REQUIRED. REFER TO YOUR LOCAL LAWS AND

REGULATIONS FOR BATTERY DISPOSAL REQUIREMENTS.

Never block or insert any object into the ventilation holes or other open-

ings of the UPS.

DO NOT CONNECT equipment that could overload the UPS or demand

half-wave rectification from the UPS, for example: electric drills, vacuum

cleaners, laser printers or hairdryers.

Storing magnetic media on top of the UPS may result in data loss or cor-

ruption.

Turn the UPS off and isolate the UPS before cleaning; use only a soft

cloth, never liquid or aerosol cleaners. Keep the front and rear vents free

of dust accumulation that could restrict airflow.

When replacing batteries, replace with the same Liebert authorized

replacement battery kits.

!CAUTION

Do not dispose of battery or batteries in a fire. The battery

may explode.

Do not open or mutilate the battery or batteries. Released

electrolyte is harmful to skin and eyes. It may be toxic.

!CAUTION

A battery can present a risk of electrical shock and high

short circuit current. The following precautions should be

observed when working on batteries:

• Remove watches, rings, and other metal objects.

• Use tools with insulated handles.

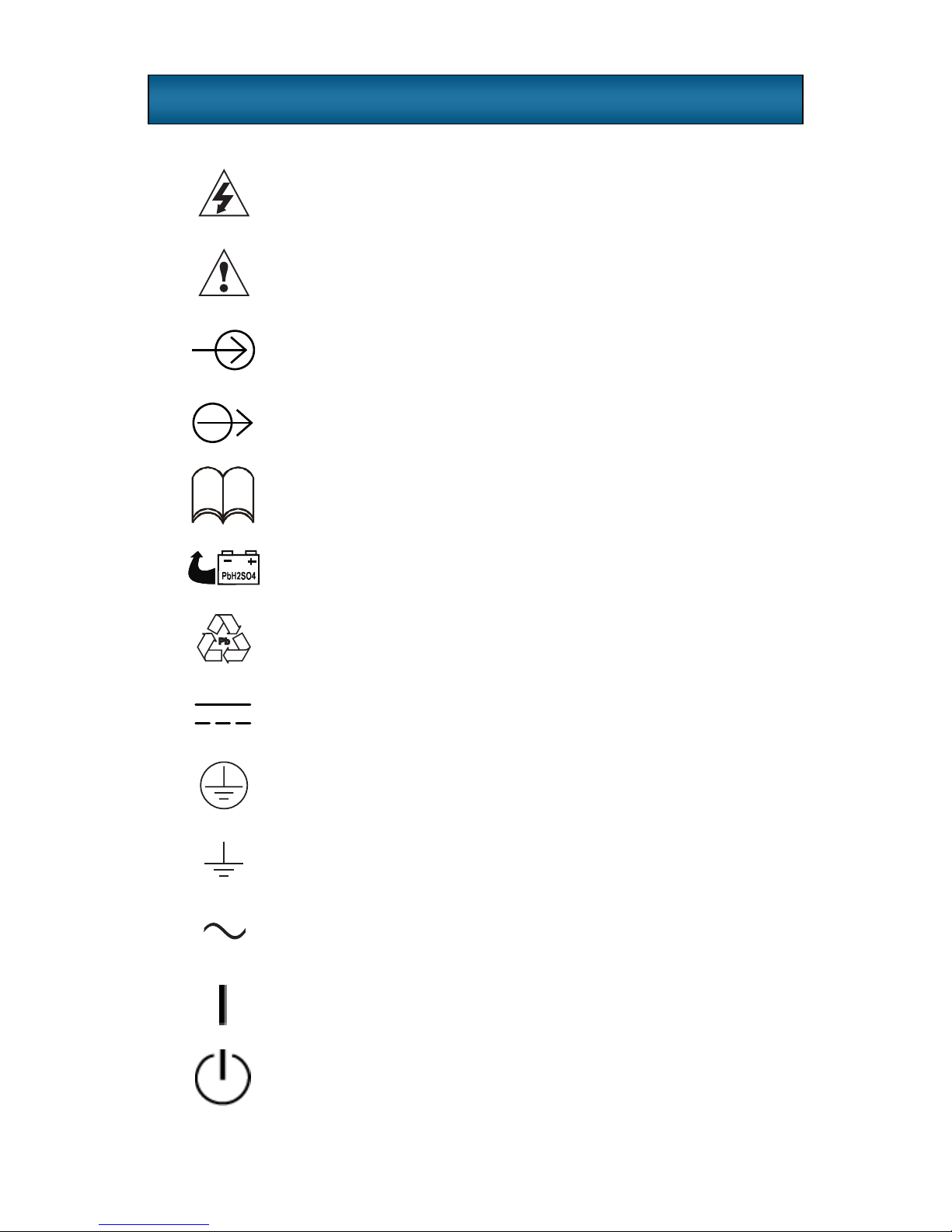

GLOSSARY OF SYMBOLS

•

Risk of electrical shock

Indicates caution followed by important instructions

AC input

AC output

Requests the user to consult the manual

Indicates the unit contains a valve-regulated lead acid

battery

Recycle

DC voltage

Equipment grounding conductor

Bonded to ground

AC voltage

Standby

INTRODUCTION

Congratulations on your choice of the Liebert UPStation GXT 2U™

Uninterruptible Power System (UPS). It provides conditioned power to

microcomputers and other sensitive electronic equipment.

Upon generation, AC power is clean and stable. However, during trans-

mission and distribution it may be subject to voltage sags, spikes, or com-

plete power failure that may interrupt computer operations, cause data

loss, or even damage equipment. The UPStation GXT 2U protects equip-

ment from these disturbances.

The UPStation GXT 2U is rated for 2700 VA, 1890 watts. Complete model

specifications appear at the end of this manual.

The UPStation GXT 2U is a compact, “on-line” UPS. An on-line UPS con-

tinuously conditions and regulates its output voltage, whether utility power

is present or not. It supplies connected equipment with clean sinewave

power. Sensitive electronic equipment operates best from sinewave

power.

For ease of use, the UPStation GXT 2U features a light-emitting diode

(LED) display to indicate either load percentage or battery capacity

depending upon the mode of operation. It also provides self-diagnostic

tests, a combination ON/Alarm Silence/Manual Battery Test button, a

Standby button, user configurable program, and two levels of alarms

when the unit is operating on battery.

The UPStation GXT 2U has an interface port for communication between

the UPS and a network server or other computer systems. This port pro-

vides detailed operating information including voltages, currents, and

alarm status to the host system when used in conjunction with Liebert

MultiLink™ software. MultiLink software can also remotely control UPS

operation.

MAJOR COMPONENTS

TRANSIENT VOLTAGE SURGE SUPPRESSION (TVSS) AND EMI/RFI

FILTERS

These UPS components provide surge protection and filter both electro-

magnetic interference (EMI) and radio frequency interference (RFI). They

minimize any surges or interference present in the utility line and keep the

sensitive equipment protected.

RECTIFIER/POWER FACTOR CORRECTION (PFC) CIRCUIT

In normal operation, the rectifier/power factor correction (PFC) circuit con-

verts utility AC power to regulated DC power for use by the inverter while

ensuring that the waveshape of the input current used by the UPS is near

ideal. Extracting this sinewave input current achieves two objectives:

• The utility power is used as efficiently as possible by the UPS.

• The amount of distortion reflected on the utility is reduced.

This results in cleaner power being available to other devices in the build-

ing not being protected by the UPStation GXT 2U.

INVERTER

In normal operation, the inverter utilizes the DC output of the power factor

correction circuit and inverts it into precise, regulated sinewave AC power.

Upon a utility power failure, the inverter receives its required energy from

the battery through the DC to DC converter. In both modes of operation,

the UPS inverter is on-line and continuously generating clean, precise,

regulated AC output power.

Input Output

Inverter

Battery

Charger

DC to DC

Converter

Rectifier

/PFC

TVSS &

EMI/RFI

Filters

Dynamic

Bypass

BATTERY CHARGER

The battery charger utilizes energy from the utility power and precisely

regulates it to continuously “float charge” the batteries. The batteries are

being charged whenever the UPStation GXT 2U is plugged in, even when

the UPS is not turned on.

DC TO DC CONVERTER

The DC to DC converter utilizes energy from the battery system and

raises the DC voltage to the optimum operating voltage for the inverter.

This allows the inverter to operate continuously at its optimum efficiency

and voltage, thus increasing reliability.

BATTERY

The UPStation GXT 2U utilizes valve-regulated, nonspillable, flame retar-

dant, lead acid batteries. To maintain battery design life, operate the UPS

in an ambient temperature of 68°F to 77°F (20°C to 25°C). Optional exter-

nal battery cabinets are available to extend battery run times.

DYNAMIC BYPASS

The UPStation GXT 2U provides an alternate path for utility power to the

connected load in the unlikely event of a UPS malfunction. Should the

UPS have an overload, overtemperature, or UPS failure condition, the

UPS automatically transfers the connected load to bypass. Bypass opera-

tion is indicated by an audible alarm and illuminated amber Bypass LED

(other LEDs may be illuminated to indicate the diagnosed problem). To

manually transfer the connected load from the inverter to bypass, press

the Standby button once.

NOTE

The bypass power path does NOT protect the connected

equipment from disturbances on the utility supply.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Liebert UPS

Liebert

Liebert NX Manuel utilisateur

Liebert

Liebert GXT3-240TBATTCE Manuel utilisateur

Liebert

Liebert UPStation GXT Manuel utilisateur

Liebert

Liebert 7200 Series Manuel utilisateur

Liebert

Liebert PSA1000MT3-120U Manuel utilisateur

Liebert

Liebert 700-2200 VA Manuel utilisateur

Liebert

Liebert Adapt BX 10K Manuel utilisateur

Liebert

Liebert PST4 Manuel utilisateur

Liebert

Liebert GXT2-10000RT208 Manuel utilisateur

Liebert

Liebert UPStation GX Manuel utilisateur

Liebert

Liebert GXT3-5000RT230 Manuel utilisateur

Liebert

Liebert Series 300 Manuel d'instructions

Liebert

Liebert Series 300 Manuel utilisateur

Liebert

Liebert ITA 6kVA Manuel utilisateur

Liebert

Liebert UPStation GXT 2U Manuel utilisateur

Liebert

Liebert EXM BDC Manuel utilisateur

Liebert

Liebert PowerSure PSI 1000 - 3000VA 60 Hz 120V Manuel utilisateur

Liebert

Liebert PSI XR Manuel utilisateur

Liebert

Liebert PowerSure PS250-60S Manuel utilisateur

Liebert

Liebert PowerSure PSP Manuel utilisateur

Liebert

Liebert GXT3 RT208 series Manuel utilisateur

Liebert

Liebert Nfinity 208 V / 240 V 60Hz Manuel utilisateur

Liebert

Liebert UPS Manuel utilisateur

Liebert

Liebert PowerSure PSA 350VA to 1000VA Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
