Installation Manual

Wall Mount

Support

Before use of this product, please

read “Safety Precautions” to

ensure trouble-free use.

After reading the installation

manual, store it in a convenient

place for future reference.

WB22EGB

www.lg.com

Printed in Korea

*MFL717954132204rev00*

ENGLISH.index

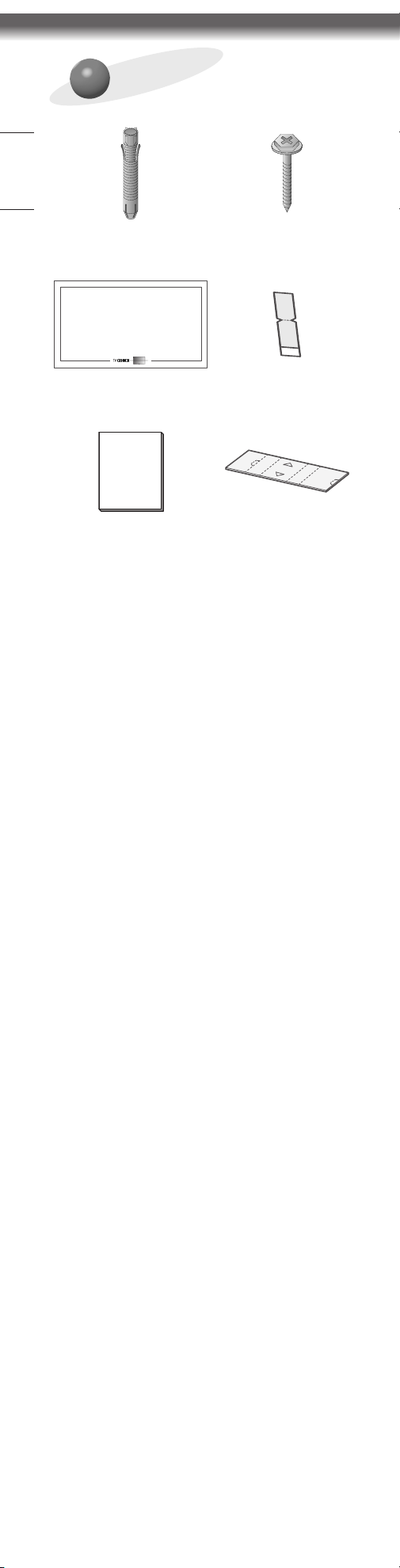

Accessories

Wall mount fixing anchors

8pcs

Wall mount fixing

screws 8pcs

Guide paper Guide label

Blue: 2 pcs

Red: 2 pcs

Installation Manual Paper BOX

ENGLISH.index

Safety Precautions

- Professional installers should read this manual

carefully to ensure proper installation.

- Professional installers should forward this manual

to customers after installation and encourage them

to read and store it in a convenient place for future

reference.

After reading the installation manual, keep it in a

convenient place for future reference.

Caution

Ask a professional installer appointed by the store

for installation of the product.

Installation by someone other than a professional

installer is extremely dangerous and may result in

personal injury.

Contact a professional installer appointed by the

store prior to moving or replacing the product after

installation.

Installation is a technical task and safety issues may

arise if an individual attempts to install or move the

product personally.

When installing the product on a wall, do not hang

the power line or signal cables from the back of the

TV.

This can damage the cords, resulting in a fire, electrical

shock or malfunction of the product.

Do not install the product in an unstable site that

cannot withstand its weight.

If the installation site lacks sufficient rigidity, the

product may fall and cause personal injury.

Do not hang on the product or subject it to severe

impact after installation.

Doing so may cause the product to fall and cause

personal injury.

ENGLISH.index

Warning

Install the product according to the instructions in

the installation manual.

Failure to install the product according to the

instructions in the installation manual can result in

serious personal injury or product damage.

Make sure a wall is available prior to proceeding

with installation. Make use of the anchors and

screws provided with the product.

Use of any unauthorized anchors or screws may not

support the product's weight, which poses safety risks.

Do not wipe the product with a wet towel or use

any heating equipment or humidifier under the place

where the product is installed.

Liquid water or vapor may enter the product and

excessive heat may cause fire, electric shock, or

malfunction.

Unplug the product’s power cord from the wall

outlet before installing.

Installing the product while the power cord is plugged

in may result in electric shock or fire.

Connect the product with the supplied cable. Use of

an unauthorized cable may result in damage by

friction with the wall. Make sure to use the supplied

cable gender.

(This may vary by model.)

Be sure to have at least two people when installing

the product or adjusting the product’s height after

installation.

Attempting to perform installation or adjustments

personally may result in personal injury or damage to

the product.

When drilling in the wall for installation, be sure to

use drill bits and drills of the specified diameter.

Follow the instructions for the hole depth.

Drilling and installing the product in ways other than

specified in the installation manual may result in an

unstable installation and potential safety issues.

Do not install the product near a fire sprinkler or

detector, a place where vibration or shock may

occur or near a high-voltage wire or power source.

Do not install the product with bare hands. Be sure

to wear work gloves.

Attempting installation without work gloves may

cause personal injury.

ENGLISH.index

Before Installation

* Do not use the product for any purpose other than

installing the TV on a wall.

* Avoid product damage and safety accidents caused by

careless installing or use of improper or unauthorized

wall mount.

* Follow the instructions in the installation manual for a

convenient installation of the wall mount.

* Immediately discontinue installation and contact the

service center if you cannot fully understand the

installation process.

Use a professional installer if any installation issues

remain after the inquiry.

* Installation of this product on a concrete wall or wood

stud is recommended. Installation of this product on

other surfaces (Dry wall, plywood, bricks, etc.) is not

recommended. Improper installation may result in the

product falling.

* When installing the Full Contact Wall Mount, the TV

may not be contacted firmly against the wall due to

some wall conditions.

* Install the product only on a vertical wall.

Do not install on a tilted wall that exceeds building

standards or on the heavily titled wall or ceiling.

LG is not responsible for problems caused by improper

installation of the product, e.g., heavily tilted walls and

ceilings.

* Check the enclosed accessories before installation. We

are not responsible for any lost or damaged accessories

after the inner packaging is opened.

* When an infant or small child swallows the enclosed

accessories, various safety accidents such as choking

may occur. Keep the enclosed accessories out of the

reach of infants and children.

* When tightening screws, tighten until fully snug. Avoid

using excessive force when tightening the screws.

Doing so may damage the wall and product or reduce

the rigidity or performance of the product.

* Avoid installing a TV that exceeds the specified tensile

load, and do not allow any external force to be applied

to the product.

* Avoid accidents by using work tools with care during

installation.

* After installing the product, ensure its use in close

contact with a wall.

If the product is not positioned against a wall, the

product may be unstable or damaged.

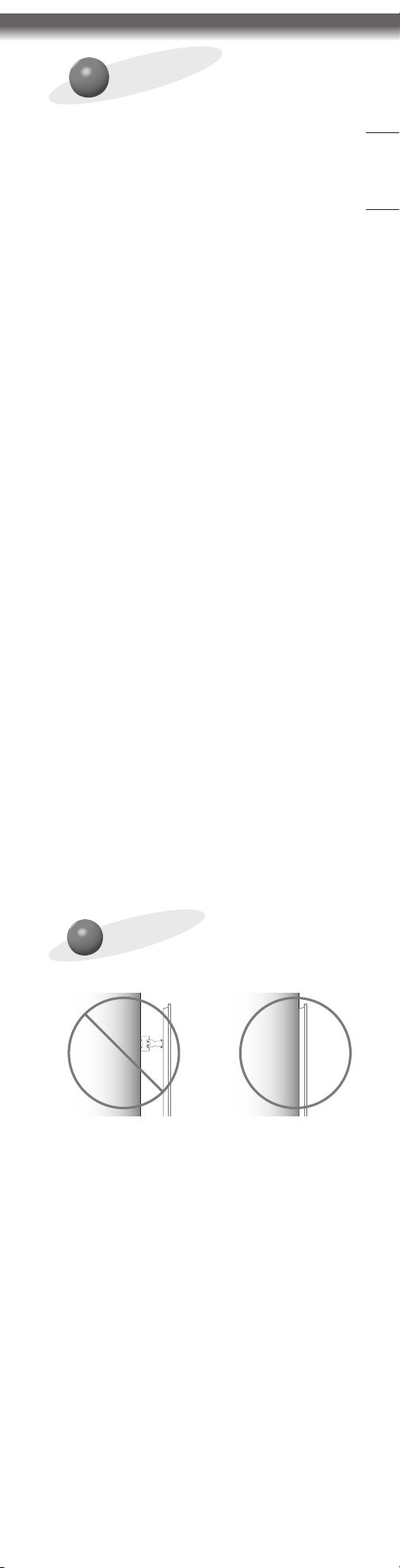

"+" shaped screwdriver (manual or electric) / level / drill /

Ø8mm drill bit for concrete or Ø4mm drill bit for steel

How to x the TV on

the wall

* Please use the TV close to the wall after installation.

ENGLISH.index

How to install

-The appearance of tools may differ from the

enclosed images.

-Always consult a professional when installing a wall

mount.

Watch the installation video

For more information, watch the installation video on

your smart device.

Wearing gloves

Attaching the guide paper to

the wall

Attach the guide paper to the wall when determining

the TV’s installation site.

-Ensure the guide paper is level when attaching it

to the wall.

-When attaching the paper, consider the positions

of the outline and center of the TV.

How to fix anchors and screws

Please make sure that:

-Check that the material and thickness of the wall

and finishing material comply with the installation

manual. Before beginning the mounting process, you

must be sure the wall is able to support the weight

of the TV.

-Should use the enclosed anchors and screws on

crack-free concrete walls.

-Never install the product on a plasterboard or wall

made of paper or medium-density fiberboard (MDF).

When it is necessary to install the product on such

wall, anchor screws must be fastened to retaining

walls (concrete) or wood Stud inside the finishing

material.

-The wall mount should be attached to a stud.This

usually will not be a problem, but depending on

individual circumstances, there may be cases when

the ability to mount into a studis not possible. In

this case, there are a variety of drywall anchors, such

as toggle bolts, which may provide a solution.If using

drywall anchors, please be sure the anchors and the

wall have the ability to support the weight of your

TV. Please note that the supplied anchors may not be

the correct ones for your individual situation, so you

should check with a local professional.

-Other unspecified walls must be capable of

supporting pullout loads of over 70 kgf (686 N) and

shear loads of over 100 kgf (980 N) per fastener.

-Use an Ø 8 mm drill bit for concrete and a hammer

(impact) drill or Ø 4 mm drill bit for wood stud to drill

holes.

ENGLISH.index

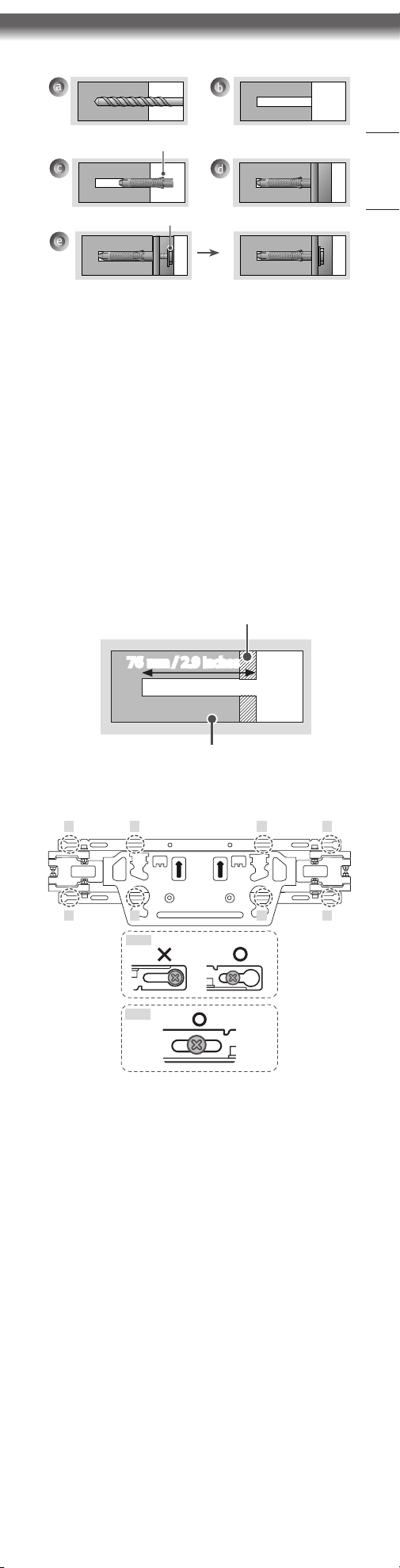

(For installation on concrete wall)

Screws for fixing the wall mount

Anchors for fixing the wall mount

a. Drill holes in anchor locations with a drill bit of Ø 8

mm to a depth of 80 mm (3.1 inches) to 100 mm

(3.9 inches).

b. Clean the drilled holes.

c. Insert the enclosed anchors for fixing the wall mount

into the holes. (Use a hammer when inserting

anchors.)

d. Push the wall mount support closely toward the wall

to match the hole locations.

e. Tighten screws for fixing the wall mount to the

holes. At this time, tighten the screws with the

torque more than 45 kgf/cm (39.0 lbf/in) to 60 kgf/

cm (52.0 lbf/in).

(For installation on wood stud)

Use the Ø 4 mm drill bit for wood to drill holes with the

depth of 76 mm (2.9 inches). (Clean the drilled hole.)

Drywall

Wood stud

76mm / 2.9 inches

Without using the wall mounting anchor, fasten the

wall mounting screw directly to the wood stud.

1 5 6 2

3 7 8 4

1 ~ 4

5 ~ 8

ENGLISH.index

How to install the wall mount

support

-It is recommended that this product be installed

only on concrete walls. Installing it elsewhere (e.g.

walls made of wood, plywood, bricks, etc.) is not

recommended and may result in the product

falling.

→Align the wall mount support with the wall where

you want to install the wall mount support, mark

the places where the wall screws will be fixed and

remove the wall mount support.

→Refer to the following picture to fix the wall mount

support.

→Use a level to verify that the wall mount is

positioned horizontally.

→If the screw cannot be tightened in the designated

position, do so in the position nearest the original.

However, do not change more than 2 positions from

the designated position.

→Fix 2 wall mount fixing screws each on the top left

and right and 2 others each on the bottom left and

right.

→At this time, use a "+" shaped screwdriver (manual

or electric) to turn the screw so that the wall, the

wall mount support, and the screws come into close

contact.

ENGLISH.index

How to combine the wall

mount support and TV

Pull the wall mount bracket installed on the wall

forward as much as possible.

Use tools if necessary.

Fold the installation guide label into an ‘L’ shape.

Take out two blue labels from the enclosed plastic

bag in the box and fold them.

Attach the blue installation guide label, folded in an

‘L’ shape, to the top surface of the wall mount.

Make sure the adhesive side of the installation

guide label is attached.

Attach them along the guideline shown on the top

of the wall mount. (2spots on the left and right)

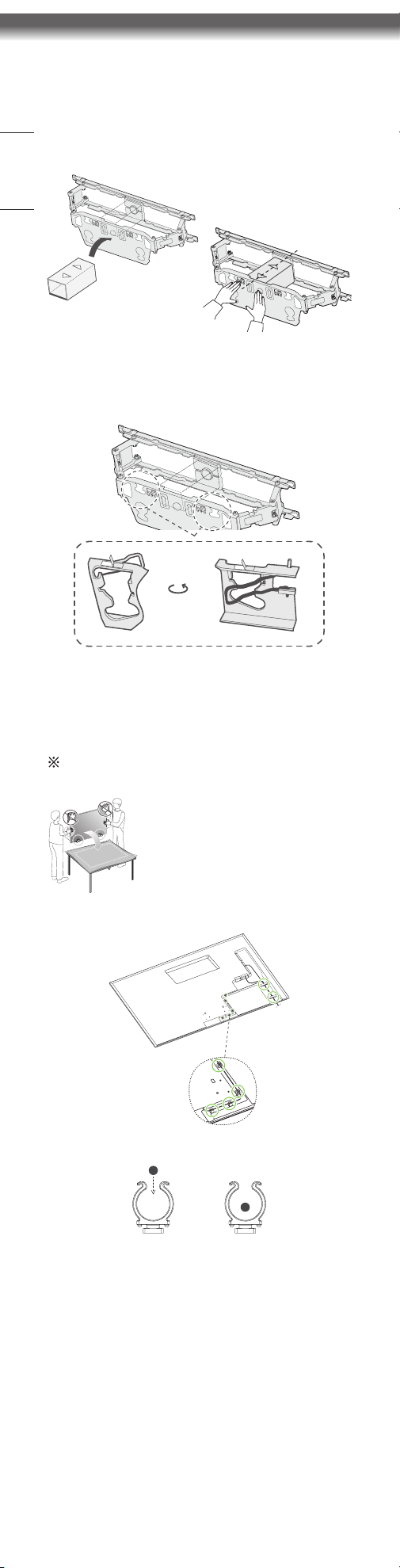

Fold the anti-push paper into a box.

Take out the anti-push paper, and fold it into a box

along the folding lines.

Press the marked part to fix the shape.

ENGLISH.index

Insert the anti-push paper box inside the bracket to

prevent the bracket from being pushed back while

installing the TV.

Place the box with the front/back arrows on the

box facing up.

After inserting the anti-push paper box, push the

bracket so that the box does not fall off.

Push the two safety pins on the left and right sides

of the bracket to open them.

Connect the cables while the TV is lying down and

organize them. For OLED77/83G2* models, first fix

the power cord as shown in the figure.

The number of fixed holders may vary depending on

the model.

Table des matières

Autres manuels LG Support et étagère

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
