Safety instructions
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
Please read these safety precautions carefully before using the product.
•When lifting or moving the product, at least two people are
required due to the heavy weight of the product.
-The product may fall down, causing a malfunction or
injury.
•Do not let children hang on or climb onto the product.
-The product may fall down, causing an injury or even
death.
•Do not install the product in an area which is unstable,
vibrating or where the product is not completely supported
(e.g. a shaky or tilted shelf).
-The product may fall down or overturn, causing an injury
or malfunction.
•Put the product on a flat and firm floor.
-The product may fall and cause an injury.
•When moving or handling a product assembled with the
Stand, be cautious about damaging the exterior of the
product.
•When there is a stain or fingerprint left on the surface, wipe
it off gently.
-When removing a stain, do not use excessive force. Wiping
with excessive force may cause scratches or discoloration
on the product.
Assembling and Preparing

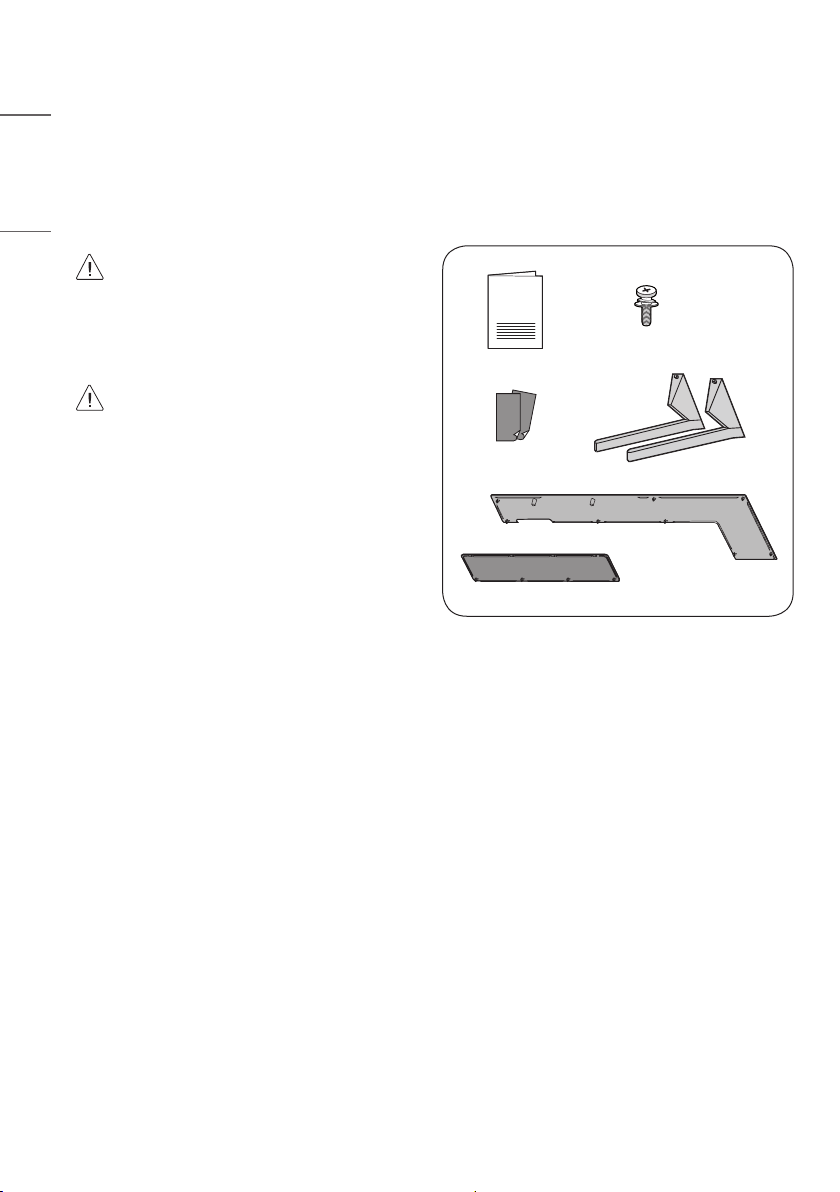

Accessories
Head
washer
ղࢶQU
৮ࢿػࠂઁೞৈ
1BUIGJOEFS6OJUF৻ࢶઁ
QU"MJHOTUSPLFPVUTJEF
X 4
(M4 x L20)
Head
washer
ղࢶQU
৮ࢿػࠂઁೞৈ
1BUIGJOEFS6OJUF৻ࢶઁ
QU"MJHOTUSPLFPVUTJEF
Head
washer
ղࢶQU
৮ࢿػࠂઁೞৈ
1BUIGJOEFS6OJUF৻ࢶઁ
QU"MJHOTUSPLFPVUTJEF
3
ENGLISH_Index

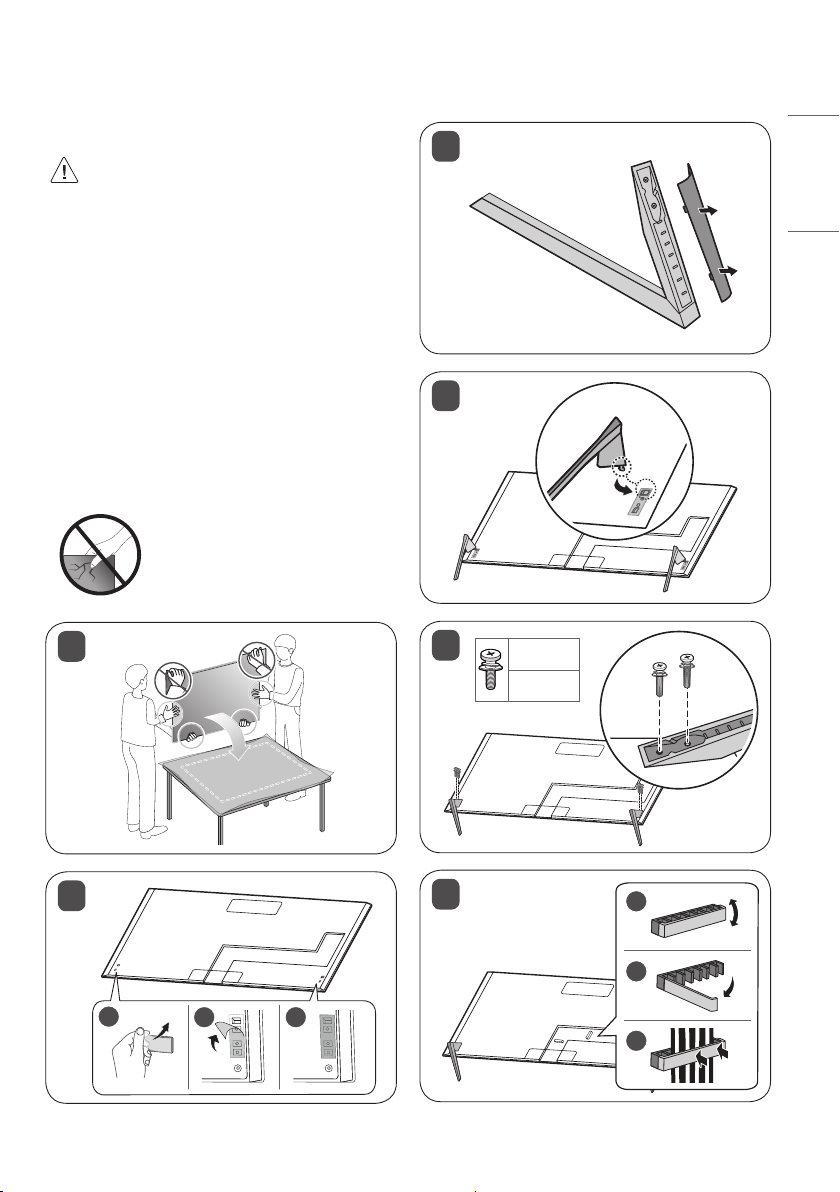

How to Assemble the Stand
•When assembling the stand, put the product on a table or a
flat floor with its screen facing downwards. Before this place
a soft, fluffy cloth on the surface then put the product on top
to prevent the screen from being damaged.
•When assembling the stand, check if the screws are
completely fastened. (If they are not completely fastened,
the product may lean forward after being installed.) Avoid
fastening the screws with excessive force because otherwise
the joint part of the screws may be worn out, and the screws
might come off.
•When assembling the product, do not use foreign substances
(oil, lubricant, etc.) on the screws.
-It may cause damage to the product.
•Before installing a wall mount support, disassemble the
Stand by conducting the method to assemble the stand in a
reverse order.
1
2
123
3
4
5
61
2
3
Head
washer
ղࢶQU
৮ࢿػࠂઁೞৈ
1BUIGJOEFS6OJUF৻ࢶઁ
QU"MJHOTUSPLFPVUTJEF
x 4
M4 x L20
4
ENGLISH_Index
7
1
2
8
9
10
11
12
13
5
ENGLISH_Index
Mounting on a Table
1 Lift and tilt the TV into its upright position on a table.
• Leave a 10cm (4 inches) (minimum) space from the wall for
proper ventilation.
10cm
10cm
(4 inches)
10cm
10cm
10cm
2 Connect the power cord to a wall outlet.
•Do not apply foreign substances (oils, lubricants, etc.) to the
screw parts when assembling the product. (Doing so may
damage the product.)
•If you install theTV on a stand, you need to take actions
to prevent the product from overturning. Otherwise, the
product may fall over, which may cause injury.
•Do not use any unapproved items to ensure the safety and
product life span.
•Any damage or injuries caused by using unapproved items
are not covered by the warranty.
•Make sure that the screws are inserted correctly and fastened
securely. (If they are not fastened securely enough, the TV
may tilt forward after being installed.) Do not use too much
force and over tighten the screws; otherwise screw may be
damaged and not tighten correctly.
•Only use the authorized stand and wall mounting bracket
made specifically for LG products.
-Pursuant to Consumer Protection Law, LG Electronics will
not be held responsible for any product malfunction,
material damage or injury caused by using products not
authorized by LG Electronics.
Securing the TV to a Wall
1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back
of the TV.
• If there are bolts inserted at the eye-bolts position, remove the
bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the
location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
•Use a platform or cabinet that is strong and large enough to support
the TV securely.
•Brackets, bolts and ropes are not provided. You can obtain additional
accessories from your local dealer.
6
ENGLISH_Index
Specifications
AM-ST20AA
Model 55WS960H
Width x Depth x Height (mm) 21 x 271 x 177
(inches) 0.8 x 10.6 x 6.9
Weight (kg) 0.7
(lbs) 1.5
AM-ST20AB
Model 65WS960H
Width x Depth x Height (mm) 21 x 284 x 177
(inches) 0.8 x 11.1 x 6.9
Weigh (kg) 0.8
(lbs) 1.7
7
ENGLISH_Index
The model and serial number of the product are
located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
