LG PL-S860 Manuel utilisateur

www.lg.com

Please read the Safety Precautions carefully before using this product.

After reading this manual, please keep it in an easily accessible location for future

reference.

PL-S860

User Manual

Single Digital

Pillar

P/No: MFL69559213 (1609-REV01)

Printed in Korea

*MFL69559213*

ENGLISH

SAFETY PRECAUTIONS

Please read this manual carefully to properly install this product.

After reading the manual, please keep it in an easily accessible location for future reference.

WARNING

• Follow the instructions in the manual to properly install this product.

-Failure to follow the instructions in the manual can result in personal injury or product damage.

• After the product is installed, do not stand on or lean against the product.

-This may cause the product to fall and cause injury.

• Protect the product from severe impact after installation.

-This may cause the product to fall and cause injury.

• Always use the product on a flat surface.

-If used on an uneven or unsteady surface, the product may fall and cause injury.

• Do not attach other objects to the stand aside from displays.

-The objects may fall and cause personal injury or damage.

• Once displays have been installed, only use them indoors.

-If used outdoors, moisture may enter the units and result in fire, electric shock or product malfunction.

• Do not modify or alter the product.

CAUTION

• Before moving the product, disconnect the power cord from any power outlets.

-Moving the product while the power cord is connected may result in electric shock or fire.

• Do not clean the product with a wet towel, and do not place a heater or humidifier beneath it.

-If moisture, steam or heat enters the product, this may cause fire, electric shock or product malfunction.

• Wear work gloves when installing the product. Do not use your bare hands.

-Not wearing gloves may expose you to risk of injury.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or

other reproductive harm. Wash hands after handling.

ENGLISH

ASSEMBLY AND PREPARATION

CAUTION

• Be careful when installing and using the product to prevent product damage or safety hazards.

• If the instructions in the manual are unclear, stop the installation process and contact the service center.

• Check that the accessories provided with the product are all included before beginning installation. LG

Electronics is not liable for any damage or loss of the accessories after the package has been opened.

• Make sure that the accessories are kept out of reach of children to prevent accidents, such as choking

due to swallowing small parts.

• Make sure that the screws are fastened tight.

• Applying excessive force to the screws may cause damage to the wall, affect product performance or

cause product damage.

• Make sure that the installed display does not exceed the specified load and that no external force is

applied to it.

• In order to prevent any accidents, take caution when handling tools during the installation.

NOTE

• Save the content you intend to use to your monitor set before installing the Single Digital Pillar.

ENGLISH

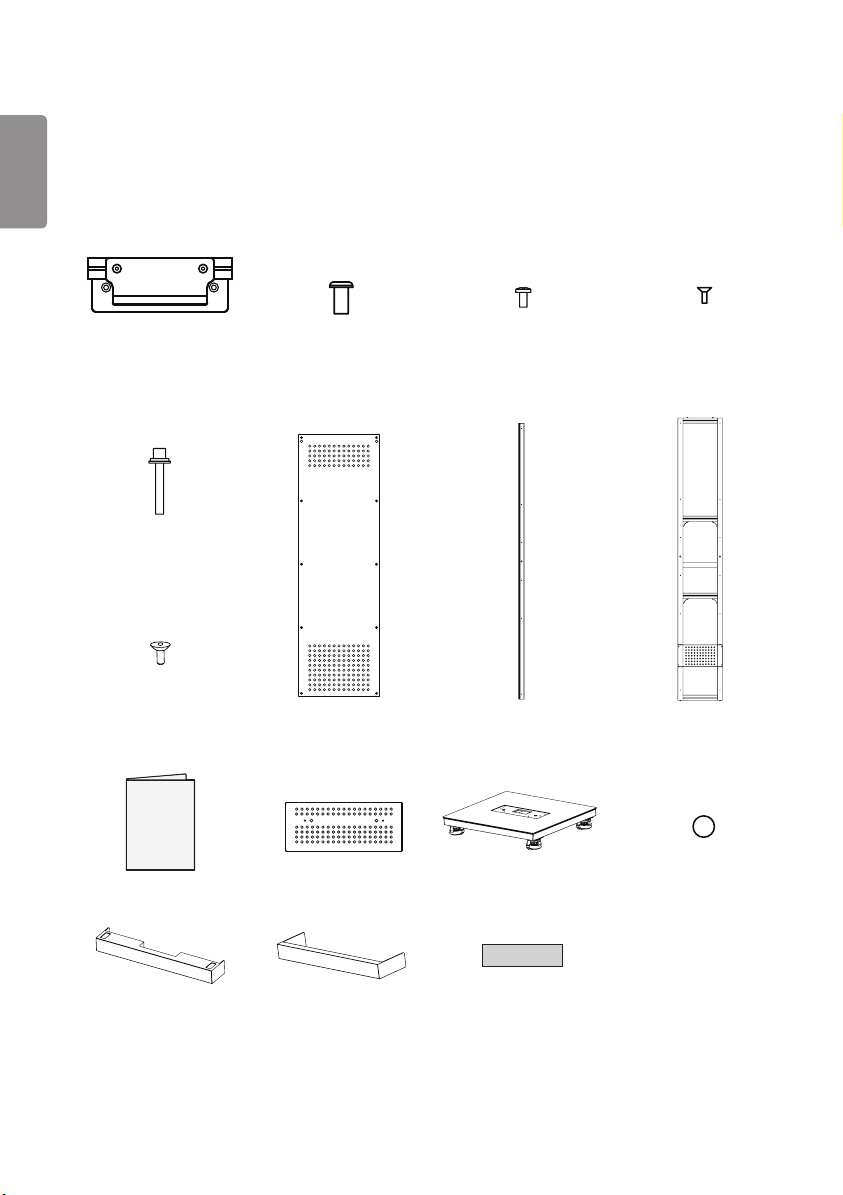

Accessories

Accessories are subject to change without prior notice to improve the performance of the product, and new

accessories may be added as well.

The illustrations in this manual may differ from the actual product and accessories.

Fastening bracket x 2 Angle bracket screw

(M8 x L15) x 4

Stand/Side/Back/Top

cover screw

(M4 x L12) x 38

Side cover screw

(M4 x L12) x 12

Pillar screw

(M8 x L50) x 2

Fastening bracket screw

(M8 x L15) x 4 Back cover x 2 Side cover x 2 Pillar x 1

User Manual Top cover x 1 Stand base x 1 Rubber x 12

Front Stand Bracket x 1 Rear Stand Bracket x 1 Double-sided tape x 1

Required Tools

Wrench, Screwdriver, Ladder

ENGLISH

Assembly

The images may differ from the actual product.

WARNING

• For safety, at least two people must work together to install the product.

• Make sure to use gloves or other protective equipment during assembly for safety.

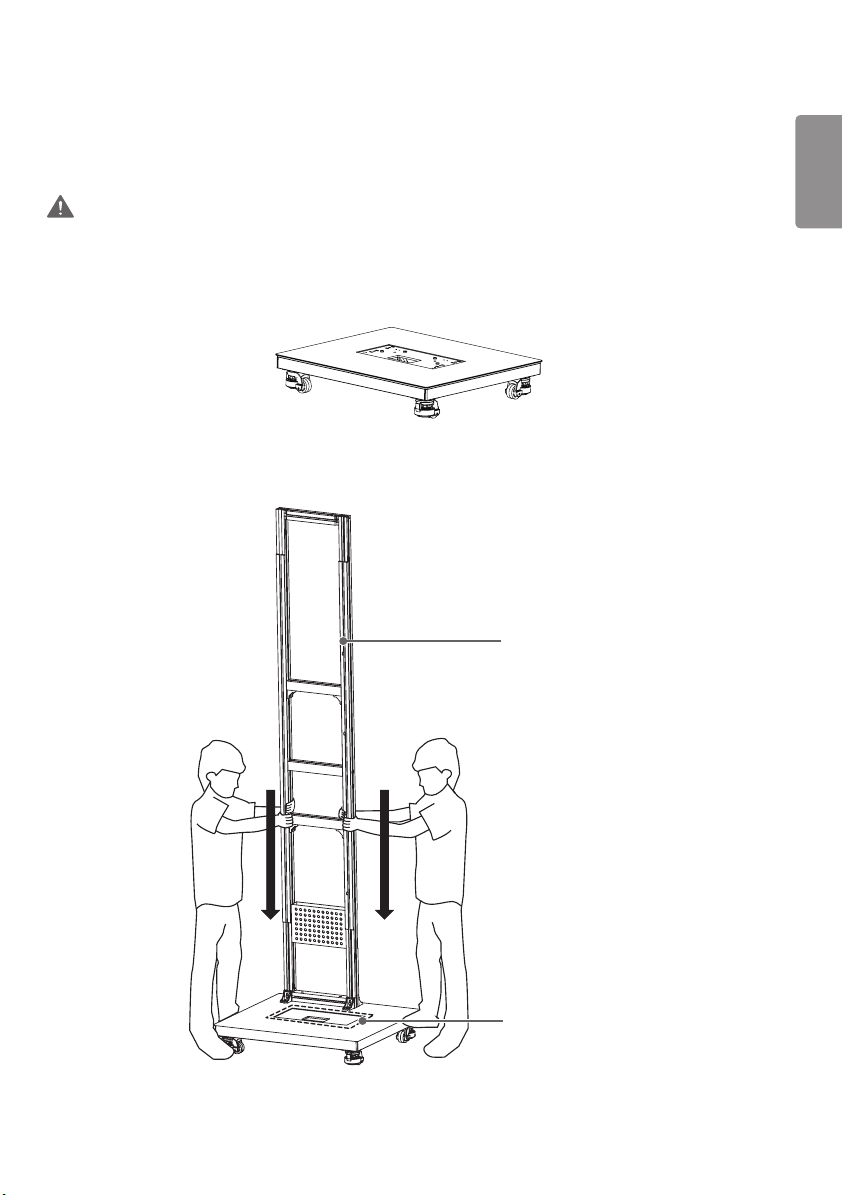

1 Place the stand base on a flat surface.

2 Place the pillar on the stand base, aligning it with the grooves in the base.

Pillar

Stand base grooves

ENGLISH

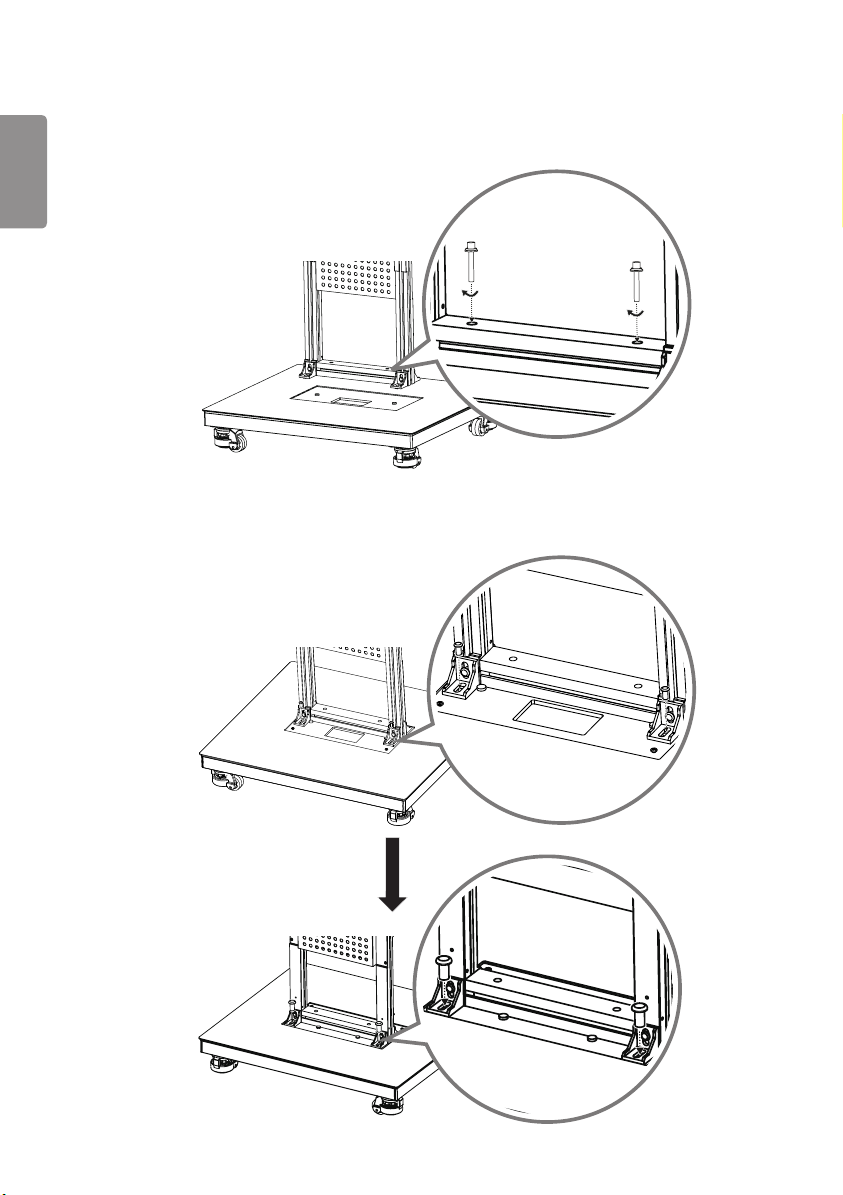

3 After placing the pillar in the indentation of the stand base, fix it in place using the two screws (M8 x

L50) provided.

4 Use the two screws (M8 x L15) provided to attach the angle brackets to the stand base.

Repeat the steps for the rear stand bracket using the two screws (M8 x L15) provided.

ENGLISH

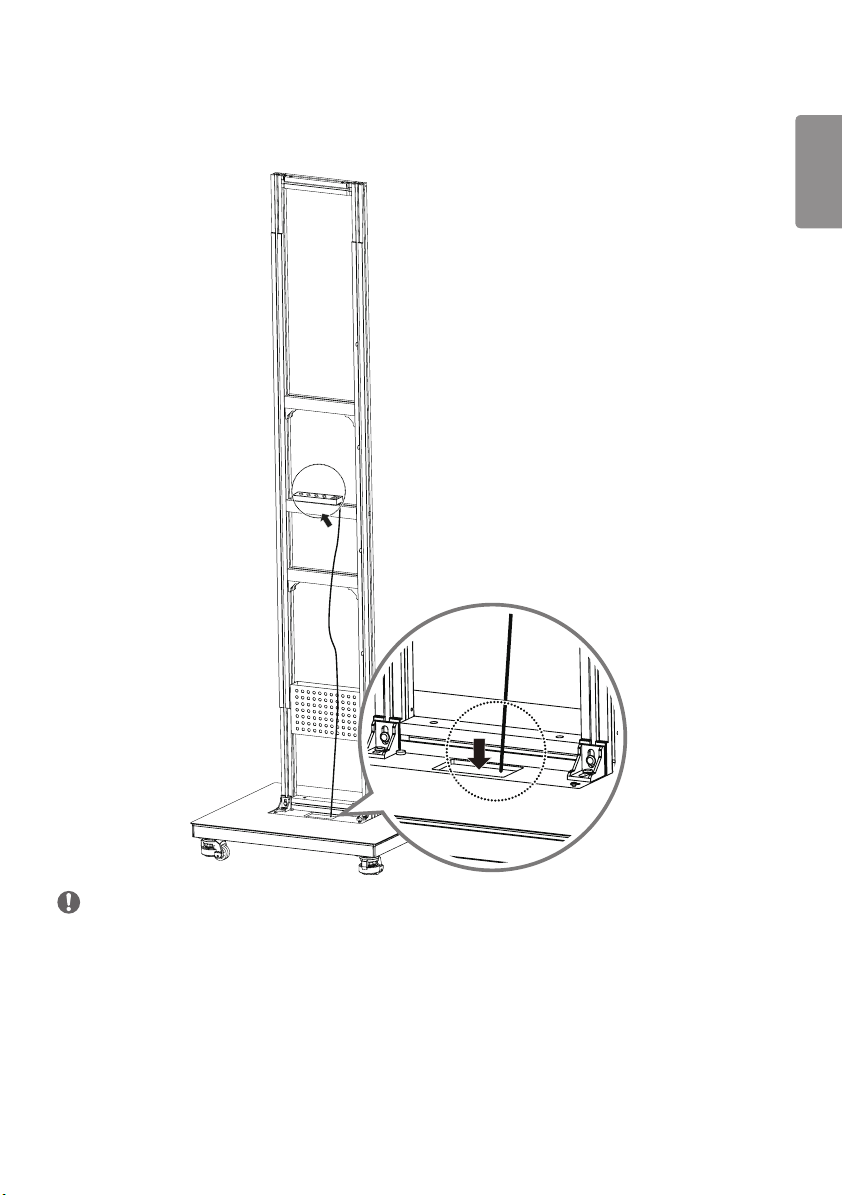

5 Stick the double-sided tape on a power strip and fix it on the middle bar as shown in the image.

6 Put the power cord of the power strip into the hole in the stand base.

NOTE

• Cut the double-sided tape to fit the size of the power strip.

• The shape of the power strip may differ by region.

• Make sure the power cord of the power strip points toward the floor.

• Make sure no parts of the power strip protrude from the middle bar.

If the power strip protrudes from the bar, it may bump against the monitor.

ENGLISH

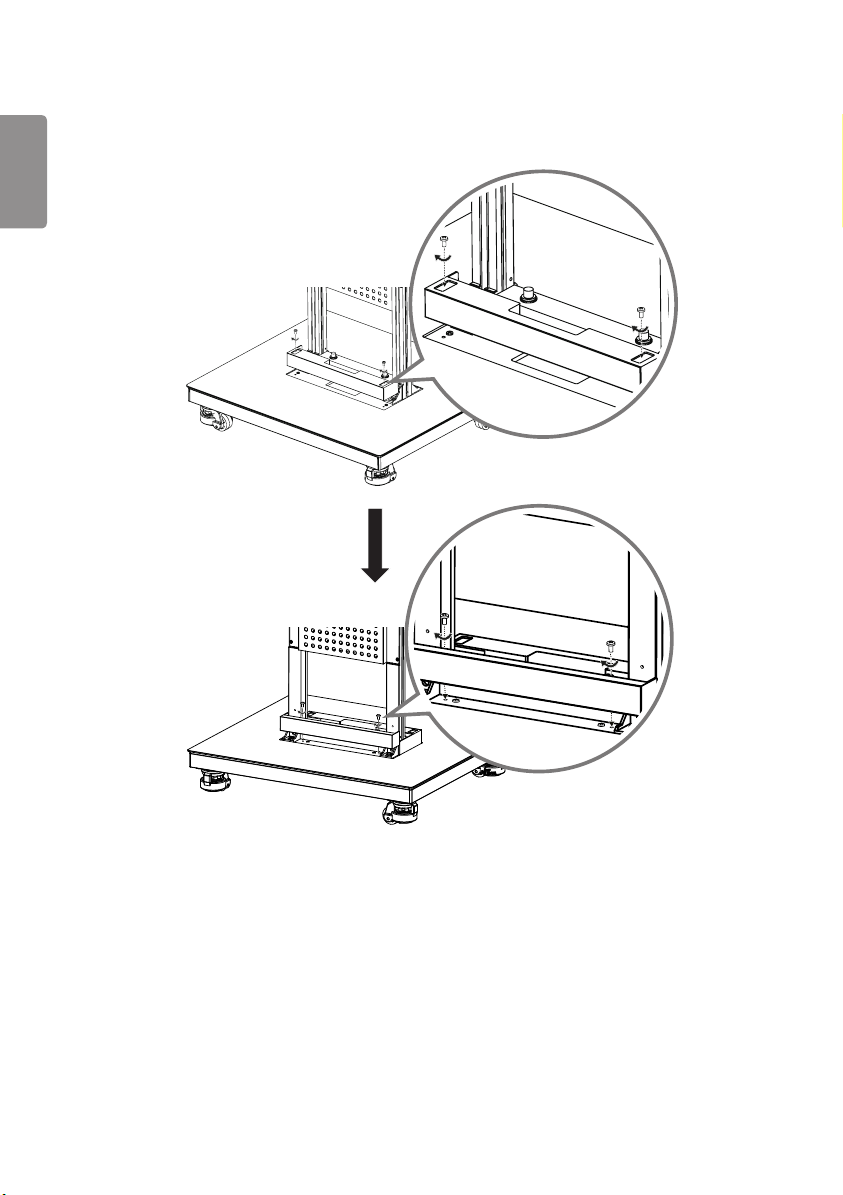

7 Use the two screws (M4 x L12) provided to assemble the front stand bracket onto the stand base.

Repeat the steps for the rear Stand Bracket using the two screws (M4 x L12) provided.

ENGLISH

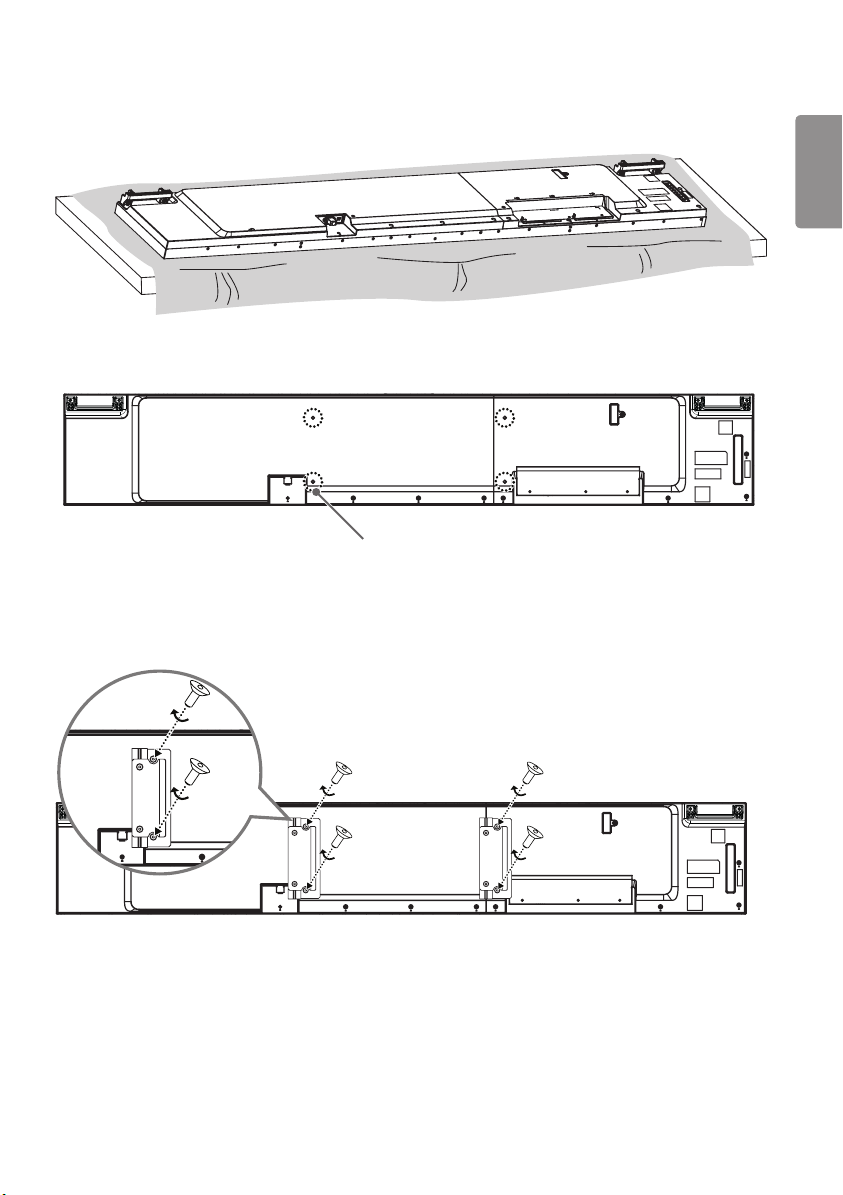

8 Lay a clean cloth on a flat floor, and then put the monitor set on it with the screen face down.

9 Place the fastening brackets on the back of the monitor set, aligning them with the VESA holes.

VESA hole

Use the four screws (M8 x L15) provided and an L-wrench to attach the fastening brackets to the

monitor set.

Make sure the holes in the fastening brackets and the VESA holes are aligned.

ENGLISH

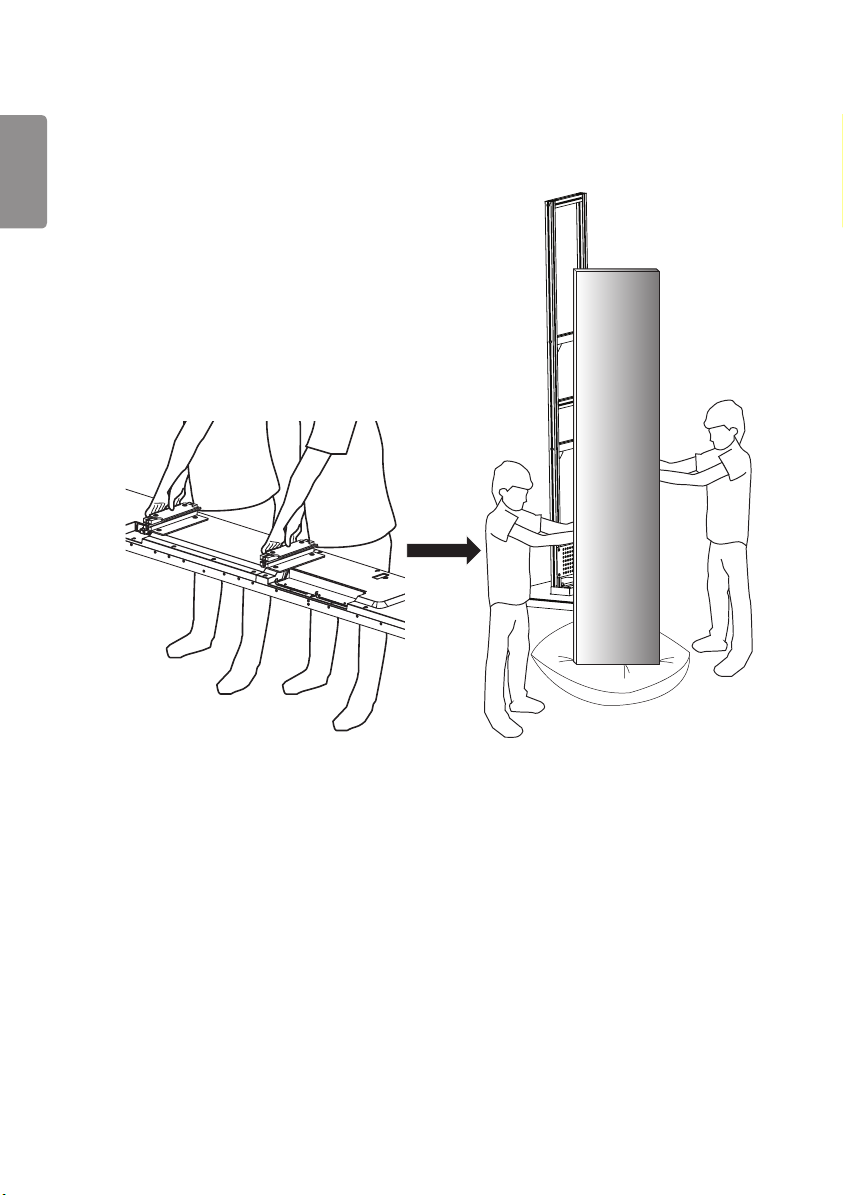

Place a soft cushion next to the pillar attached to the stand base.

(Cushion size: At least 100 mm x 400 mm)

Hold the assembled fastening brackets and use the cushion to set the monitor set upright.
