LG LGSBWAC93 Manuel utilisateur

User Manual

PRODUCT NAME : RF Module

MODEL NAME : LGSBWAC93

(00)-0073

The information contained herein is the exclusive property of LG Innotek

and shall not be distributed, reproduced or disclosed in whole or no in part

without prior written permission of LG Innotek.

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

1/ 9

Index

No Description Page

1 Features 2

2 Picture of Product 2

3 Installation Manual 3

4 Block Diagram 4

5 Absolute Maximum Ratings 4

6 Operating Conditions 5

7 Standard Test Conditions 5

8 Pin Description 6

9 Out Drawing 7

10 Packing Information 8

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

2/ 9

2. Picture of Product

1. Features

TWCM-K504D is the small size and low power module for IEEE 802.11ac wireless LAN

& BT5.0 + HS. TWCM-K504D is based on Mediatek MT7668AUN solution.

IEEE 802.11 a/b/g/n/ac Dual Band Dual Concurrent (DBDC)

Bluetooth 5.0+ HS , BLE

(*This device does not support BT(BT 5.0+ HS, BLE) function as disabled by software.)

Size : 68.0mm x 30.0 x 7.35 mm

Two stream spatial multiplexing up to 300Mbps(802.11n) / 867Mbps(802.11ac)

Use on-chip OTP (One-Time Programmable)

Host Interface : USB2.0 (WLAN & BT)

- This model is using the common USB2.0 to control WLAN and BT

Security : WAPI, WEP, WPA, WPA2, WMM, AES, TKIP, CKP

Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

3/ 9

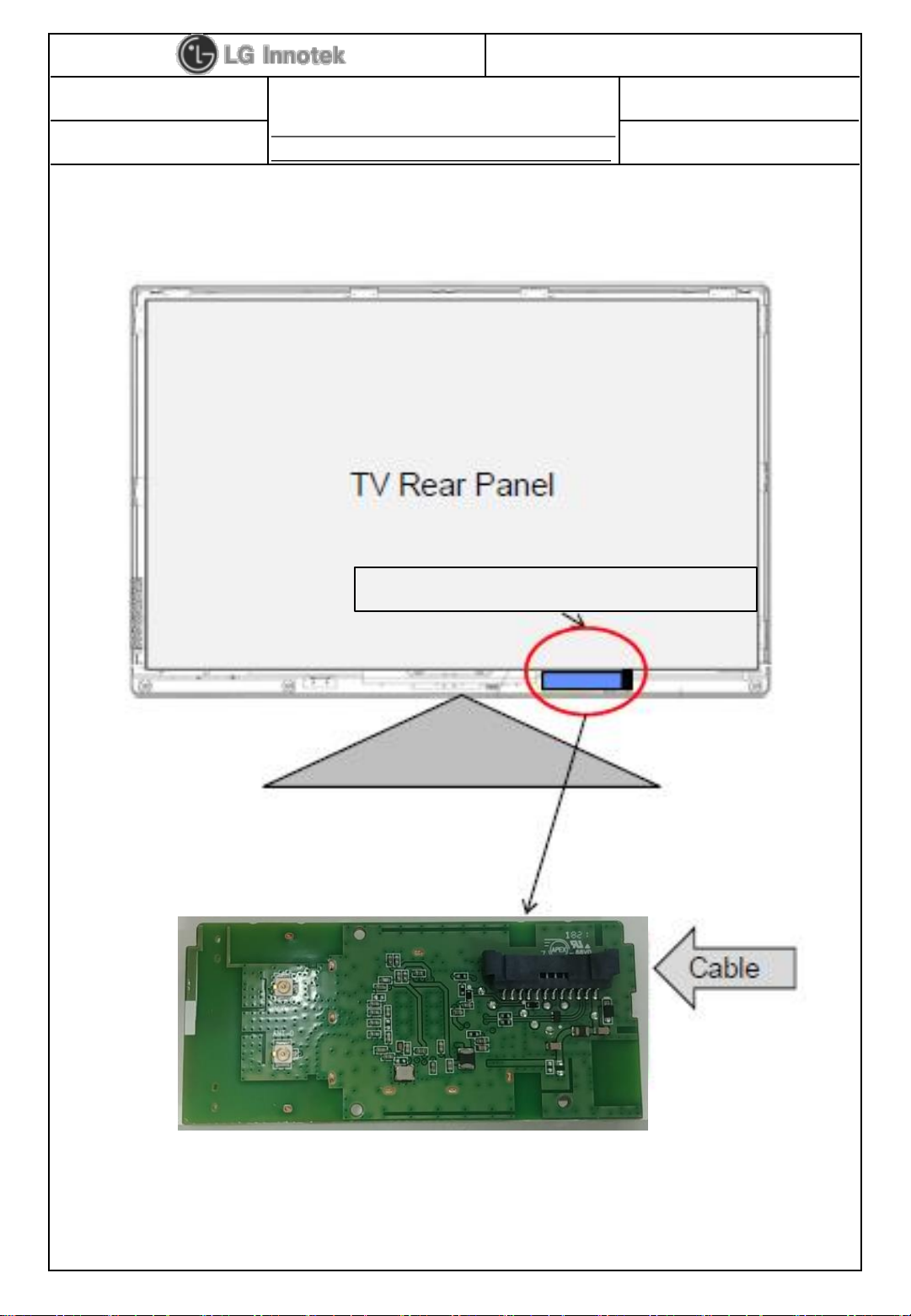

3. Installation Manual

Install the module like below in the back of the TV

TWCM-K504D installed position

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

4/ 9

4. Block Diagram

5. Absolute Maximum Ratings

Parameter Min Max Unit

Storage Temperature -20 +80 ℃

Storage Humidity (40℃) - 90 %

Caution : The specifications in Table 1 define levels at which permanent damage to the

device can occur. Function operation is not guaranteed under these conditions.

Operating at absolute maximum conditions for extend periods can adversely affect the

long-term reliability of the device.

. Other conditions

1) Do not use or store modules in the corrosive atmosphere, especially where chloride

gas, sulfide gas, acid, alkali, salt or the like are contained.

Also, avoid exposure to moisture.

2) Store the modules where the temperature

and relative humidity do not exceed 5 to 40℃and 20 to 60%.

3) Assemble the modules within 6 months.

Check the soldering ability in case of 6 months over.

MT7668AUN

2.4GHz

5GHz

2.4GHz

5GHz

WiFi

32bit

RISC

MCU

WiFi MAC

PMU

USB2.0

Interface

USB I/F 12PIN CONNECTOR

3.3V

Main

Clock

40MHz

Diplexer

ANT2

2.4GHz BT RF RF_CTL

BT ANT PTA

Packet

DMA

WiFi

Baseband

OTP

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

5/ 9

6. Operating Conditions

Parameter Min Typ Max Unit

Ambient Temperature 0 - 60 ℃

Ambient Humidity (40℃) - - 85 %

Supply Voltage 3.135 3.3 3.6 Vdc

7. Standard Test Conditions

The Test for electrical specification shall be performed under the following condition

Otherwise this following conditions, not guaranteed this performance.

Temparature 25 ±5℃

Humidity 65 ±5%

Input Voltage Supply Voltage

VDD_3.3V 3.135 ~ 3.6V

7-1. Ambient condition

7-2. Power supply voltages

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

6/ 9

8. Pin Description

Pin No. Pin Name I/O Pin Description

1VCC I VDD 3.3V

2 D- I/O USB Communication signal USB_DN

3D+ I/O USB Communication signal USB_DP

4 GND - GND

5 WOWL O Wake On WLAN

6VCC I VDD 3.3V

7 RESUME I SUSPEND_RESUME

8 GND - GND

9RESET I Bluetooth device wake up (option)

10 WOBLE O Host wake up.

(Signal from Wi-Fi module to the host)

11 GND - GND

12 VCC - VDD 3.3V

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

7/ 9

9. Outline Drawing

K.S Lee

'19. 03. 27

I.H Park

S.D Chol

'19. 03. 27

3D View

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

8/ 9

10. Packing Information

User Manual

PAGE :

DOCUMENT No :

REG. DATE : 2019.04.03 MODEL NAME: TWCM-K504D(LGIT)

LGSBWAC93(LGE)

REV. DATE : 2019.04.03

REV.NO : V1.0

9/ 9
