Printing

Getting started

Loading paper

1Make sure:

•You use paper designed for inkjet printers.

•If you are using photo, glossy, or heavyweight matte paper, you load it with the glossy or printable side facing

you. (If you are not sure which side is the printable side, see the instructions that came with the paper.)

•The paper is not used or damaged.

•If you are using specialty paper, you follow the instructions that came with it.

•You do not force paper into the printer.

2Before loading paper the first time, slide the paper guides out toward the edges of the paper support.

3Load the paper vertically in the center of the paper support, and adjust the paper guides to rest against the edges

of the paper.

Note: To avoid paper jams, make sure the paper does not buckle when you adjust the paper guides.

Related topics:

•“Loading various paper types” on page 5

Loading various paper types

Load up to Make sure

100 sheets of plain paper •The paper is designed for use with inkjet printers.

•The paper is loaded in the center of the paper support.

•The paper guides rest against the edges of the paper.

50 sheets of heavyweight matte paper

25 sheets of photo paper

25 sheets of glossy paper

•The glossy or printable side of the paper faces you. (If you are not sure

which side is the printable side, see the instructions that came with

the paper.)

•The paper is loaded in the center of the paper support.

•The paper guides rest against the edges of the paper.

Note: Photos require more drying time. Remove each photo as it exits,

and allow it to dry to avoid ink smudging.

Printing

Load up to Make sure

10 envelopes •The print side of the envelopes faces you.

•The stamp location is in the upper left corner.

•The envelopes are designed for use with inkjet printers.

•The envelopes are loaded in the center of the paper support.

•The paper guides rest against the edges of the envelopes.

Warning—Potential Damage: Do not use envelopes that have metal

clasps, string ties, or metal folding bars.

Notes:

–Do not load envelopes with holes, perforations, cutouts, or deep

embossing.

–Do not use envelopes that have exposed flap adhesive.

–Envelopes require more drying time. Remove each envelope as it

exits, and allow it to dry to avoid ink smudging.

25 sheets of labels •The print side of the labels faces you.

•The top of the labels feeds into the printer first.

•The adhesive on the labels does not extend to within 1 mm of the

edge of the label.

•You use full label sheets. Partial sheets (with areas exposed by missing

labels) may cause labels to peel off during printing, resulting in a paper

jam.

•The labels are loaded in the center of the paper support.

•The paper guides rest against the edges of the labels.

Note: Labels require more drying time. Remove each sheet of labels as it

exits, and allow it to dry to avoid ink smudging.

50 transparencies •The rough side of the transparencies faces you.

•If the transparencies have a removable strip, each strip faces away

from you and down toward the printer.

•The transparencies are loaded in the center of the paper support.

•The paper guides rest against the edges of the transparencies.

Notes:

•Transparencies with paper backing sheets are not recommended.

•Transparencies require more drying time. Remove each transparency

as it exits, and allow it to dry to avoid ink smudging.

Printing

Load up to Make sure

10 iron-on transfers •You follow the loading instructions that came with the iron-on

transfers.

•The print side of the transfers faces you.

•The transfers are loaded in the center of the paper support.

•The paper guides rest against the edges of the transfers.

Note: For best results, load transfers one at a time.

25 greeting cards

25 index cards

25 photo cards

25 postcards

•The print side of the cards faces you.

•The cards are loaded in the center of the paper support.

•The paper guides rest against the edges of the cards.

Note: Photo cards require more drying time. Remove each photo card as

it exits, and allow it to dry to avoid ink smudging.

100 sheets of custom-size paper •The print side of the paper faces you.

•The paper size fits within these dimensions:

Width:

–76.2–215.9 mm

–3.0–8.5 inches

Length:

–127.0–355.6 mm

–5.0–14.0 inches

•The paper is loaded in the center of the paper support.

•The paper guides rest against the edges of the paper.

Printing

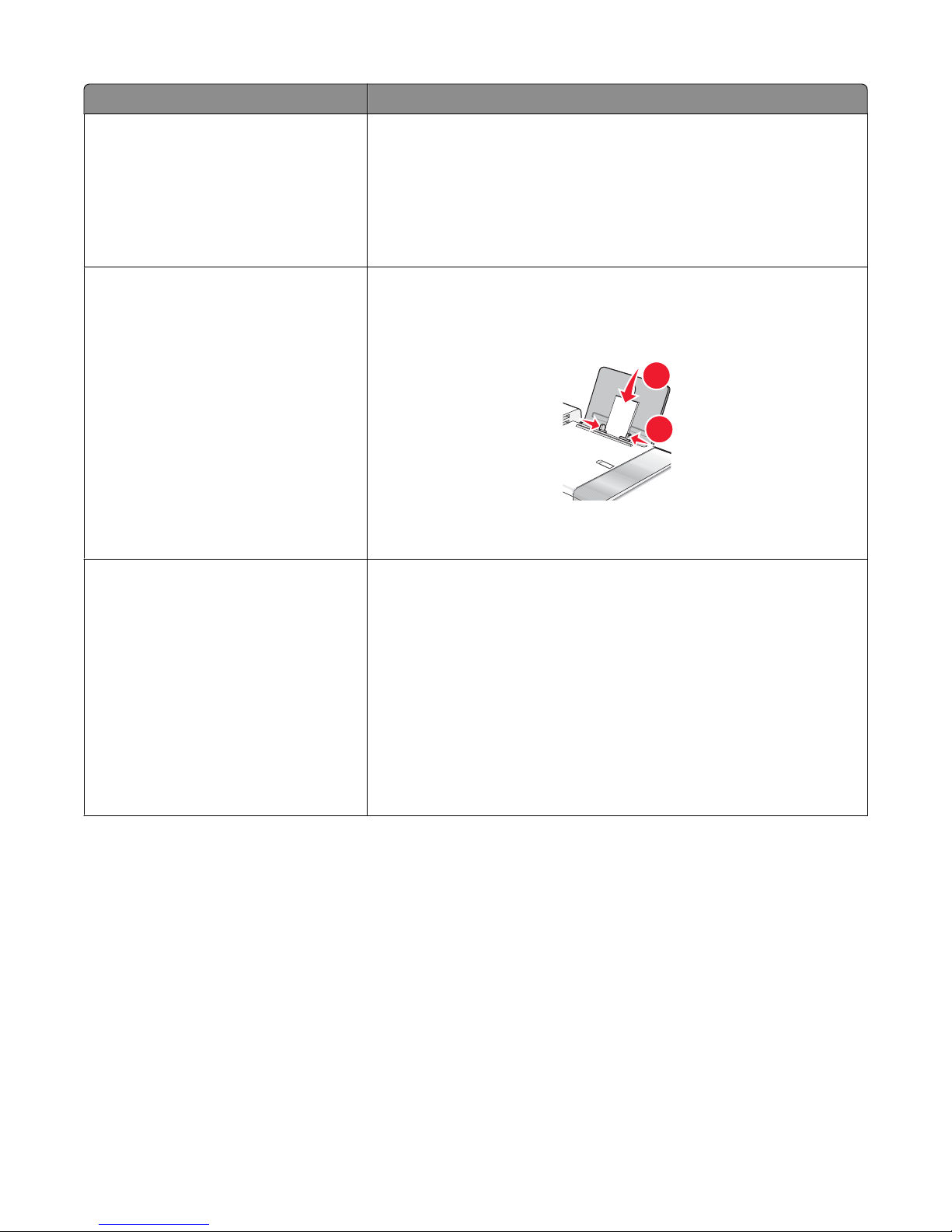

Load up to Make sure

20 sheets of banner paper

•You remove all the paper from the paper support before loading the

banner paper.

•You tear off only the number of pages needed to print the banner.

•You place the required stack of banner paper on the top cover.

•The leading edge of the banner paper feeds into the printer first.

•The paper is loaded in the center of the paper support.

•The paper guides rest against the edges of the paper.

•You have selected the correct paper size for the banner in Page Setup

dialog. For more information, see “Printing a banner” on page 12.

Related topics:

•“Loading paper” on page 5

Performing printing and related tasks

Printing a document

1Load paper.

2With a document open, click File Print.

3From the ”Format for” menu, choose your printer.

4From the third pop-up menu from the top, select the settings you want to adjust, and adjust the settings.

You can specify print quality, the number of copies to print, the type of paper you're printing on, and how you

want the pages to print.

5Click Print.

Related topics:

•“Loading paper” on page 5

•“Using the Print dialog” on page 101

Printing

Printing photos using the computer

1Load photo paper, with the glossy or printable side facing you. (If you are not sure which side is the printable side,

see the instructions that came with the paper.) For more information, see “Loading paper” on page 5.

2Customize the settings as needed in the Page Setup dialog.

aWith a photo open, choose File Page Setup.

bFrom the “Format for” pop-up menu, choose 5400 Series.

cFrom the Paper Size pop-up menu, choose the paper size loaded.

dChoose an orientation.

eClick OK.

3Customize the settings as needed in the Print dialog.

aWith a photo open, choose File Print.

bFrom the Printer pop-up menu, choose 5400 Series.

cFor Mac OS X version 10.4 or later, click Advanced. Otherwise, proceed to the next step.

dFrom the Copies & Pages pop-up menu, type the number of copies to be printed.

eFrom the same pop-up menu, choose Quality & Media.

•From the Paper Type pop-up menu, choose the type of paper you are using.

•From the Print Quality area, choose Automatic or Photo.

fClick Print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24

hours before stacking, displaying, or storing.

Related topics:

•“Enhancing photo print quality using the software” on page 84

Printing borderless photos

From your software application, set the page margins to zero, and then adjust the image on the screen so that it

covers the entire page.

Note: Some applications do not support margin setting.

1Load photo or glossy paper, with the glossy or printable side facing you. (If you are not sure which side is the

printable side, see the instructions that came with the paper.) For more information, see “Loading paper” on

page 5.

2Customize the settings as needed in the Page Setup dialog.

aWith a photo open, choose File Page Setup.

bFrom the “Format for” pop-up menu, choose 5400 Series.

cFrom the Paper Size pop-up menu, choose the paper size loaded.

Note: Make sure you choose an option that has (Borderless) in it. For example, if you loaded letter-size photo

paper, choose US Letter (Borderless).

Printing

dChoose an orientation.

eClick OK.

3Customize the settings as needed in the Print dialog.

aWith a photo open, choose File Print.

bFrom the Printer pop-up menu, choose 5400 Series.

cFor Mac OS X version 10.4 or later, click Advanced. Otherwise, proceed to the next step.

dFrom the Copies & Pages pop-up menu, type the number of copies to be printed.

eFrom the same pop-up menu, choose Quality & Media.

•From the Paper Type pop-up menu, choose the type of paper you are using.

•From the Print Quality area, choose Automatic or Photo.

fClick Print.

Note: To prevent smudging or scratching, avoid touching the printed surface with your fingers or sharp objects. For

best results, remove each printed sheet individually from the paper exit tray, and allow the prints to dry at least 24

hours before stacking, displaying, or storing.

Related topics:

•“Enhancing photo print quality using the software” on page 84

Printing cards

1Load greeting cards, index cards, or postcards.

Notes:

•Make sure the thickness of each card does not exceed 0.020 inch (0.50 mm).

•Make sure the print side of the card faces you.

2Customize the settings as needed in the Page Setup dialog.

aWith a document open, click File Page Setup.

bFrom the “Format for” pop-up menu, choose 5400 Series.

cFrom the Paper Size pop-up menu, choose a card size.

dChoose an orientation.

eClick OK.

3Customize the settings as needed in the Print dialog.

aFrom the software application, click File Print.

bFrom the Printer pop-up menu, choose 5400 Series.

cClick Print.

Notes:

•To avoid paper jams, do not force the cards into the printer.

•To prevent smudging, remove each card as it exits, and let it dry before stacking.

Related topics:

•“Loading various paper types” on page 5

Printing

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Lexmark Imprimante tout-en-un

Lexmark

Lexmark X500 Manuel d'utilisation

Lexmark

Lexmark X6100 Manuel utilisateur

Lexmark

Lexmark X950 Series Manuel utilisateur

Lexmark

Lexmark CX310 series Manuel utilisateur

Lexmark

Lexmark W840 Manuel utilisateur

Lexmark

Lexmark MX810 Series Instructions d'installation et d'entretien

Lexmark

Lexmark X940E Manuel utilisateur

Lexmark

Lexmark X63 Manuel utilisateur

Lexmark

Lexmark X746 Manuel utilisateur

Lexmark

Lexmark 4300 Manuel utilisateur

Lexmark

Lexmark CX522 Manuel utilisateur

Lexmark

Lexmark Interpret S405 Manuel utilisateur

Lexmark

Lexmark OptraImage 232 Manuel utilisateur

Lexmark

Lexmark X642 Manuel utilisateur

Lexmark

Lexmark X651DE Manuel utilisateur

Lexmark

Lexmark XM1145 Manuel utilisateur

Lexmark

Lexmark CX410E Manuel utilisateur

Lexmark

Lexmark MB2442adwe Manuel utilisateur

Lexmark

Lexmark 201 Manuel utilisateur

Lexmark

Lexmark OptraImage Color 1200m Manuel d'installation et d'exploitation

Lexmark

Lexmark X86x Manuel utilisateur

Lexmark

Lexmark X95x Manuel utilisateur

Lexmark

Lexmark X73 - X 73 Color Inkjet Manuel utilisateur

Lexmark

Lexmark MX510 Series Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Brother

Brother MFC-9760 Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Canon

Canon ImageCLASS 2300 Manuel

Ricoh

Ricoh Pro C900 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur

Copystar

Copystar CS 4551ci Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 4650EN Manuel utilisateur

Brother

Brother MFC-9840CDW Manuel utilisateur
