Lexmark X83 Manuel utilisateur

Lexmark X83, X85 Scan / Print / Copy

4403-XXX

Extracted From Service Manual

Edition: October 2002

The following paragraph does not apply to any country where such provisions are

inconsistent with local law: LEXMARK INTERNATIONAL, INC. PROVIDES THIS

PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do

not allow disclaimer of express or implied warranties in certain transactions; therefore, this

statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are

periodically made to the information herein; these changes will be incorporated in later

editions. Improvements or changes in the products or the programs described may be

made at any time.

Comments may be addressed to Lexmark International, Inc., Department D22A/032-2,

740 West New Circle Road, Lexington, Kentucky 40550, U.S.A or e-mail at

ServiceInfoAndTraining@Lexmark.com. Lexmark may use or distribute any of the

information you supply in any way it believes appropriate without incurring any obligation

to you. You can purchase additional copies of publications related to this product by

calling 1-800-553-9727. In other countries, contact your point of purchase.

Lexmark is a trademark of Lexmark International, Inc., registered in the United States

and/or other countries.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,

Lexington, KY 40550.

4403-XXX

U.S.A. P/N: 12G9186

Parts Catalog 7-1

4403-XXX

7. Parts Catalog

How to Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are shown on the same list. Common parts

are shown by one index number. Parts peculiar to one or the

other of the assemblies are listed separately and identified by

description.

•NS: (Not Shown) in the Asm-Index column indicates that the

part is procurable but is not pictured in the illustration.

•PP: in the parts description column indicates the part is

available in the listed parts packet.

•NA: Not available as a FRU.

7-2 Service Manual

4403-XXX

Assembly 1: Covers

Parts Catalog 7-3

4403-XXX

Assembly 1: Covers

Asm-

Index Part

Number Units Description

1–1 12G6141 1 Cover Assembly, Rear

–1 56P1274 1 Cover Assembly, Rear (X85)

–2 12G6140 1 Felt Pad Assembly

–3 12G6138 1 Base Assembly

–3 56P1272 1 Base Assembly (X85)

–4 12G6135 1 Cover, Right

–4 56P1270 1 Cover, Right (X85)

–5 12G6133 1 Cover, Access with Latch

–5 56P1268 1 Cover, Access with Latch (X85)

–6 12G6139 1 Paper Exit Tray

–6 56P1273 1 Paper Exit Tray (X85)

–7 12G6134 1 Cover, Left

–7 56P1269 1 Cover, Left (X85)

NS 56P1275 1 Operator Panel Overlays

NS 12G6156 4 Screws (Parts Packet)

NS 7366857 1 Plain package B/M includes: Carton, Cushion

Set, and Sealing Tape

7-4 Service Manual

4403-XXX

Assembly 1 (cont.): Covers

Parts Catalog 7-5

4403-XXX

Assembly 1 (cont.): Covers

Assembly 1: Covers

Asm-

Index Part

Number Units Description

1–1 12G6129 1 Scanner Lid Assembly

–1 56P1266 1 Scanner Lid Assembly (X85)

–2 12G6136 1 Paper Support ASF

–2 56P1271 1 Paper Support ASF (X85)

–3 12G6126 1 Top Housing Assembly

–3 56P1262 1 Top Housing Assembly (X85)

–4 12G6122 1 Middle Frame Assembly

–4 56P1261 1 Middle Frame Assembly (X85)

–5 12G6150 1 Belt, Scanner

7-6 Service Manual

4403-XXX

Assembly 2: Paper Feed, Frame and Carrier

Transport

Parts Catalog 7-7

4403-XXX

Assembly 2: Paper Feed, Frame and Carrier Transport

Asm-

Index Part

Number Units Description

2–1 12G6121 1 ASF Module

–1 56P1260 1 ASF Module (X85)

–2 12G6120 1 Printing Engine

–3 12G6151 1 Encoder Strip with Clip

–4 12G6123 1 Idler Pulley Assembly

–5 12G6149 1 Belt, Carrier

–6 12G6154 1 Maintenance Station Assembly

NS 12G6153 1 EOF Flag with Spring

7-8 Service Manual

4403-XXX

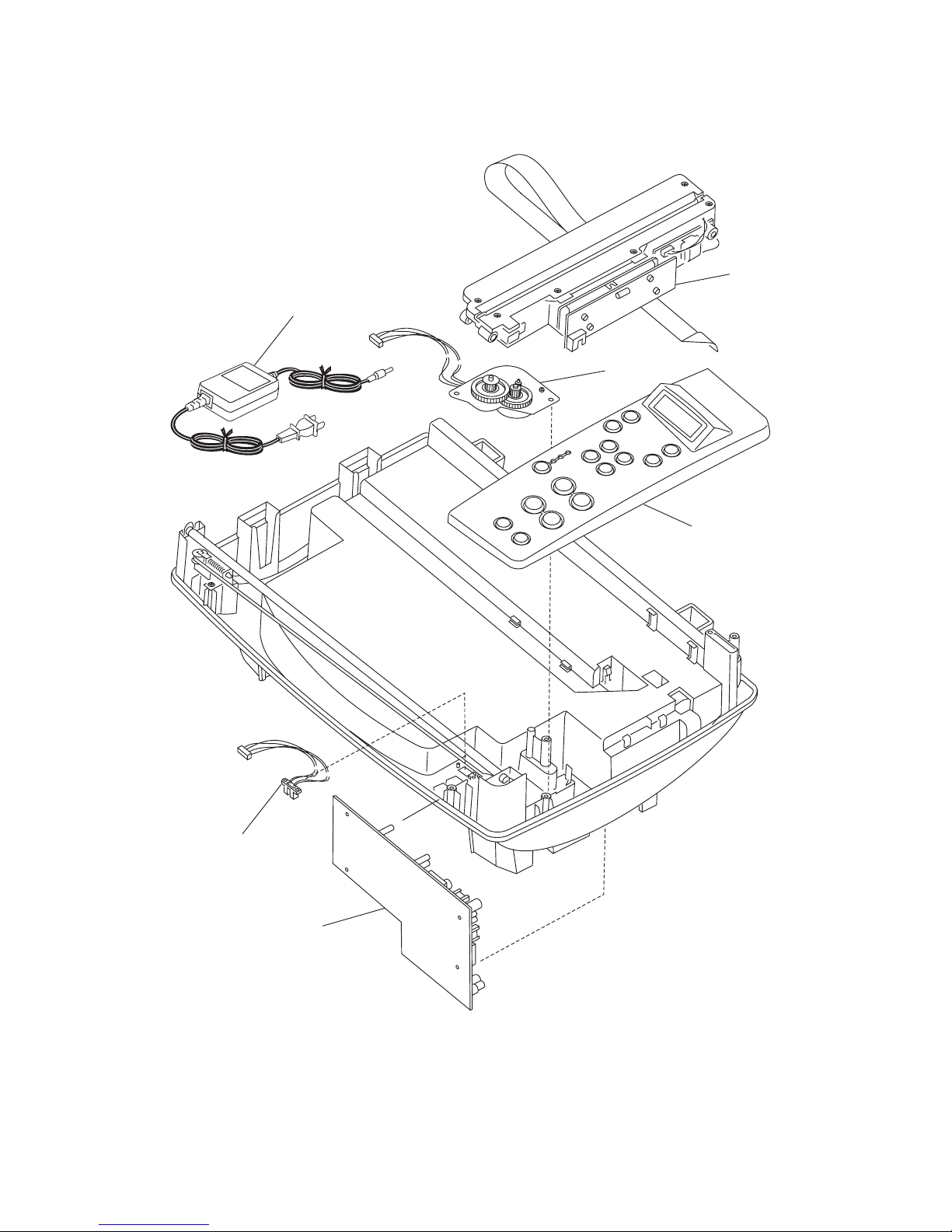

Assembly 3: Electronics
