LevelOne

KCM-0832 / KCM-1632

8 / 16-Port KVM Module

Quick Installation Guide

PackageChecklist

KCM-0832 or KCM 1632

Quick Installation Guide

Introduction

Each Host port connectoris HDDB15 type. The 3-in-1 VGA cable has a HDDB15 male connectorat one end, plug it into PC

port of KVM switch back panel, and plug theother end’s connectors to PC VGA port, and if

■PS/2 Computers --- Connect PS/2 keyboard connectorto keyboard port, and PS/2 mouse connectorto mouse port.

■USB Computers --- connect PS/2-USB changerto PS/2 keyboard connector, then plug the changerinto available USB

port. This single USB port can communicate both keyboard and mouse signals. It works as a standard HID (Human

Interface Device), no extra driver needed.

■Note: the PS/2 mouse connectorshould be left disconnected.

HardwareInstallation

Before installation, please make sure all of peripherals and computers have been turned off.

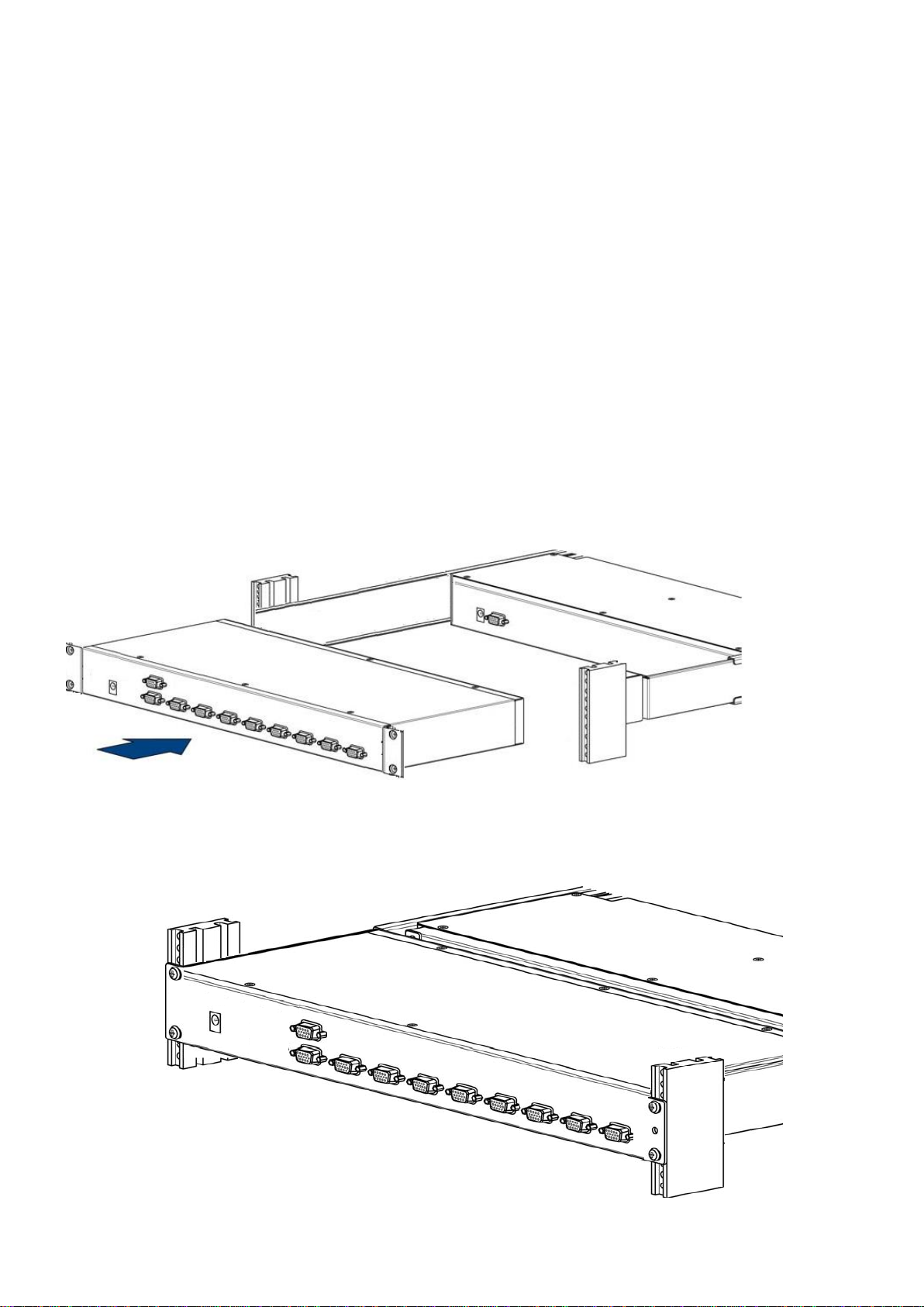

Install ModularKVMSwitch

1. Push KVM switch into the rails from rear of cabinet.

2. Slide the unit into therack and secure it to the rack.

Install the Computer/Server on Host Side

Local Console --- Connect the keyboard, mouse and monitor to the local consoleports.

The recommended Power Up sequence is as follows: monitor, KVM Switch, finally the computers.

Hotkeys& OSD

The table blow lists all supported hotkey commands.

Command

Function

Space bar

Bring up the OSD overlay screen

↑or↓

Moving Up or Down

[1,2,..,8] bank,

[01, 02,..,32] port

■The first digit is bank number starting with “1”. The first KVM

switch unit on the Daisy chain line is of bank 1 (the Master). A

standalone KVM switch is fixed in bank 1.

■The second & third digits are port number starting with “01”

PgUp

Previous bank

PgDn

Next bank

To enable/disable beep sound function

To enable/disable theScreen Saving function and 10min

auto-logout function. This function is default OFF (Disable).

To enable Firmware upgrade function

To log out the OSD. If Security is enabled it will showup the Login

window waiting for username and password.If Security is disabled

it will showup the Status window

For SUPERVISOR to set the OSD back to factory default value

(except User Security settings).

For SUPERVISOR to activate the Auto-Scan function

For SUPERVISOR to enable/disable Security function. If the

Security is off, we don’t need user name & password to access to the

KVM system. This function is default OFF (Disable).

Example #1 –To bring up the OSD overlay window, press “Caps Lock”, “Caps Lock”, and the “Space Bar”. Immediately,

the OSD overlay screen will appear. The superimposed menu screen is generated by the KVM switch, and does not affect your

computers or software function in any way.

Example #2 –To switch to Bank 1 Port1, press “Caps Lock”, “Caps Lock”, and “1”, “0”, “1”.

Caps

Lock

Caps

Lock

Caps

Lock

Caps

Lock

Space Bar

please enter next key in

2 seconds in the

Hotkey sequence

please enter next key in

2 seconds in the

Hotkey sequence
